Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 18 images and 2 PNC and OE references.

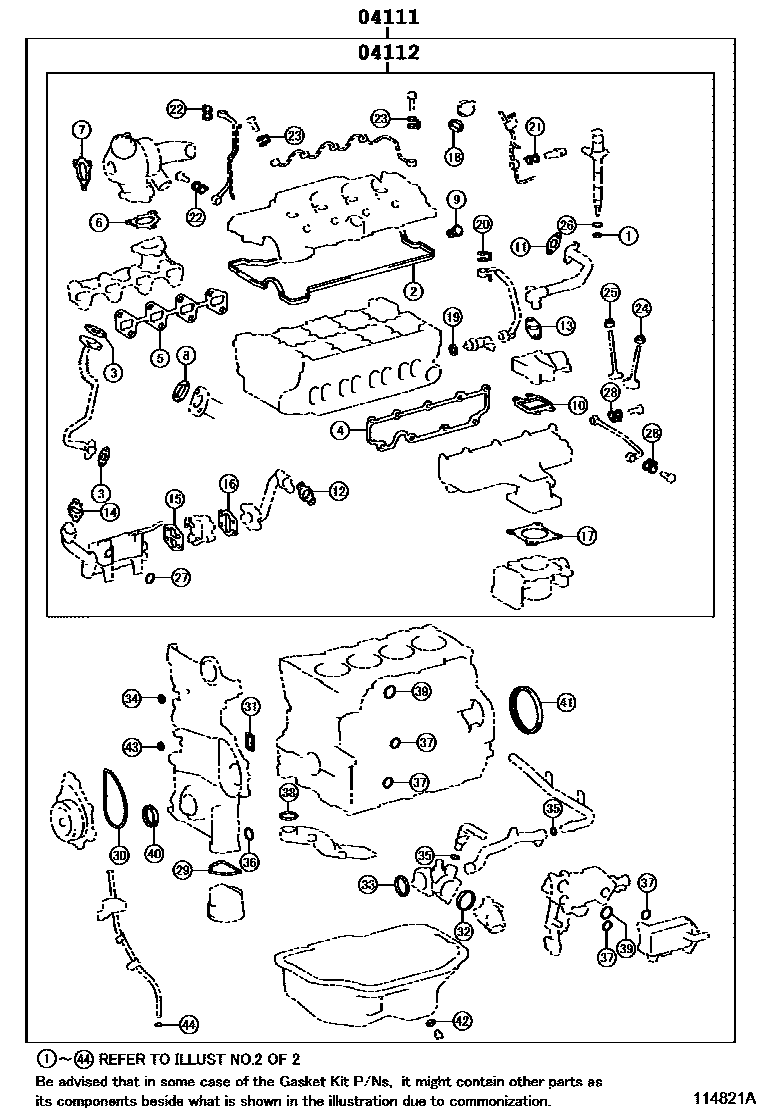

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 114821A
Engine Overhaul Gasket Kit — 114821A (200802 – 200903)

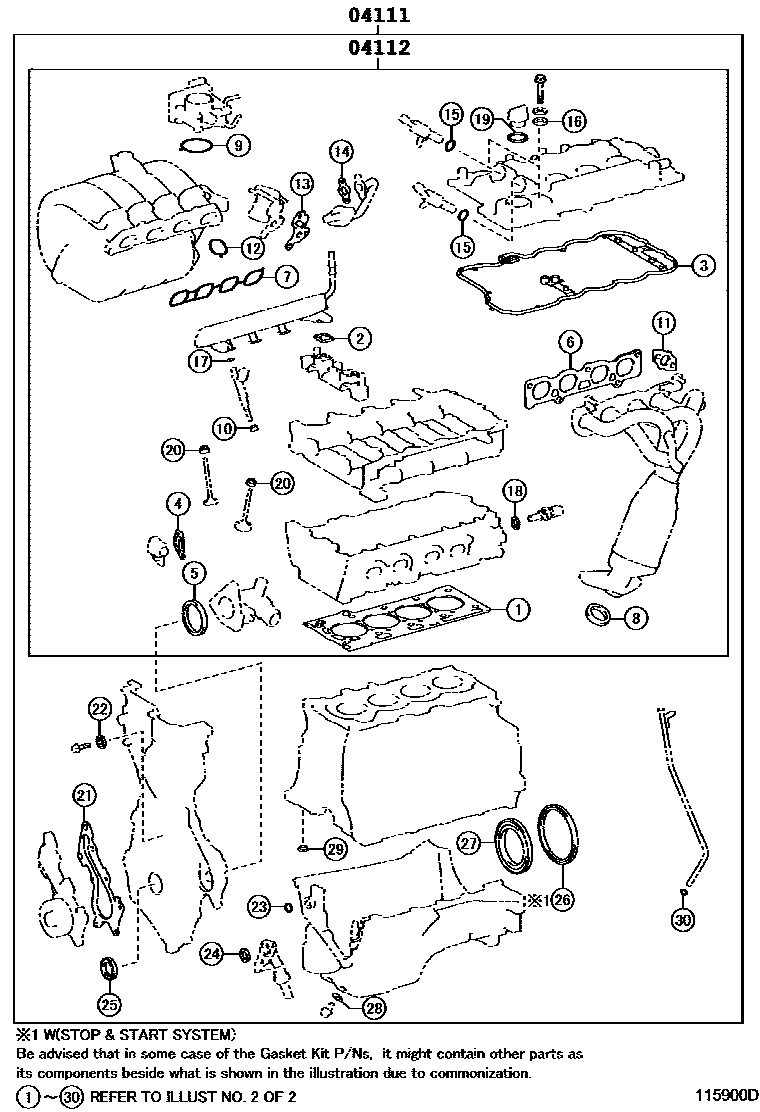

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115900D
Engine Overhaul Gasket Kit — 115900D (200902 – 999999)

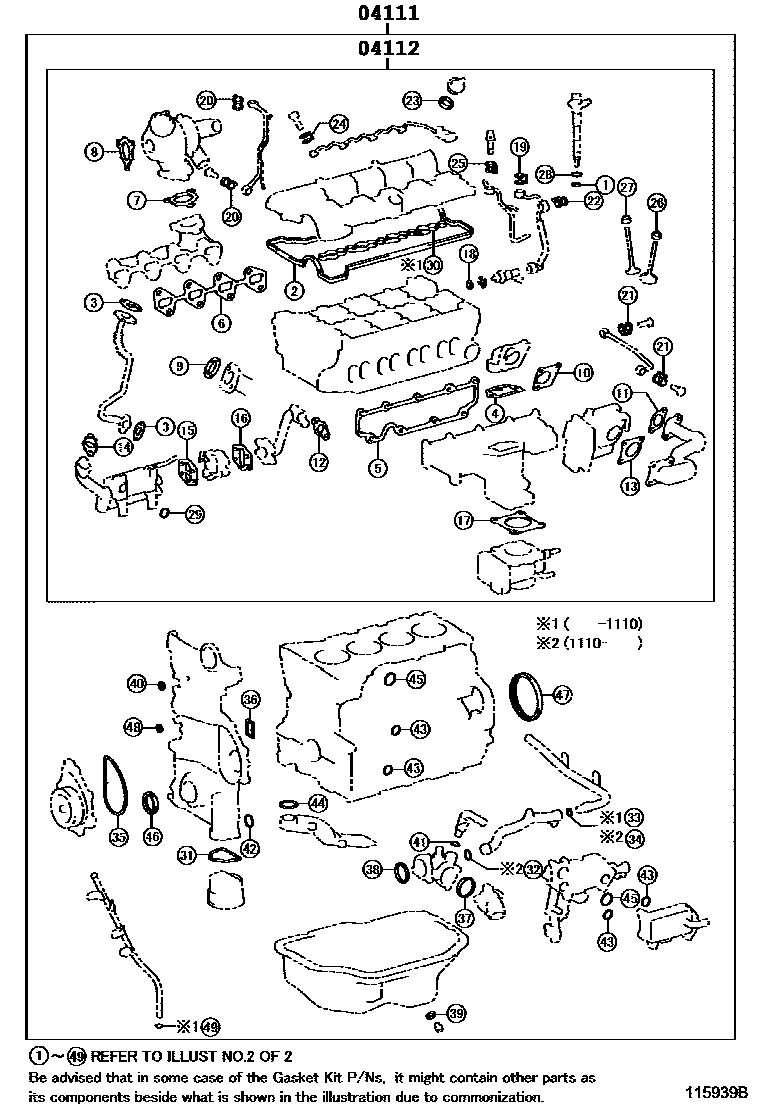

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115939B
Engine Overhaul Gasket Kit — 115939B (200903 – 999999)

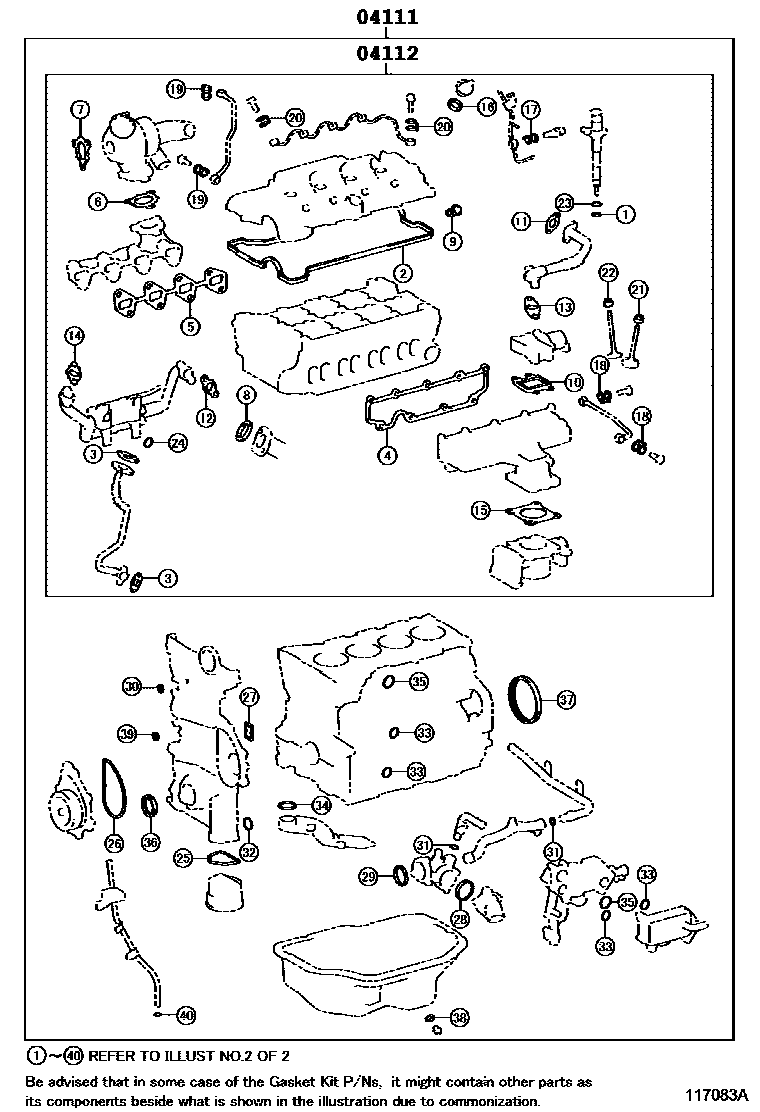

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117083A
Engine Overhaul Gasket Kit — 117083A (200802 – 999999)

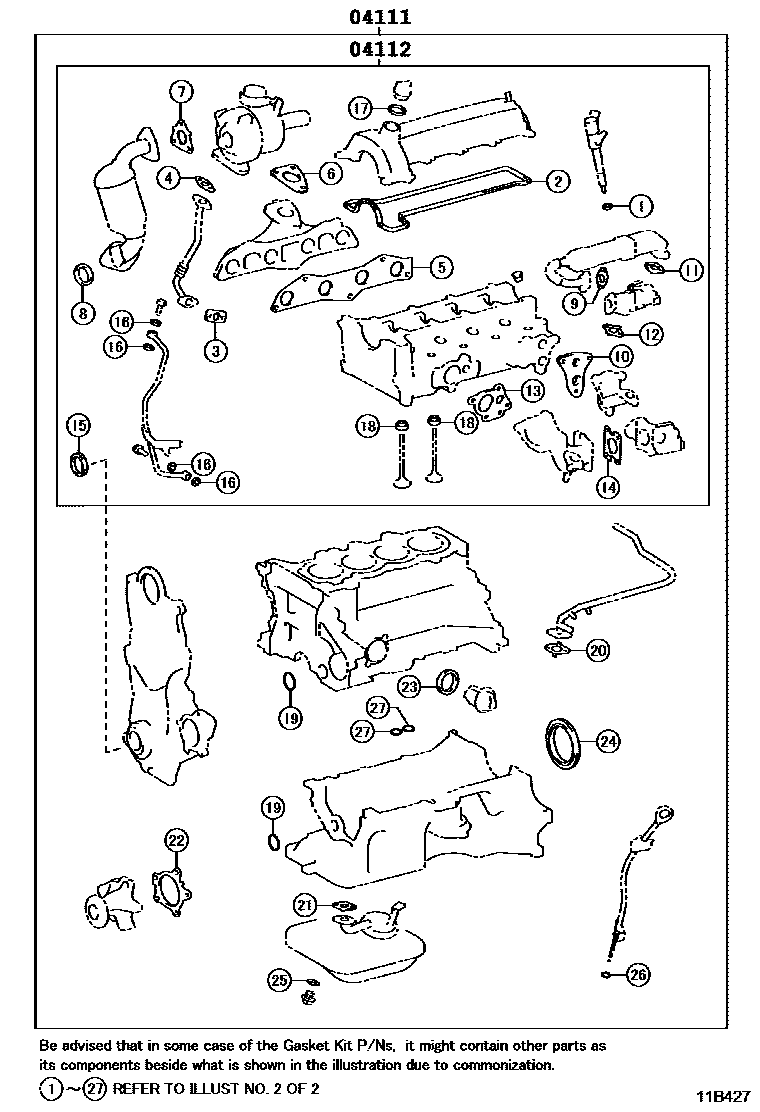

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B427
Engine Overhaul Gasket Kit — 11B427 (200802 – 200902)

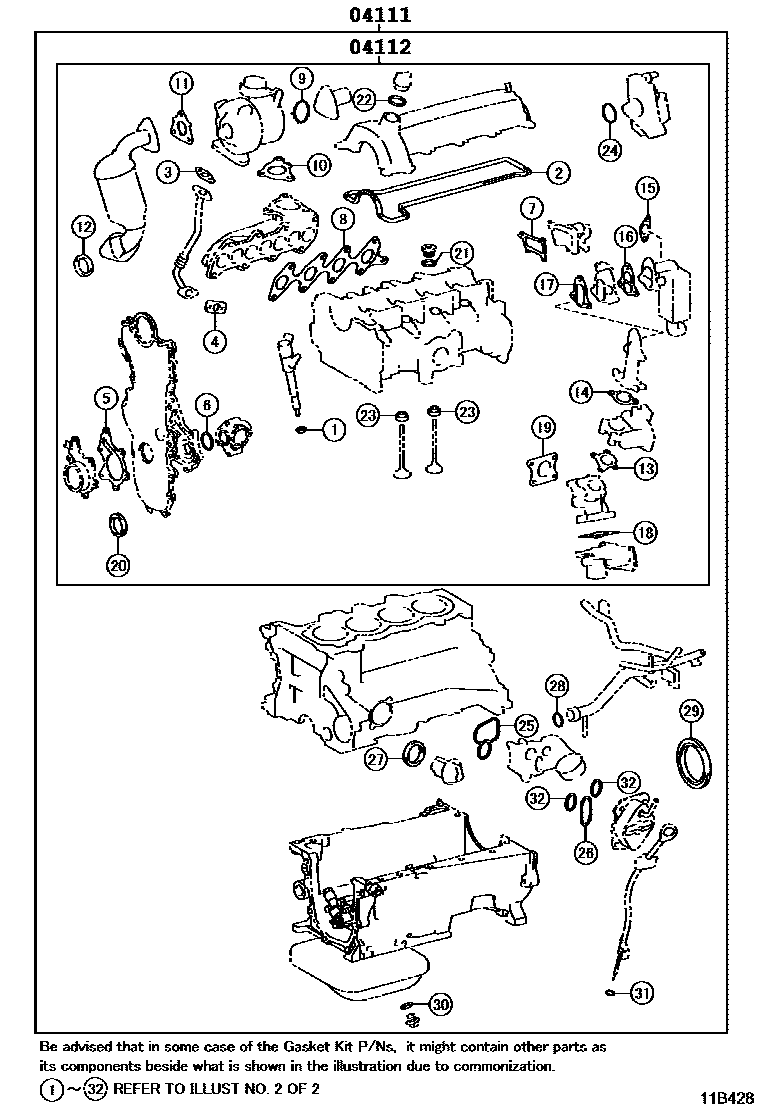

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B428
Engine Overhaul Gasket Kit — 11B428 (200902 – 999999)

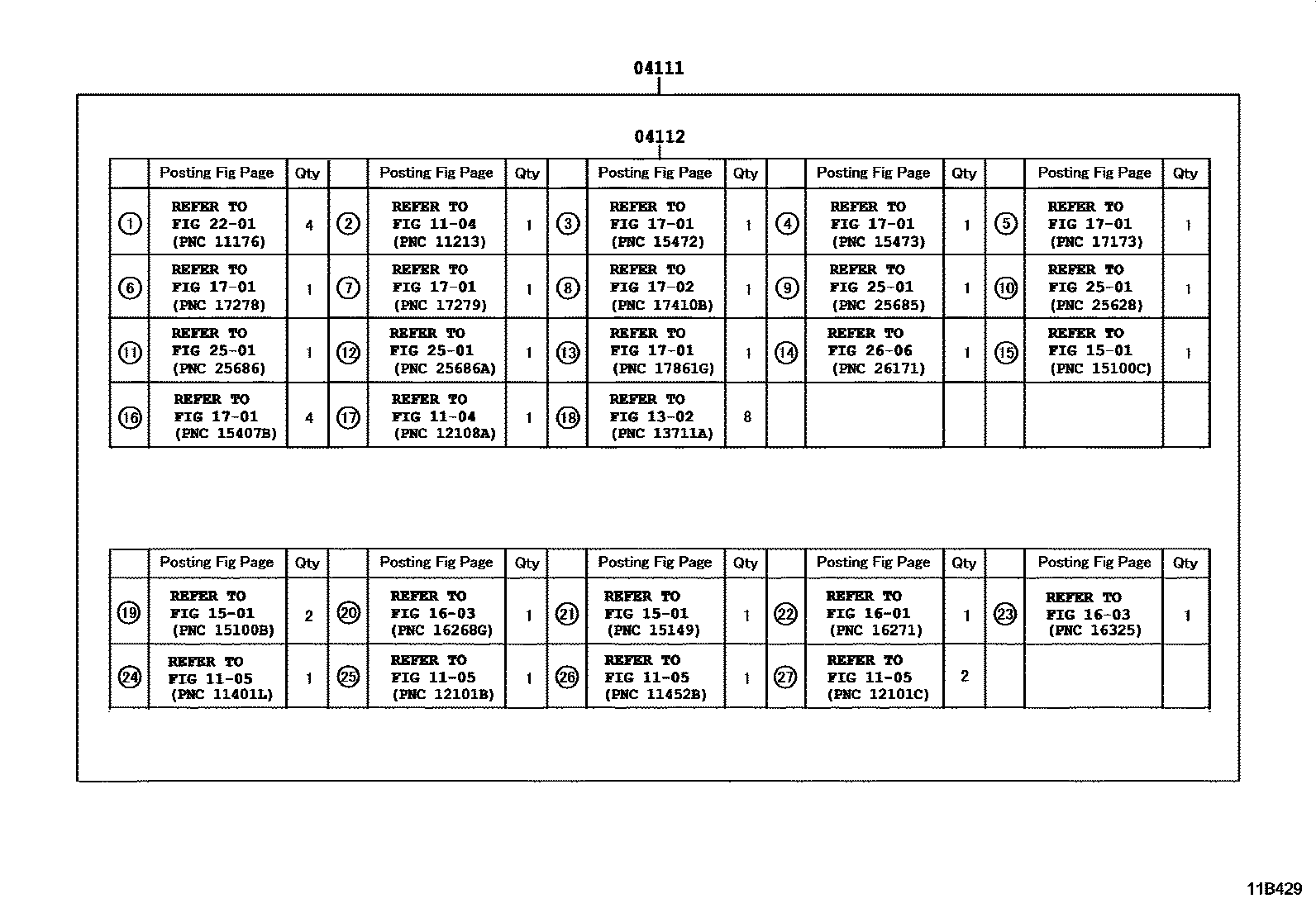

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B429
Engine Overhaul Gasket Kit — 11B429 (200802 – 200902)

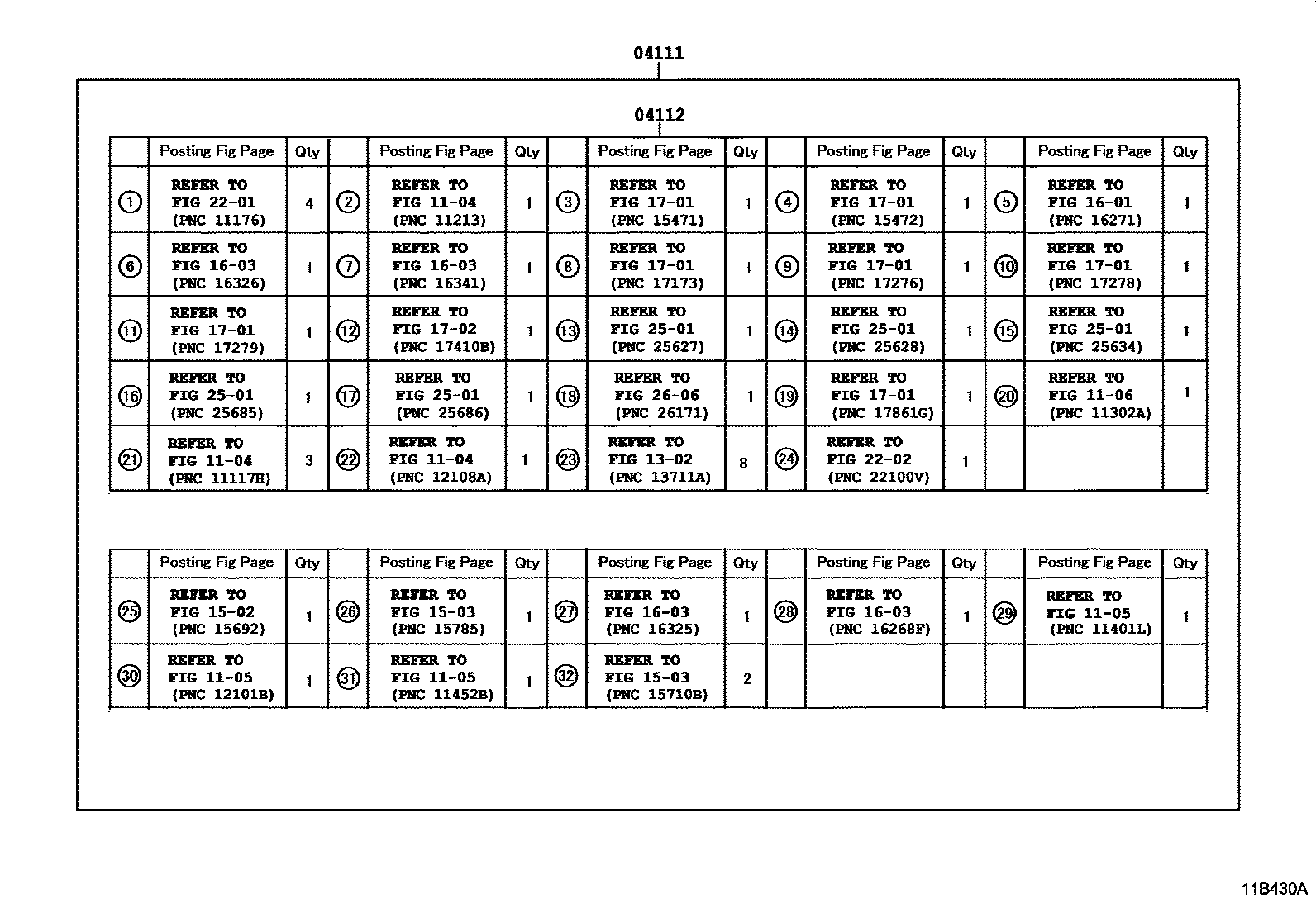

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B430A
Engine Overhaul Gasket Kit — 11B430A (200902 – 999999)

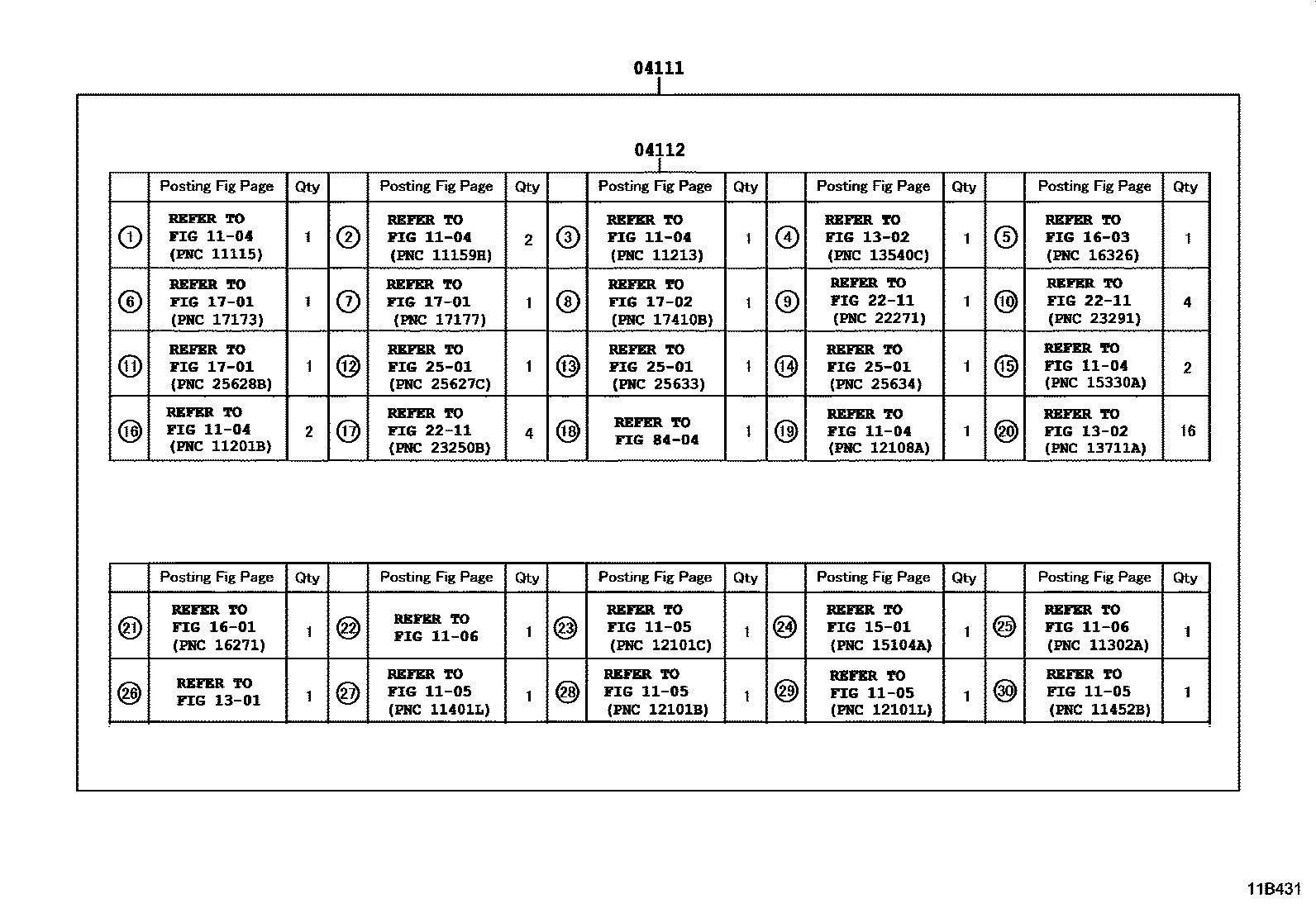

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B431
Engine Overhaul Gasket Kit — 11B431 (200902 – 999999)

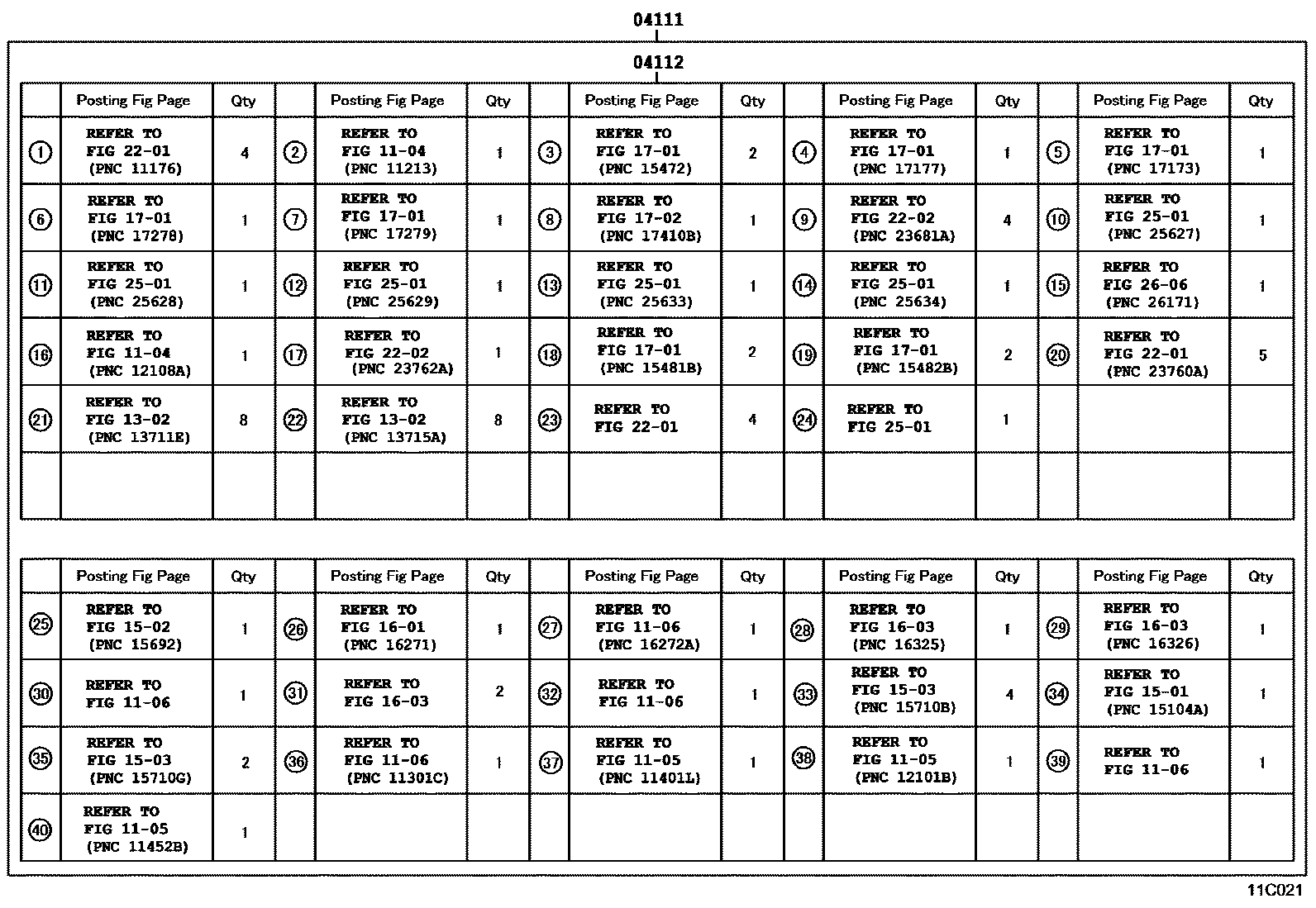

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C021
Engine Overhaul Gasket Kit — 11C021 (200802 – 999999)

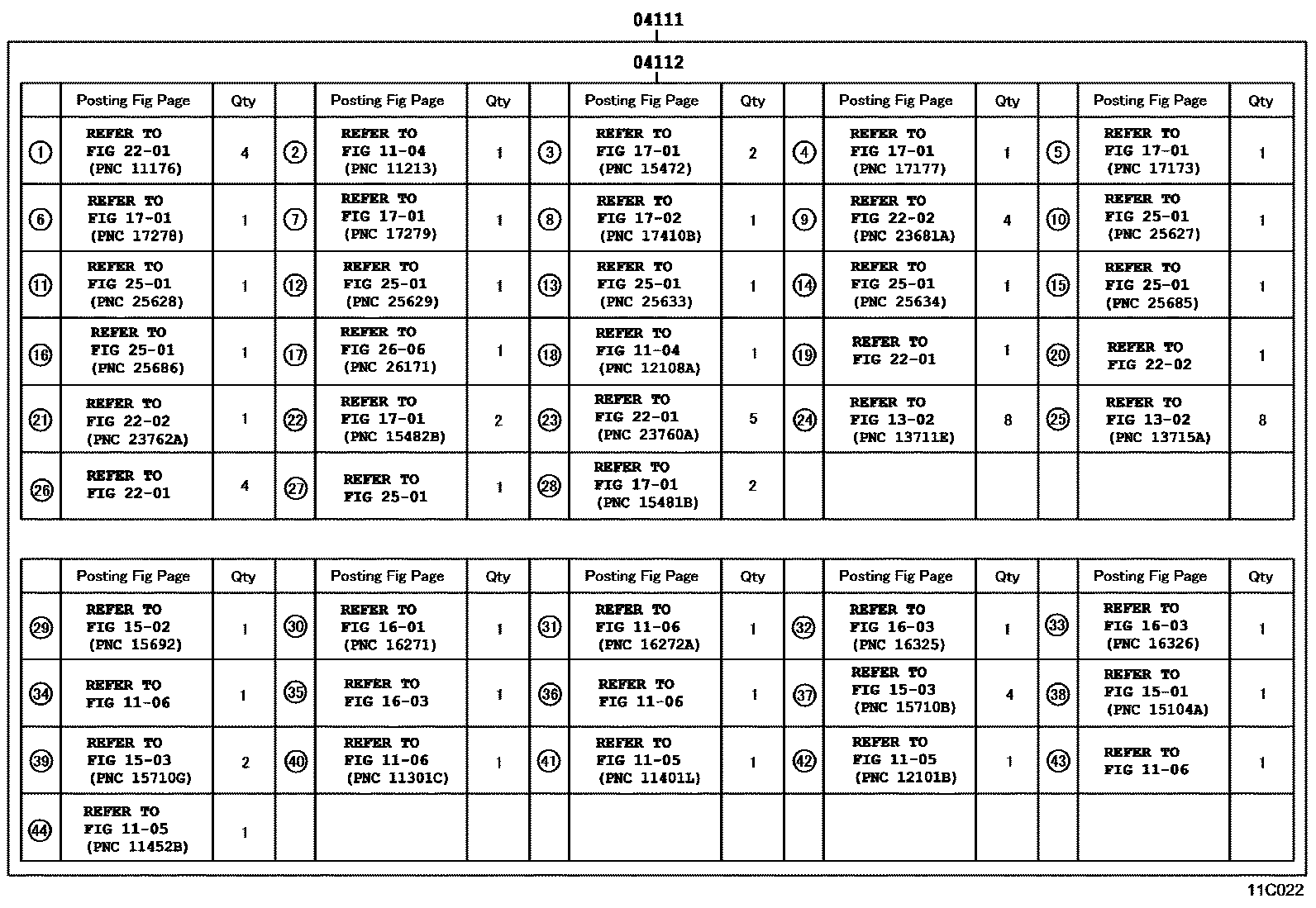

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C022
Engine Overhaul Gasket Kit — 11C022 (200802 – 200903)

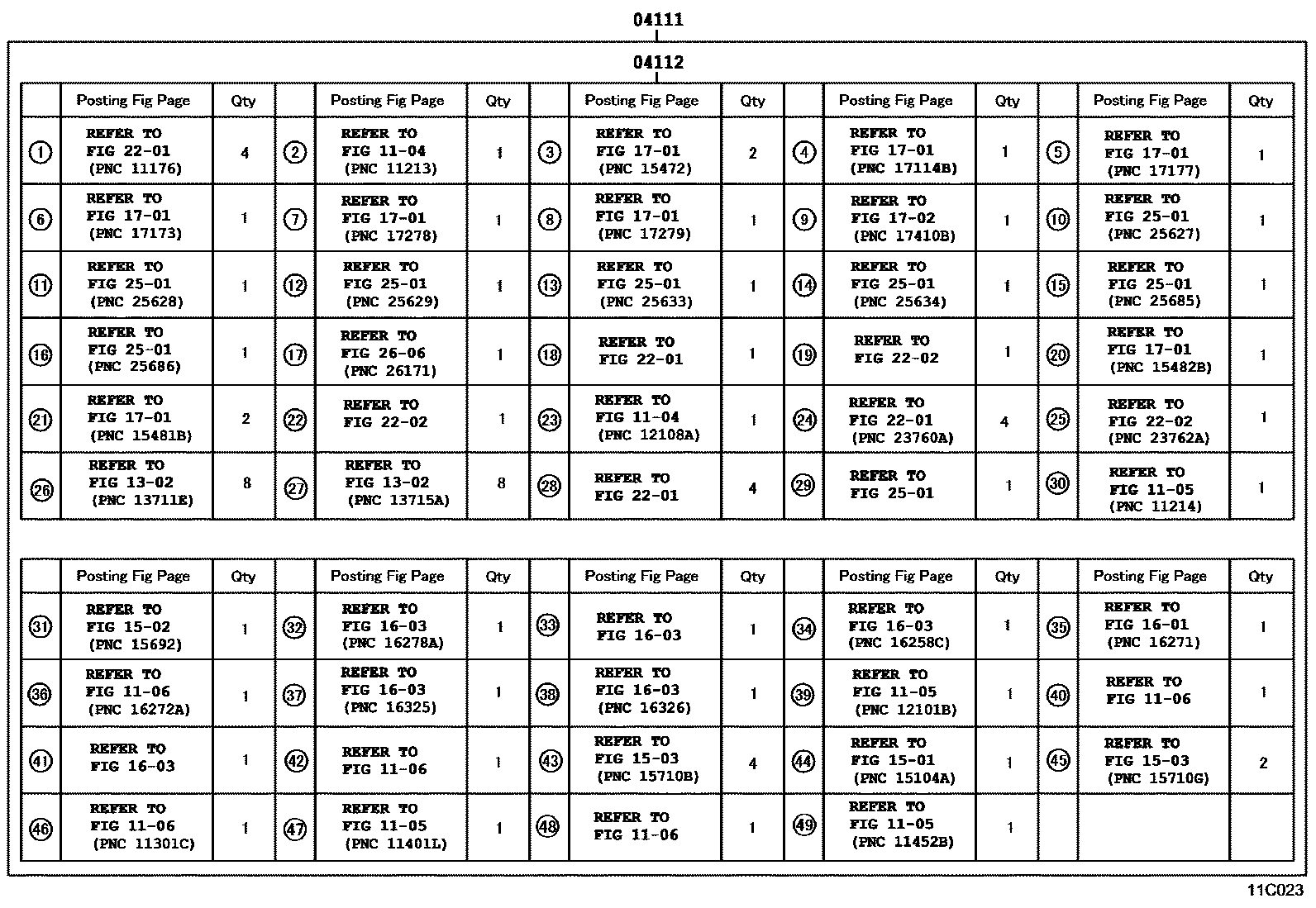

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C023
Engine Overhaul Gasket Kit — 11C023 (200903 – 999999)

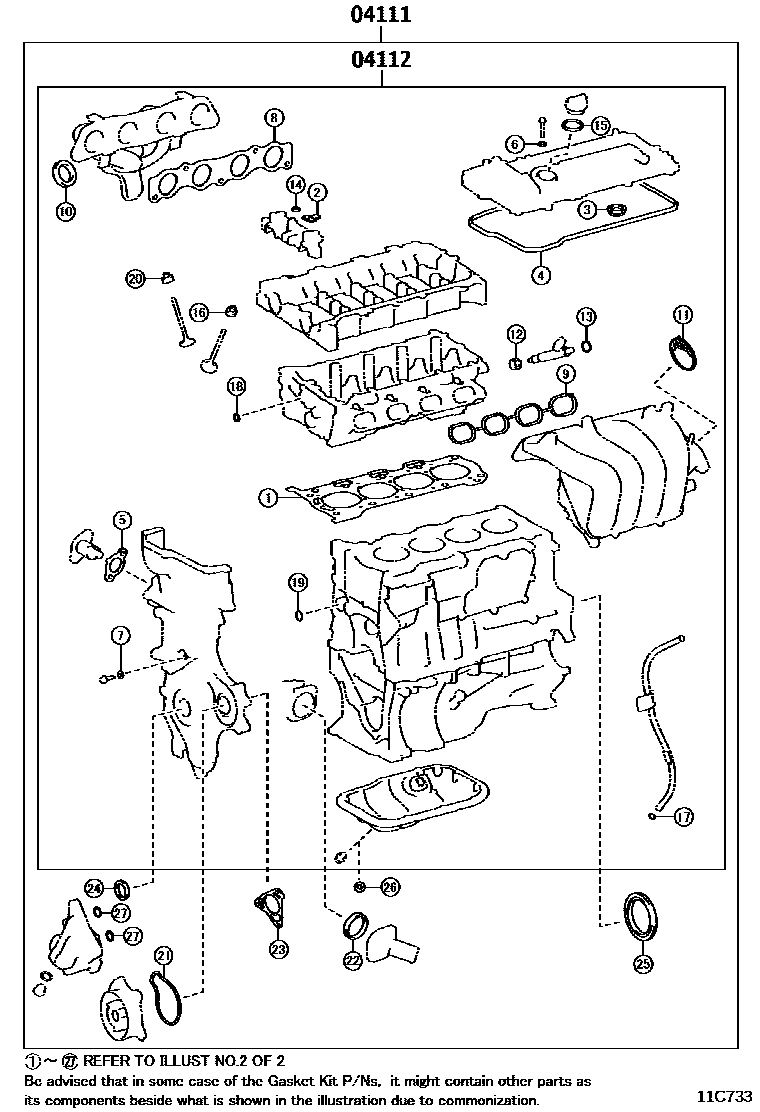

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C733
Engine Overhaul Gasket Kit — 11C733 (200802 – 201006)

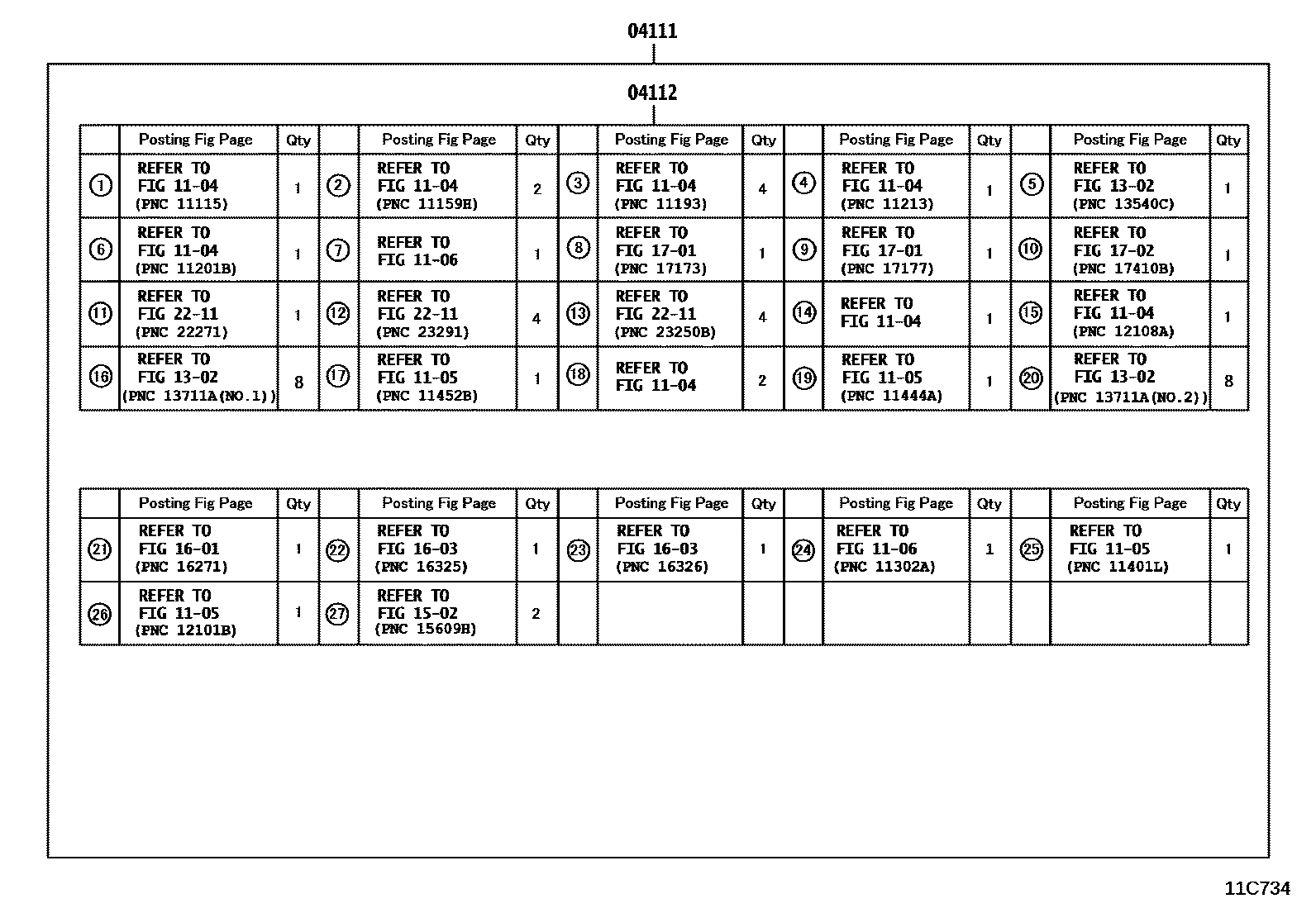

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C734
Engine Overhaul Gasket Kit — 11C734 (200802 – 201006)

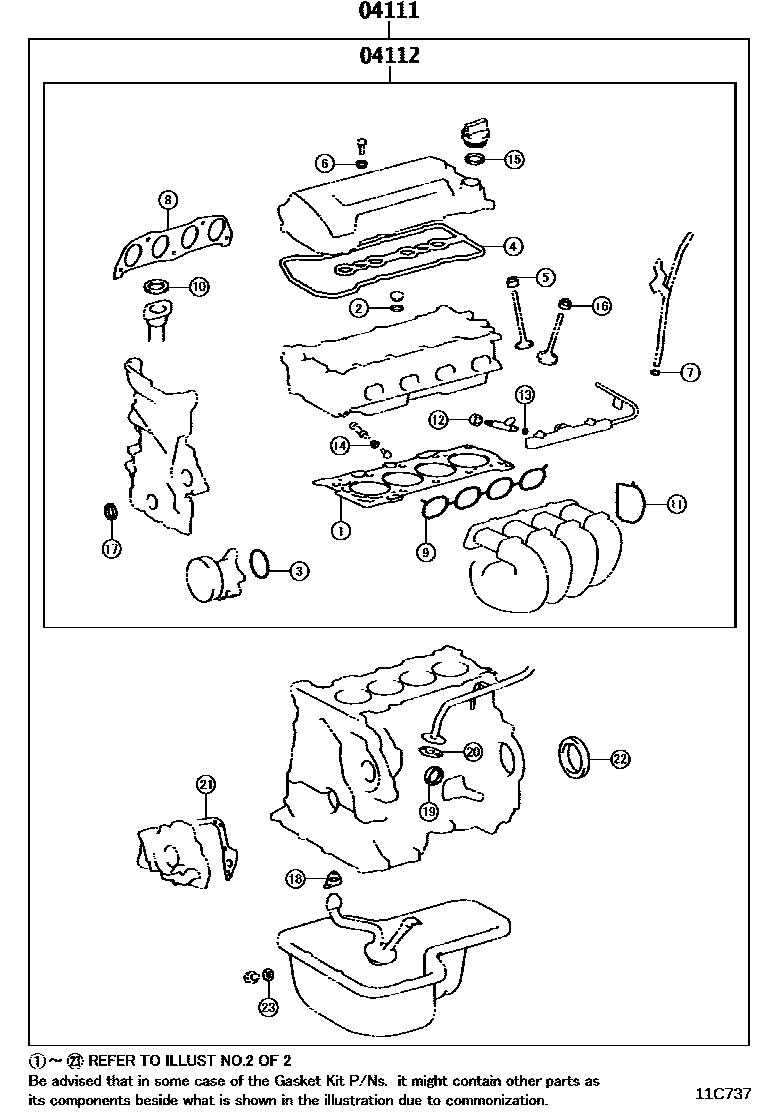

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C737
Engine Overhaul Gasket Kit — 11C737 (200802 – 200902)

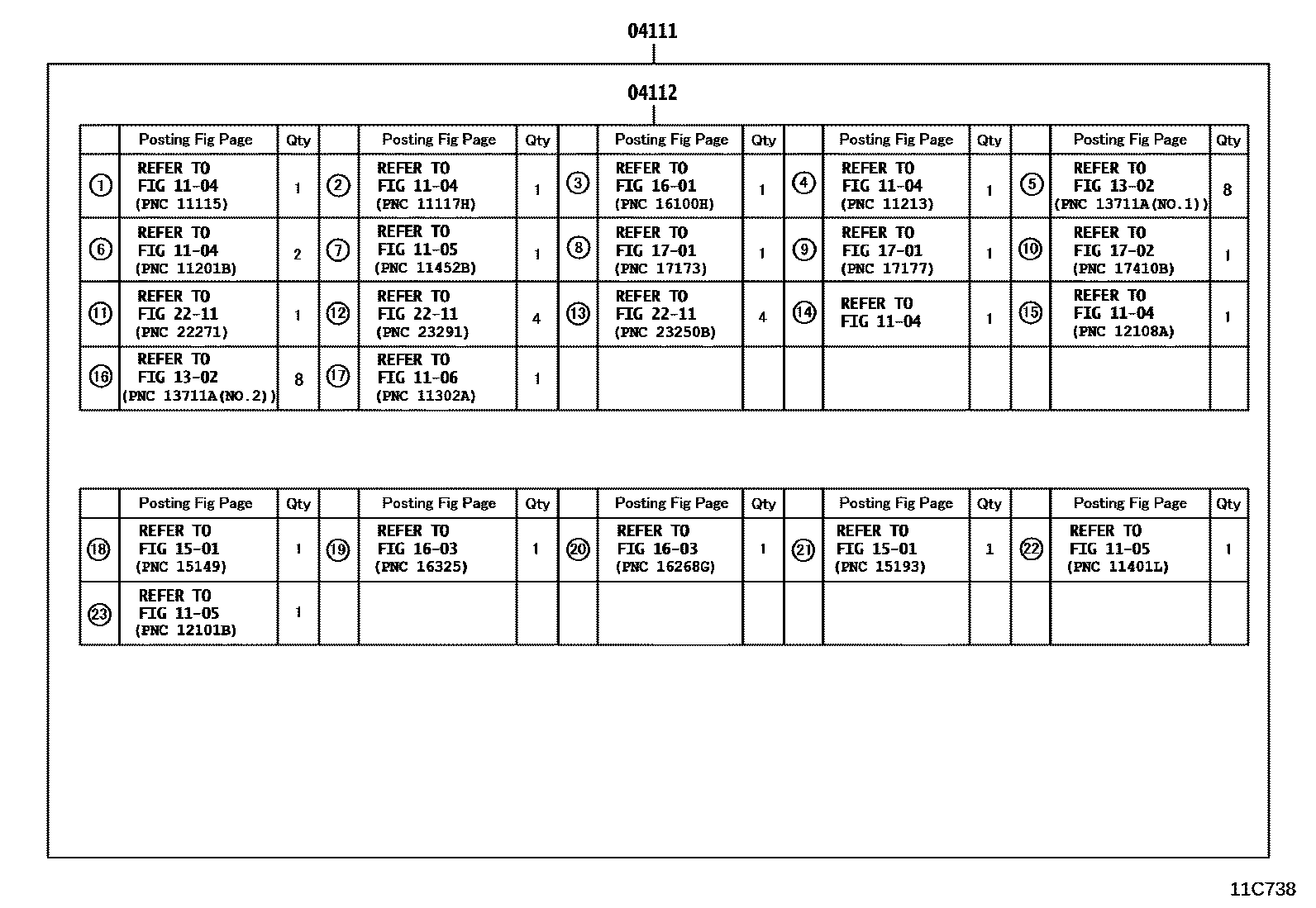

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C738
Engine Overhaul Gasket Kit — 11C738 (200802 – 200902)

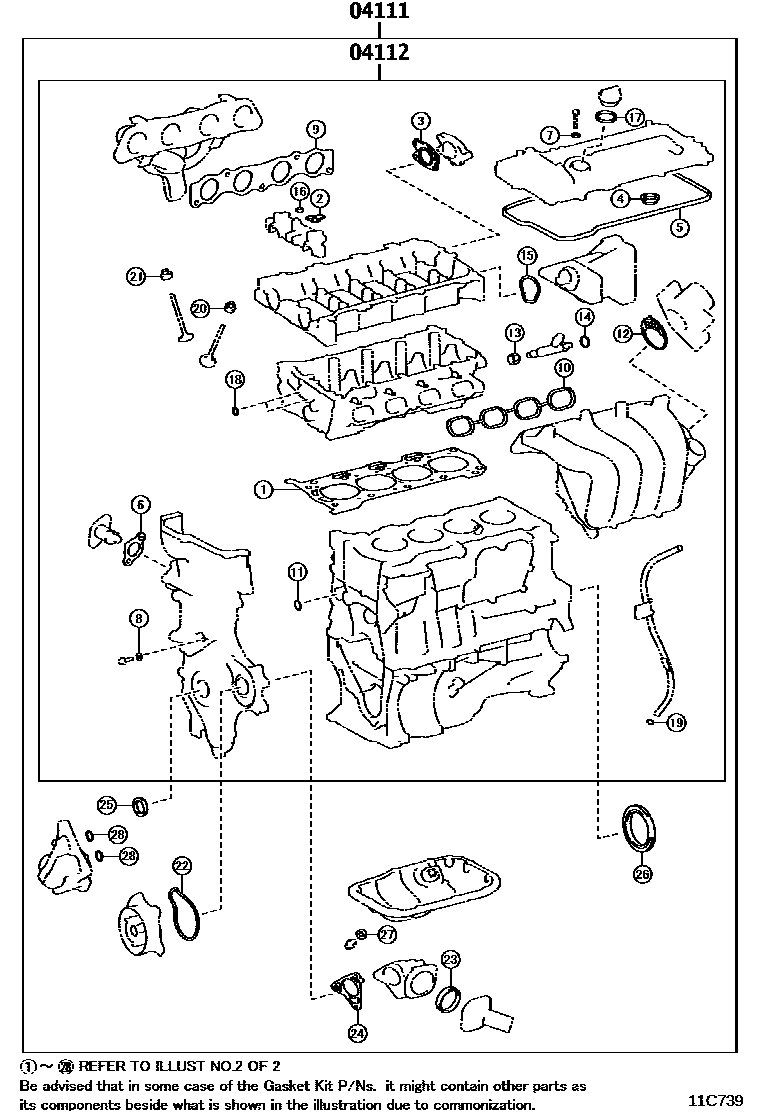

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C739
Engine Overhaul Gasket Kit — 11C739 (200902 – 201306)

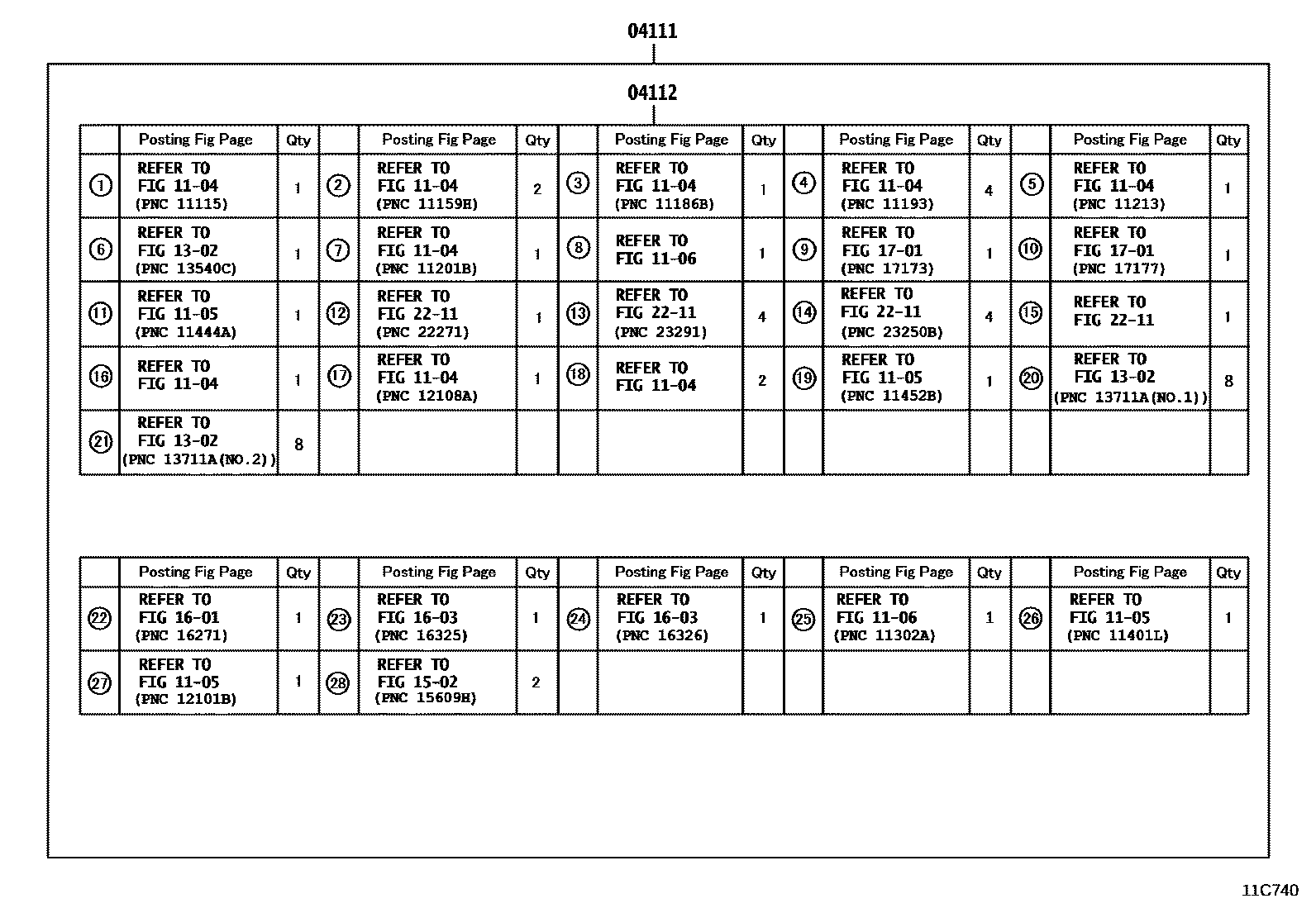

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C740
Engine Overhaul Gasket Kit — 11C740 (200902 – 201306)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D520 · 04111-0R160 · 04111-0R170 · 04111-0R190 · 04111-0R191 · 04111-0R192 · 04111-0R203 · 04111-0T050 · 04111-0T051 · 04111-0T061 · 04111-0T062 · 04111-0T063 · 04111-0T064 · 04111-0T080 · 04111-0T081 · 04111-33110 · 04111-33140 · 04111-33190 · 04111-33191 · 04111-37091 · 04111-47061 · 04111-47062 · 04111-47063 · 04111-47064 · 04111-47065 · 04111-47066 · 04111-47067 · 04111-47071 · 04111-47072 · 04111-47073 · 04111-47074 · 04111-47075 · 04111-47076 · 04111-47077
04112Engine valve grinding pad assembly04112-0D490 · 04112-0R160 · 04112-0R170 · 04112-0R190 · 04112-0R191 · 04112-0R201 · 04112-0T011 · 04112-0T012 · 04112-0T050 · 04112-0T051 · 04112-0T061 · 04112-0T062 · 04112-0T063 · 04112-0T064 · 04112-33110 · 04112-33130 · 04112-33180 · 04112-33181 · 04112-37071 · 04112-47031 · 04112-47032 · 04112-47033 · 04112-47034 · 04112-47035 · 04112-47036
