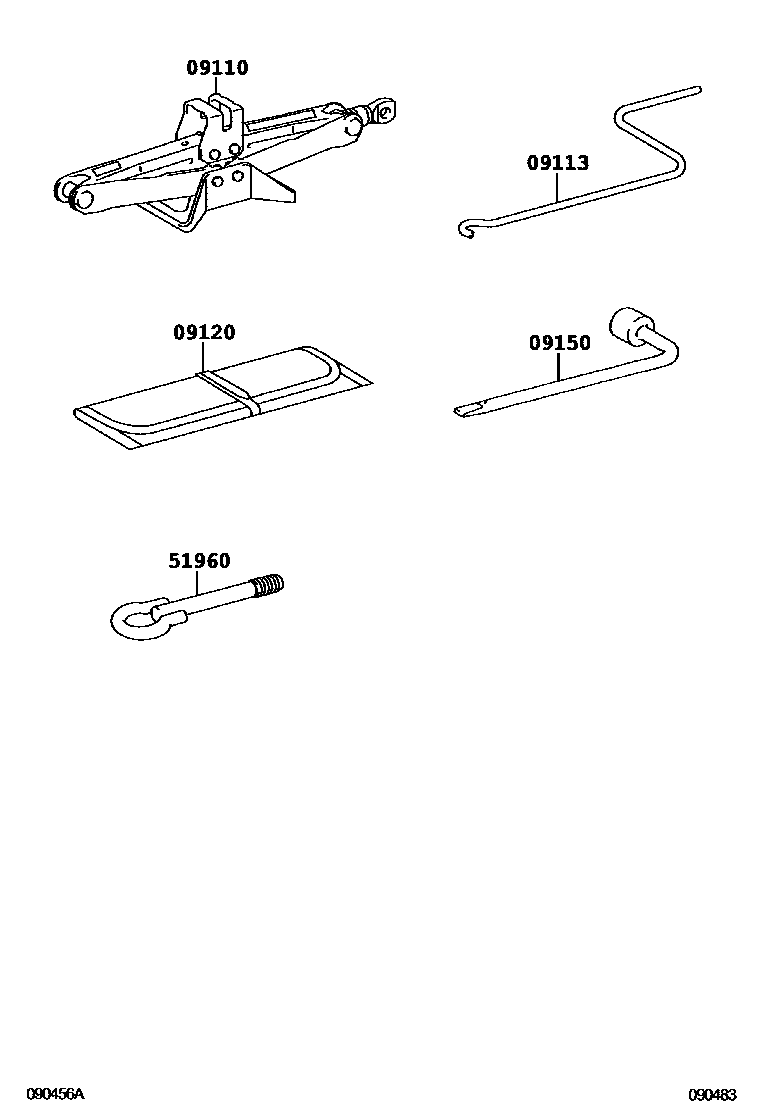

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-12160 · 09111-12210 · 09111-12230 |
| 09113 | Jack Handle | 09113-02020 |
| 09120 | Tool Bag | 09120-02080 · 09120-02110 |
| 09150 | Wheel Nut Wrench | 09150-35070 · 09150-40010 |
| 51960 | Front Towing Hook Assembly | 51960-02080 |
