Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

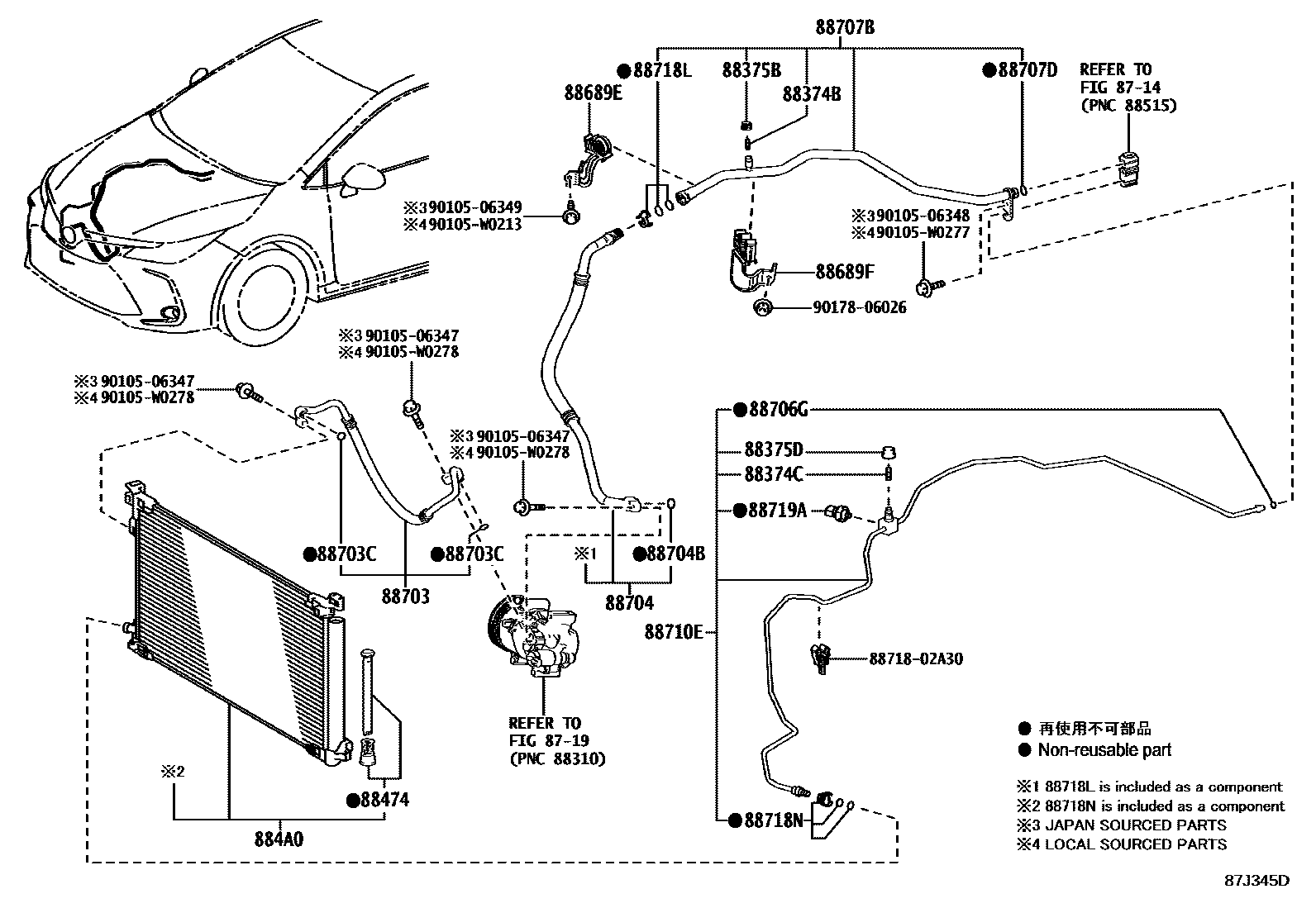

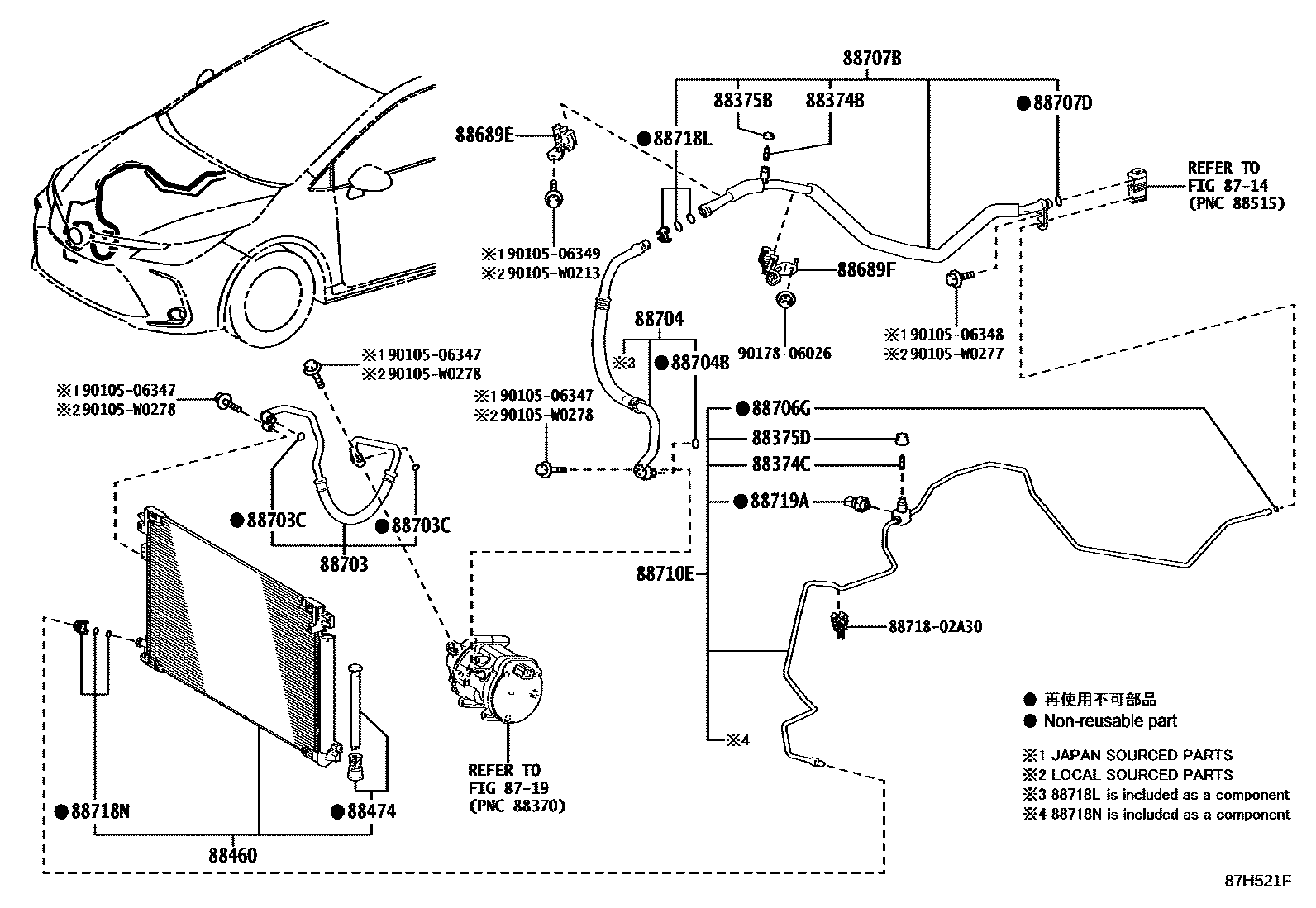

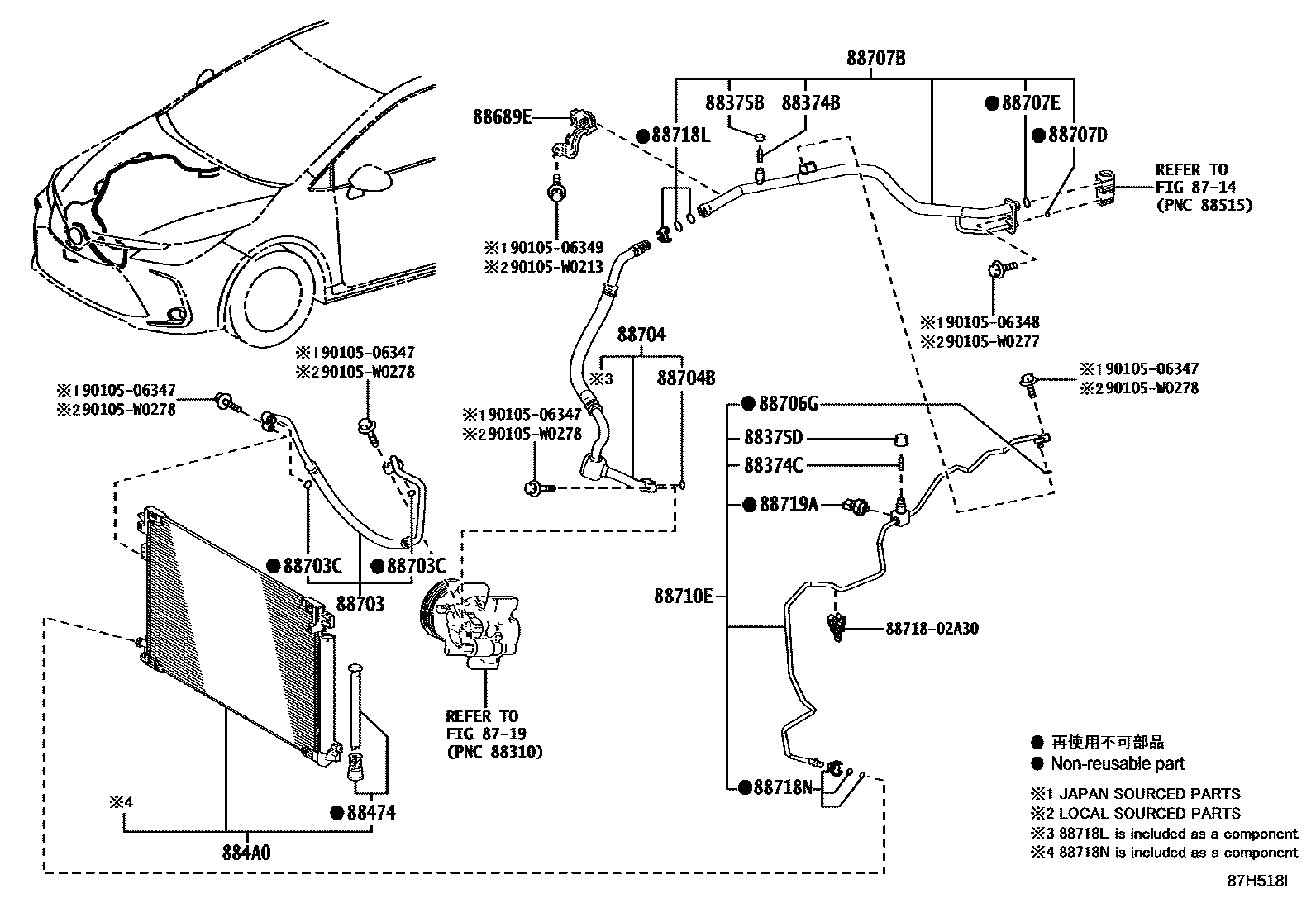

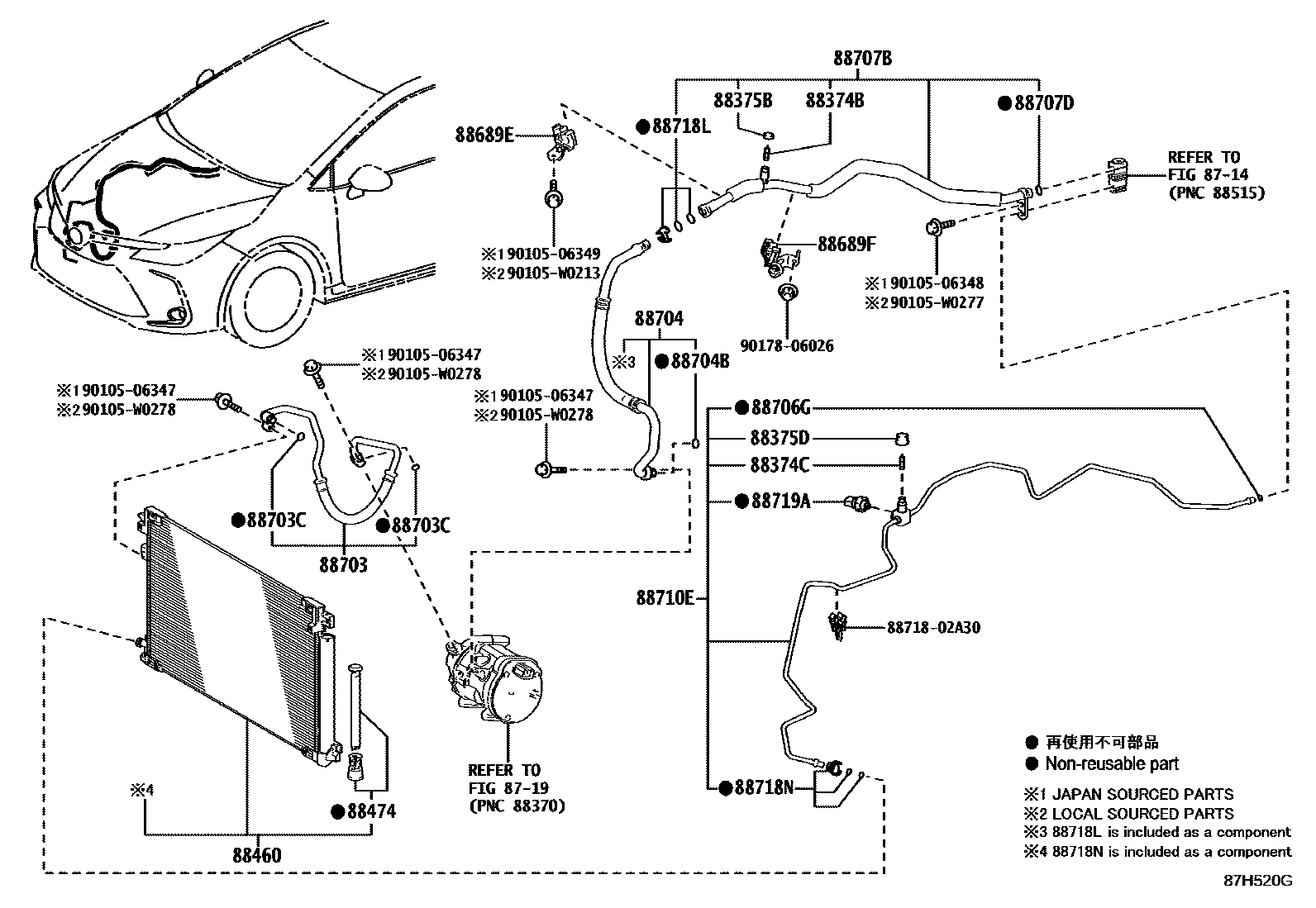

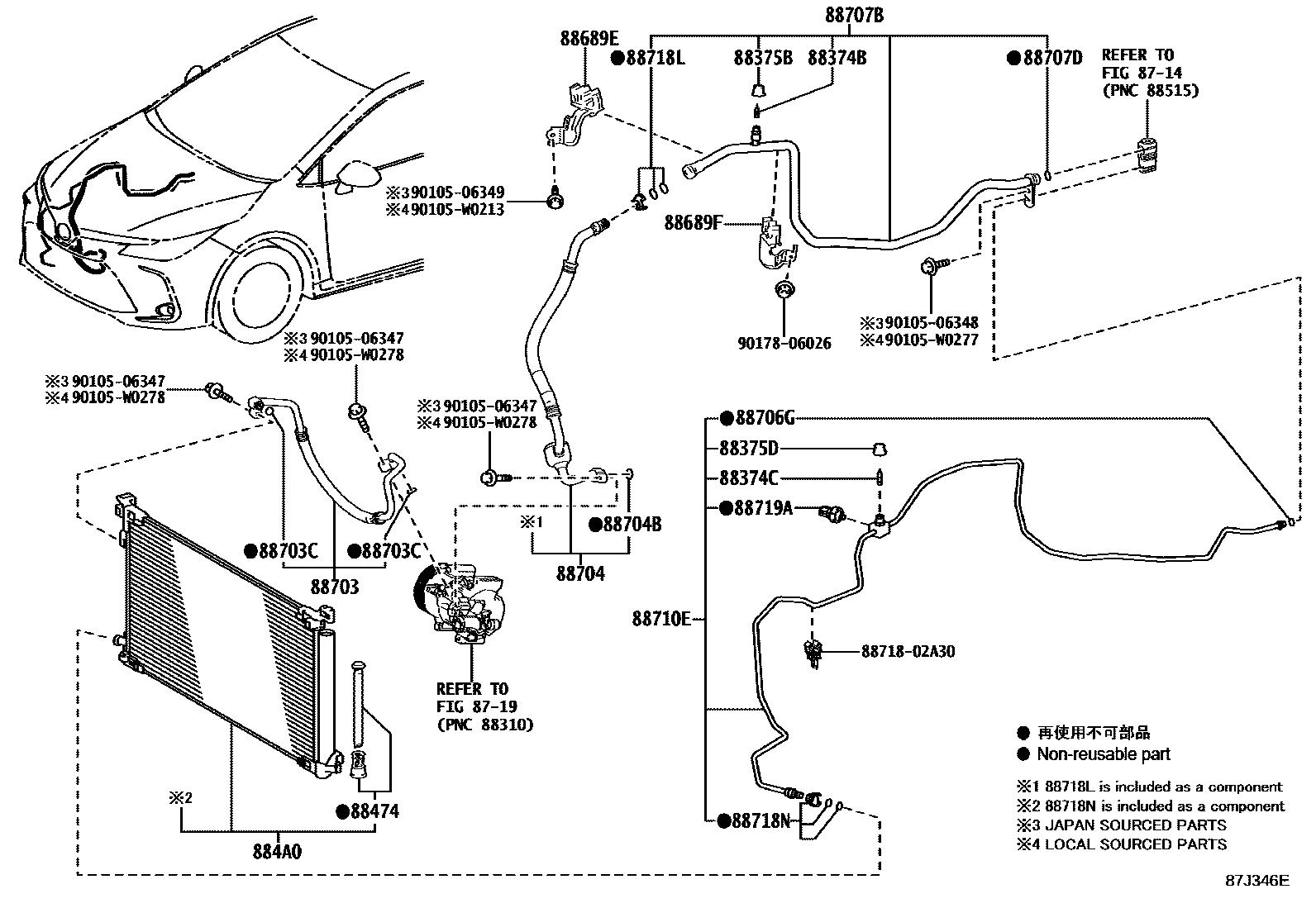

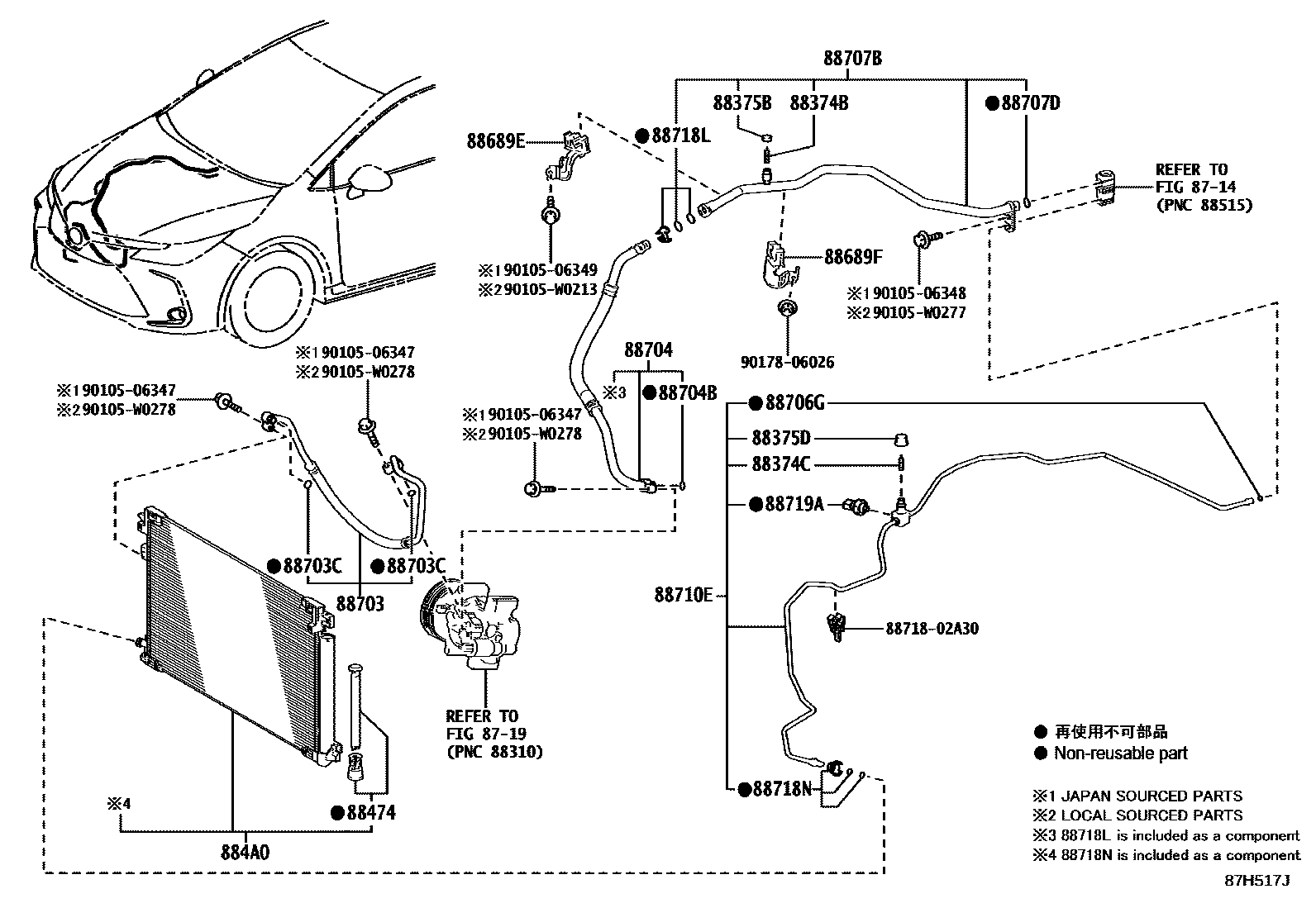

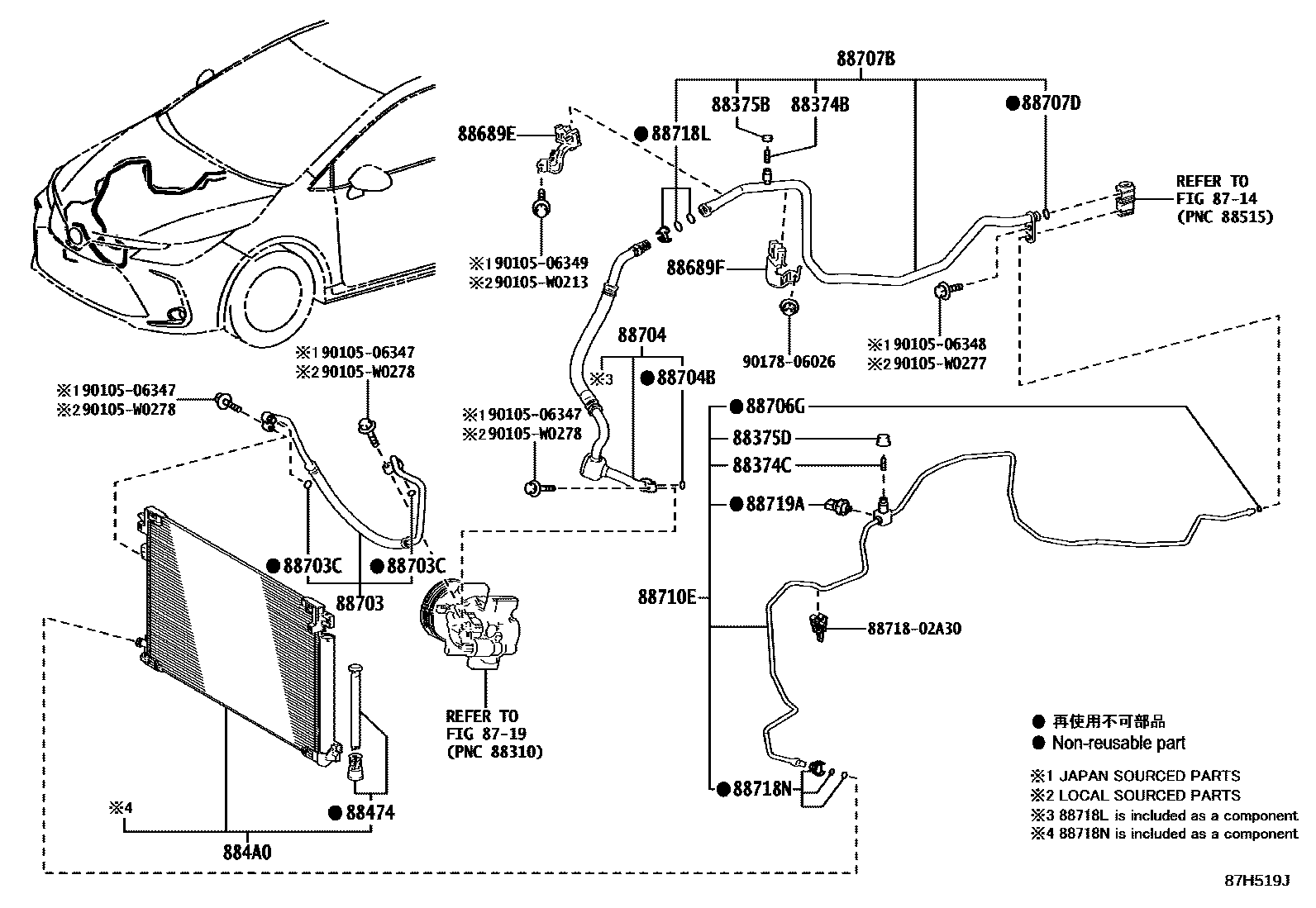

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 · 88374-30020 · 88374-33020 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88460 | Air conditioning condenser assembly | 88460-F4040 · 884A0-02340 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-02110 · 884A0-02120 · 884A0-02300 · 884A0-02430 · 884A0-02520 |
| 88689E | SUPPORT, REFROIDISSEUR, NO.1 | 88688-02C60 · 88688-02F20 · 88688-F4040 |
| 88689F | SUPPORT, REFROIDISSEUR, NO.2 | 88688-02C80 · 88688-F4050 |
| 88703 | Discharge hose sub-assembly | 88703-02C30 · 88703-02D20 · 88703-02E90 · 88703-F4030 · 88703-F4031 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-02D40 · 88704-02F20 · 88704-02F40 · 88704-02F50 · 88704-02G10 · 88704-F4030 · 88704-F4031 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14121 |
| 88706G | JOINT, TORIQUE(POUR TUYAU LIQUIDE) | 90099-14119 |
| 88707B | Suction pipe B sub-assembly | 88707-02550 · 88707-02570 · 88707-02580 · 88707-02590 · 88707-02730 · 88707-F4010 · 88707-F4020 · 88710-02G70 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90068-14038 · 90099-14119 · 90099-14121 |
| 88707E | JOINT, TORIQUE(POUR TUYAU ASPIRATION) NO.2 | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-02E00 · 88710-02E10 · 88710-02E20 · 88710-02E30 · 88710-02E40 · 88710-02E50 · 88710-02G20 · 88710-02G80 · 88710-02G90 · 88710-02J00 · 88710-02J30 · 88710-02J40 · 88710-02J50 · 88710-02K10 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
