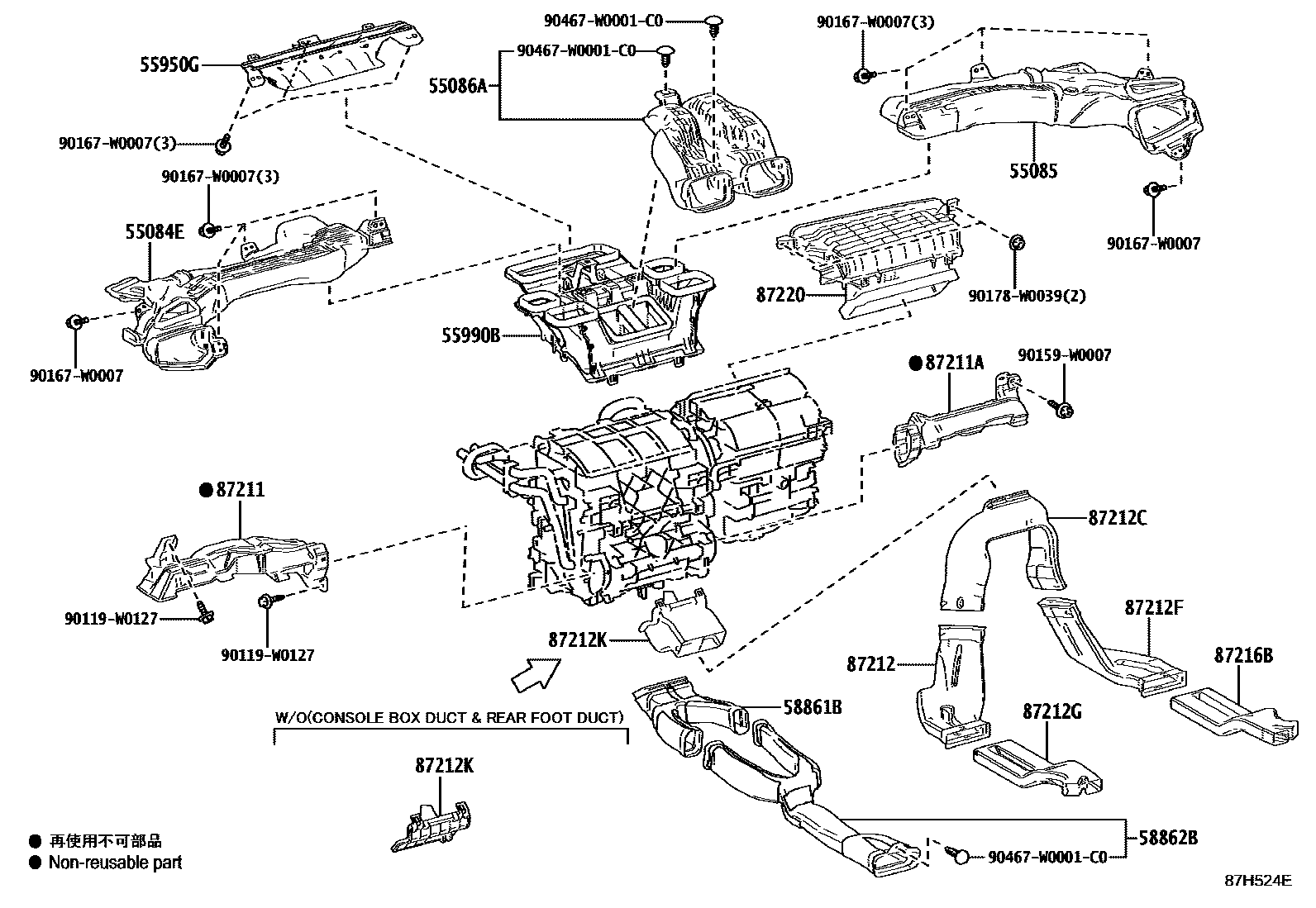

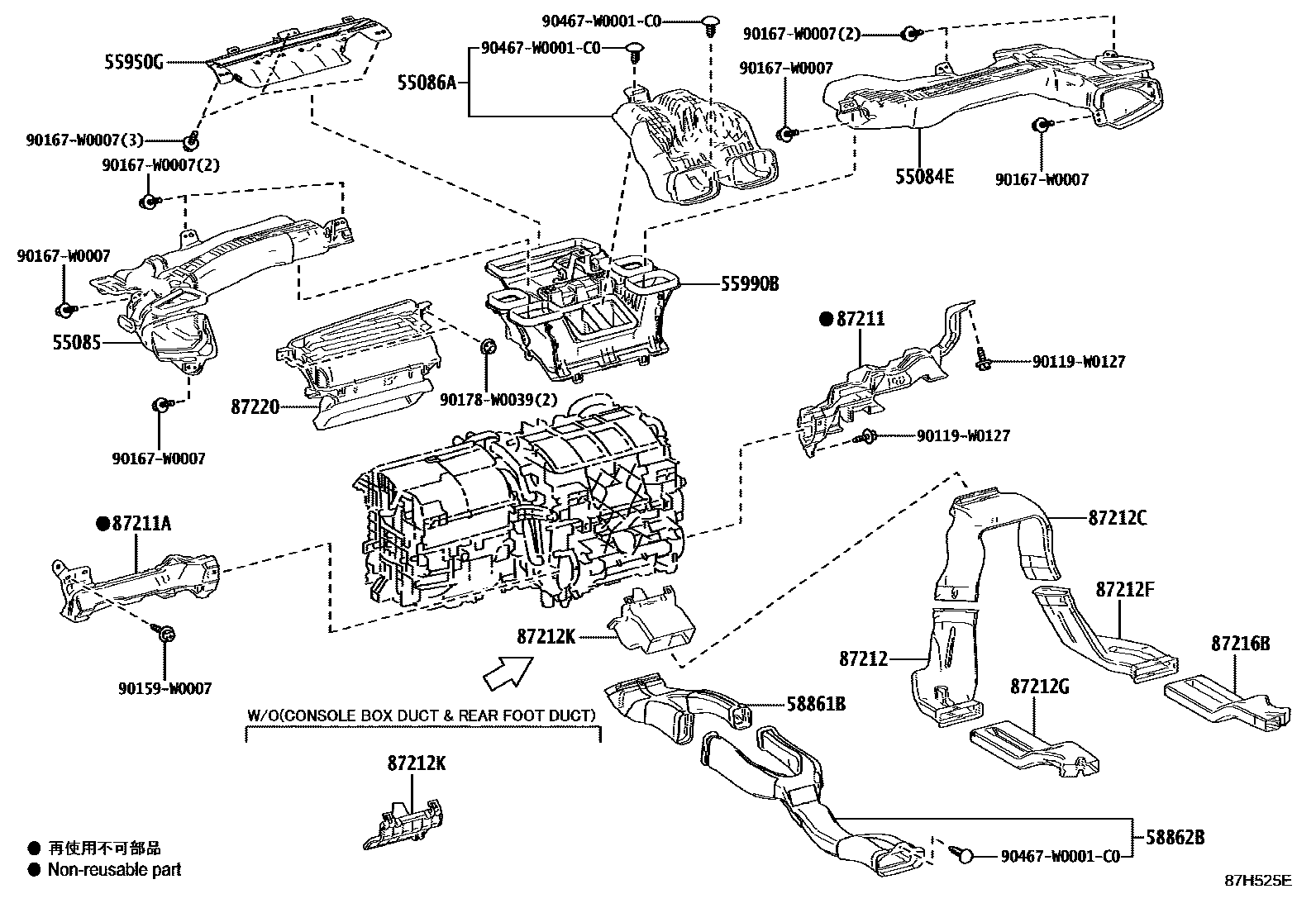

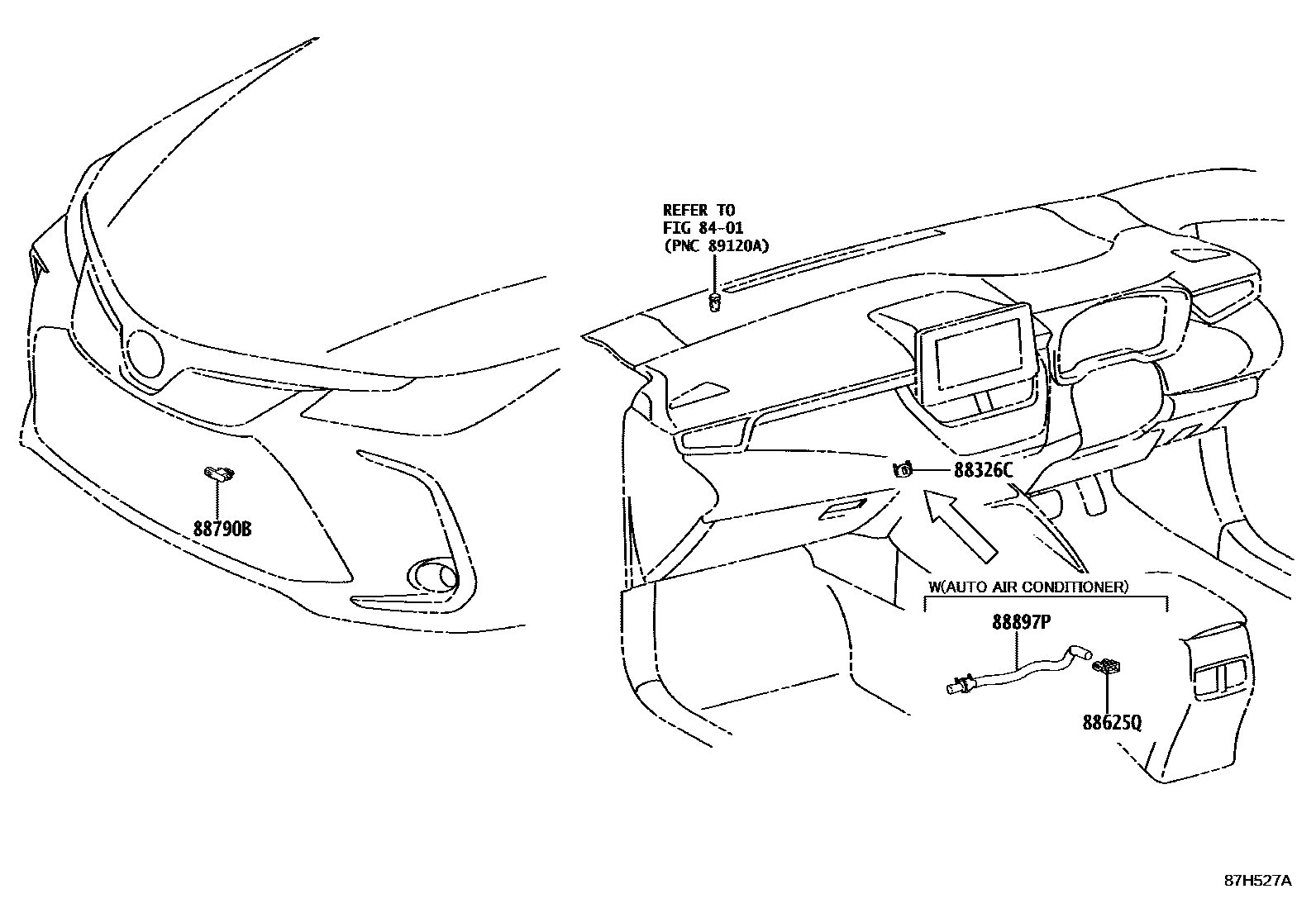

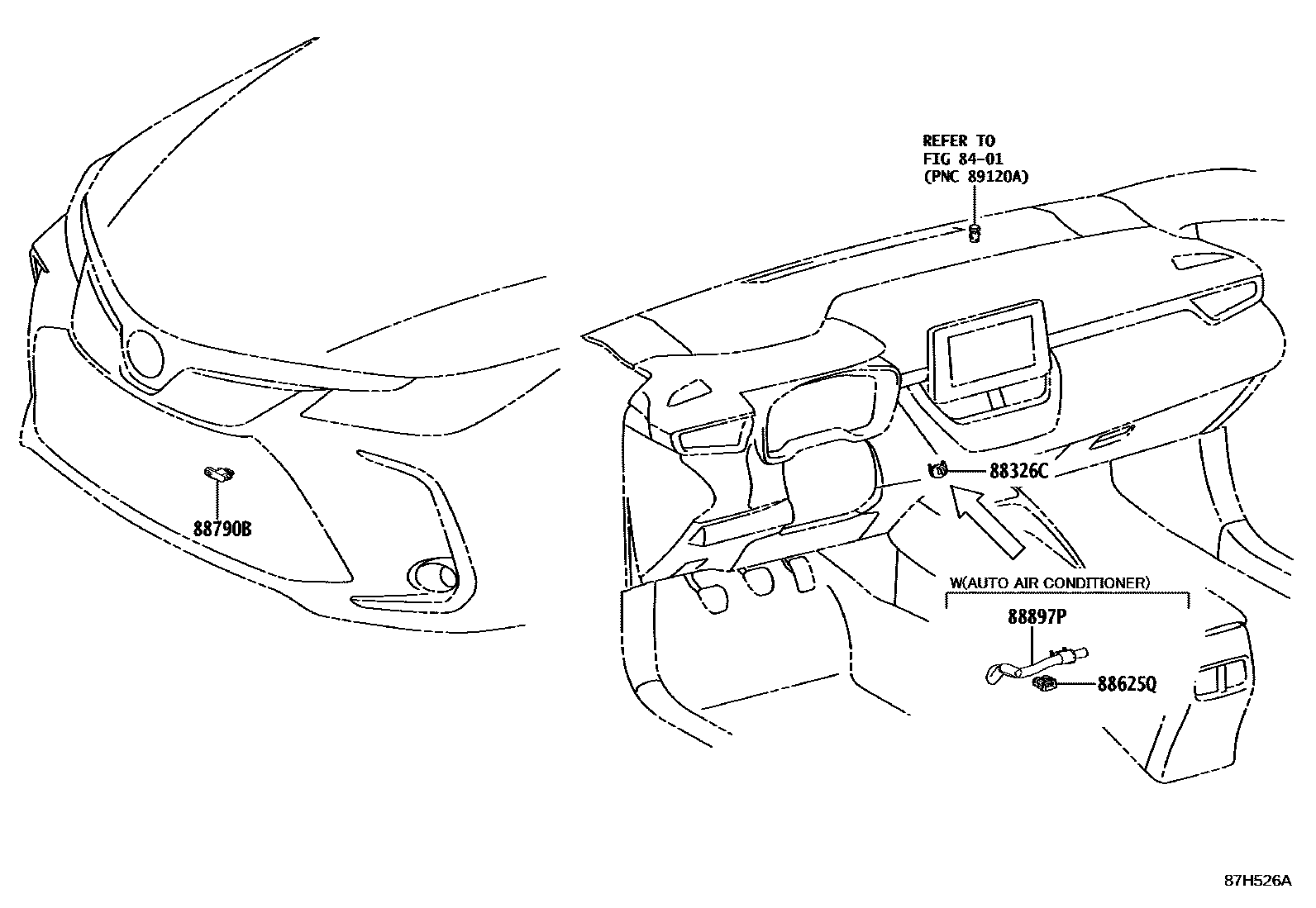

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02640 · 55084-02650 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02180 · 55085-02200 · 55085-02380 · 55085-02390 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02610 · 55086-02620 |

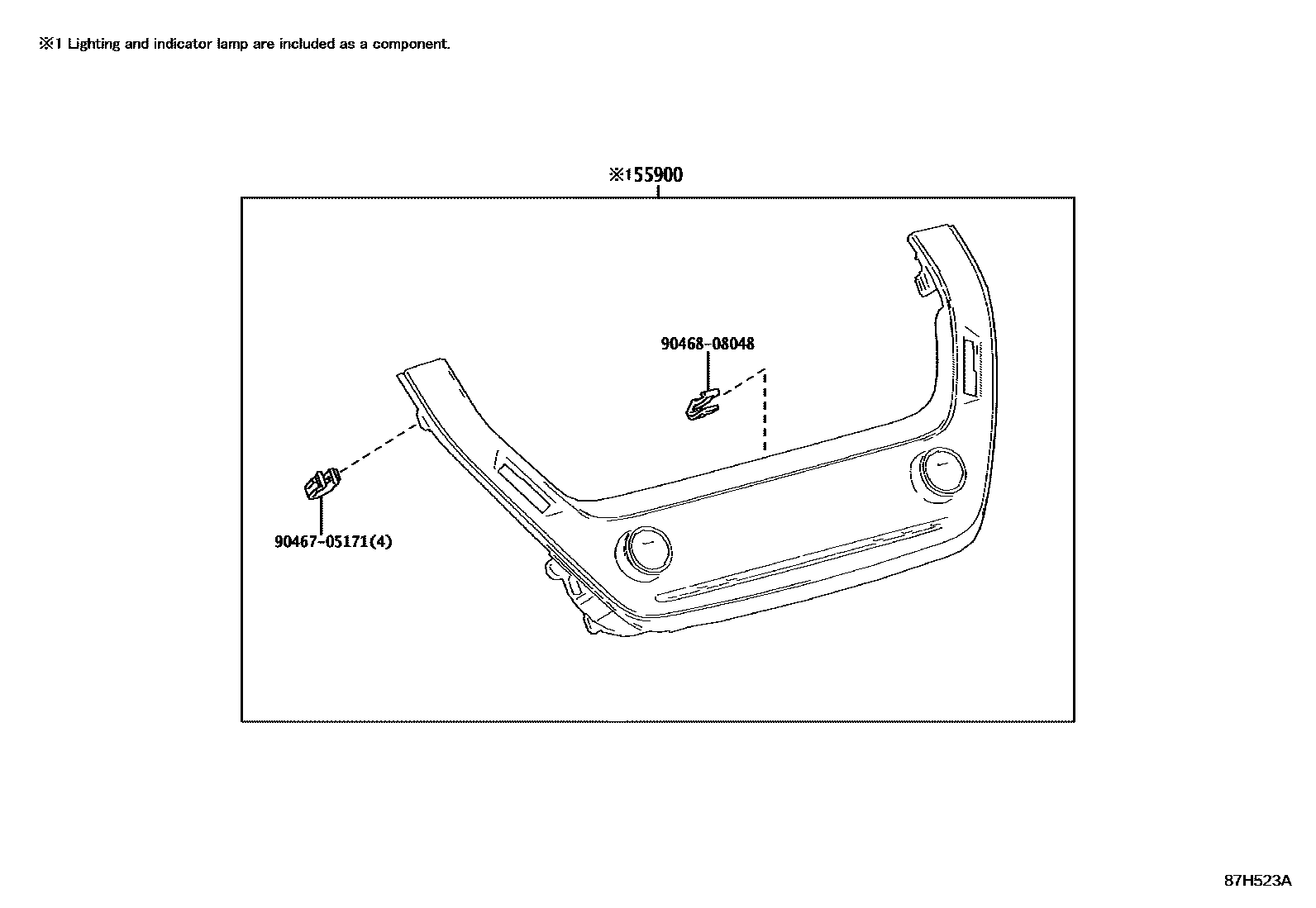

| 55900 | Air conditioning control assembly | 55900-02D80 · 55900-02D90 · 55900-02E10 · 55900-02E20 · 55900-02E30 · 55900-02E40 · 55900-02E50 · 55900-02E70 · 55900-02F10 · 55900-02F20 · 55900-02F30 · 55900-02F60 · 55900-02K40 · 55900-02K60 · 55900-02K70 · 55900-02M30 · 55900-02M40 · 55900-02M50 · 55900-02P30 · 55900-02P40 · 55900-02P50 · 55900-02P60 · 55900-02P70 |
| 55950G | Defroster nozzle assembly | 55950-02420 · 55950-02490 |
| 55990B | Lower defroster nozzle assembly | 55990-02290 · 55990-02300 |
| 58861B | Air duct No. 1 for armrest box | 58861-02020 · 58861-02100 |
| 58862B | Air duct No. 2 for armrest box | 58862-02040 · 58862-02120 |
| 87211 | No. 1 air duct | 87211-02590 · 87211-02810 |
| 87211A | Duct No. 2 | 87211-02600 · 87211-02820 |
| 87212 | No. 1 rear air duct | 87213-F4010 |
| 87212C | Rear air duct | 87215-02140 · 87215-02160 |
| 87212F | No. 2 rear air duct | 87212-F4010 |
| 87212G | No. 3 rear air duct | 87217-02040 |
| 87212K | No. 6 rear air duct | 87114-F4070 · 87413-02020 |
| 87216B | No. 4 rear air duct | 87216-02090 |
| 87220 | Air duct assembly | 87220-02370 · 87220-02371 · 87220-02440 · 87220-02441 |
| 88326C | Cover plate | 88899-02320 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-02220 · 88505-02230 |
