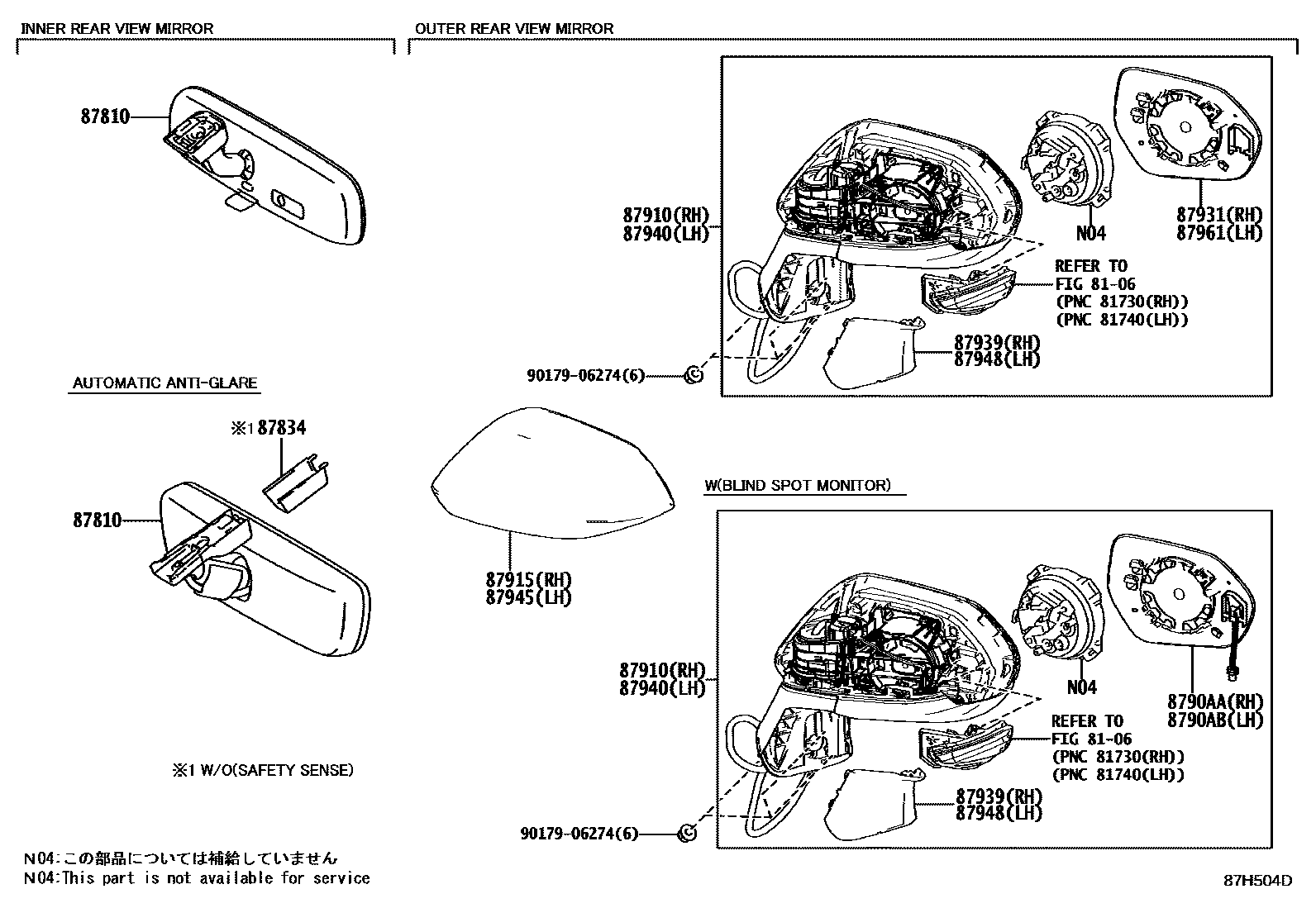

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0WK10 · 87810-0WS30 · 87810-28140 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-24010 |
| 8790AA | Right exterior rearview mirror indicator light | 8790A-02010 |
| 8790AB | Left exterior rearview mirror indicator light | 8790A-02020 |
| 87910 | Right exterior rearview mirror assembly | 87910-02L40 · 87910-02L41 · 87910-02L50 · 87910-02L51 · 87910-02L60 · 87910-02L61 · 87910-02L70 · 87910-02L71 · 87910-02L80 · 87910-02L81 · 87910-02L90 · 87910-02L91 · 87910-02N90 · 87910-02N91 · 87910-02Q30 · 87910-02Q31 · 87910-02Q40 · 87910-02Q41 · 87910-02Q50 · 87910-02Q51 |
| 87915 | Right exterior rearview mirror cover | 87915-02933 |
| 87931 | Right exterior rearview mirror | 87931-02L40 · 87931-02N90 · 87931-02Q30 · 87931-02Q40 |
| 87939 | Right exterior rearview mirror hole cover | 87939-02L40 · 87939-02L70 |
| 87940 | Left exterior rearview mirror assembly | 87940-02L30 · 87940-02L31 · 87940-02L40 · 87940-02L41 · 87940-02L50 · 87940-02L51 · 87940-02L60 · 87940-02L61 · 87940-02L70 · 87940-02L71 · 87940-02L80 · 87940-02L81 · 87940-02N80 · 87940-02N81 · 87940-02Q10 · 87940-02Q11 · 87940-02Q20 · 87940-02Q21 · 87940-02Q30 · 87940-02Q31 |
| 87945 | Left exterior rearview mirror cap | 87945-02933 |
| 87948 | Left exterior rearview mirror hole cover | 87948-02L30 · 87948-02L60 |
| 87961 | Left exterior rearview mirror | 87961-02L30 · 87961-02N80 · 87961-02Q10 · 87961-02Q20 |
