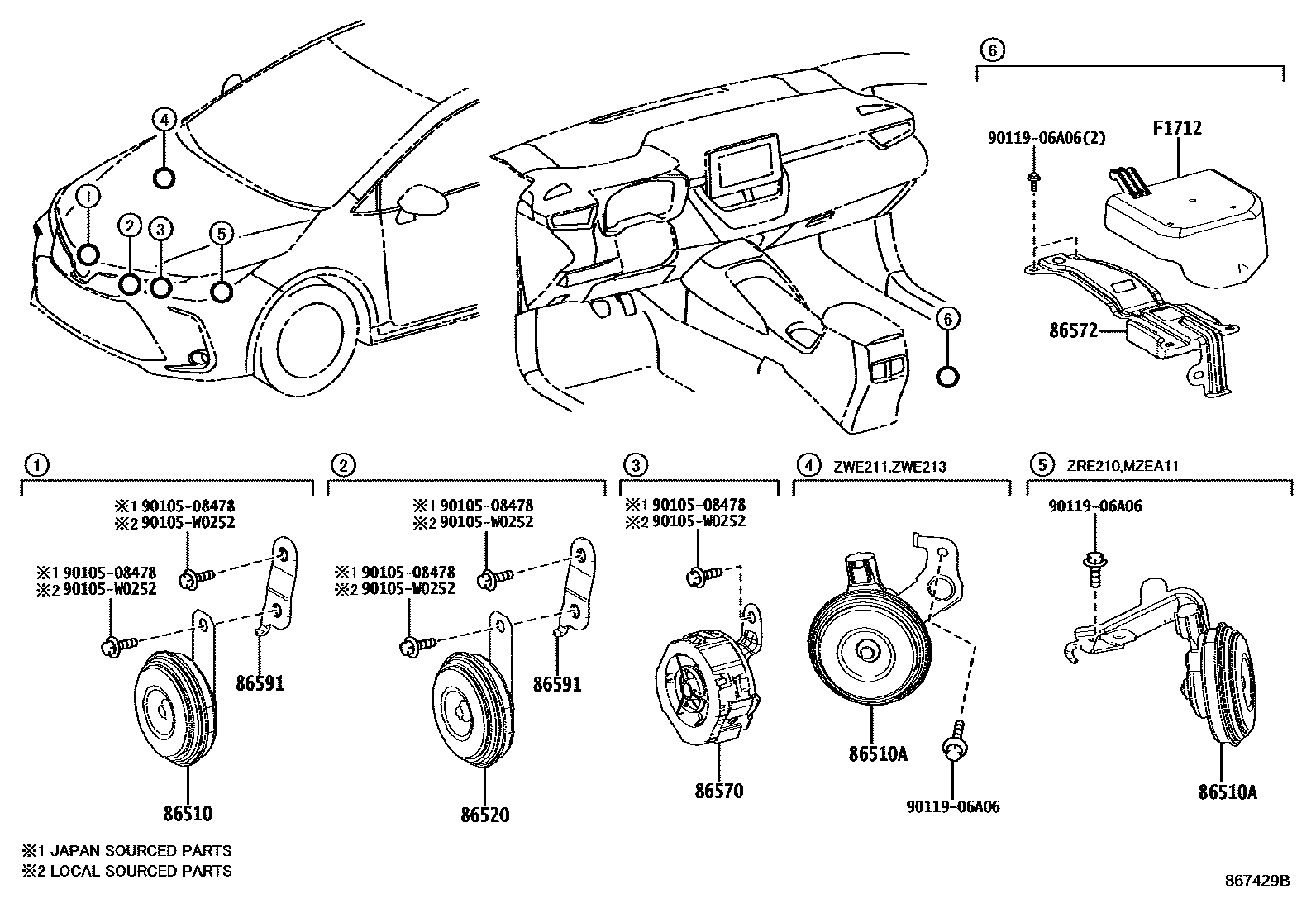

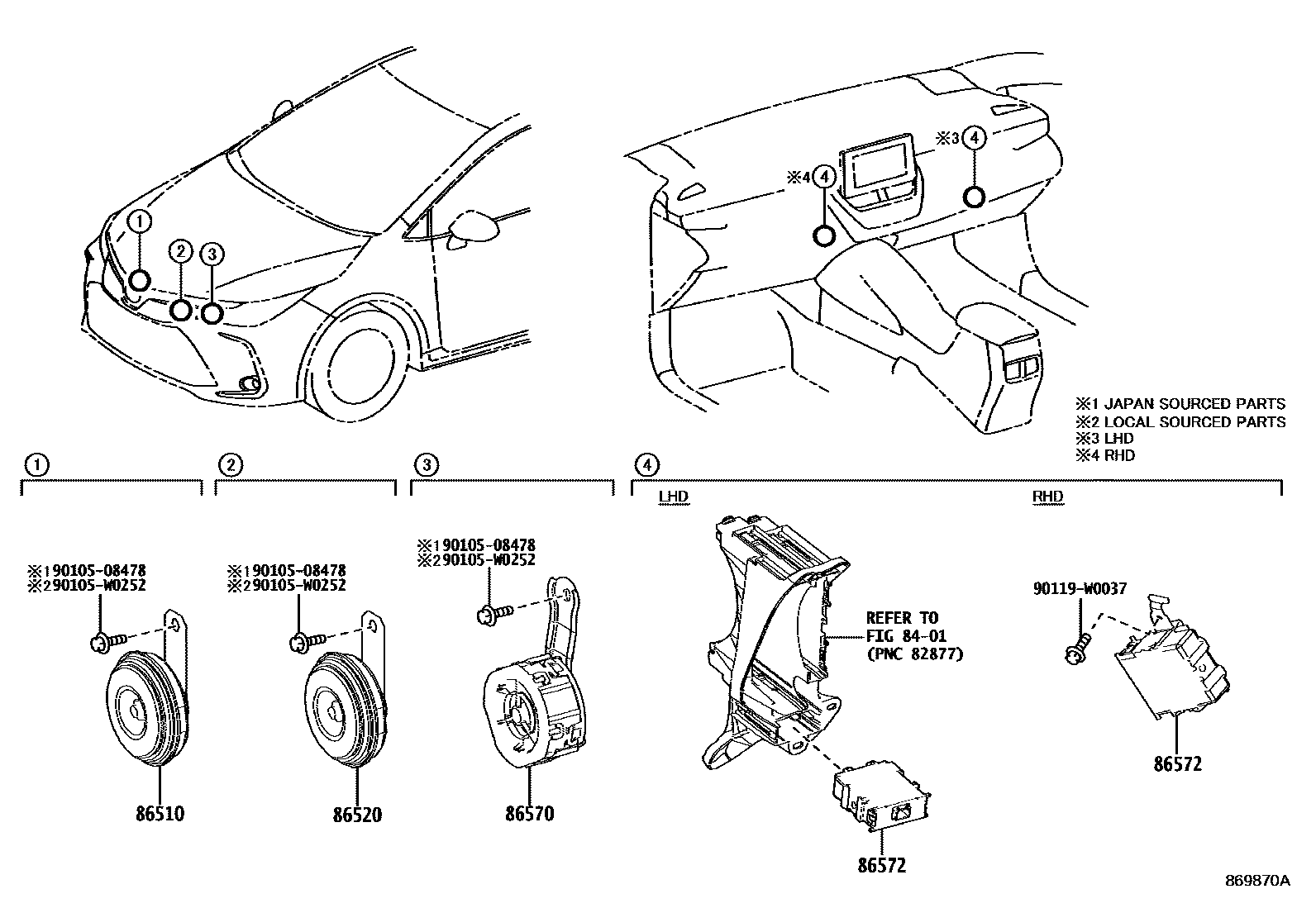

Toyota COROLLA 喇叭 — Figure 8611
Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-02190 · 86510-26131 · 86510-33152 · 86510-42090 · 86510-48070 |
| 86510A | Alarm horn assembly | 86560-10020 · 86560-12090 |
| 86520 | Subwoofer assembly | 86520-02140 · 86520-02330 · 86520-26201 · 86520-35102 · 86520-42130 |
| 86570 | Vehicle intrusion speaker assembly | 86570-02060 · 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-02110 · 86572-02120 · 86572-12140 |
| 86591 | speaker bracket | 86591-02020 |
| F1712 | CACHE, COM HT-PARLEUR VEHICULE EN APPROCHE | F1712-12090 |
