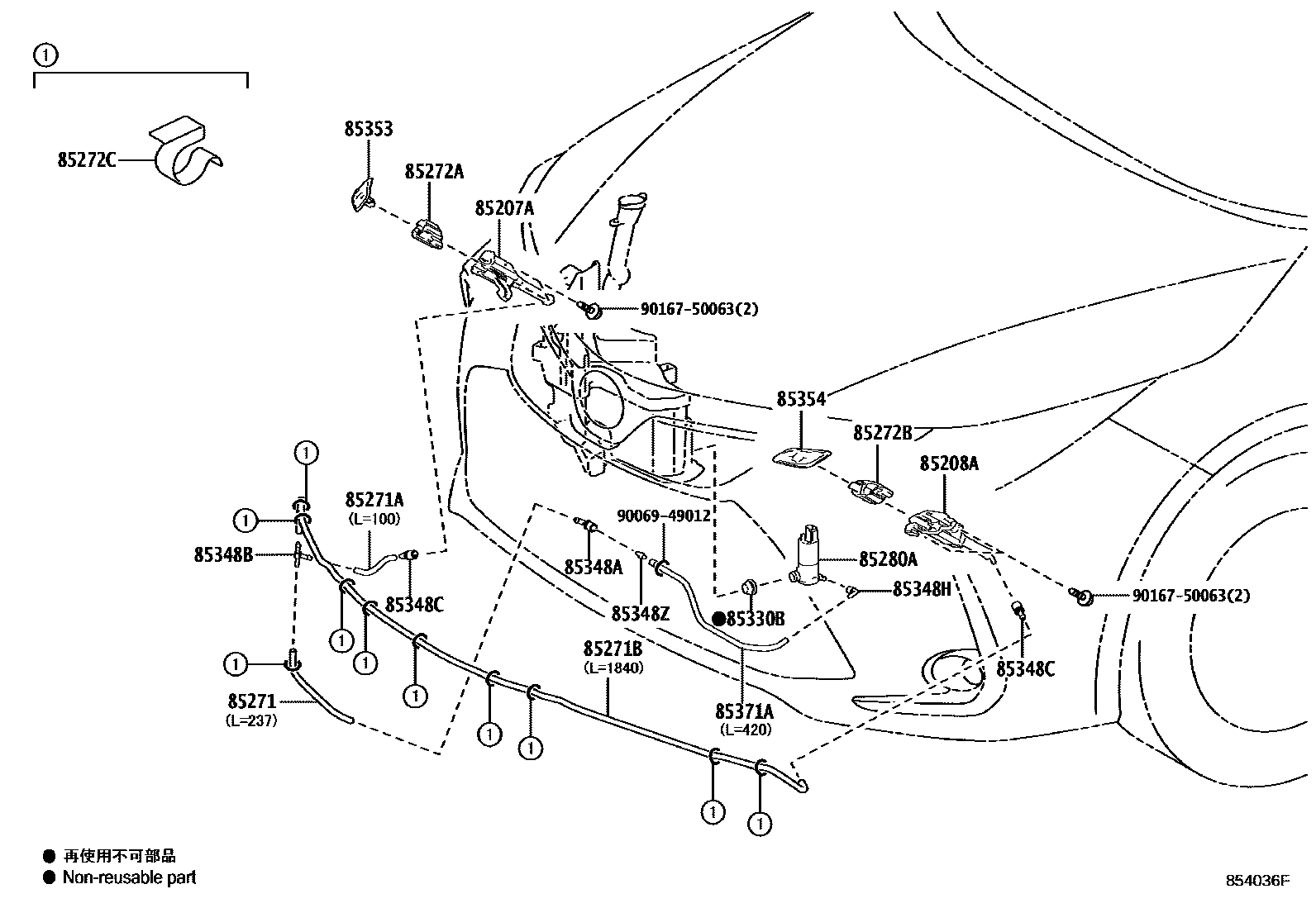

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-02210 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-02210 |
| 85271 | No. 1 headlight washer hose | 85271-0W050 |
| 85271A | No. 2 headlight washer hose | 85271-0W050 |
| 85271B | No. 3 headlight washer hose | 85271-0W060 |
| 85272A | Headlight washer No. 1 clip | 85272-02120 |
| 85272B | Headlight washer clip No. 2 | 85273-02120 |
| 85272C | Headlight washer clip No. 3 | 90069-49012 |
| 85280A | Headlight washer motor and pump assembly | 85280-05050 |
| 85330B | Headlight washer washer fluid tank bushing | 90069-20005 |
| 85348A | Headlight washer hose connector No. 1 | 85278-05110 |
| 85348B | No. 2 headlight washer hose connector | 85378-0H110 |
| 85348C | No. 3 headlight washer hose connector | 85279-05110 |
| 85348H | No. 4 headlight washer hose connector | 85278-05110 |
| 85348Z | No. 5 headlight washer hose connector | 85279-02150 |
| 85353 | CACHE, LAVE-PHARES, MD | 85353-02909 |
| 85354 | CACHE, LAVE-PHARES, MG | 85354-02909 |
| 85371A | Headlight washer hose (from motor to connector) | 85271-0W050 |
