Toyota COROLLA 后组合灯 — Figure 8111

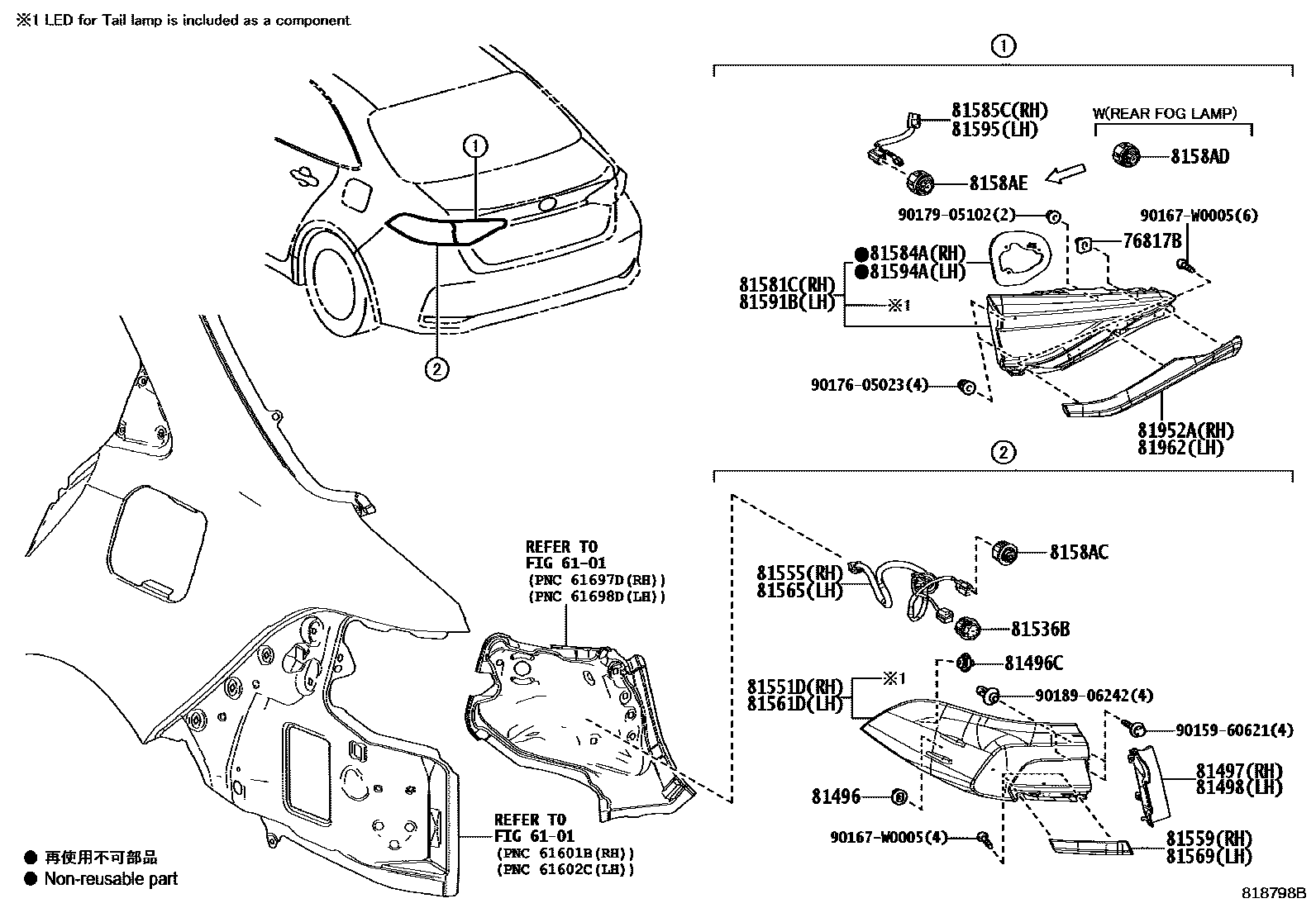

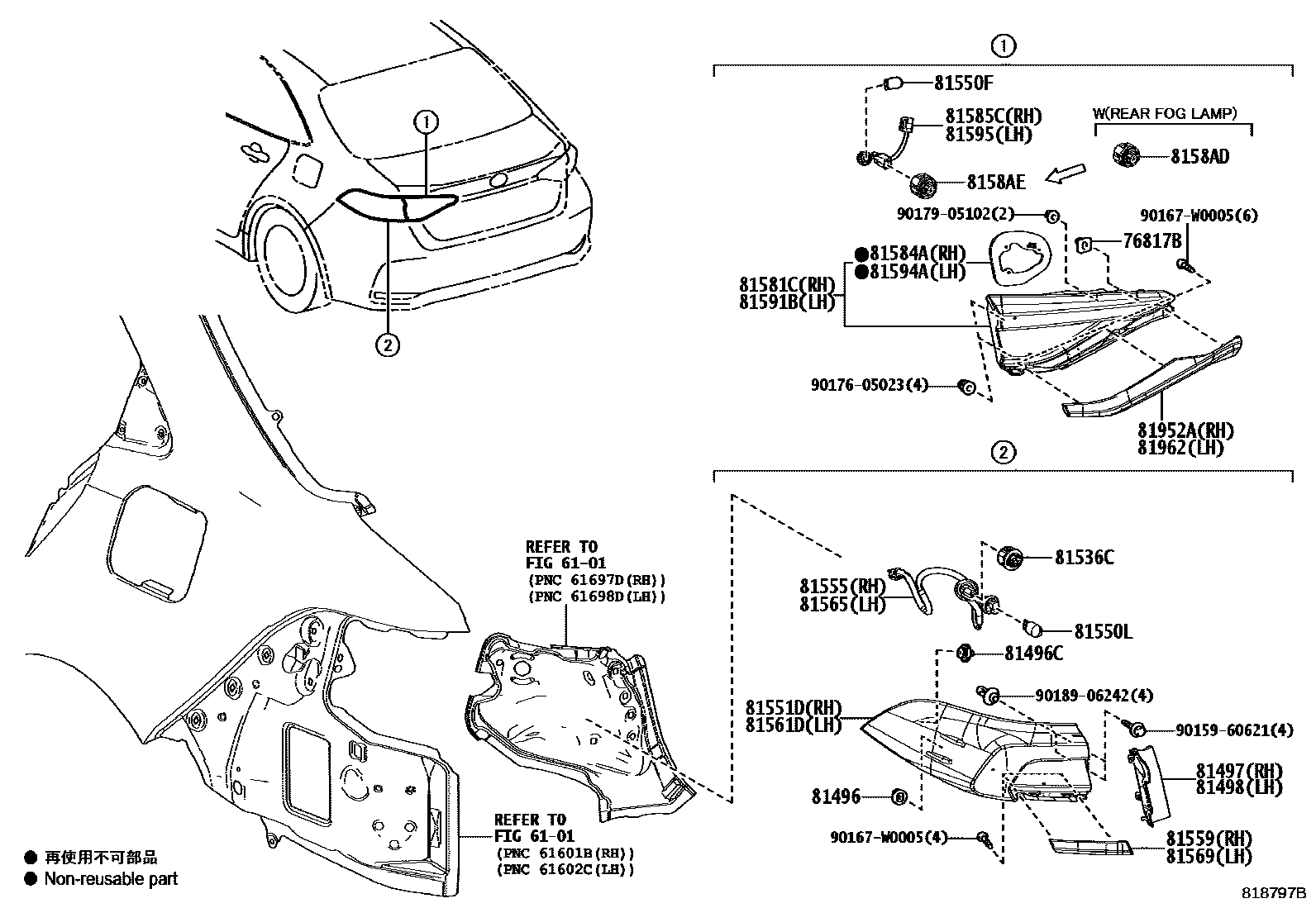

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76817B | ATTACHE, FEU ARR | 76817-26040 |
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81497 | Right rear combination lamp cover | 81497-02060 |
| 81498 | Left rear combination lamp cover | 81498-02060 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81536-12D20 |
| 81536C | LED, FEU ARR & STOP | 81536-15120 · 81965-70010 |
| 81550F | tail light bulb | 90981-11069 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02D10 · 81551-02D11 · 81551-02D20 · 81551-02D21 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02D10 · 81555-02D20 |
| 81559 | Right rear combination light protection strip | 81951-02010 · 81951-02020 · 81951-02030 · 81951-02040 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02D10 · 81561-02D11 · 81561-02D20 · 81561-02D21 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-02D10 · 81565-02D20 |
| 81569 | Left rear combination light protection strip | 81961-02010 · 81961-02020 · 81961-02030 · 81961-02040 |
| 81581C | Right rear light lampshade and lamp body | 81581-02C20 · 81581-02C21 · 81581-02C30 · 81581-02C31 · 81581-02C40 · 81581-02C41 · 81581-02C50 · 81581-02C51 |
| 81584A | Right rear light gasket | 81582-02C20 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02C20 · 81585-02C30 · 81585-02C40 · 81585-02C50 |
| 8158AC | LED, FEU STOP | 8158A-0D610 |
| 8158AD | LED, FEU ANTIBROUILLARD ARR | 8158A-0D610 |
| 8158AE | LED, FEU RECUL | 8158A-12260 |
| 81591B | Left rear light shade and body | 81591-02C20 · 81591-02C21 · 81591-02C30 · 81591-02C31 · 81591-02C40 · 81591-02C41 · 81591-02C50 · 81591-02C51 |
| 81594A | Left rear light gasket | 81592-02C20 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-02C20 · 81585-02C30 · 81585-02C40 · 81585-02C50 |
| 81952A | Right rear light cover | 75813-02010 · 75813-02030 · 75813-02040 · 75813-02050 |
| 81962 | Left rear light cover | 75814-02020 · 75814-02030 · 75814-02040 · 75814-02050 |
