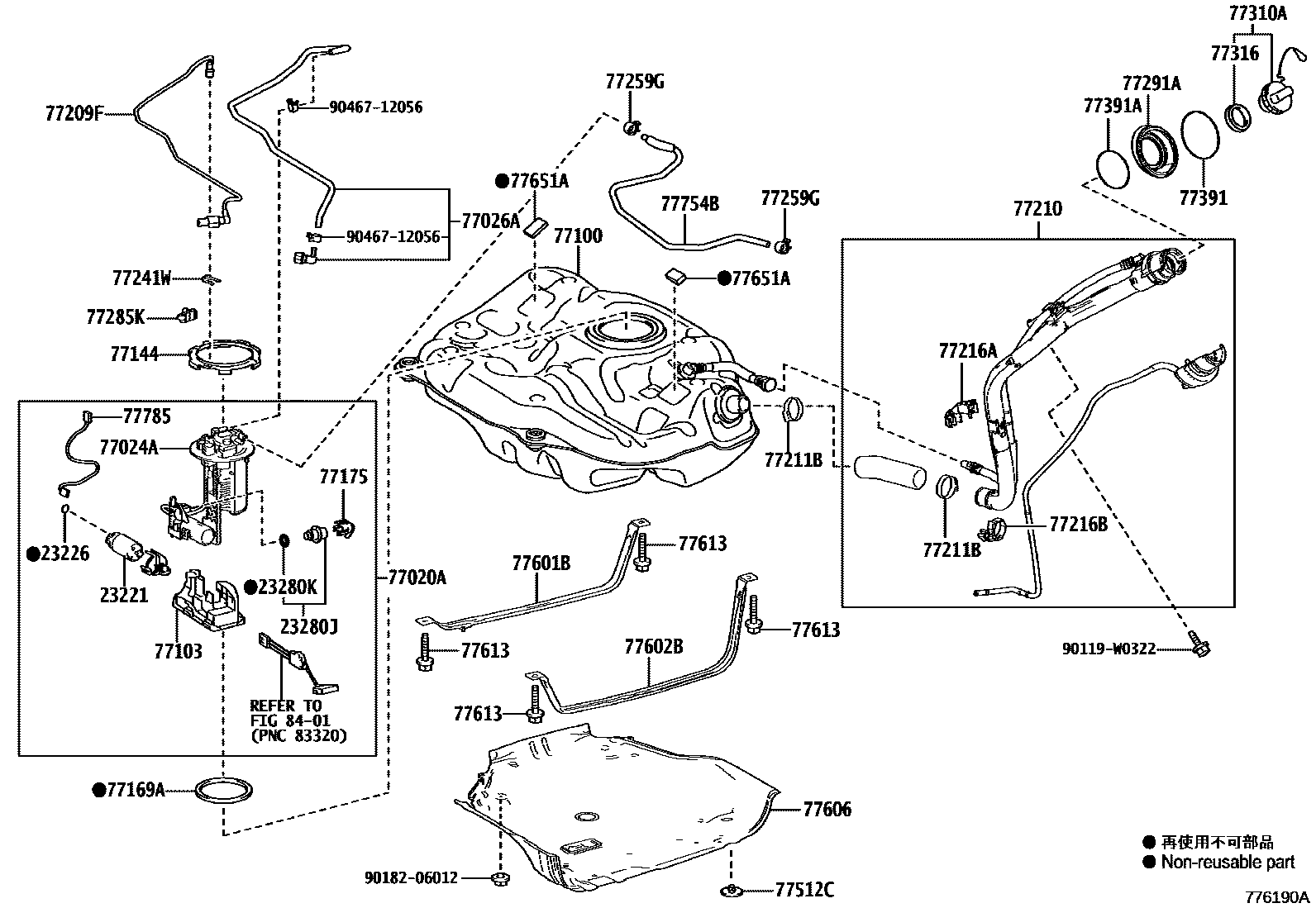

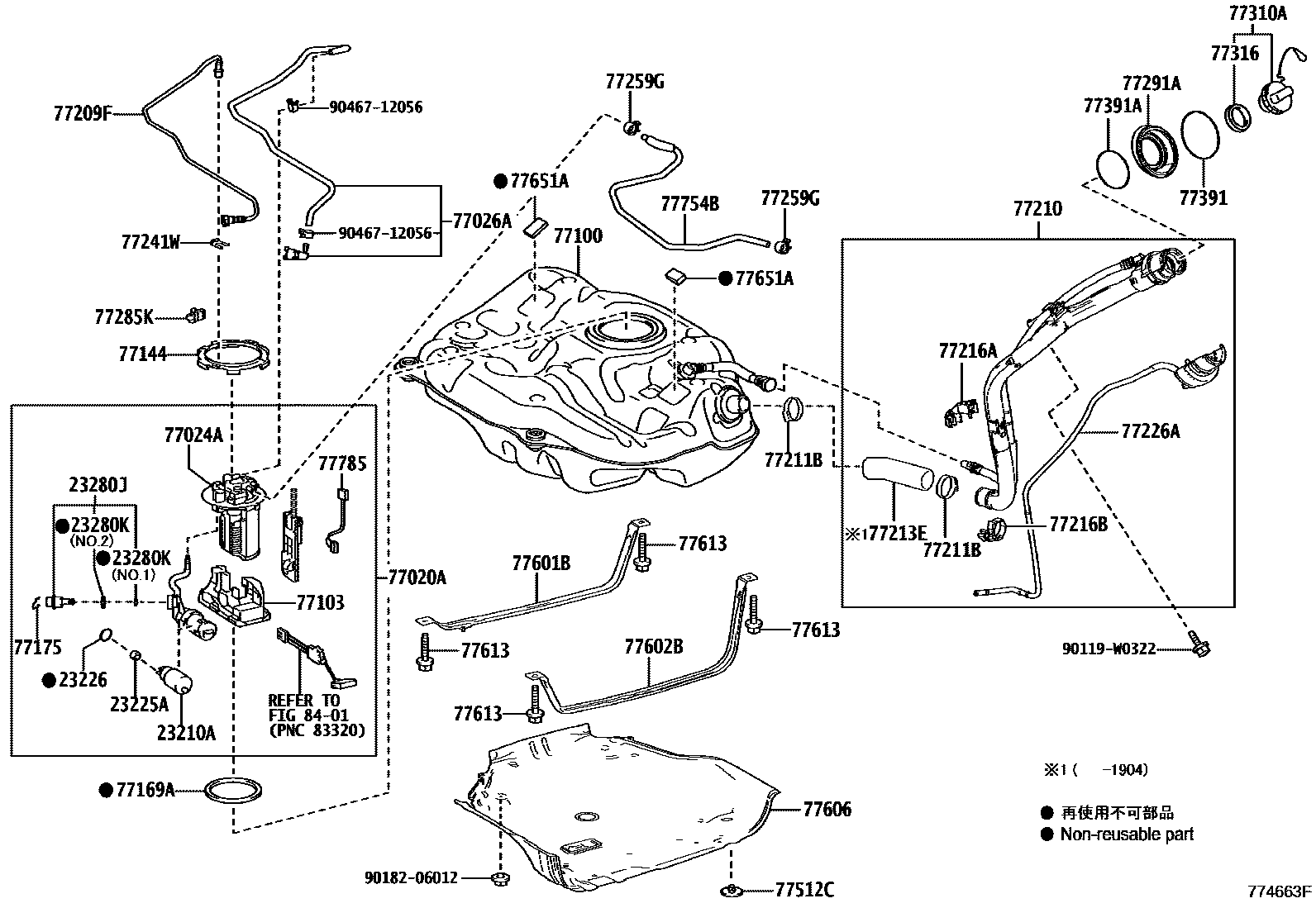

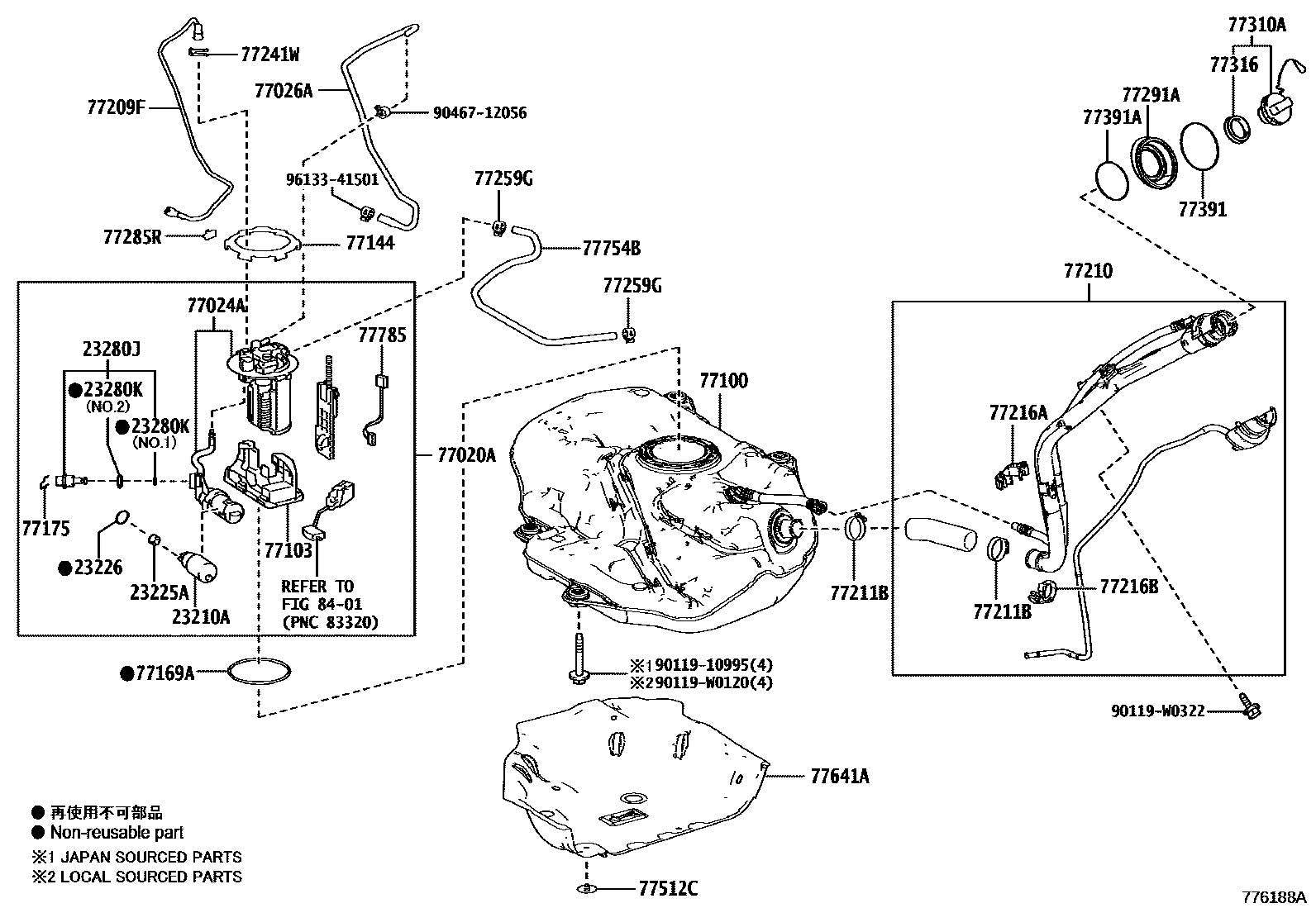

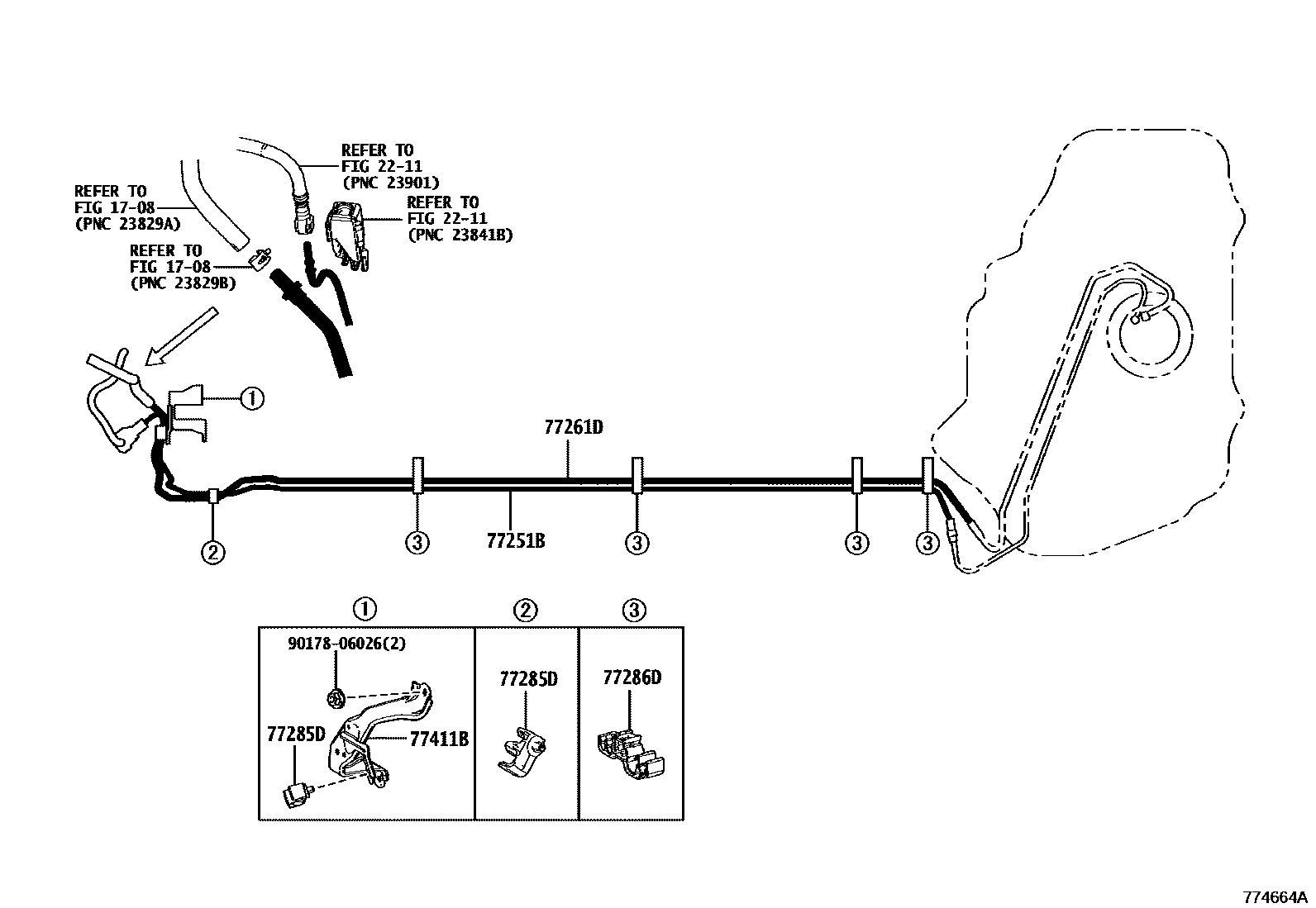

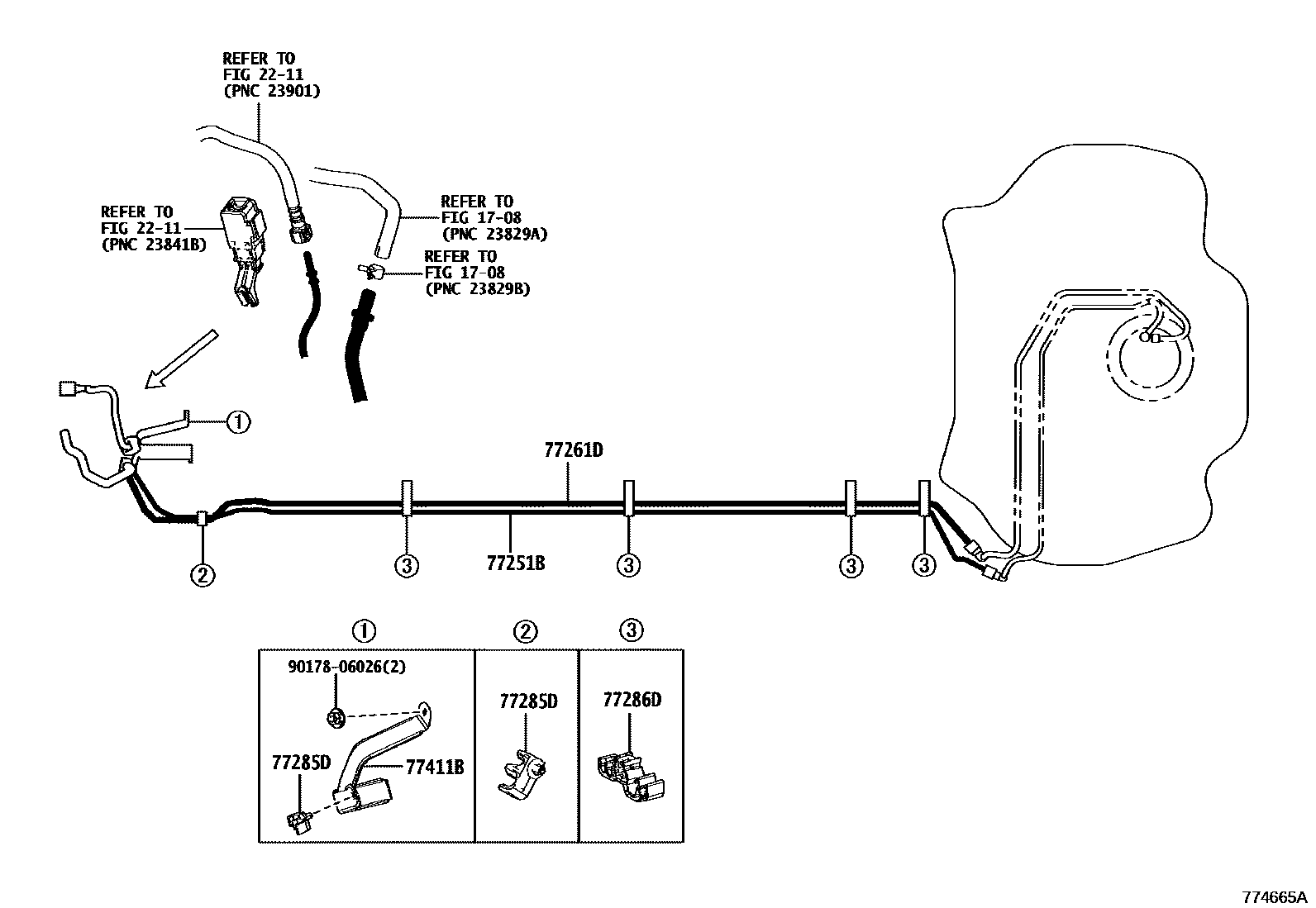

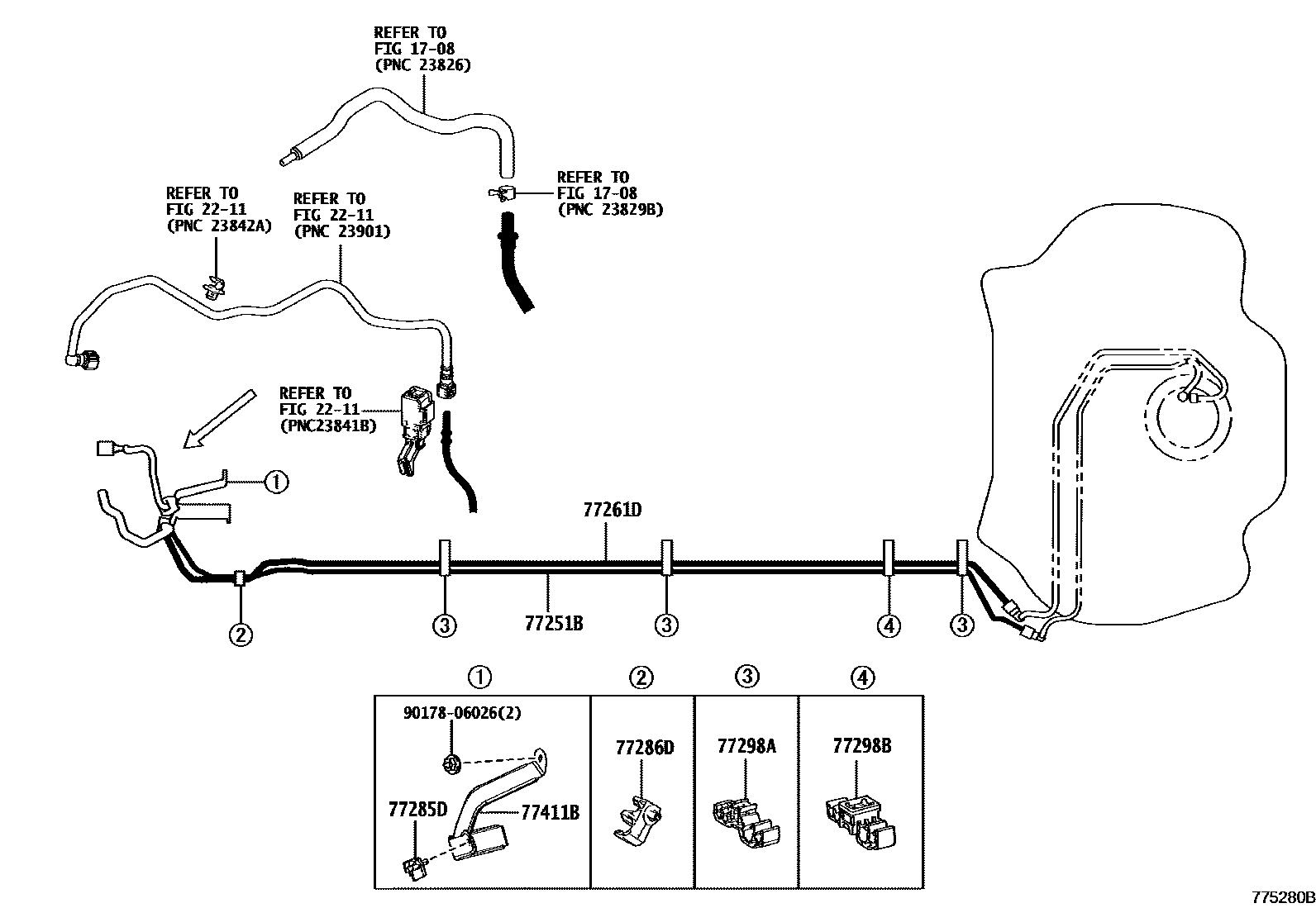

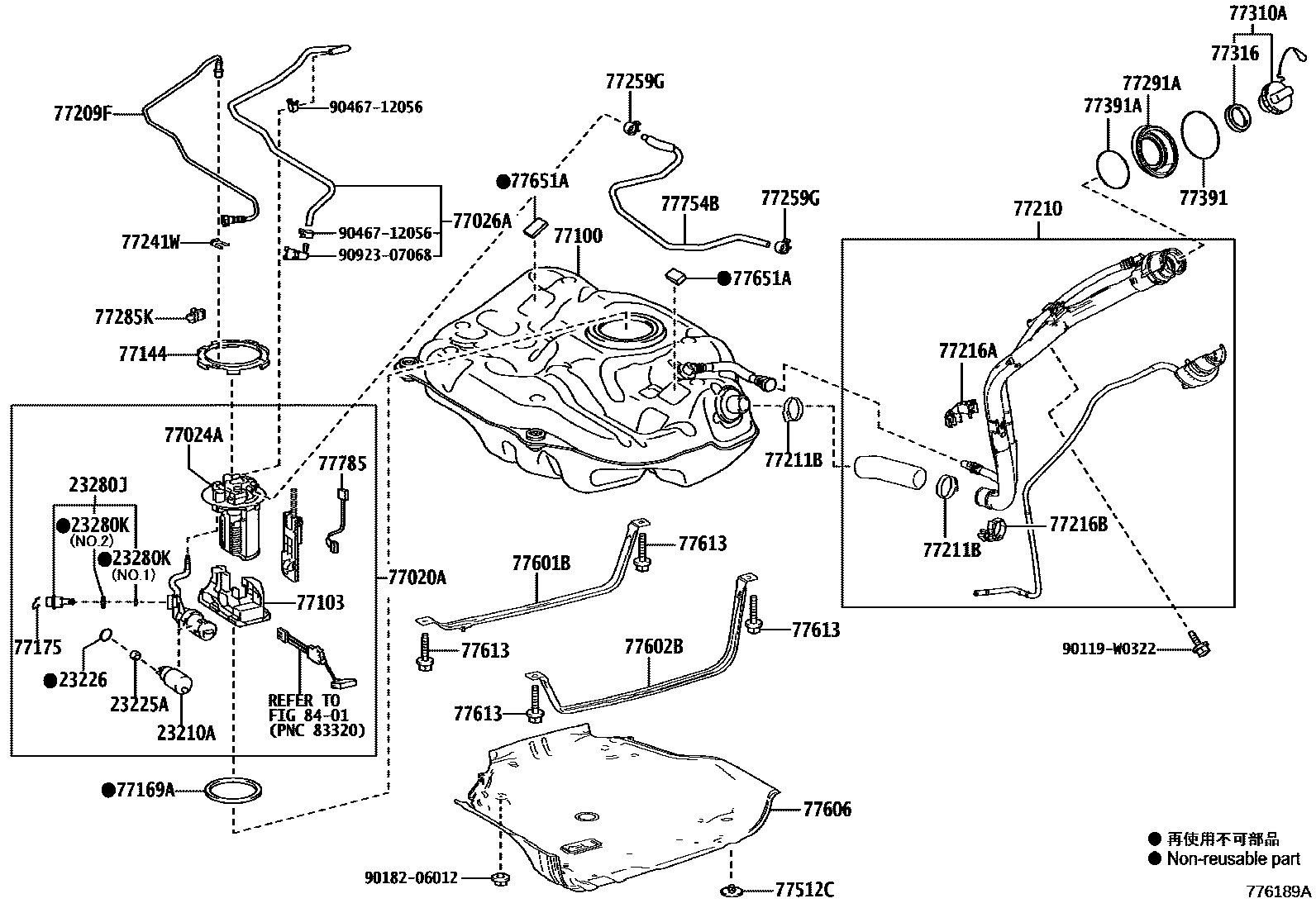

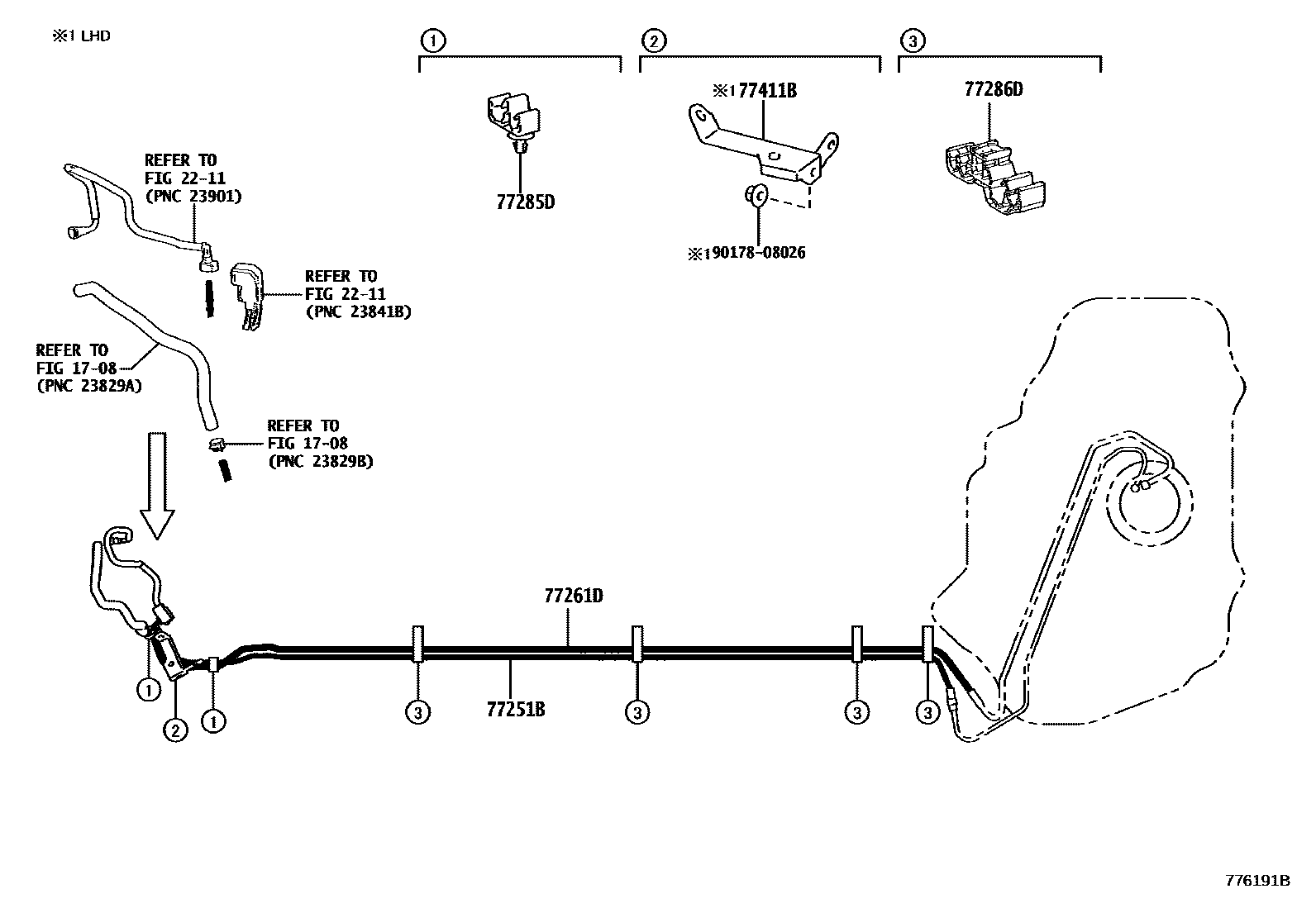

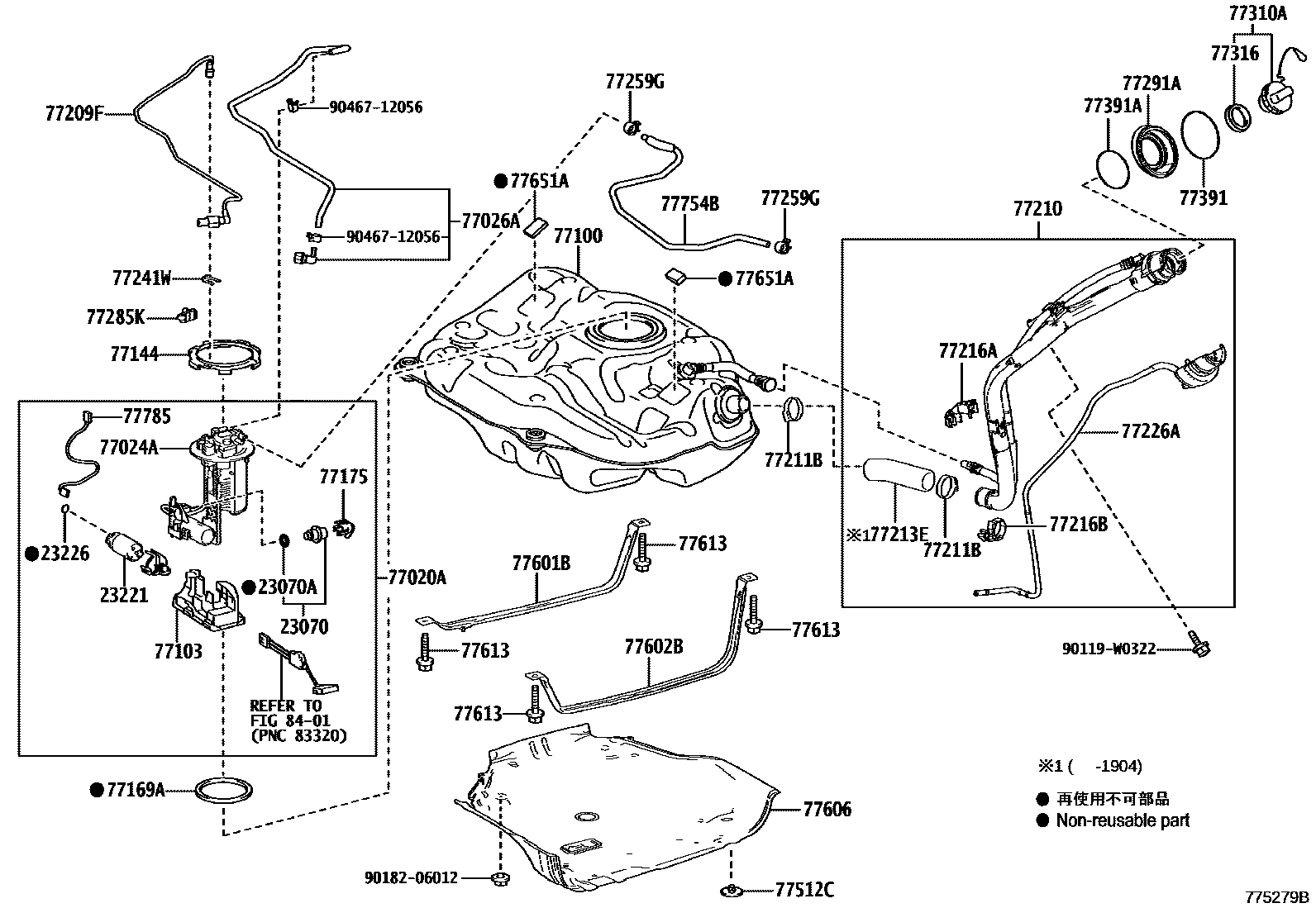

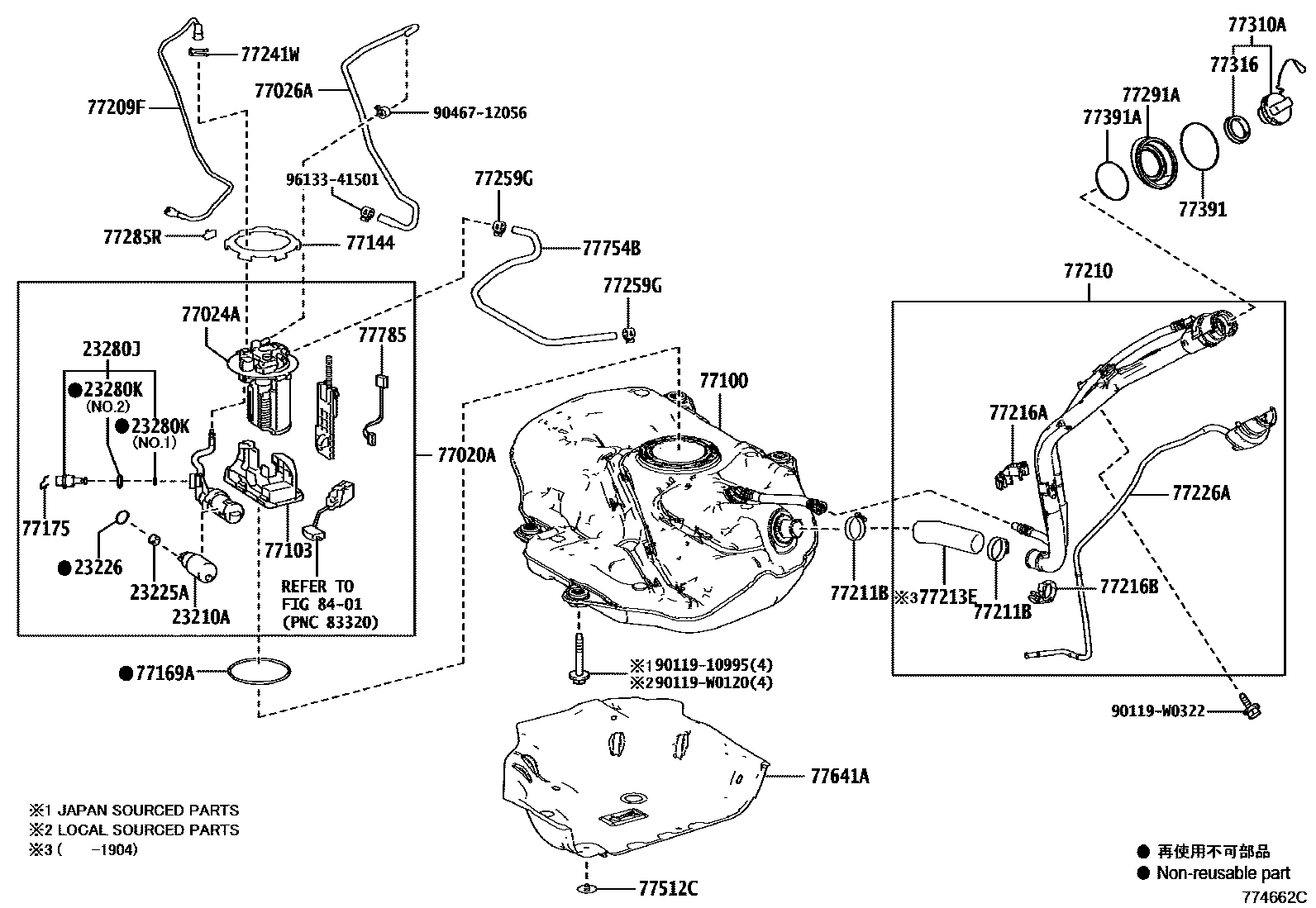

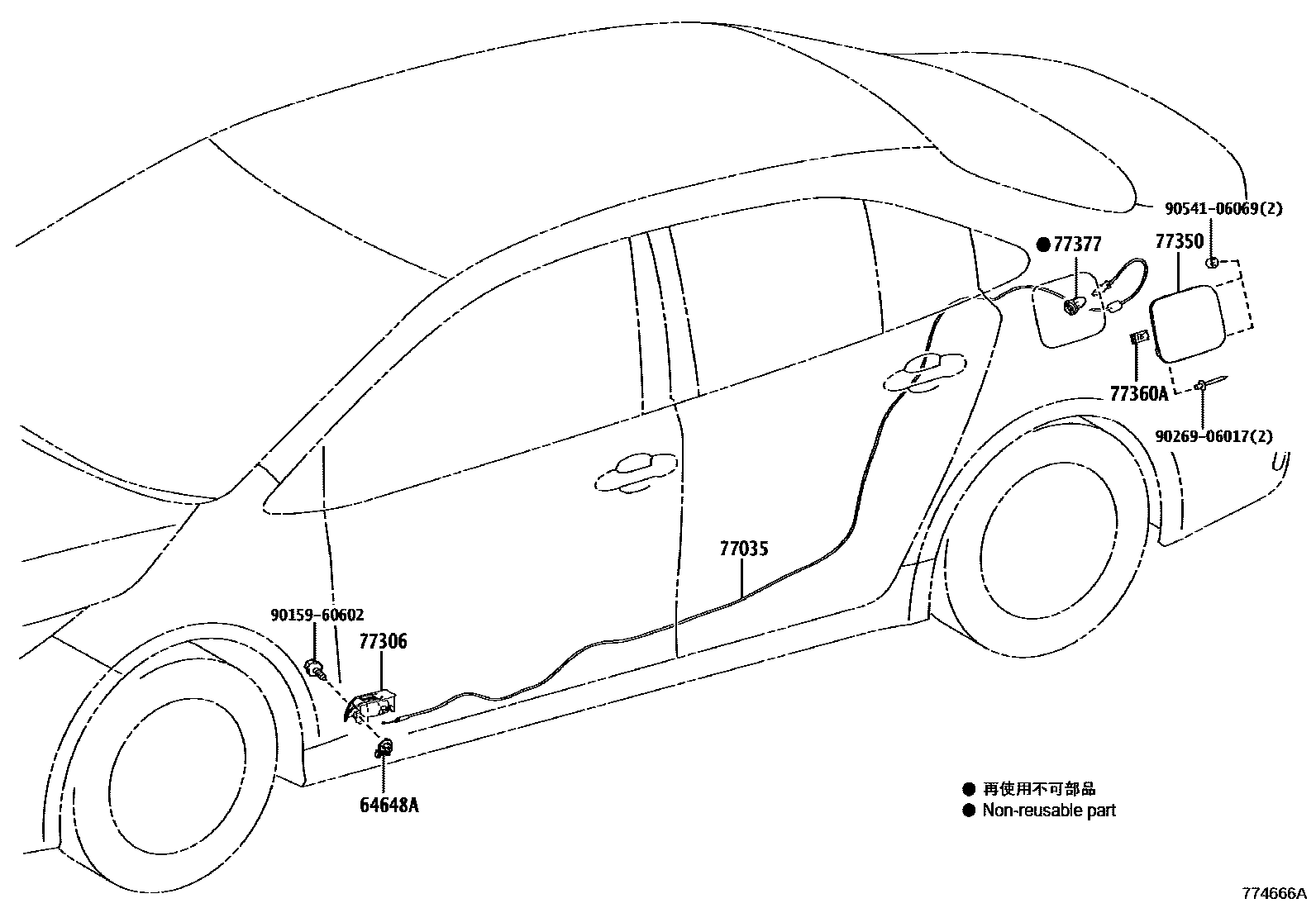

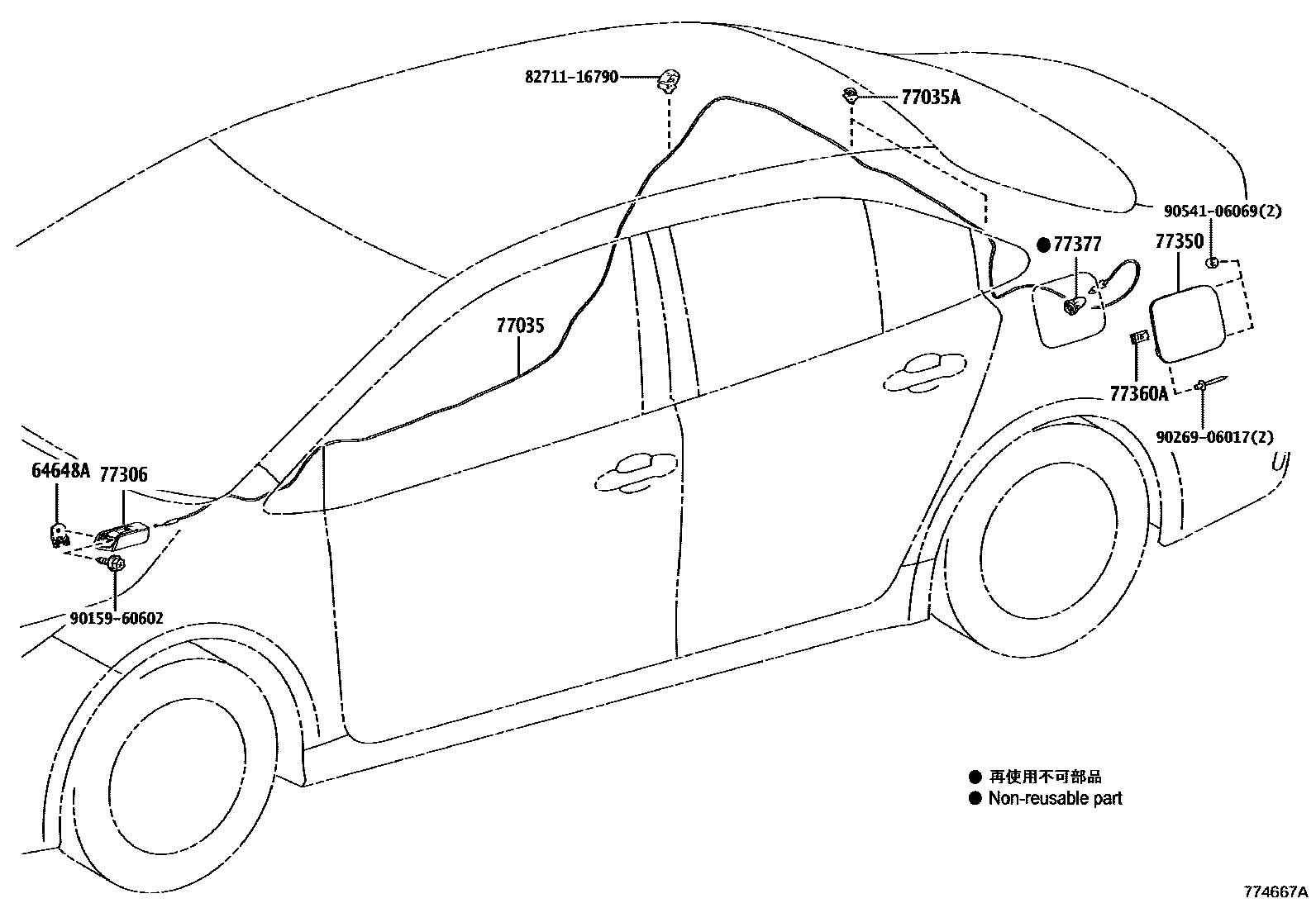

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 12 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-0T010 · 23210-0T060 |
| 23221 | fuel pump | 23210-0T040 |
| 23225A | fuel pump septum | 23225-0T010 |
| 23226 | O-ring (for fuel pump) | 90301-07046 · 90301-W0002 |
| 23280J | Fuel pressure regulator assembly | 23280-15040 · 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02830 · 77020-02831 · 77020-02C21 · 77020-F4030 |
| 77024A | Fuel absorber sub-assembly | 77024-02570 · 77024-02680 · 77024-K0030 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02150 · 77026-F4010 · 77026-F4040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02620 · 77035-02630 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100 | fuel tank assembly | 77001-F4091 · 77001-F4092 · 77001-F4100 · 77001-F4101 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-02100 · 77103-F4020 · 77103-F4070 · 77103-K0010 · 77103-K0040 |
| 77144 | Fuel pump instrument fixture | 77144-F4010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-F4050 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02050 · 77175-F4010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02380 · 77209-F4110 · 77209-F4120 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-02690 · 77210-02691 · 77210-02692 · 77210-02A00 |
| 77211B | Clamp (for fuel filler tube) | 90460-50008 |
| 77213E | Fuel tank to filler pipe hose | 77213-F4010 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-F4010 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-F4030 |
| 77226A | No. 6 fuel tank breather pipe | 77226-02130 · 77226-02131 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-02B30 · 77251-02B50 · 77251-02B60 · 77251-02D40 |
| 77259G | fuel hose clip | 90466-W0006 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02820 · 77261-02830 · 77261-02840 · 77261-02B40 |
| 77285D | No. 1 fuel pipe clamp | 77285-78010 · 77286-48100 · 77286-78040 |
| 77285K | No. 1 fuel pipe clamp | 77285-30350 |
| 77285R | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77286-75010 · 77298-10050 · 77298-10090 |
| 77291A | Fuel tank filler pipe cover | 77291-02260 |
| 77298A | No. 4 fuel pipe clamp | 77298-10070 |
| 77298B | No. 4 fuel pipe clamp | 77298-10080 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12110 · 64606-12120 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-02230 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-02010 |
| 77377 | Fuel filler cap lock retainer | 77377-02180 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20040 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02170 · 77411-F4010 · 77411-F4020 · 77411-F4030 · 77411-F4040 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-F4010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-F4010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-F4020 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 · 90119-W0120 |
| 77641A | No. 1 fuel tank protective shell | 77641-F4090 |
| 77651A | No. 1 fuel tank liner | 77651-F4010 |
| 77754B | Carbon canister outlet hose | 77754-02190 · 77754-F4010 |
| 77785 | fuel pump wiring harness | 77785-02160 · 77785-76010 |
