Toyota COROLLA 后防护条 — Figure 7504

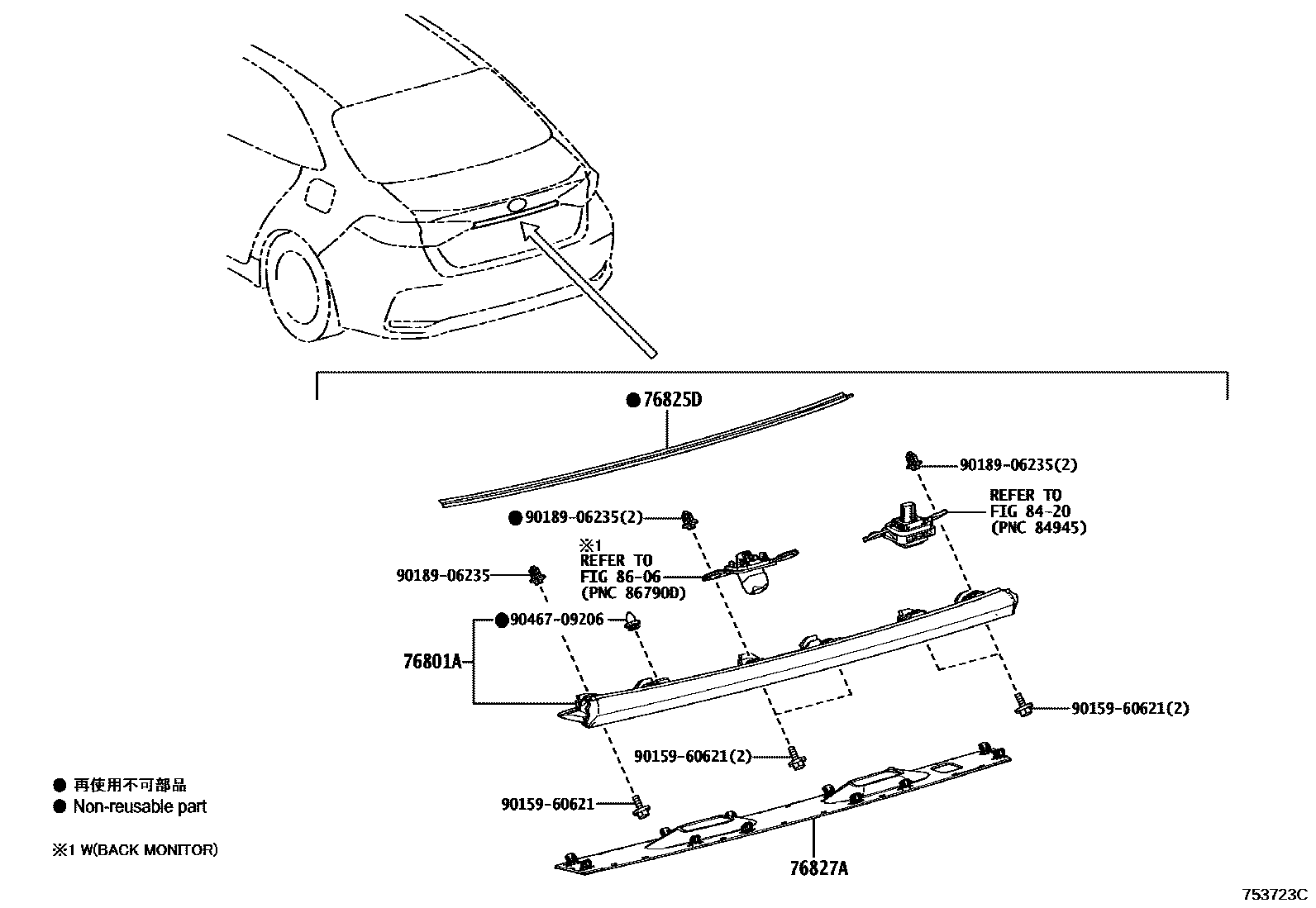

Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02K00 · 76801-02K30 · 76801-02K40 · 76801-02P50 |
| 76825D | No. 1 protective cover for rear door exterior trim strip | 76825-02360 |
| 76827A | No. 2 rear door trim strip fixings | 76827-02090 · 76827-02110 |
