Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 31 PNC and OE references.

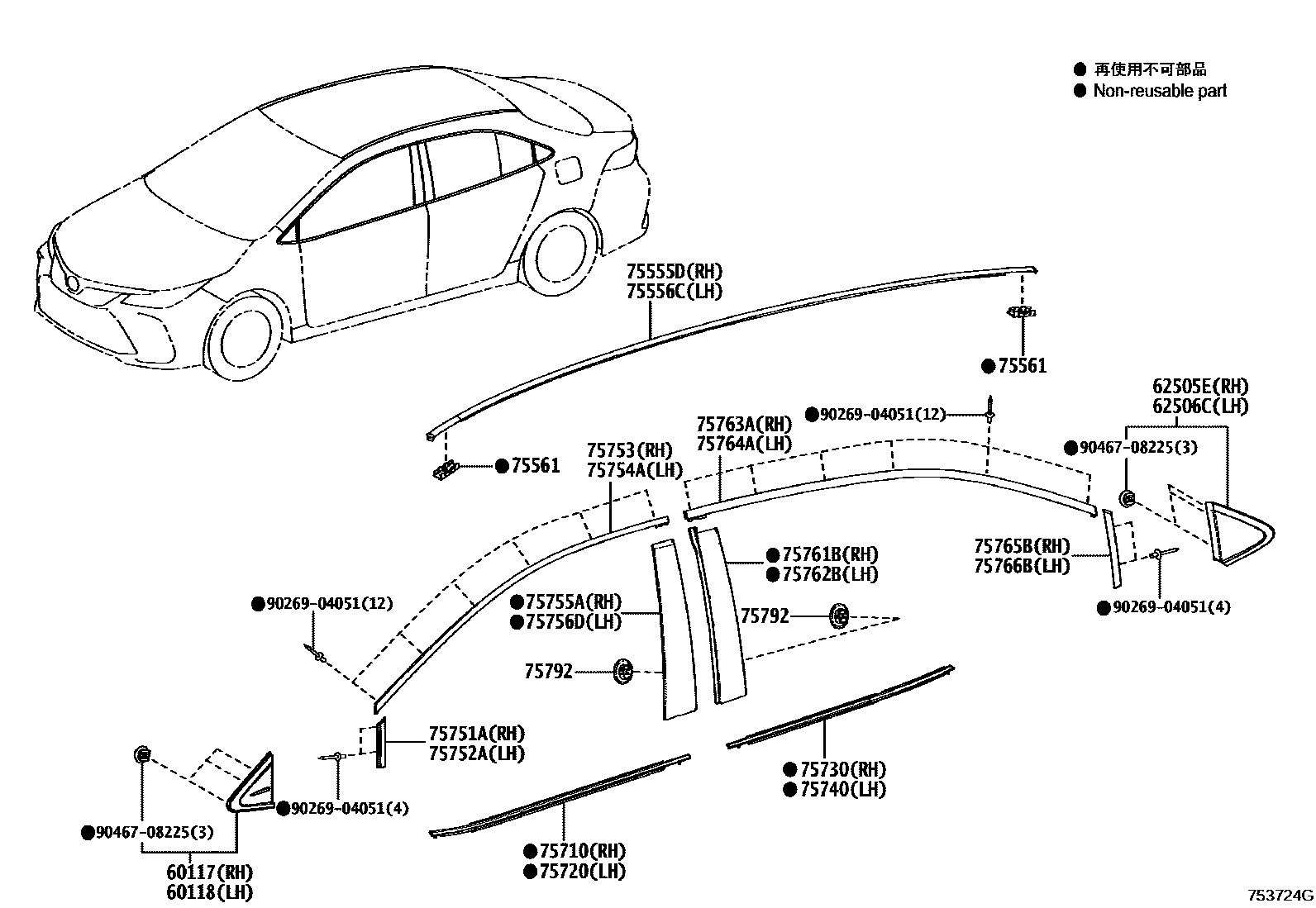

Toyota COROLLA 侧防护条 EPC diagram — 753724G
侧防护条 — 753724G (201901 – 999999)
Toyota COROLLA 侧防护条 EPC diagram — 754114B
侧防护条 — 754114B (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-02230 · 60117-02250 · 60117-02280
60118Left front pillar upper cover sub-assembly60118-02230 · 60118-02250 · 60118-02280
62505ESOUS-ENSEMBLE REVETEMENT, PILLIER DE COIN, MD62505-02040 · 62505-02050 · 62505-02060
62506CSOUS-ENSEMBLE REVETEMENT, PILLIER DE COIN, MG62506-02040 · 62506-02050 · 62506-02060
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-02300 · 75555-02430
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-02300 · 75556-02440
75561No. 1 roof drain channel side decorative strip clip75561-33030
75710Right front door waistline protection strip assembly75710-02490 · 75710-12871
75720Left front door waistline protection strip assembly75720-02490 · 75720-12A21
75730Right rear door waistline protection strip assembly75730-02490 · 75730-12461
75733BRight front door outer rear upper protective strip75733-YY030
75734BLeft front door outer rear upper protective strip75734-YY030
75740Left rear door waistline protection strip assembly75740-02490 · 75740-12551
75743ARight rear door outer rear upper protective strip75743-YY030
75744Left rear door outer rear upper protective strip75744-YY030
75751AMOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT AV)75751-02020
75752AMOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT AV)75752-02020
75753Protective strip on right front door window frame75753-02030 · 75753-02040
75754AProtective strip on left front door window frame75754-02030 · 75754-02040
75755AMOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT CTRL)75755-02140 · 75755-02190
75756DMOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT CTRL)75756-02140 · 75756-02190
75761BMOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT CTRL)75761-02150 · 75761-02200
75762BMOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT CTRL)75762-02150 · 75762-02200
75763AProtective strip on right rear door window frame75763-02050 · 75763-02060
75764AProtective strip on left rear door window frame75764-02050 · 75764-02060
75765BMOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT ARR)75765-02020
75766BMOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT ARR)75766-02020
75792Car door window frame protective strip clip75792-47010
75851Right side door sill panel protective strip75851-02904
75852Left side door sill panel protective strip75852-02903
75867ADoor sill panel protective strip clip75867-52020
