Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

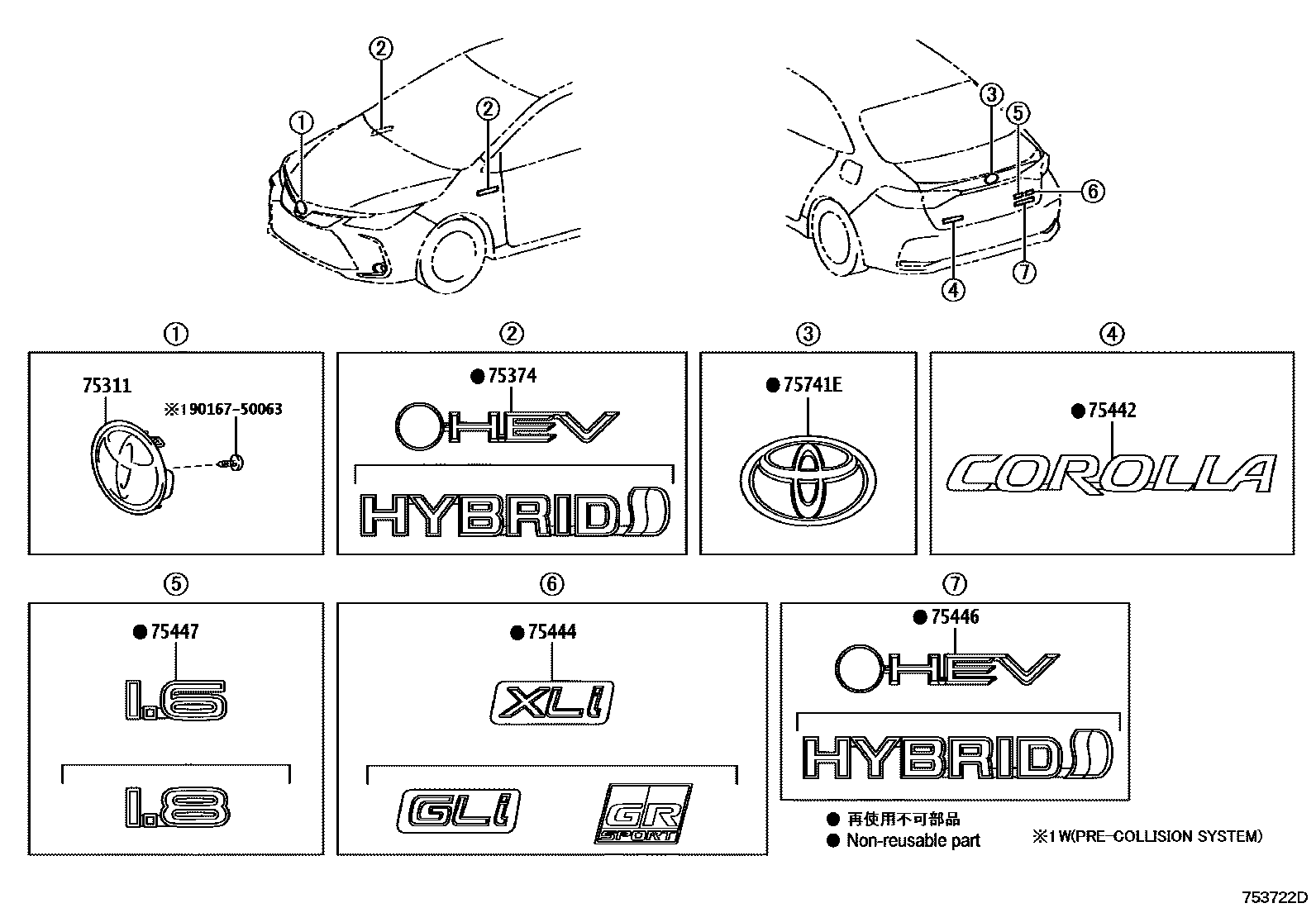

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-12270 · 53141-12280 · 75301-02190 · 75310-02050 · 75310-02060 · 90975-02124 · 90975-02136 |
| 75374 | side panel sign | 75374-02210 · 75374-02211 · 75374-02220 · 75374-02221 · 75440-02080 |
| 75442 | Trunk door number plate No. 2 | 75442-02480 · 75442-02490 |
| 75444 | Trunk door No. 4 nameplate | 75441-YY250 · 75444-02D60 · 75444-02D61 · 75444-02D70 · 75444-02D71 |
| 75446 | Trunk door No. 6 nameplate | 75440-02080 · 75447-02450 · 75447-02451 |
| 75447 | Trunk door No. 7 nameplate | 75447-02430 · 75447-02431 · 75447-02440 · 75447-02441 |
| 75741E | logo | 75403-02060 · 75403-F4010 · 90975-02138 · 90975-W2006 · 90975-W2011 |
