Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 4 images and 2 PNC and OE references.

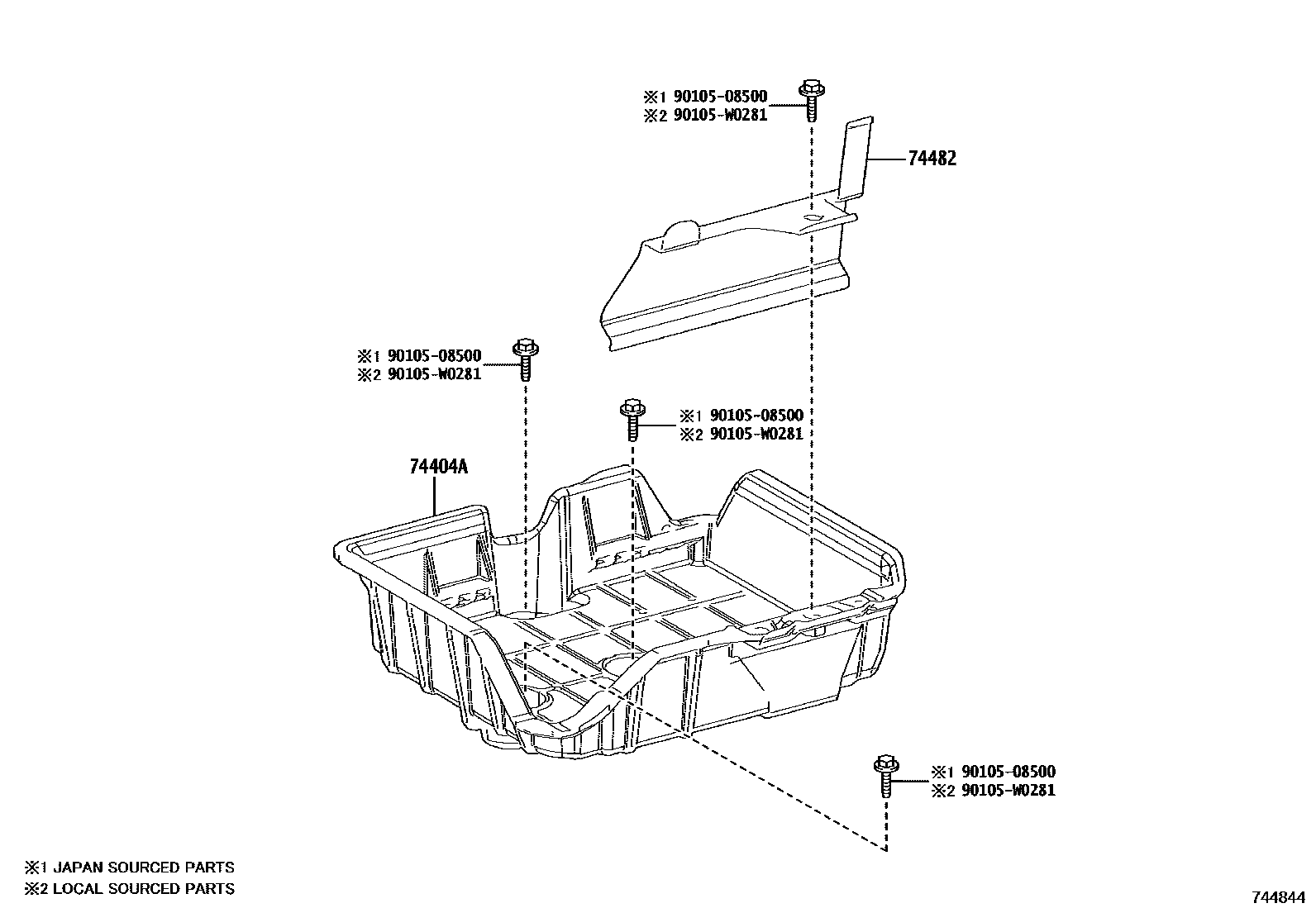

Toyota COROLLA battery holder EPC diagram — 744844
battery holder — 744844 (201901 – 999999)

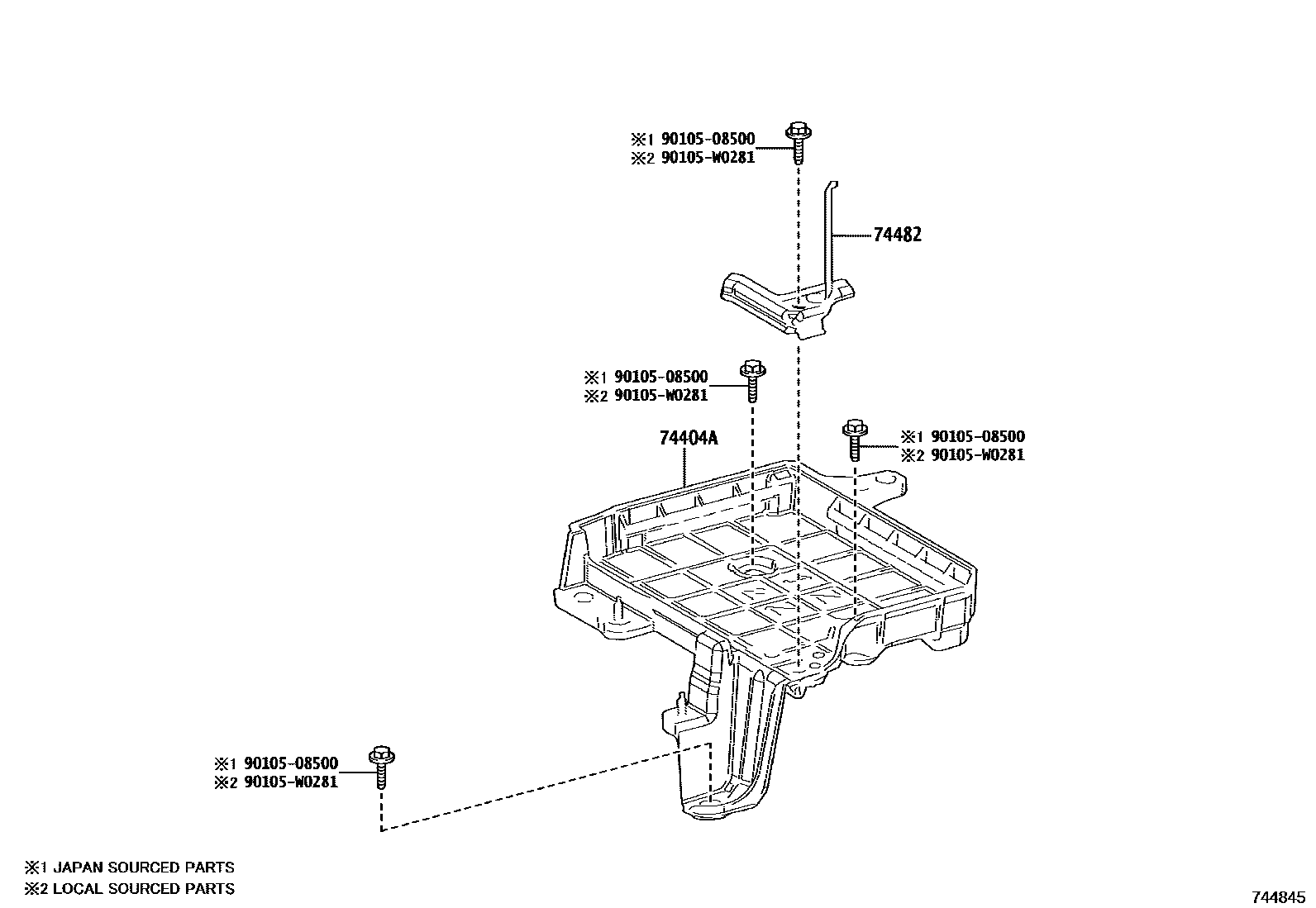

Toyota COROLLA battery holder EPC diagram — 744845
battery holder — 744845 (201901 – 999999)

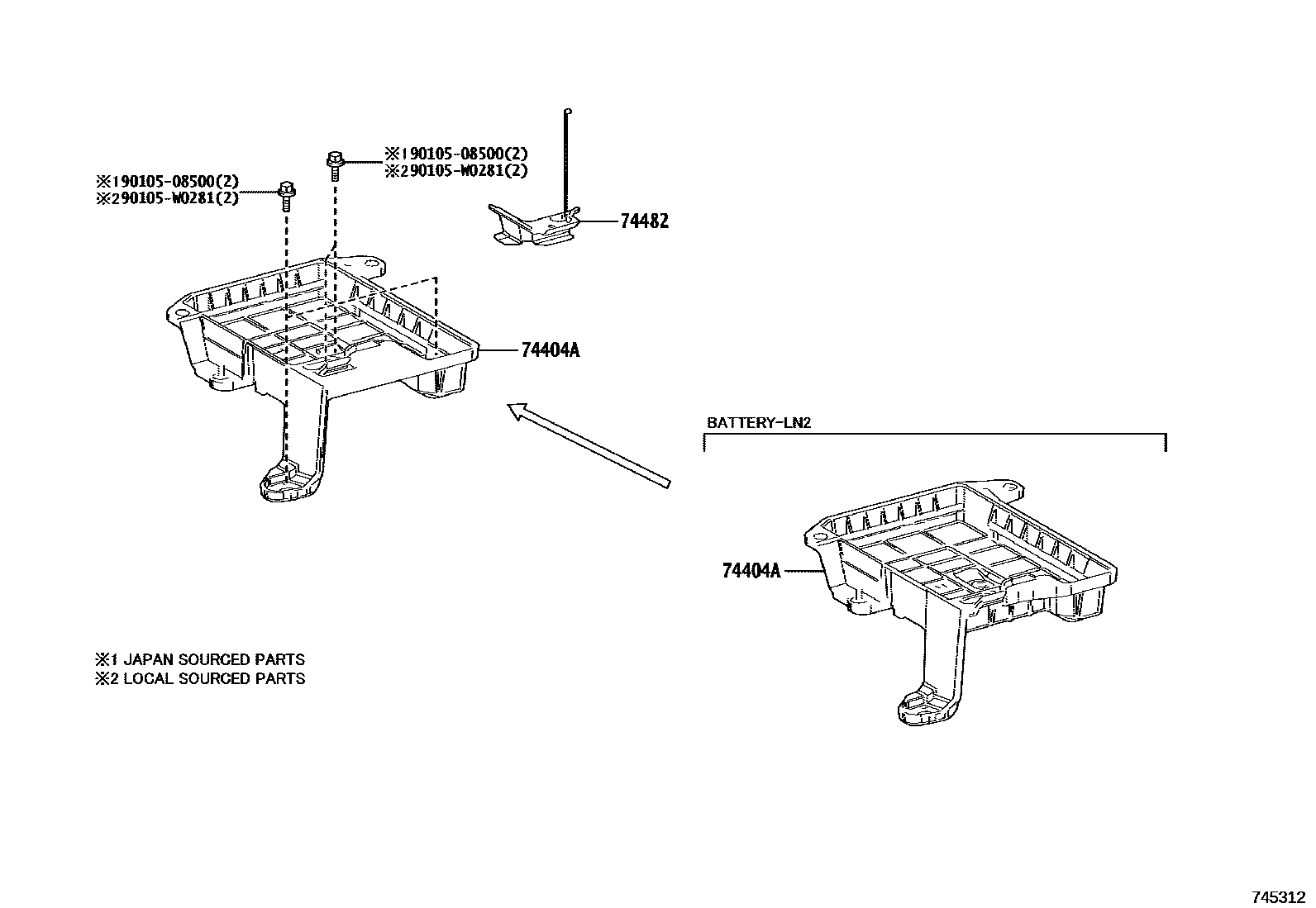

Toyota COROLLA battery holder EPC diagram — 745312
battery holder — 745312 (202010 – 999999)

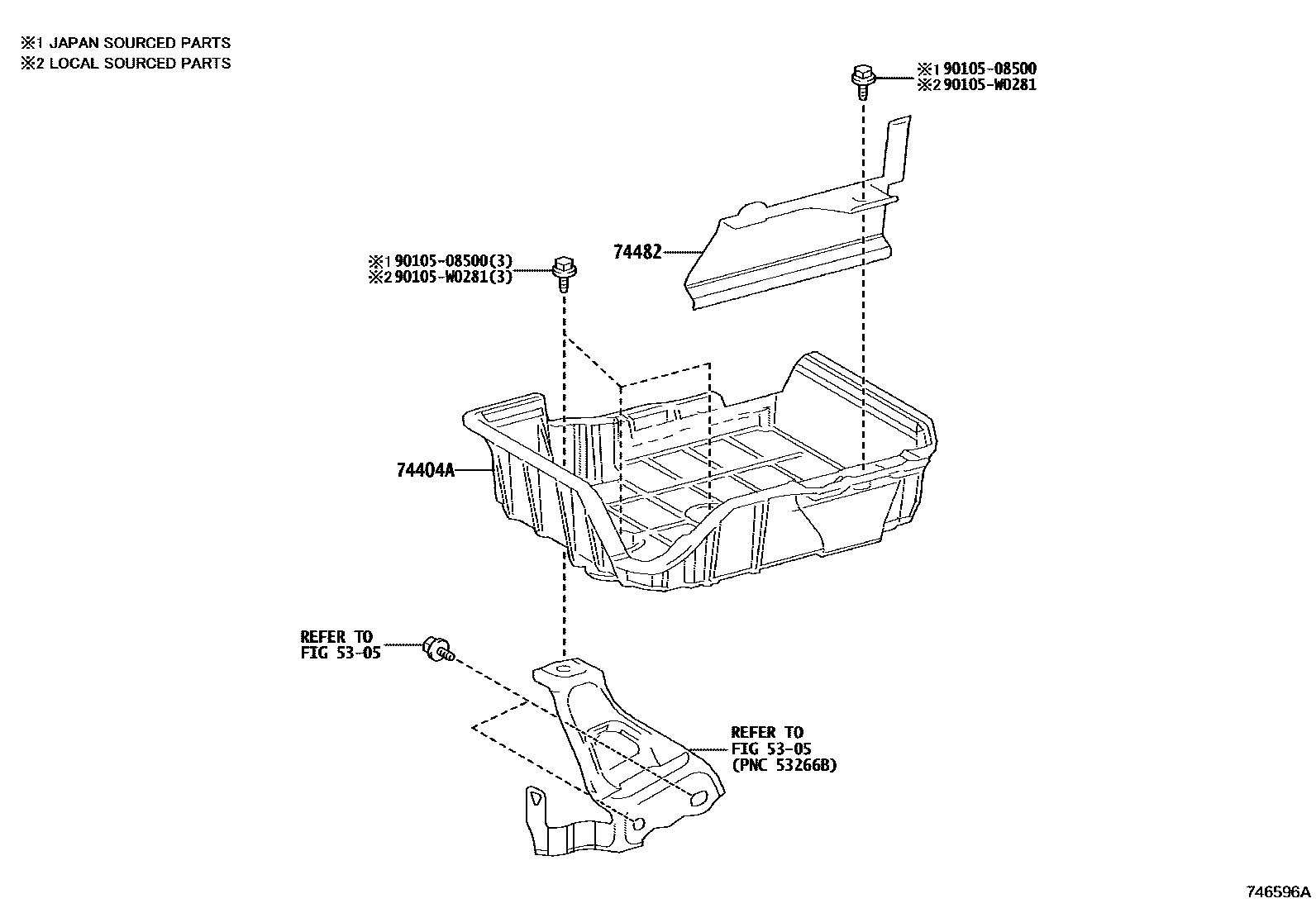

Toyota COROLLA battery holder EPC diagram — 746596A
battery holder — 746596A (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02800 · 74404-02810 · 74404-02840 · 74404-02A10 · 74404-02A50 · 74404-12560
74482No. 2 battery clip74405-02100 · 74482-F4010
