Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

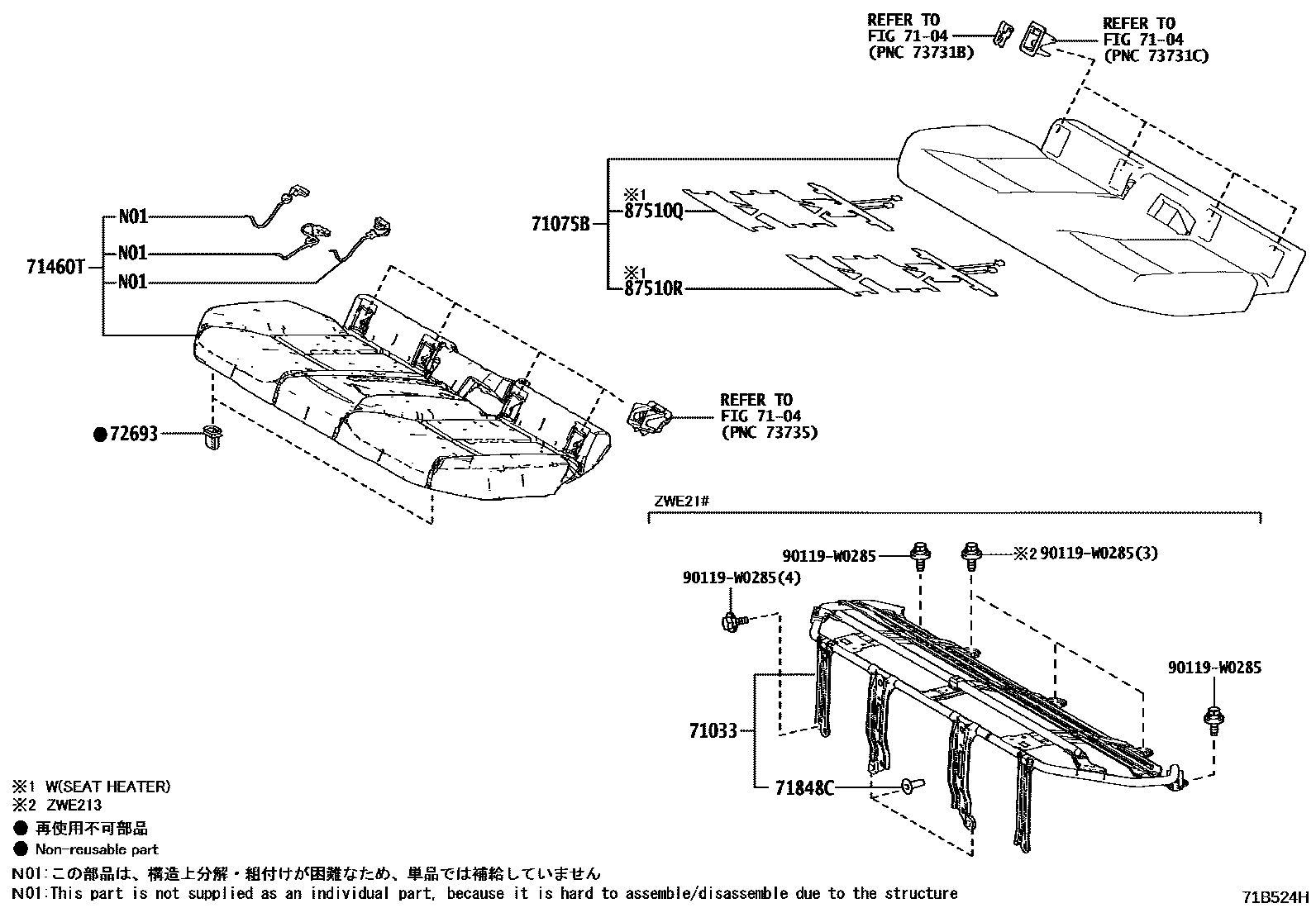

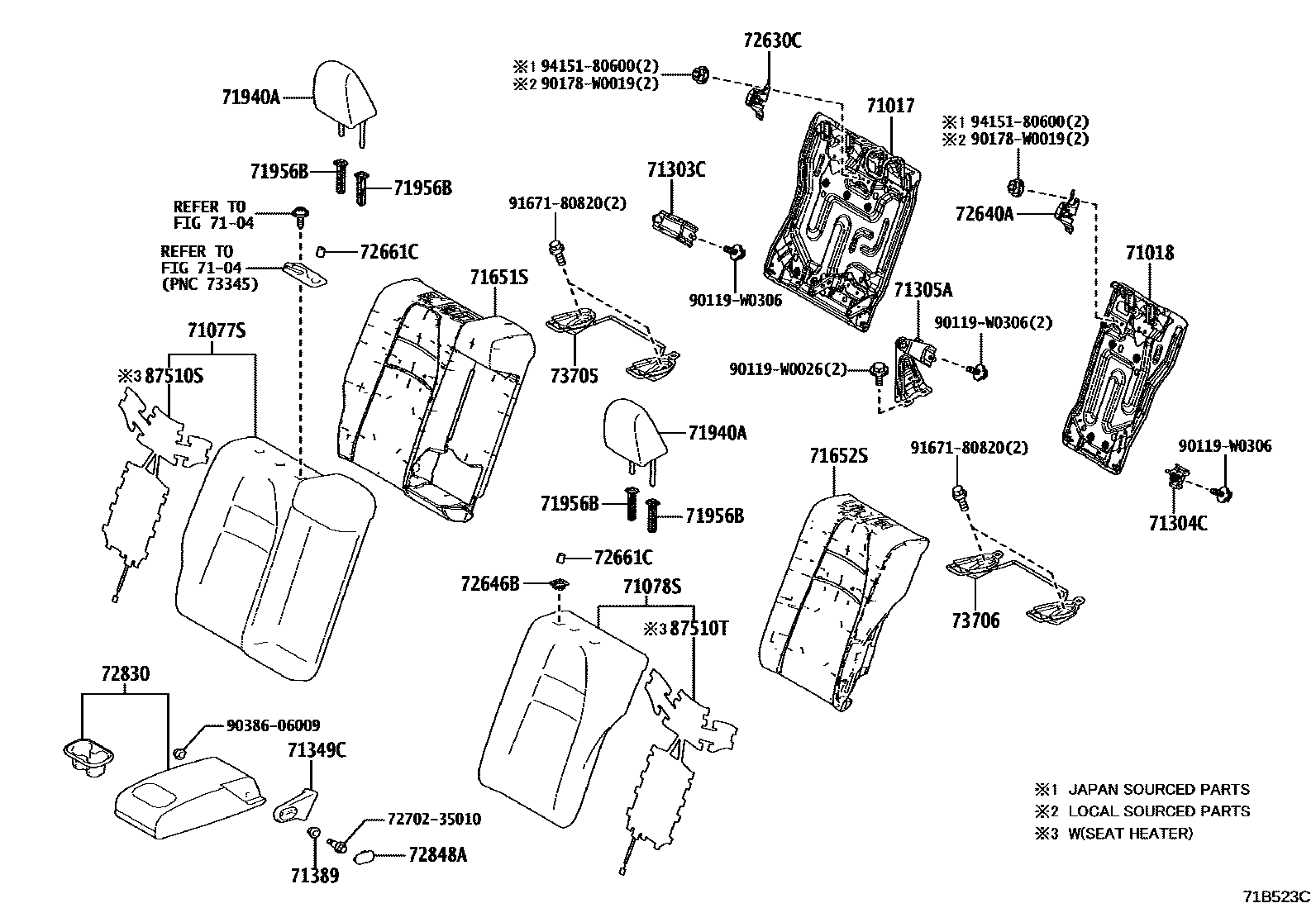

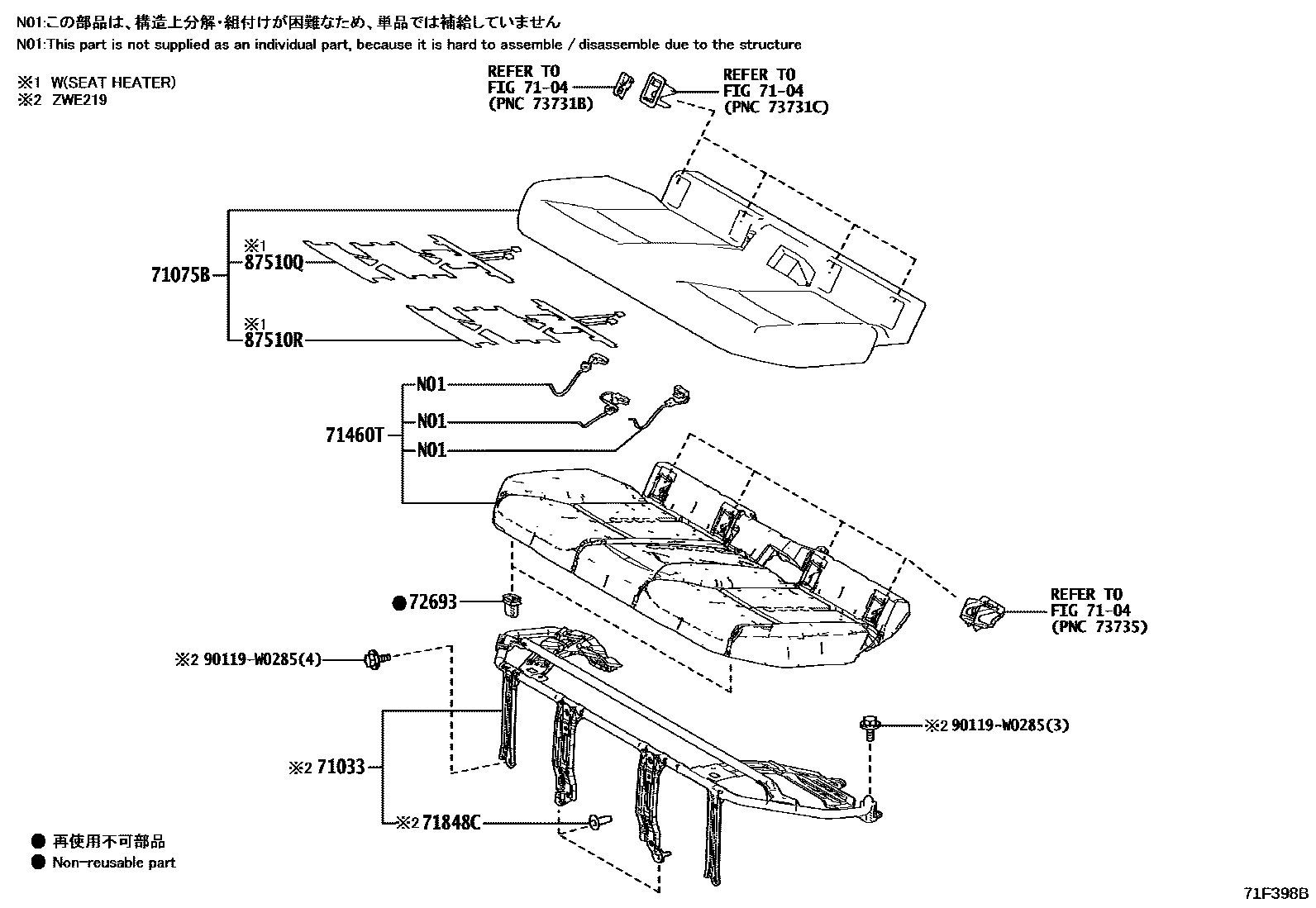

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02B80 · 71017-02B90 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02610 · 71018-02660 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02100 · 71033-F4010 · 71033-F4030 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-YY620 · 71075-YY630 · 71075-YY640 · 71075-YY700 |
| 71077S | Right rear seat back cover (for split seats) | 71077-YY400 |
| 71078S | Rear left seat back cover (for split seats) | 71078-YY340 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02340 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-02080 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02340 |
| 71389 | Center seat hinge spacer | 71389-02010 |
| 71460T | Rear No. 1 seat cushion cushion sub-assembly | 71503-02670 · 71503-02690 · 71503-02A00 · 71503-02A10 · 71503-02A50 · 71503-02A60 · 71503-02B20 · 71503-02B30 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02A60 · 71651-02A70 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02820 · 71652-02830 |
| 71848C | Right seat adjuster cover | 71848-F4020 |
| 71940A | Rear seat headrest assembly | 71940-YP270 · 71940-YY270 |
| 72630C | Rear right seat back lock assembly | 72630-12380 |
| 72640A | Rear left seat back lock assembly | 72640-12350 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830 | Rear seat center armrest assembly | 72830-YY040 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02281 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02121 |
| 87510Q | Seat heater assembly | 87510-02610 |
| 87510R | Seat heater assembly | 87510-02600 |
| 87510S | Seat heater assembly | 87530-02270 |
| 87510T | Seat heater assembly | 87530-02280 |
