Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

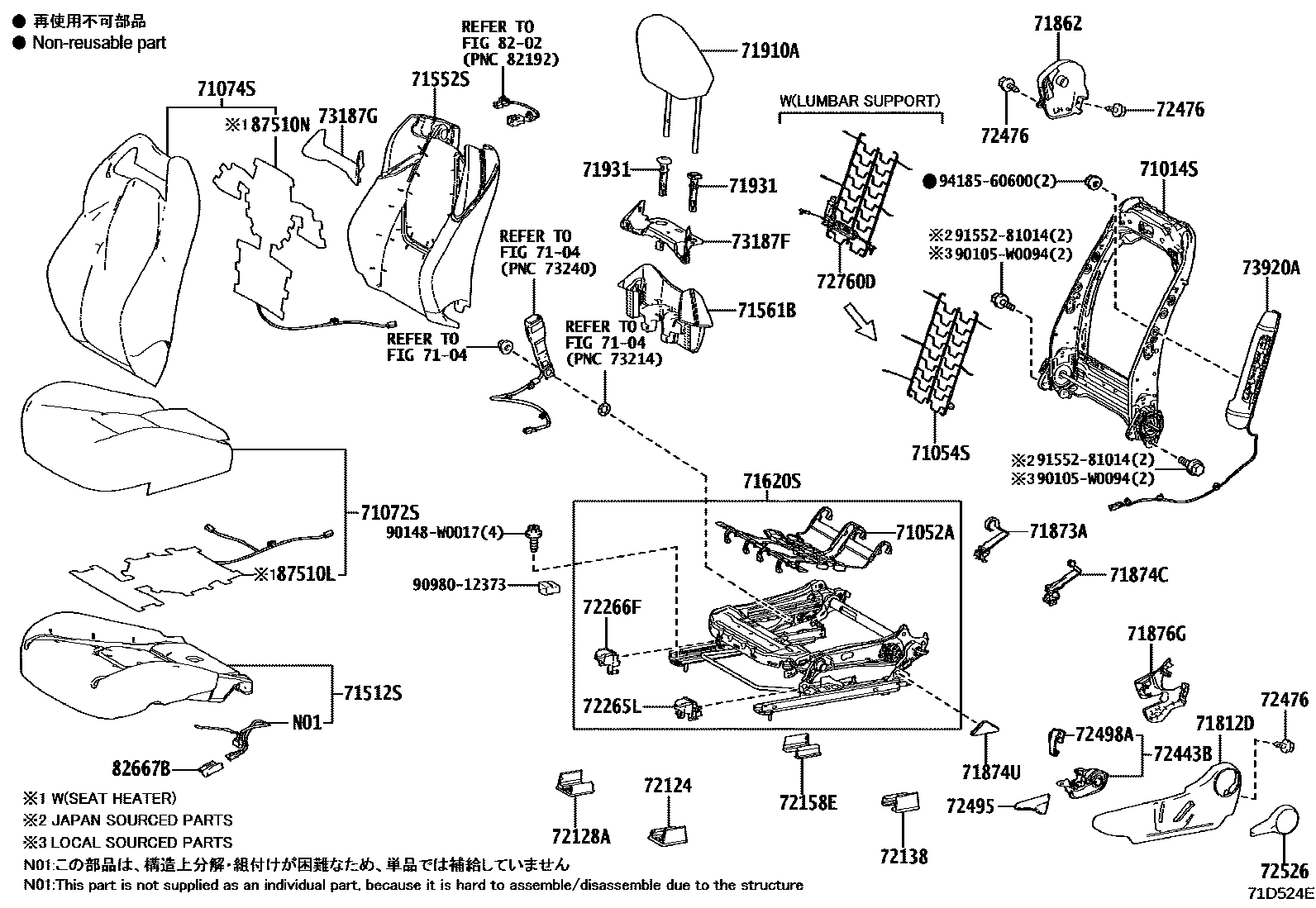

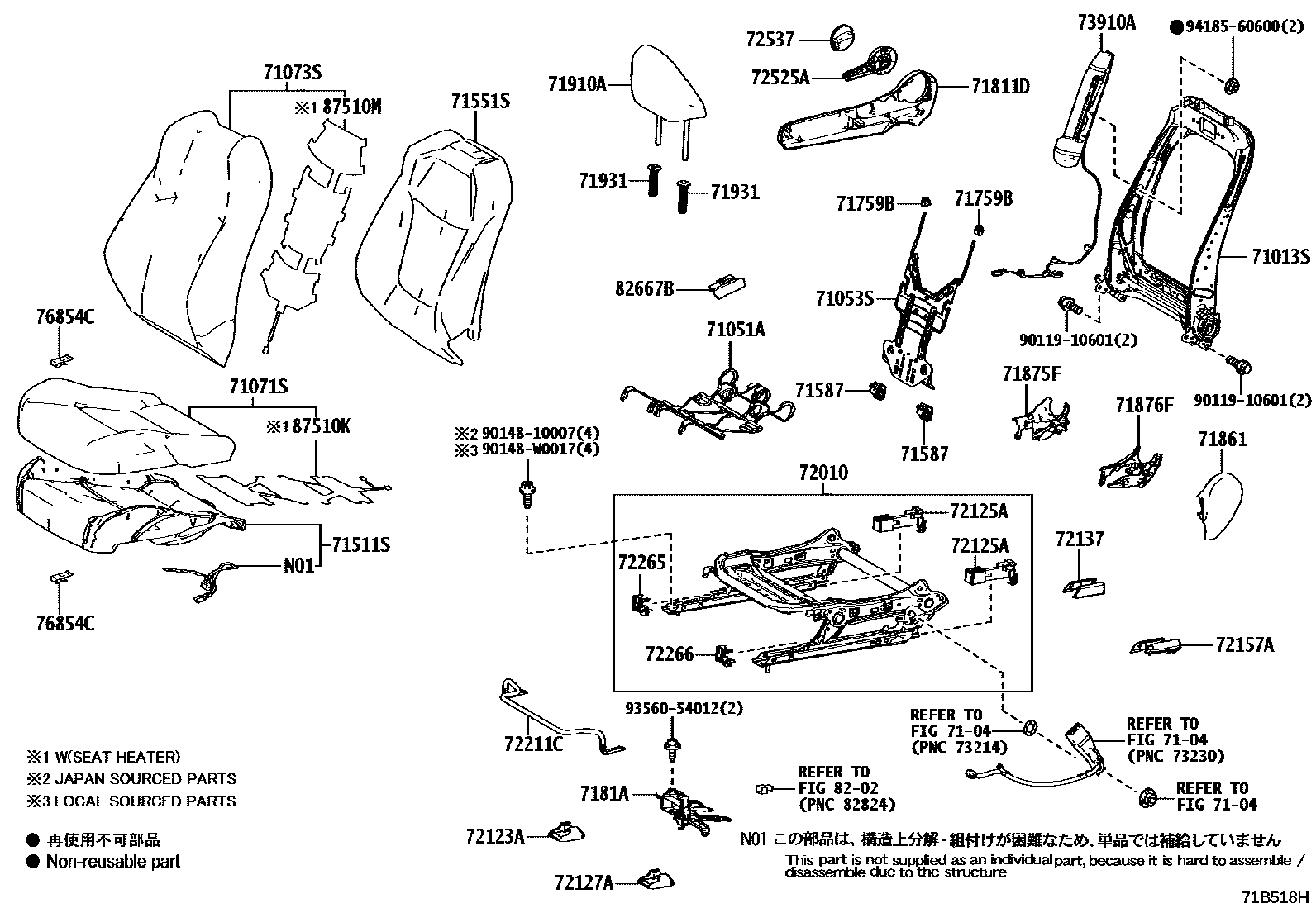

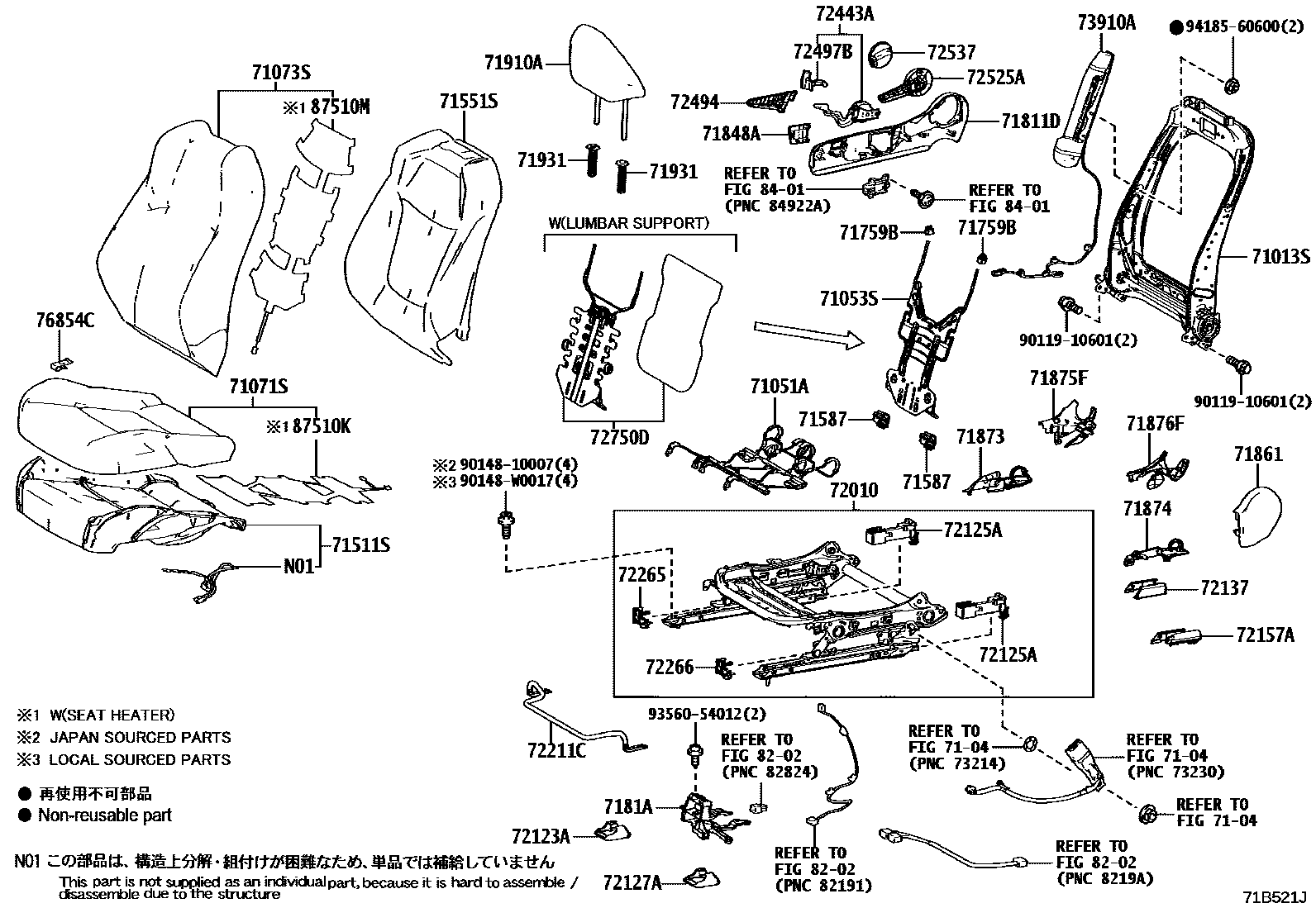

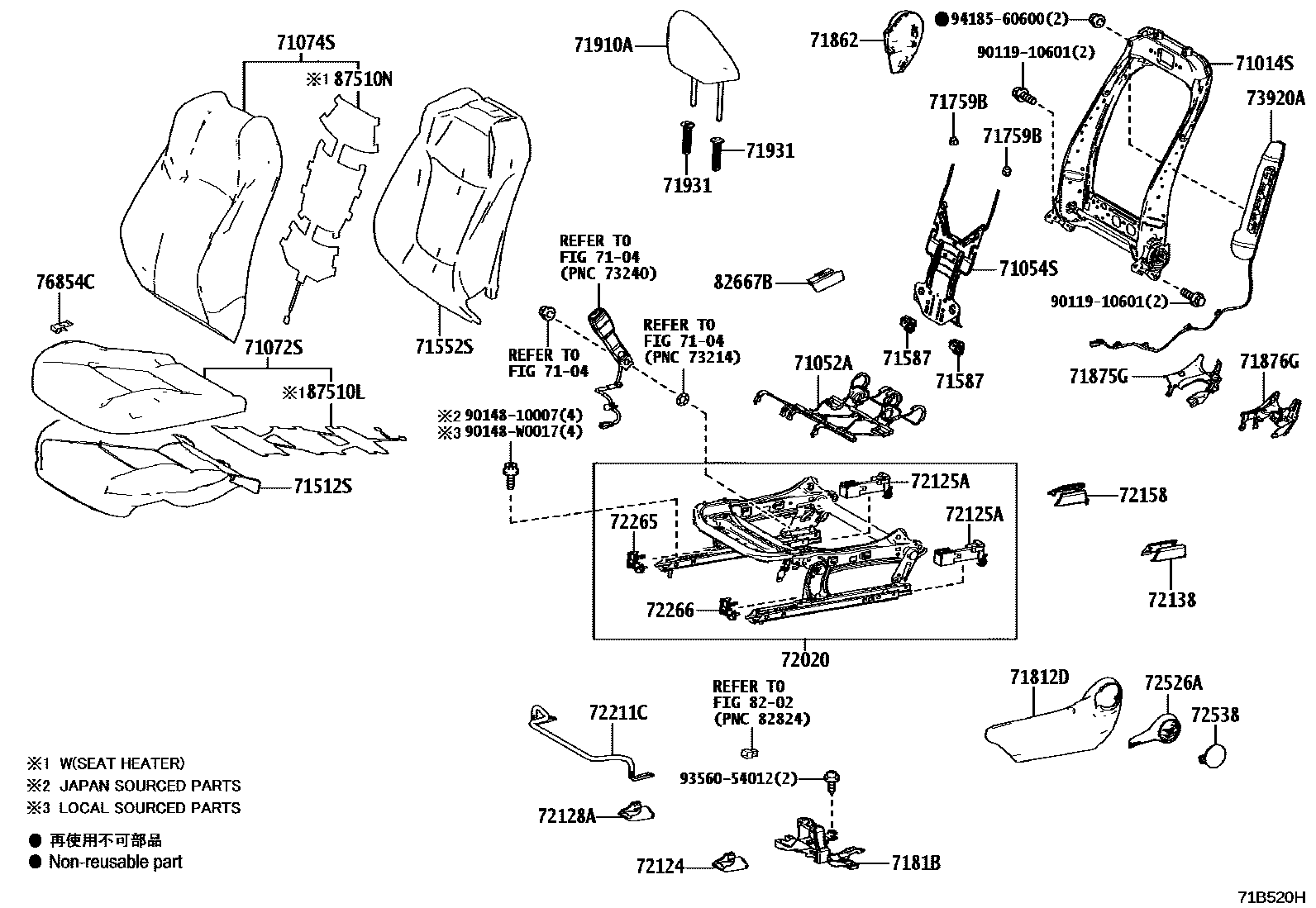

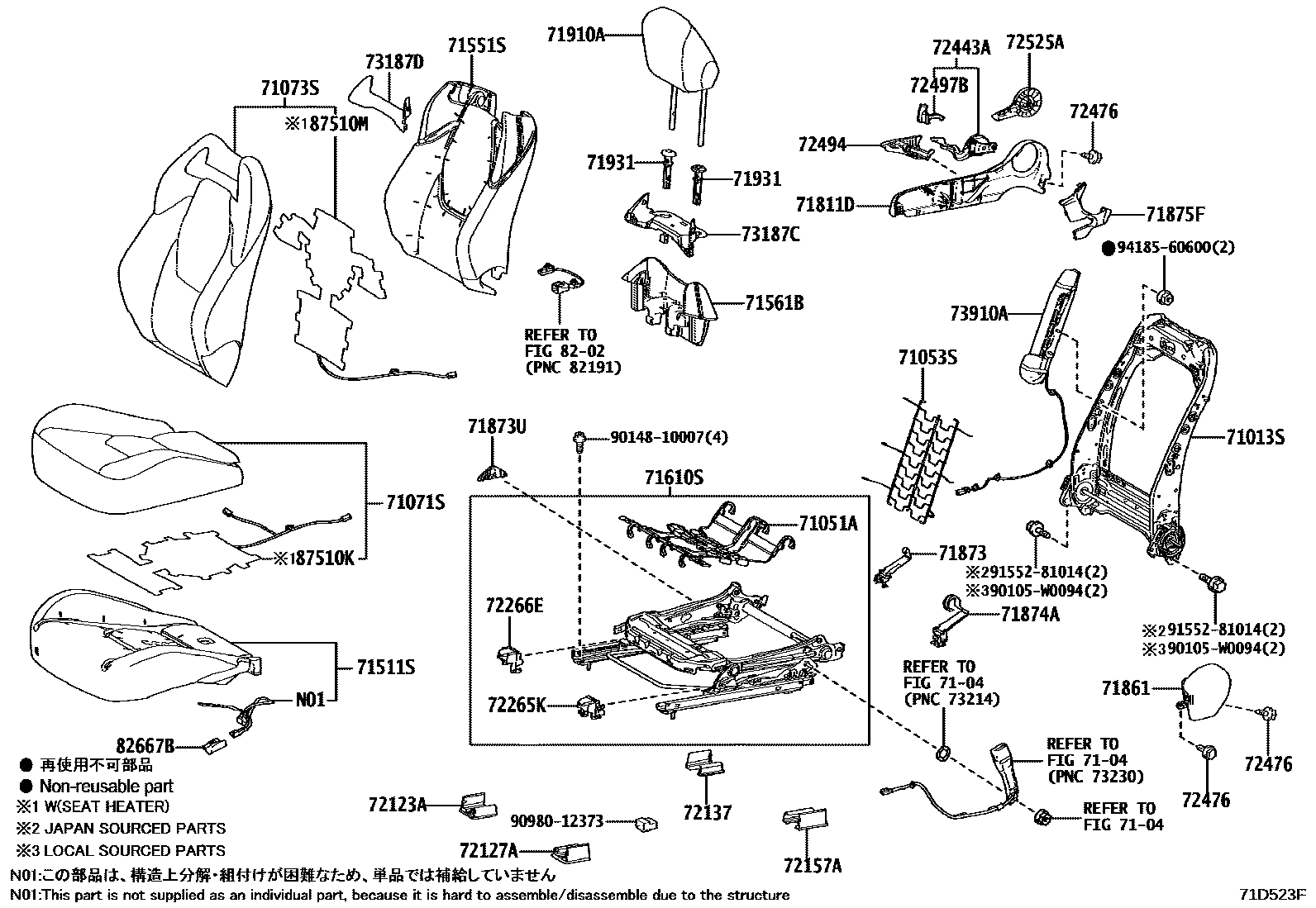

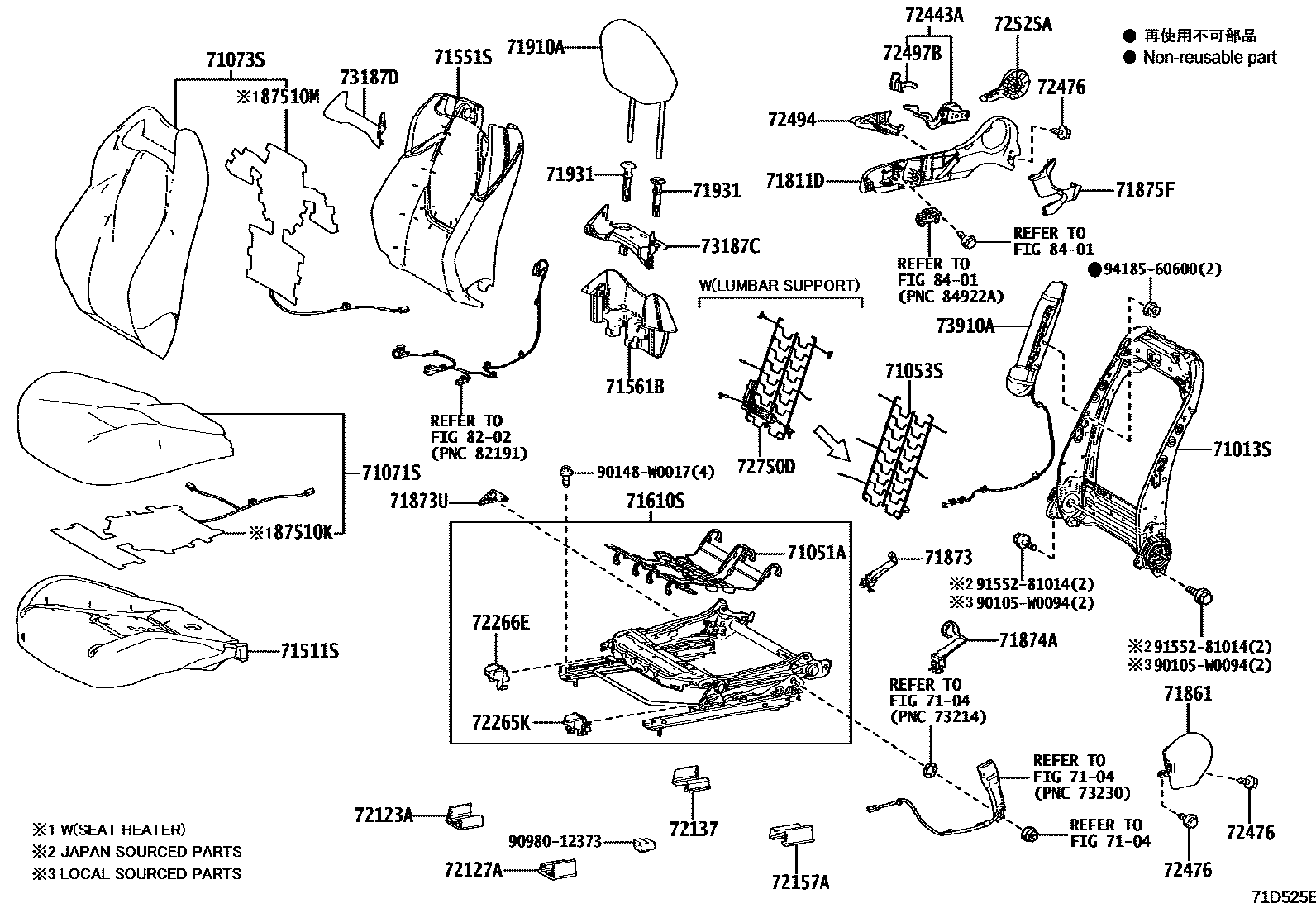

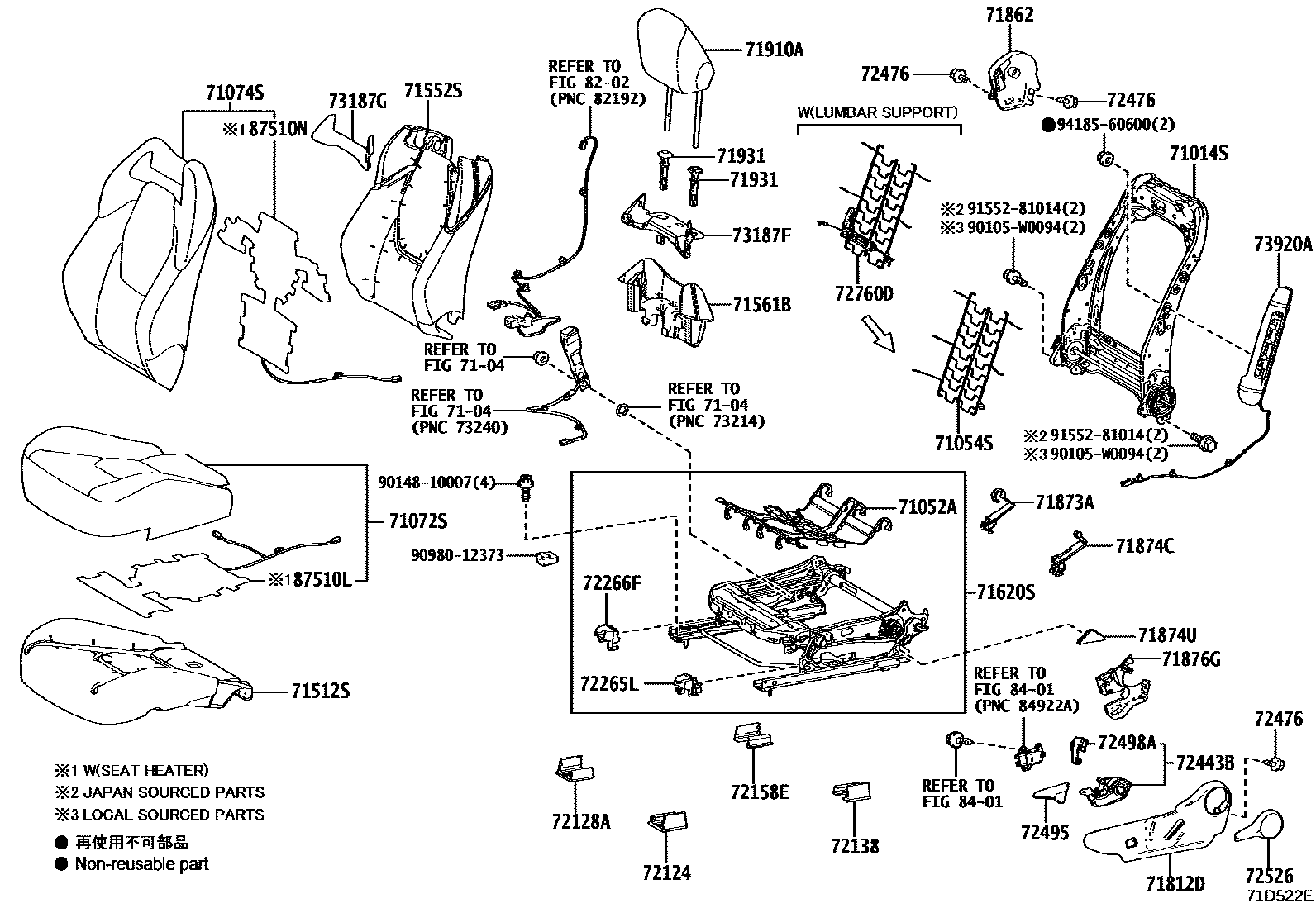

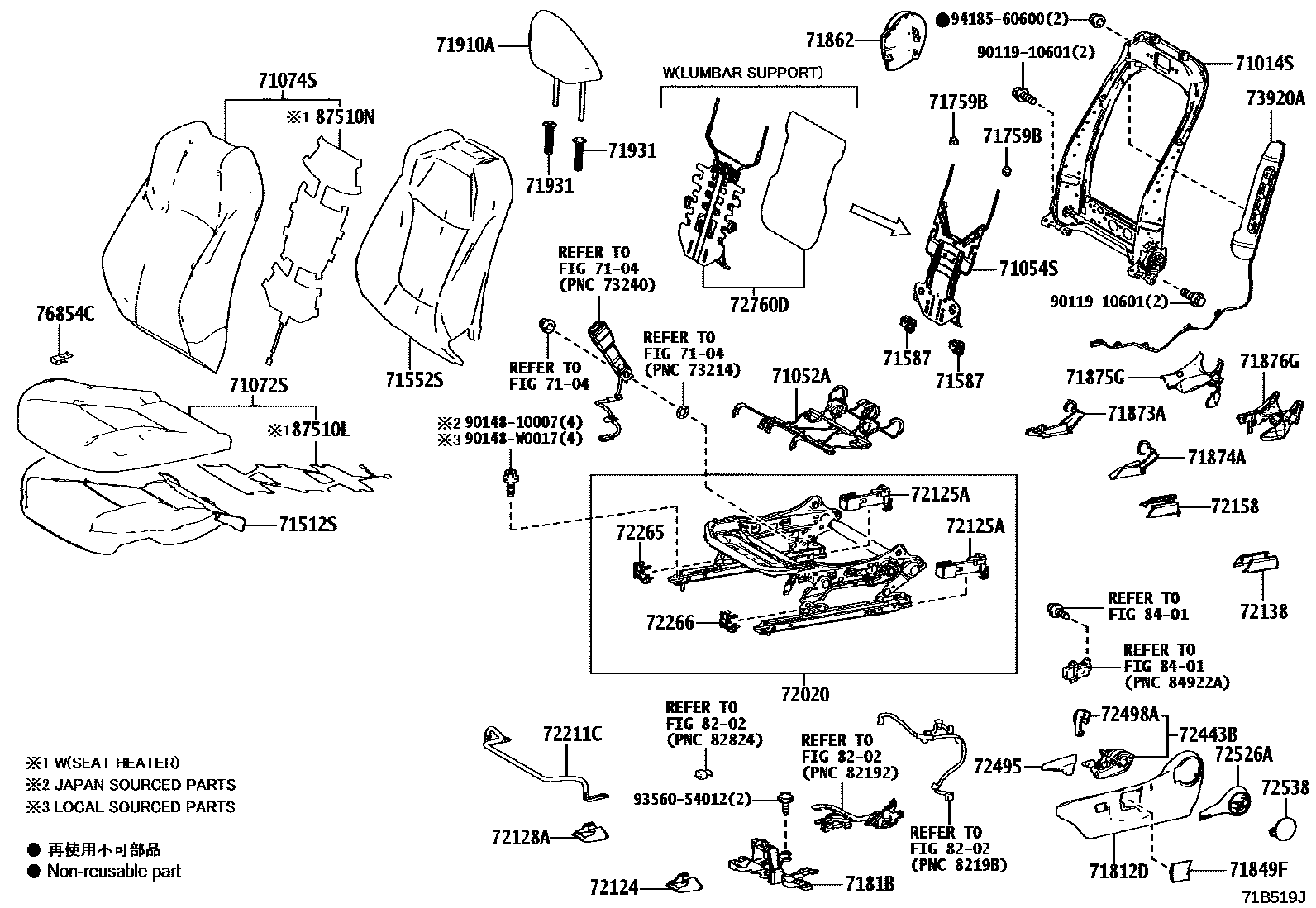

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02350 · 71013-02460 · 71013-02740 · 71013-02760 · 71013-F4010 |
| 71014S | Front left seat back frame sub-assembly | 71014-02280 · 71014-02440 · 71014-02630 · 71014-02650 · 71014-F4010 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02380 · 71051-F4010 · 71051-F4011 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02380 · 71051-F4010 · 71051-F4011 |
| 71053S | Front right seat back spring sub-assembly | 71053-02250 · 71053-F4010 |
| 71054S | Front left seat back spring sub-assembly | 71053-02250 · 71053-F4010 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YY430 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-YY430 |
| 71073S | Front right seat back cover (for split seats) | 71073-YY520 |
| 71074S | Front left seat back cover (for split seats) | 71074-YY470 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02330 · 71501-02390 · 71511-02C30 · 71511-02D10 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02270 · 71502-02330 · 71512-02A40 · 71512-02A90 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02D80 · 71551-02D90 · 71551-02F00 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02D80 · 71552-02B70 · 71552-02C70 |
| 71561B | Padded front seat backrest | 71561-02010 |
| 71587 | Front seat back edge protective cover | 71587-F4010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02510 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02600 |
| 71759B | Front seat back hook | 71759-F4010 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-F4010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-F4010 |
| 71873 | Front right seat cushion lower guard panel | 71873-F4010 |
| 71873A | Front seat cushion lower guard | 71874-F4020 · 71874-F4060 |
| 71874 | Front left seat cushion lower guard | 71873-F4020 · 71873-F4110 |
| 71874A | Front left seat cushion lower guard | 71874-F4010 |
| 71910A | Front seat headrest assembly | 71910-YY240 |
| 72010 | Front right seat adjuster assembly | 72010-F4011 · 72010-F4012 · 72010-F4041 · 72010-F4120 · 72010-F4130 |
| 72020 | Front left seat adjuster assembly | 72020-F4011 · 72020-F4012 · 72020-F4031 · 72020-F4140 · 72020-F4160 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02120 · 72123-F4010 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-F4010 · 72137-02380 |
| 72125A | Rear seat upper slide rail cover | 72125-F4030 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-F4010 · 72137-02380 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-02120 · 72123-F4010 |
| 72137 | Right seat outer slide rail cover | 72137-02380 · 72137-F4010 |
| 72138 | Left seat outer slide rail cover | 72123-02120 · 72137-F4010 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02360 · 72157-02370 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02340 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-02330 |
| 72211C | Seat slide adjustment handle | 72211-F4010 |
| 72265 | Right seat rail upper rail cover | 72265-F4020 |
| 72265K | CACHE, RAIL SUP GLISS SIEGE, AVANT INT(POUR SIEGE MD) | 72265-02080 |
| 72265L | CACHE, RAIL SUP GLISS SIEGE, AVANT EXT(POUR SIEGE MG) | 72265-02080 |
| 72266 | Left seat rail upper rail cover | 72265-F4020 |
| 72266E | CACHE, RAIL SUP GLISS SIEGE, AVANT EXT(POUR SIEGE MD) | 72266-02010 |
| 72266F | CACHE, RAIL SUP GLISS SIEGE, AVANT INT(POUR SIEGE MG) | 72266-02010 |
| 72443A | ENGRENAGE, REGLEUR VERTICAL, MD | 72443-F4010 · 72443-F4011 |
| 72443B | ENGRENAGE, REGLEUR VERTICAL, MG | 72443-F4020 · 72443-F4021 |
| 72476 | Horizontal jack inner screw | 72476-02010 |
| 72495 | Left height adjuster handle | 72495-02070 |
| 72750D | Right lumbar support adjuster assembly | 72750-02060 · 72760-02060 |
| 72760D | Left lumbar support adjuster assembly | 72750-02060 · 72760-02060 |
| 73187C | GUIDE, CEINTURE BAUDRIER SIEGE AVANT, MD NO.1 | 73187-02020 |
| 73187D | GUIDE, CEINTURE BAUDRIER SIEGE AVANT, MD NO.2 | 73187-02010 · 73187-02050 |
| 73187F | GUIDE, CEINTURE BAUDRIER SIEGE AVANT, MG NO.1 | 73187-02020 |
| 73187G | GUIDE, CEINTURE BAUDRIER SIEGE AVANT, MG NO.2 | 73187-02010 · 73187-02050 |
| 73910A | Front right seat airbag assembly | 73910-02320 · 73910-02430 |
| 73920A | Front left seat airbag assembly | 73920-02310 · 73920-02390 |
| 76854C | ARRETOIR, CACHE COUSSIN SIEGE AVANT | 76854-44010 |
| 82667B | Connector holder | 82666-F4080 |
| 87510K | Front right seat cushion heater assembly | 87510-02370 · 87510-02570 · 87510-02580 |
| 87510L | Front left seat cushion heater assembly | 87510-02370 · 87510-02570 · 87510-02590 |
| 87510M | Front right seat back heater assembly | 87530-02110 · 87530-02250 |
| 87510N | Front left seat back heater assembly | 87530-02110 · 87530-02250 |
