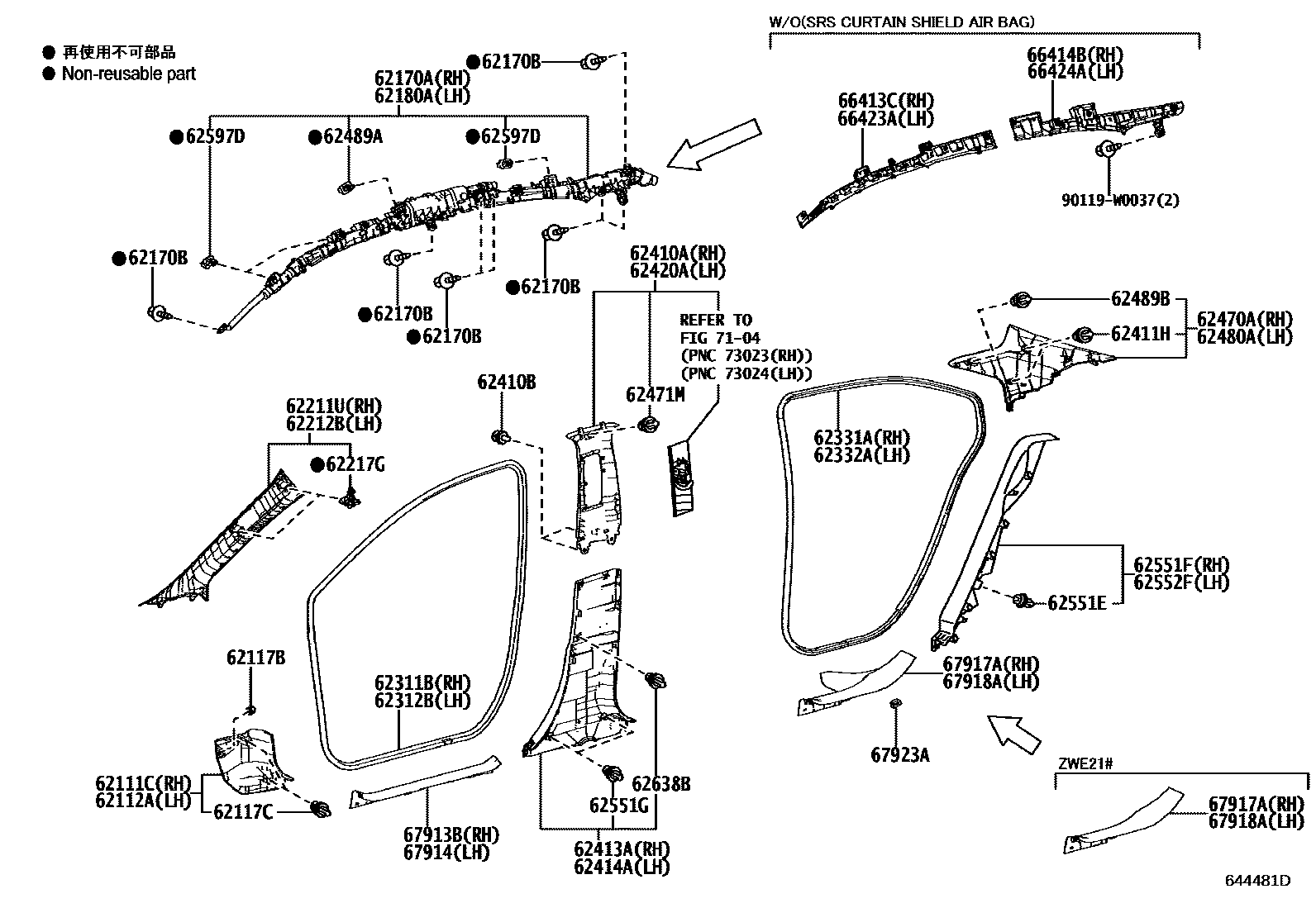

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10167 |
| 62170A | Right curtain air bag assembly | 62170-02200 · 62170-02350 · 62170-02360 · 62170-02370 |
| 62170B | Bolts with washers | 90119-W0037 |
| 62180A | Left curtain air bag assembly | 62180-02260 · 62180-02330 · 62180-02340 · 62180-02350 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62311B | Right front door opening waterproof tape | 62311-02340 |
| 62312B | Left front door opening waterproof tape | 62312-02350 |
| 62331A | Right rear door opening waterproof tape | 62331-02380 |
| 62332A | Left rear door opening waterproof tape | 62332-02380 |
| 62410B | clip | 90467-10216 |
| 62411H | Right front side window upper frame | 90467-10161 |
| 62471M | clip | 90467-10167 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62489B | Roof side interior panel clips | 90467-10188 |
| 62551E | Clips (for rear seat side trim panels) | 62217-13010 |
| 62551G | clip | 90467-09236 |
| 62597D | clip | 90467-18017 |
| 62638B | clip | 90467-W0005 |
| 66413C | Right front longitudinal member spacer | 66413-02220 |
| 66414B | Right rear longitudinal member spacer | 66414-02330 |
| 66423A | Left front longitudinal member spacer | 66423-02240 |
| 66424A | Left rear longitudinal member spacer | 66424-02300 |
| 67913B | Right front door wear plate | 67913-YY470 |
| 67914 | Left front door wear plate | 67913-YY470 |
| 67923A | Car door No. 1 wear plate clip | 67923-20090 |
