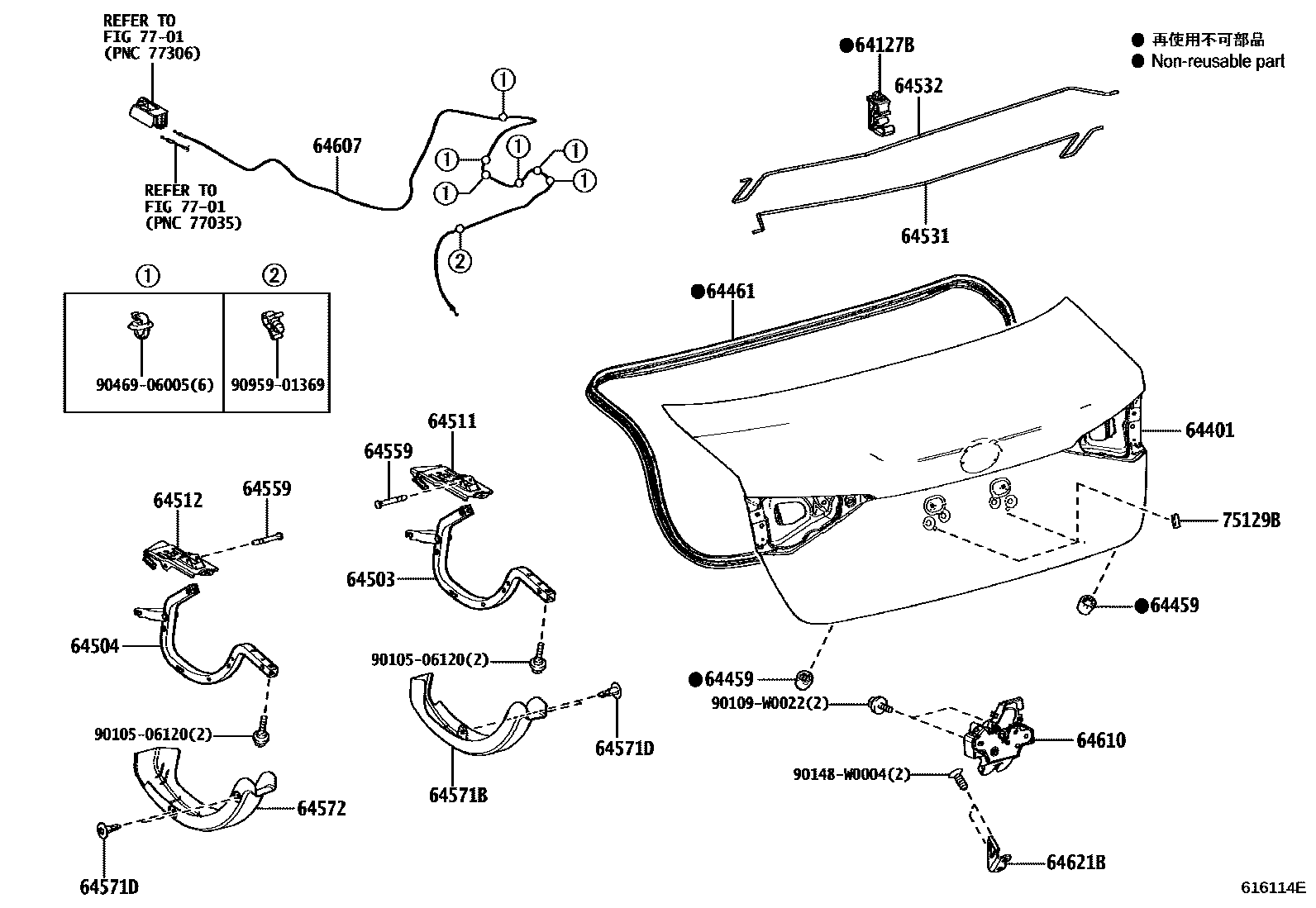

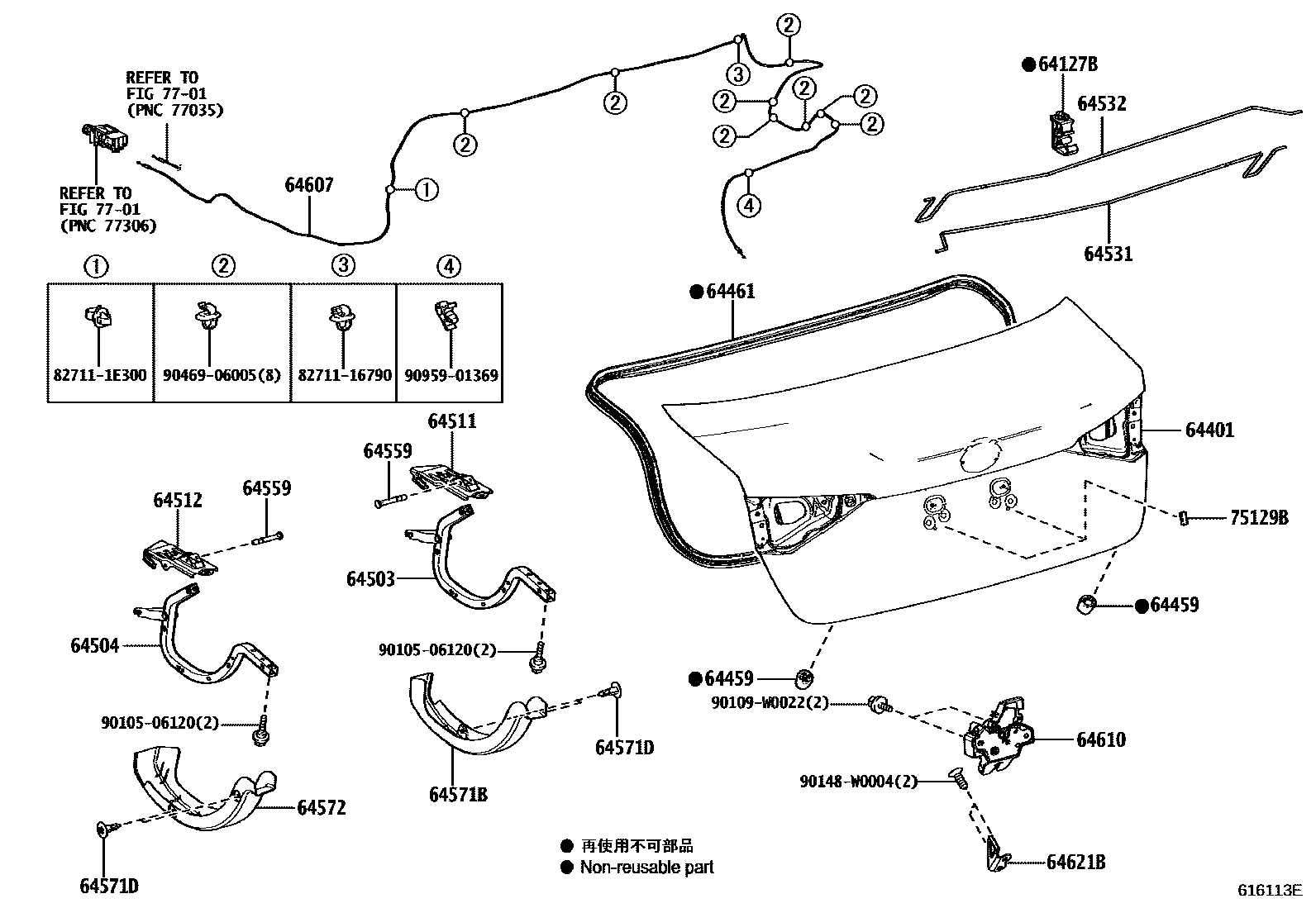

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02F20 · 64401-02F30 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-02300 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02270 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02270 |
| 64511 | Trunk door right hinge bracket | 64511-02270 |
| 64512 | Trunk door left hinge bracket | 64512-02220 |
| 64531 | Trunk door right hinge torsion bar | 64531-02550 |
| 64532 | Trunk door left hinge torsion bar | 64532-02550 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64571B | Trunk door right hinge cover | 64571-02040 |
| 64572 | Trunk door left hinge cover | 64572-02040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02580 · 64607-02590 |
| 64610 | Trunk door lock assembly | 64600-02071 |
| 64621B | Trunk door latch | 64621-02010 |
| 75129B | rear license plate cushion | 75129-12020 |
