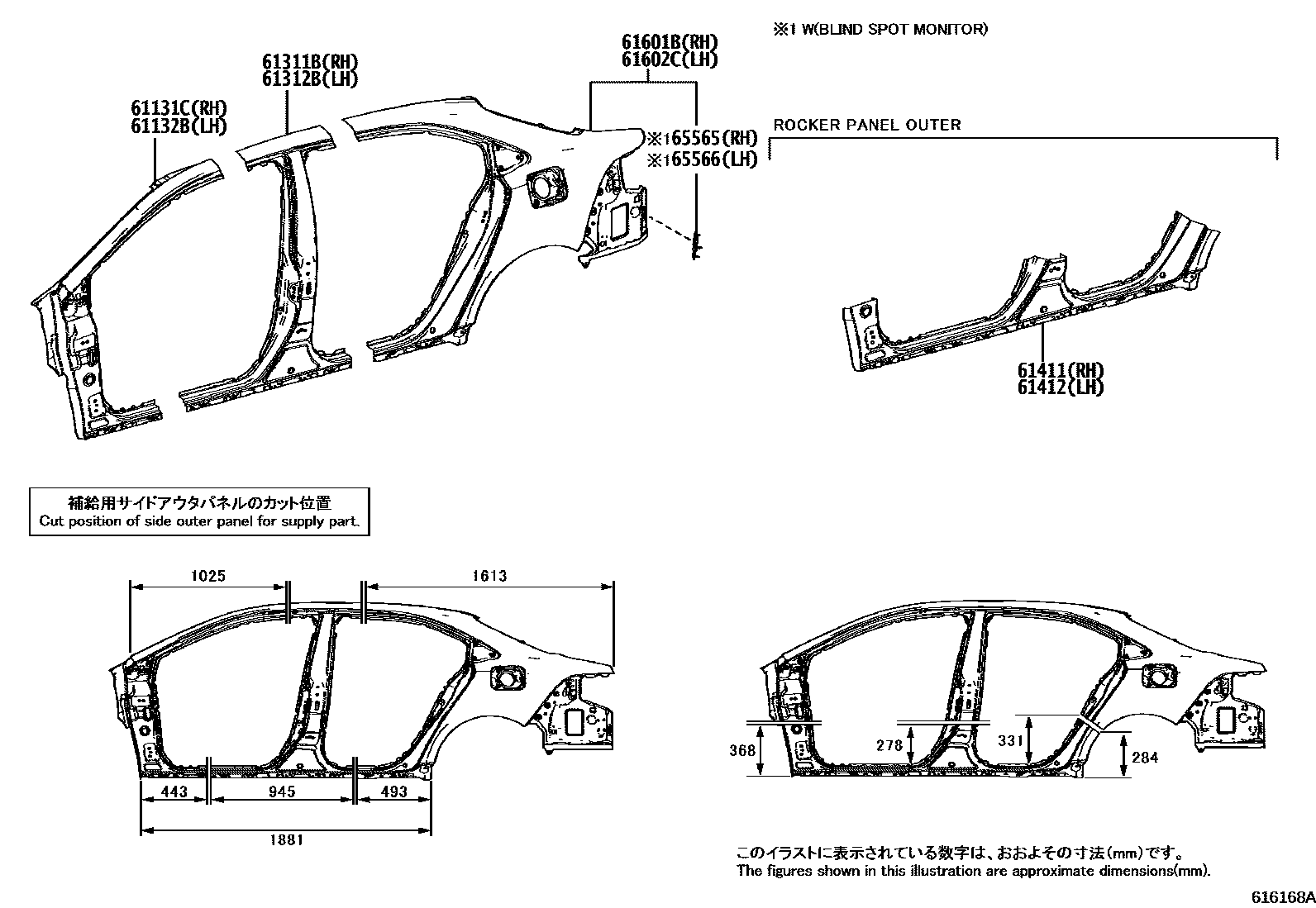

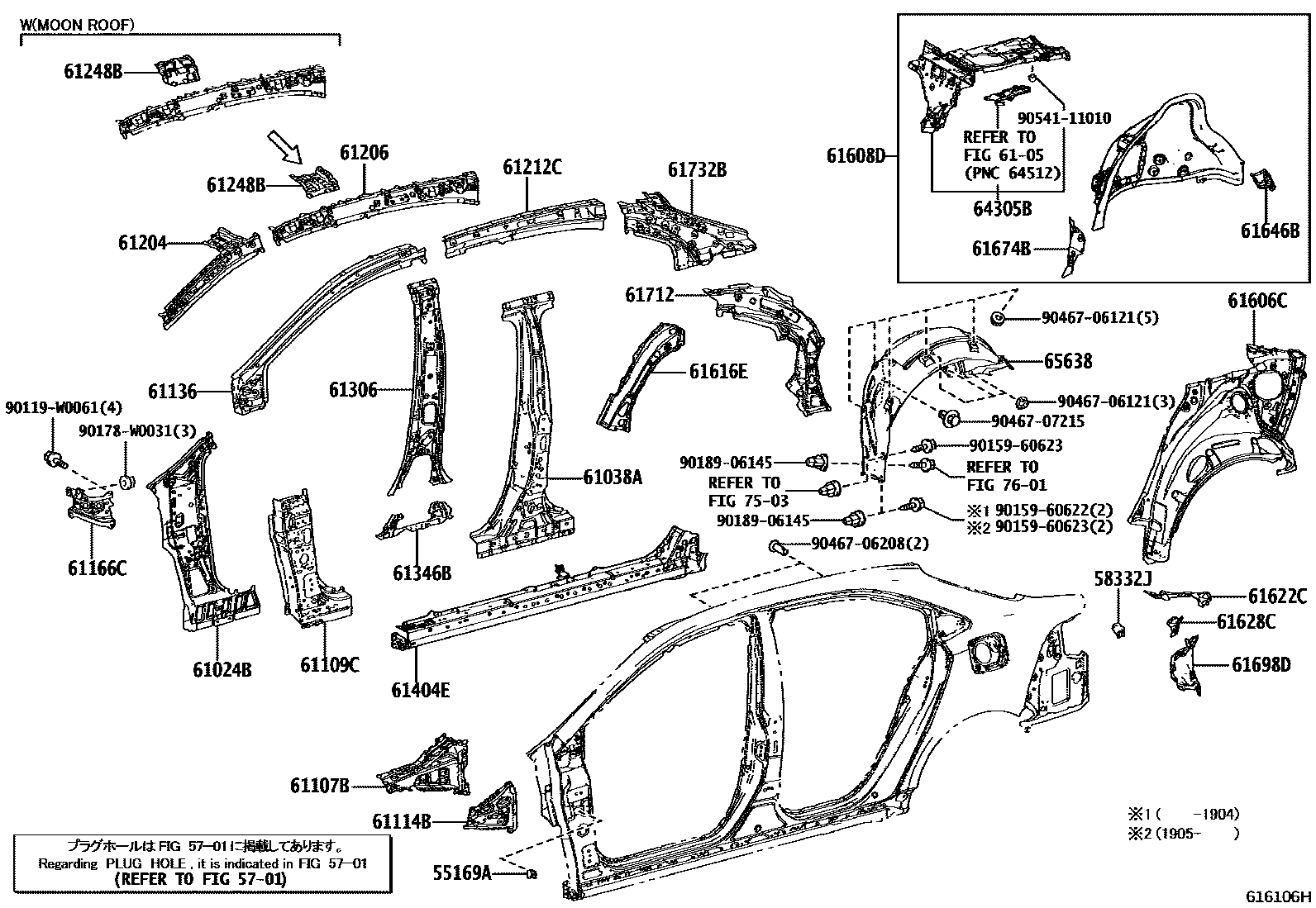

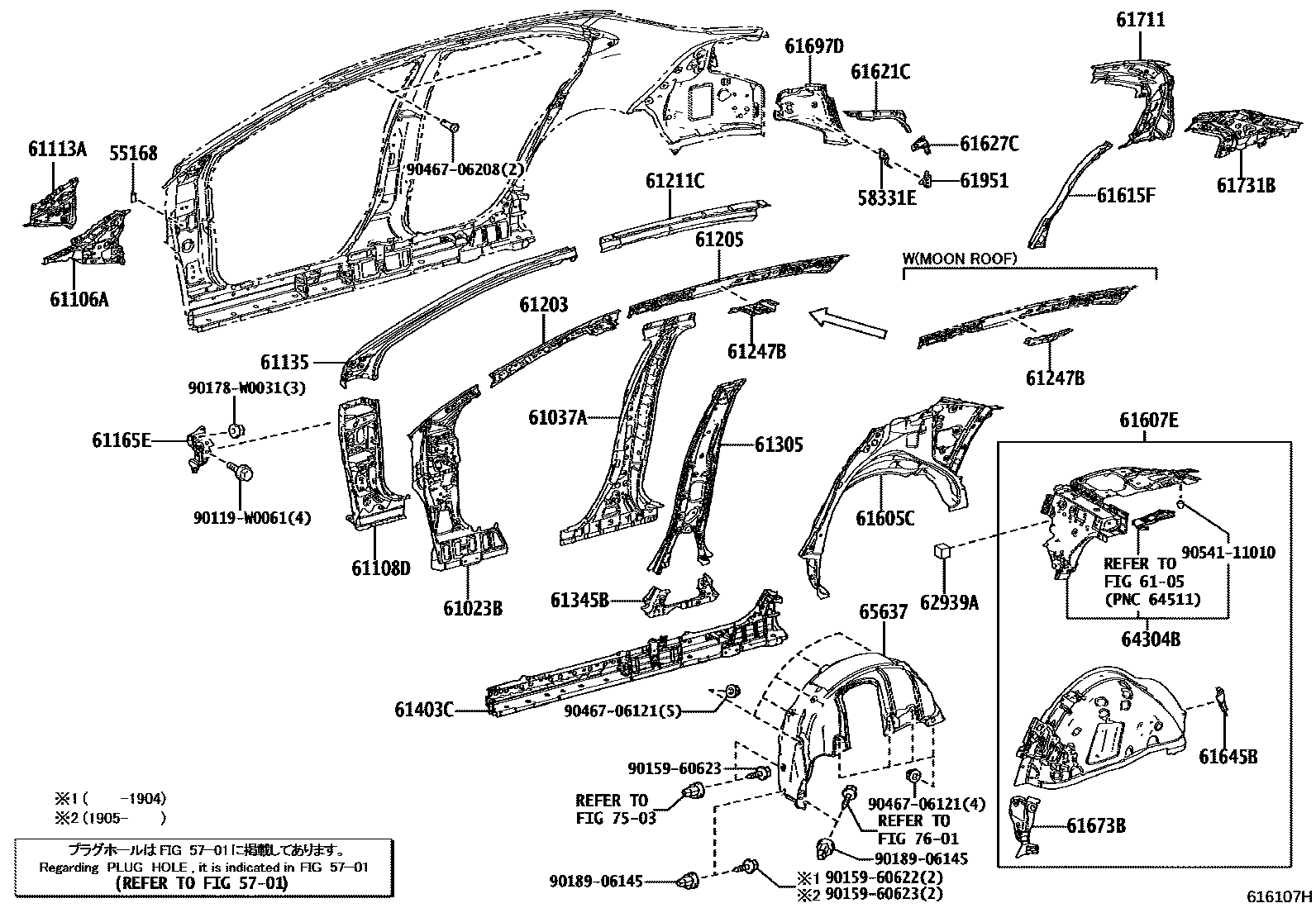

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 53879-02120 |
| 55169A | Left front fender mounting bracket | 53879-02120 |
| 58331E | No. 1 suitcase decorative panel bracket | 58331-02180 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02160 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02370 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02350 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02330 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02330 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-02060 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-02060 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-12330 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-12320 |
| 61113A | No. 2 right outer panel | 61113-02040 |
| 61114B | No. 2 left outer panel | 61114-02050 |
| 61131C | Right body outer front pillar | 61131-02490 |
| 61132B | Left body outer front pillar | 61132-02510 |
| 61135 | Reinforcement member on the right front body pillar | 61135-02260 |
| 61136 | Reinforcement member on left front body pillar | 61136-02270 |
| 61165E | SUPPORT, TABLEAU BORD AU COTE AUVENT, MD | 61165-02010 |
| 61166C | SUPPORT, TABLEAU BORD AU COTE AUVENT, MG | 61166-02010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-02210 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-02230 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-02030 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-02030 |
| 61211C | Roof right side rail | 61211-02230 |
| 61212C | Roof left side rail | 61212-02230 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-02230 · 61247-02240 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-02090 · 61248-02100 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02210 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02210 |
| 61311B | Right body outer center pillar | 61311-02430 |
| 61312B | Left body outer center pillar | 61312-02430 |
| 61345B | Right body inner middle and lower pillar | 61345-02070 |
| 61346B | Left side inner middle and lower pillar | 61346-02080 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02911 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02913 |
| 61411 | Right door outer sill panel | 61411-02350 |
| 61412 | Left door outer sill panel | 61412-02350 |
| 61601B | Right side enclosure sub-assembly | 61601-02640 · 61601-02650 |
| 61602C | Left side enclosure sub-assembly | 61602-02670 · 61602-02680 |
| 61605C | Right rear side panel inner panel sub-assembly | 61605-02210 |
| 61606C | Left rear side panel inner panel sub-assembly | 61606-02240 |
| 61607E | Right wheel housing lining panel | 61607-02810 |
| 61608D | Left side wheel housing lining panel | 61608-02730 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-02170 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-02180 |
| 61621C | Luggage right opening slot | 61621-02300 |
| 61622C | Luggage trunk left opening slot | 61622-02300 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-02160 |
| 61628C | Left side enclosure inner panel reinforcement | 61628-02140 |
| 61645B | Right rear side wheel housing corner panel | 61645-02120 |
| 61646B | Left rear side wheel housing corner panel | 61646-02110 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-02120 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-02150 |
| 61697D | Right side enclosure end cover | 61697-02180 |
| 61698D | Left side enclosure end cover | 61698-02180 |
| 61711 | Roof right side outer panel | 61711-02190 |
| 61712 | Roof left outer panel | 61712-02190 |
| 61731B | Roof right inner panel | 61731-02370 |
| 61732B | Roof left inner panel | 61732-02370 |
| 61951 | Right trim part bracket | 61951-02130 |
| 62939A | Side ventilation silencers | 62939-02080 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02290 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02290 |
| 65565 | Right side panel rear end lining | 65565-02070 |
| 65566 | Left side panel rear end lining | 65565-02070 |
| 65637 | Right rear wheel house lining | 65637-02190 · 65637-02200 |
| 65638 | Left rear wheel house lining | 65638-02190 · 65638-02200 |
