Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 7 images and 7 PNC and OE references.

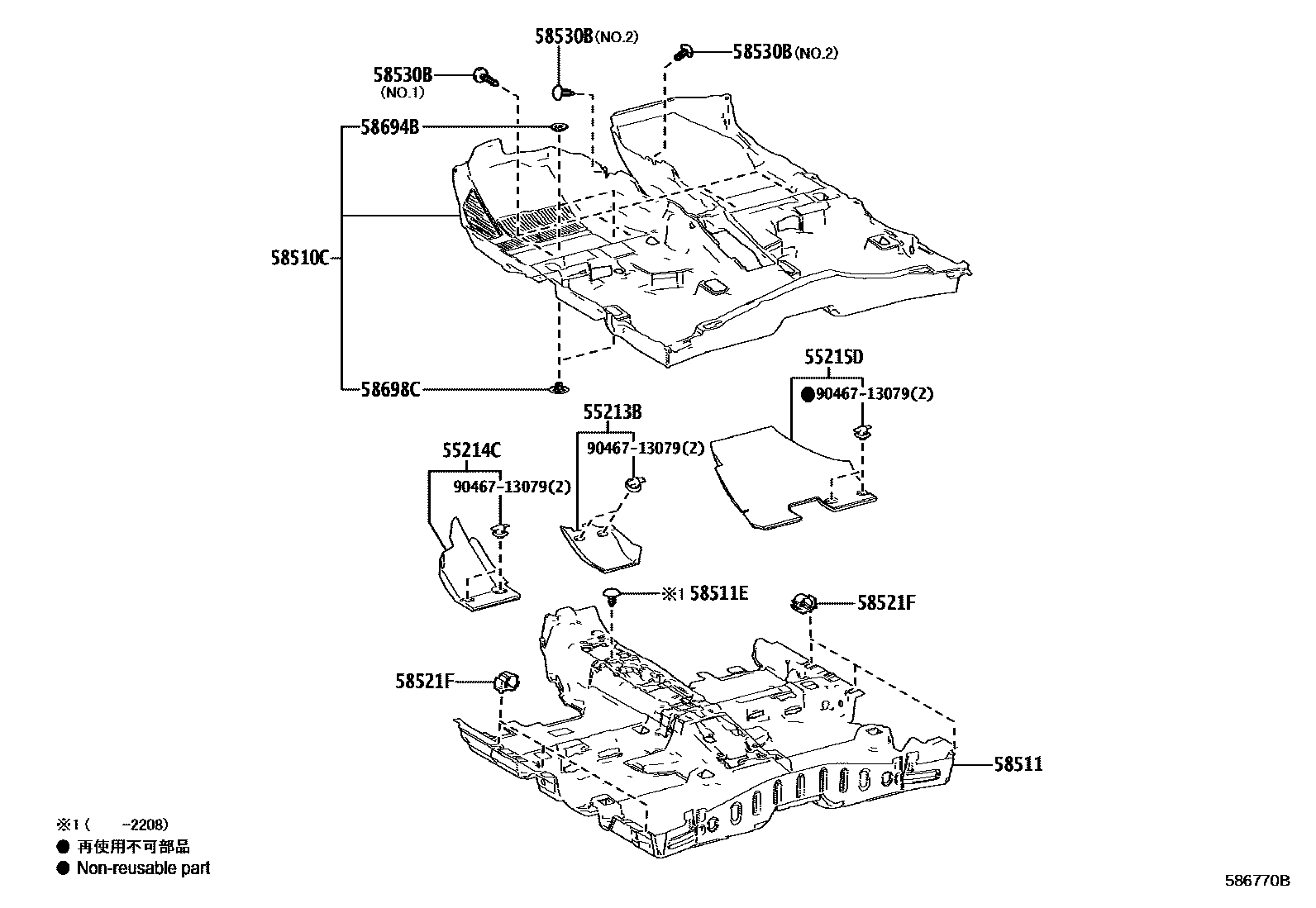

Toyota COROLLA 地板垫和地毯 EPC diagram — 586770B
地板垫和地毯 — 586770B (201901 – 999999)

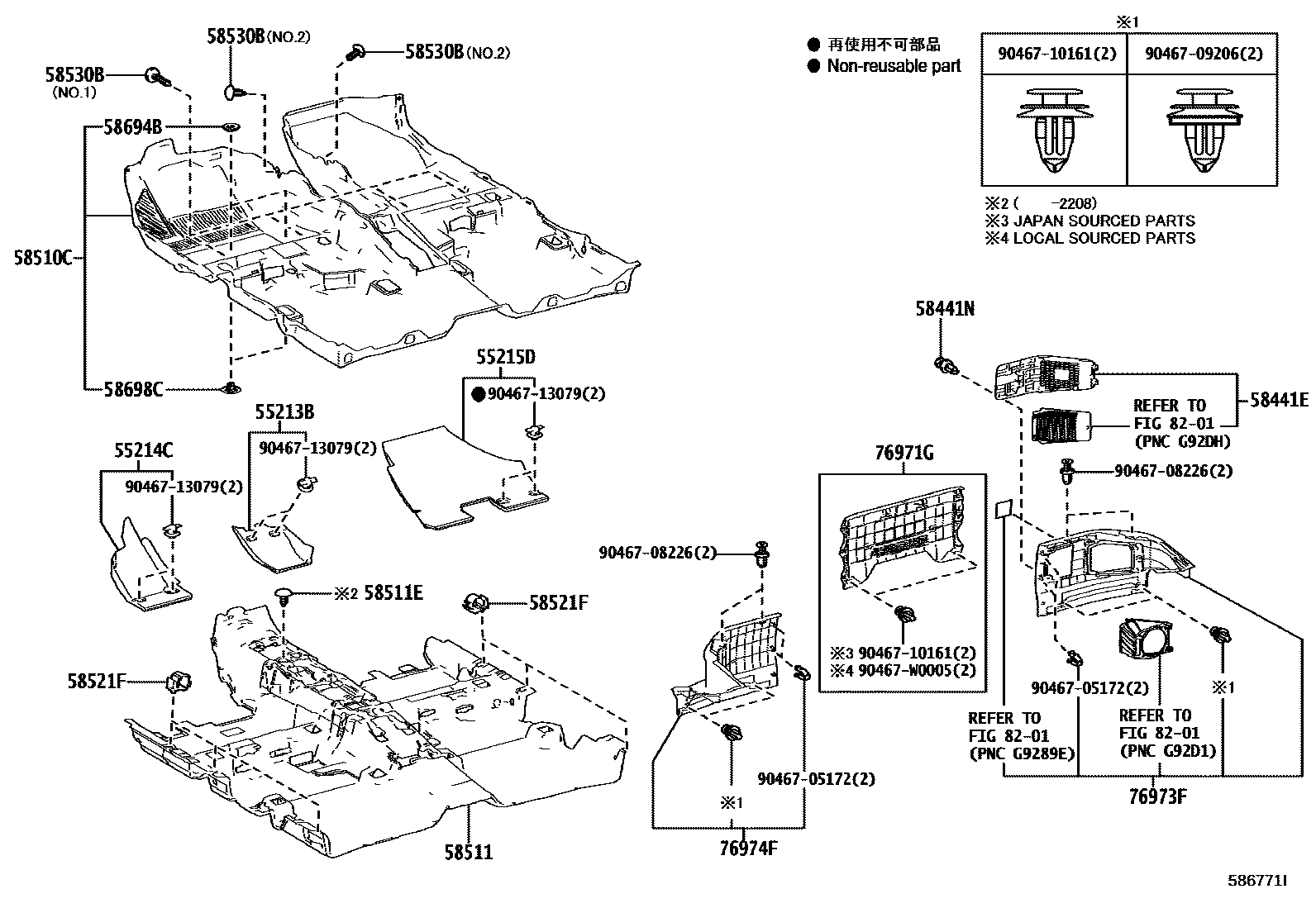

Toyota COROLLA 地板垫和地毯 EPC diagram — 586771I
地板垫和地毯 — 586771I (201901 – 999999)

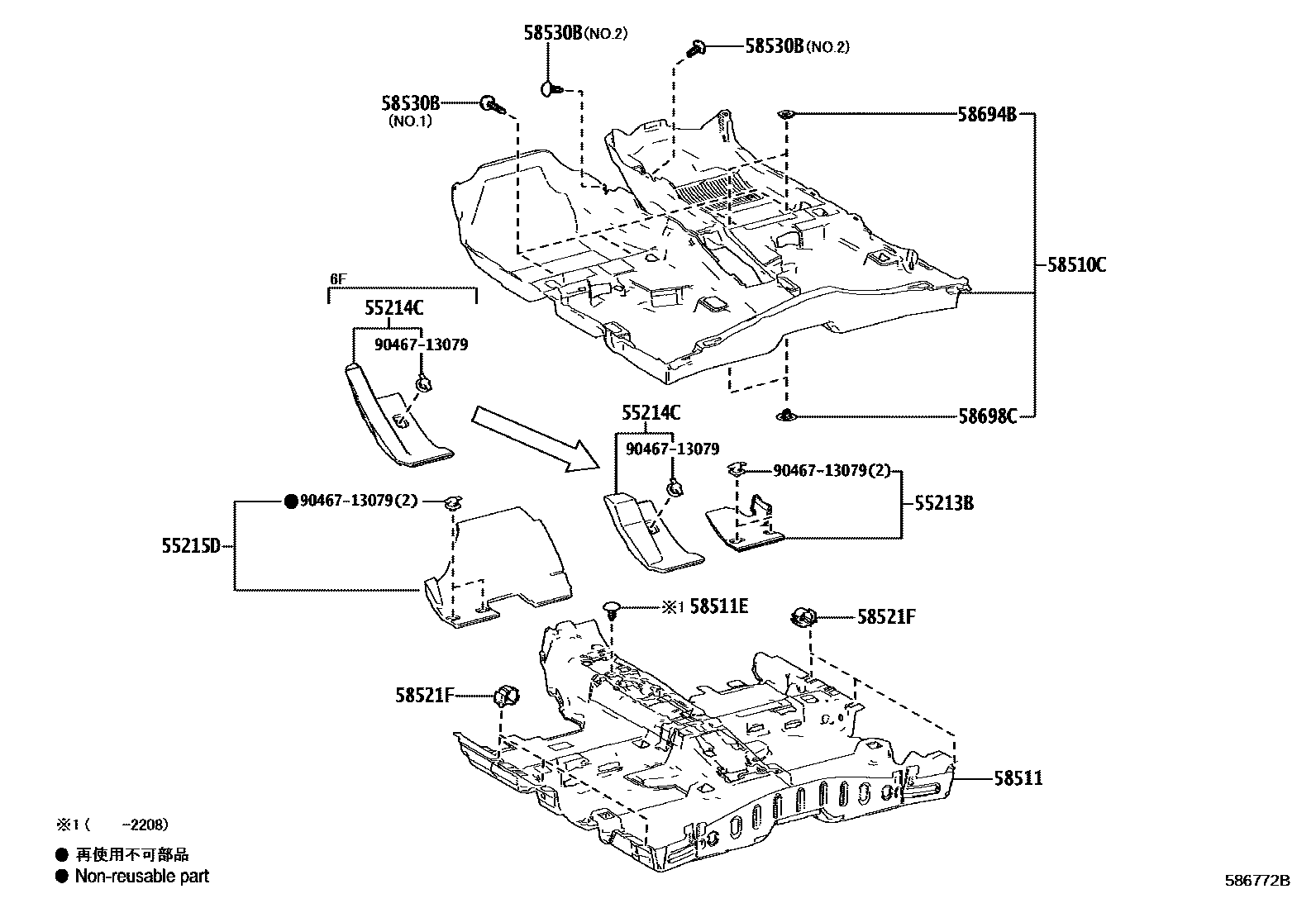

Toyota COROLLA 地板垫和地毯 EPC diagram — 586772B
地板垫和地毯 — 586772B (201901 – 999999)

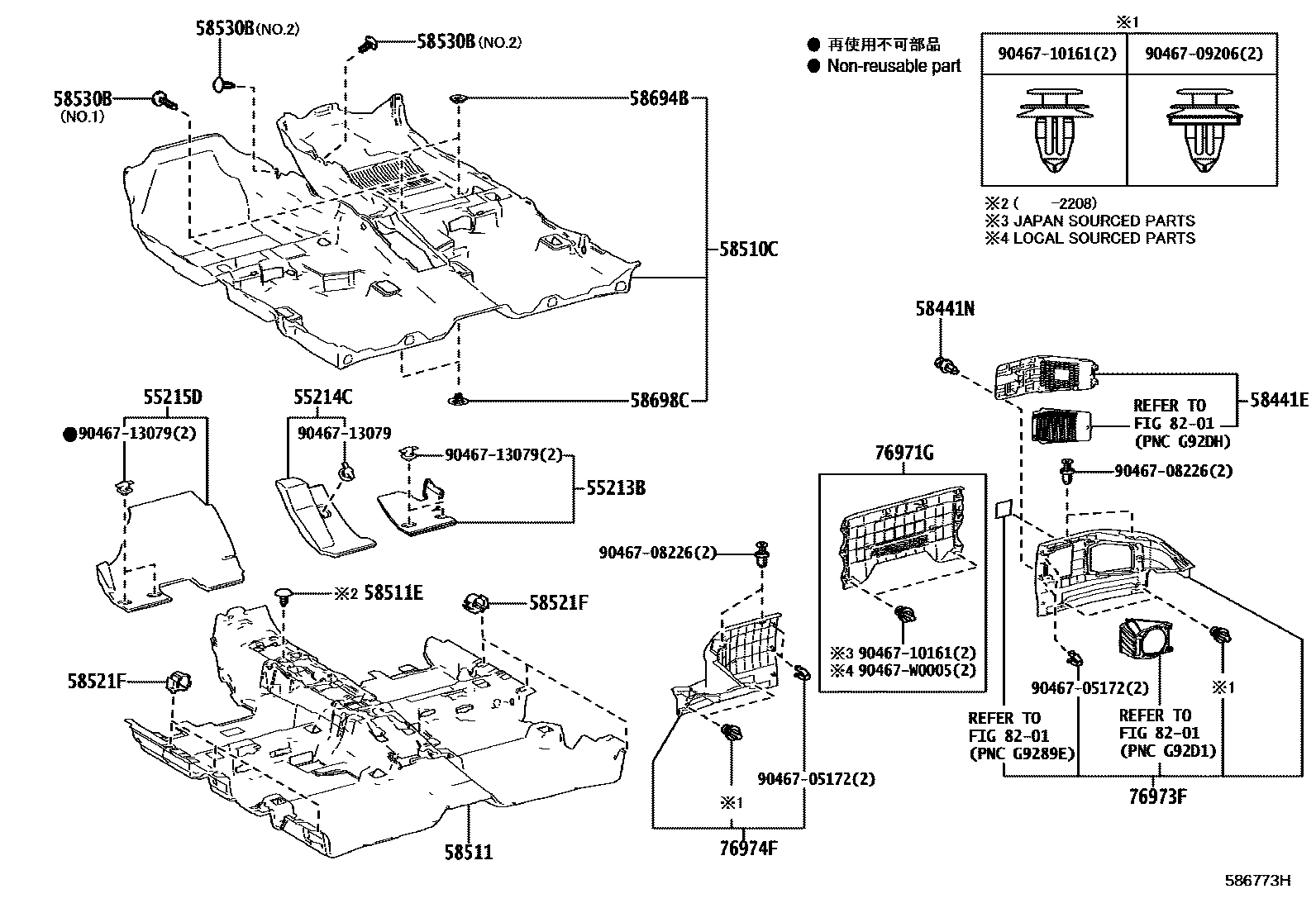

Toyota COROLLA 地板垫和地毯 EPC diagram — 586773H
地板垫和地毯 — 586773H (201901 – 999999)

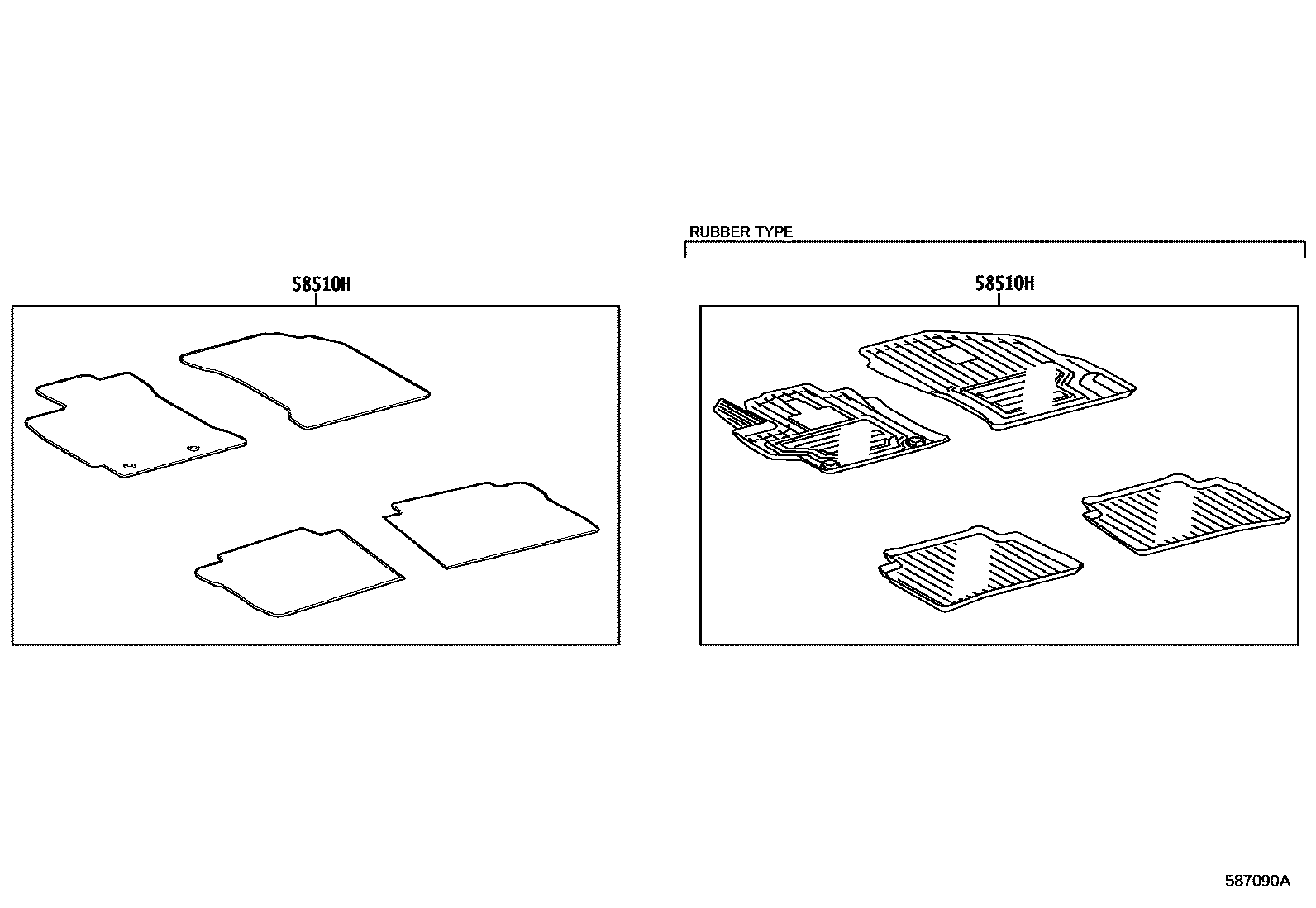

Toyota COROLLA 地板垫和地毯 EPC diagram — 587090A
地板垫和地毯 — 587090A (201901 – 999999)

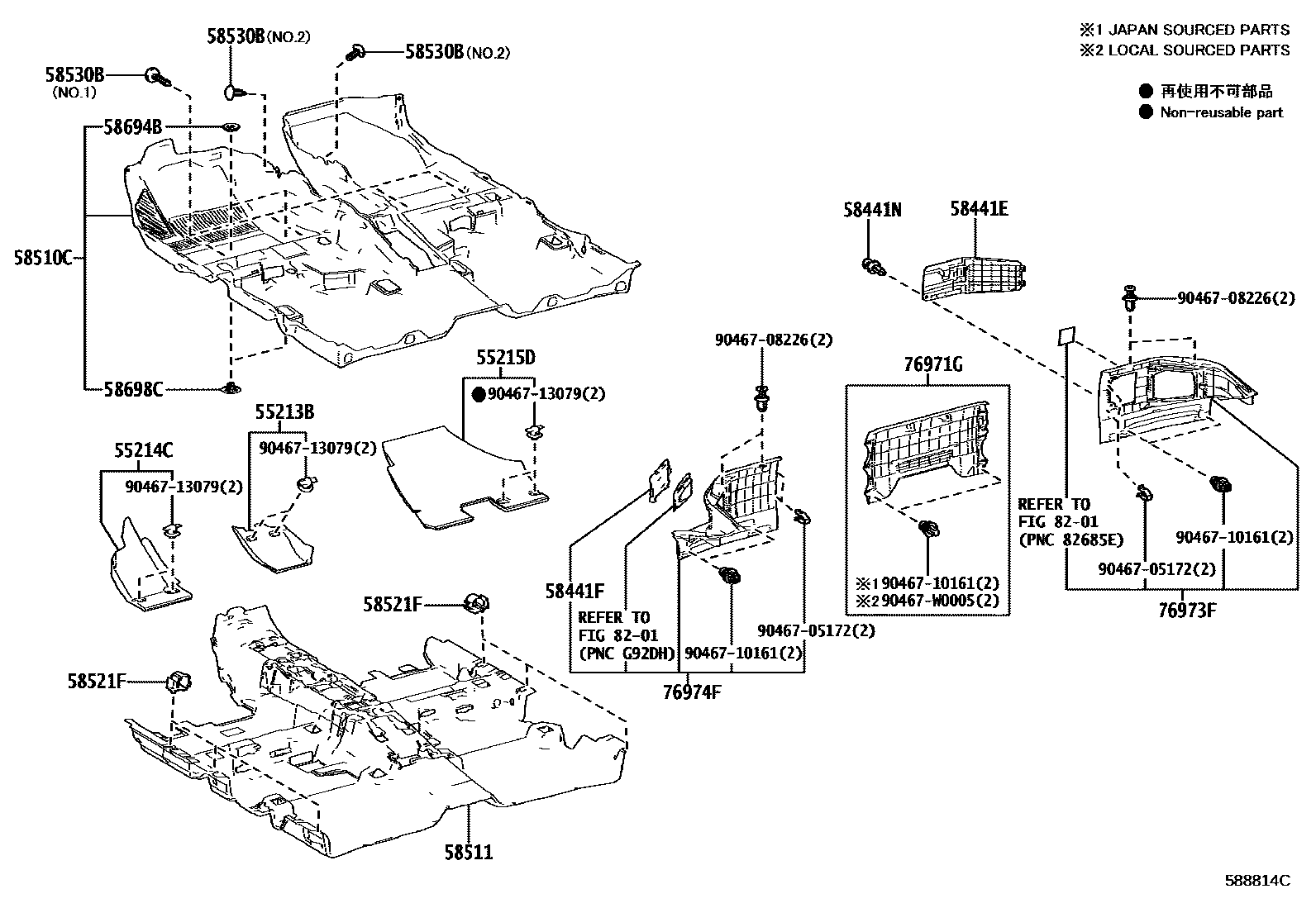

Toyota COROLLA 地板垫和地毯 EPC diagram — 588814C
地板垫和地毯 — 588814C (202301 – 999999)

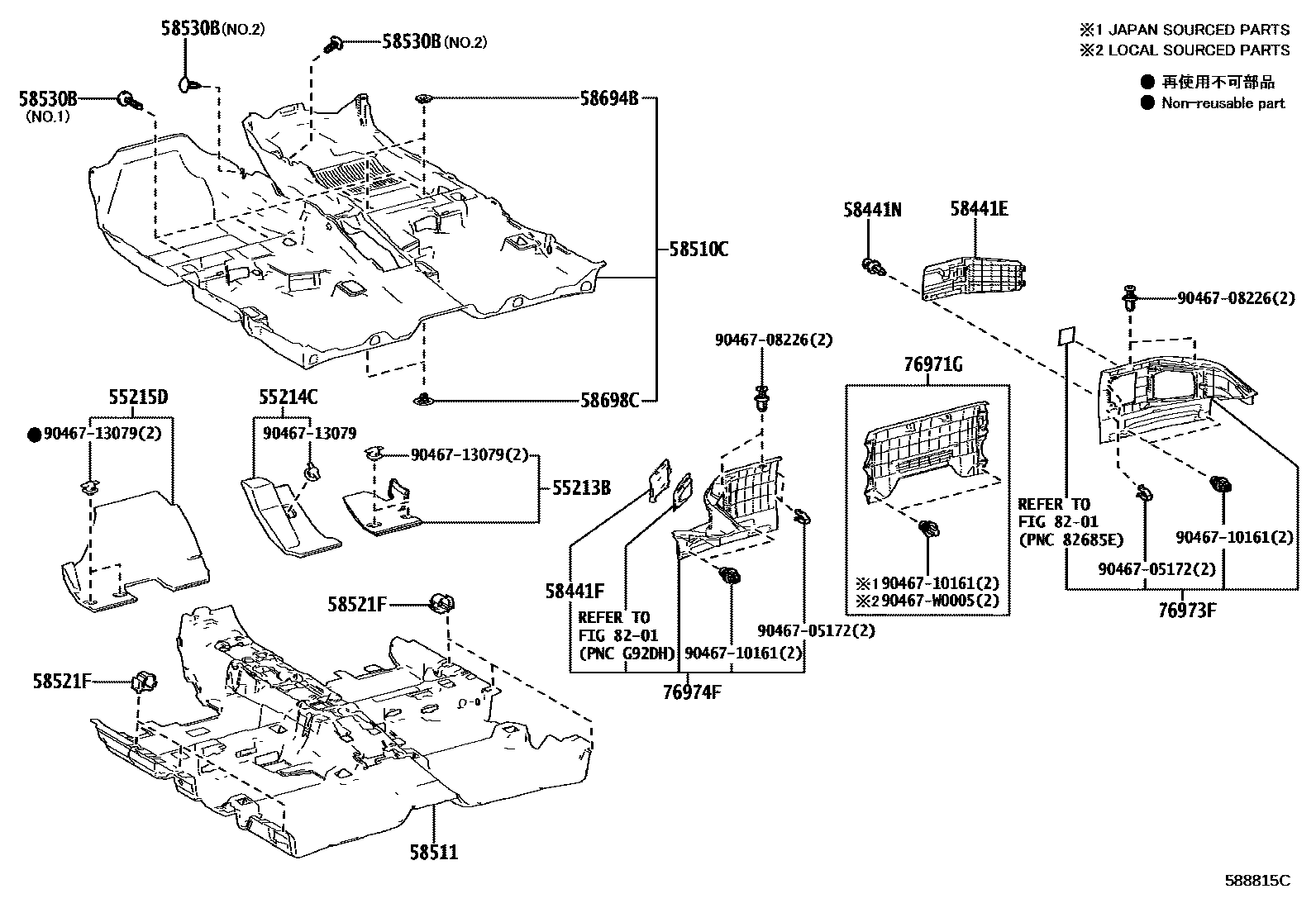

Toyota COROLLA 地板垫和地毯 EPC diagram — 588815C
地板垫和地毯 — 588815C (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
55213BNo. 1 insulation pad for front wall panel55213-02300 · 55213-02310
55214CNo. 2 insulation pad for front wall panel55214-02250 · 55214-02260 · 55214-02270
55215DNo. 3 insulation pad for front wall panel55215-02160 · 55215-02170
58511front floor mat58511-02200 · 58511-02210 · 58511-02220 · 58511-02230
58521Fcarpet hook58521-02160
58694BPad the fixing plate58694-78010
58698CFixing plate under the pad58698-78010
