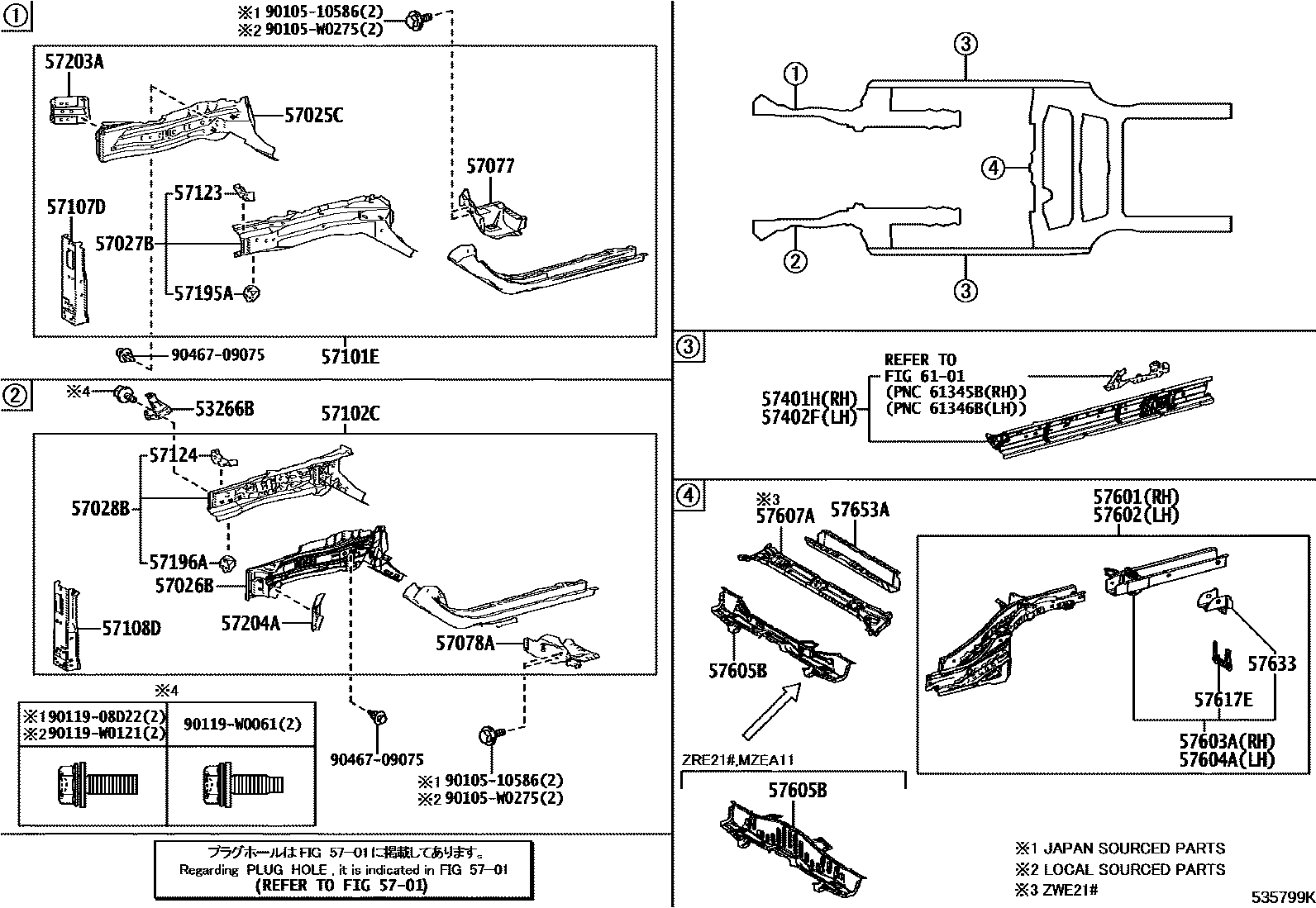

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53266B | No. 2 battery bracket mounting bracket | 74417-02170 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-F4011 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-F4011 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-F4011 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-F4010 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-F4010 · 57077-F4011 · 57077-F4070 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-F4010 · 57078-F4011 · 57078-F4070 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57101-02610 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57102-02820 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-02150 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-02150 |
| 57123 | Right front longitudinal beam bracket | 57123-F4010 |
| 57124 | Left front longitudinal beam bracket | 57124-F4010 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-F4010 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-F4010 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57203-F4011 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-F4011 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-02370 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-02380 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02939 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02941 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-02220 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-02120 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-F4010 · 57605-F4021 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-F4010 |
| 57617E | PLAQUE, APPUI LONGERON PLANCHER ARR | 57617-F4010 |
| 57633 | Rear floor rail extension | 57633-02060 |
| 57653A | No. 2 rear floor cross member | 57653-F4010 |
