Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 29 PNC and OE references.

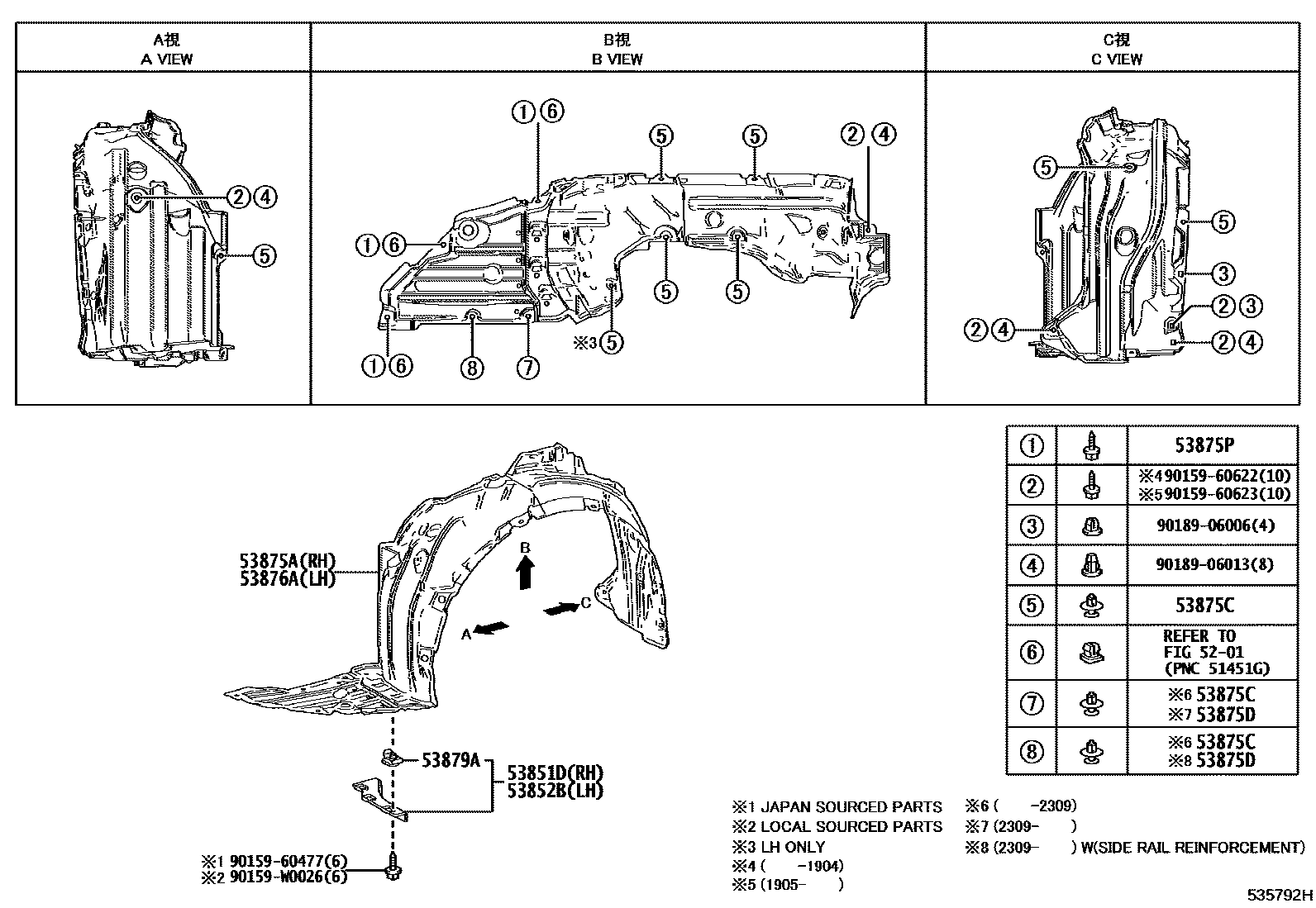

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 535792I
发动机盖和前翼子板 — 535792I (201901 – 999999)

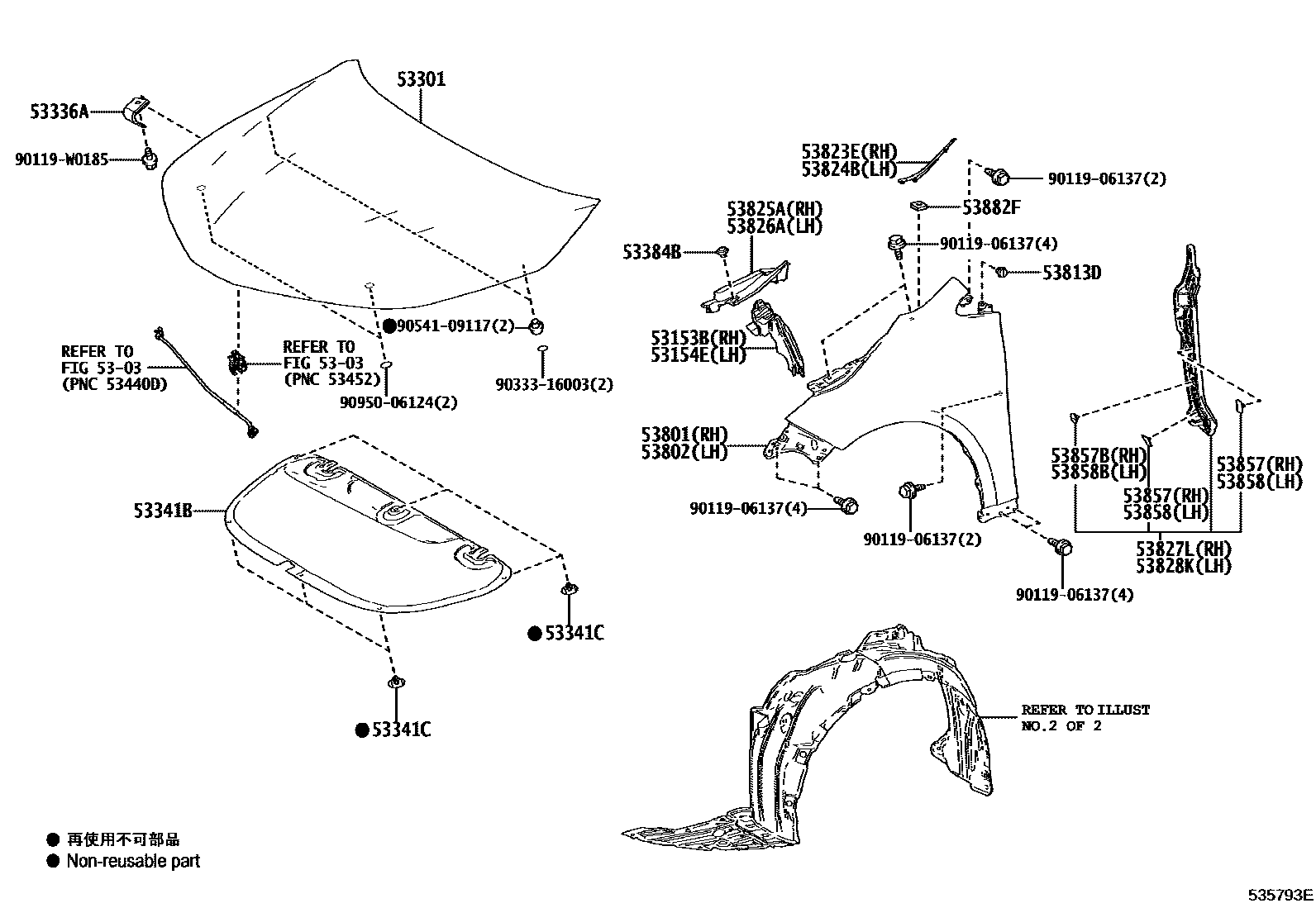

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 535793E
发动机盖和前翼子板 — 535793E (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
53153Bfront side deflector53153-02110
53154EGUIDE AERATION LATERALE AVANT NO. 253154-02110
53301Engine cover sub-assembly53301-02390 · 53301-02490
53336AEngine cover strut bracket53336-02070 · 53336-02090
53341Bengine cover gasket53341-02380 · 53341-02400
53341CClip (for engine cover gasket)90467-09050 · 90467-W0003
53384BEngine cover center cushion53384-78010
53801Right front fender sub-assembly53801-02260
53802Left front fender sub-assembly53802-02280
53813Dfront fender extension53813-47040
53823ENo. 2 right front side panel protector53823-02190
53824BNo. 2 left front side panel protector53824-02190
53825ARight front fender protection piece53825-02220
53826AProtection piece on left front fender53826-02220
53827LRight front fender side panel protector53827-02250
53828KLeft front fender side panel protector53828-02250
53851DRight front fender outer panel pad53851-02220
53852BLeft front fender exterior panel pad53852-02200
53857Right front fender external panel fixing piece53857-02020
53857BRight front fender external panel fixing piece53857-02040
53858Left front fender external panel fixing piece53857-02020
53858BLeft front fender external panel fixing piece53857-02040
53875ARight front fender lining53875-02660 · 53875-02730
53875CFront fender lining clip90467-07214
53875DAGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.290467-07220
53875PVIS, NO.190159-60477 · 90159-W0026
53876ALeft front fender lining53876-02710 · 53876-02770
53879AFront fender lining fixing parts53879-47020
53882Ffront fender seal53882-33060
