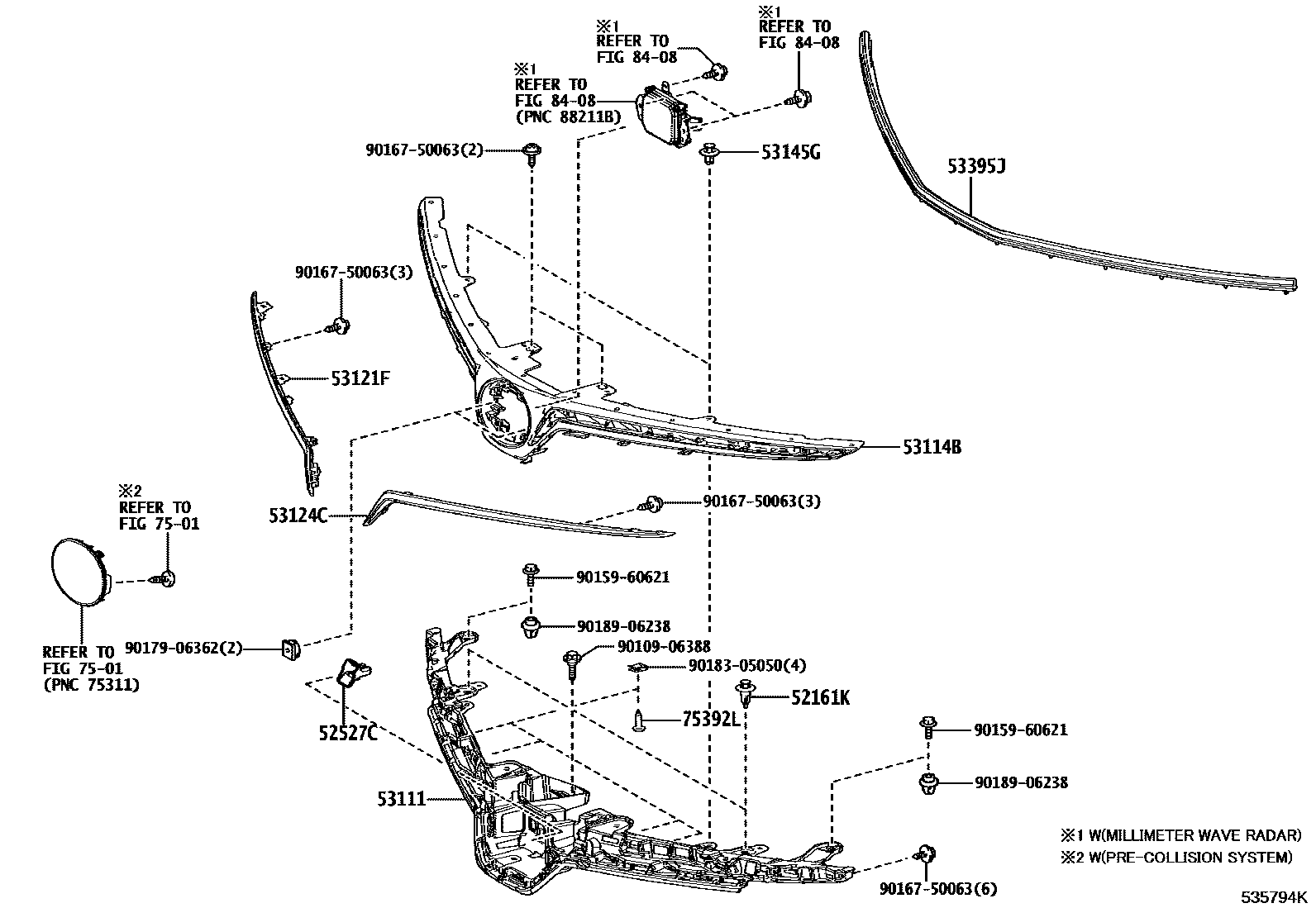

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-02030 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02050 |
| 53111 | radiator grille | 53111-02C90 |
| 53114B | Upper radiator grille | 53114-02580 |
| 53121F | Radiator grille upper right protective strip | 53121-02450 · 53121-02460 · 53121-02600 · 53121-02610 |
| 53124C | Radiator grille upper left protective strip | 53124-02280 · 53124-02440 · 53124-02570 · 53124-02580 |
| 53145G | Radiator grille clip | 90467-05170 |
| 53395J | JOINT ETANCH., CAPOT A PANNEAU EN BOUT AVANT | 53395-02270 |
| 75392L | DISP. RET., MOULURE EXTERIEURE | 75392-42030 |
