Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

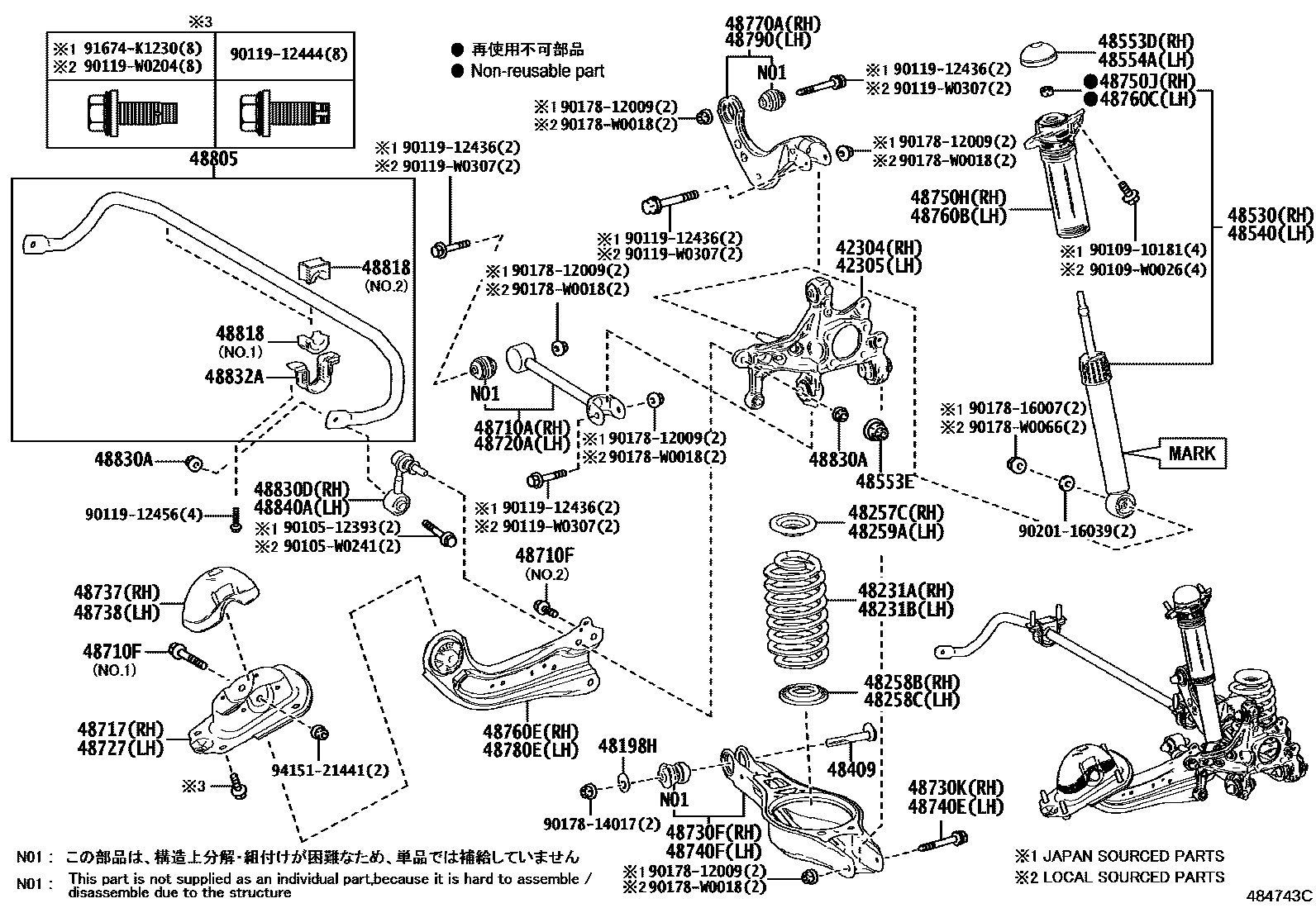

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-02250 |
| 42305 | Rear axle left bracket sub-assembly | 42305-02250 |
| 48198H | No. 2 camber angle adjustment cam | 48198-47010 |
| 48231A | Right rear coil spring | 48231-02N00 · 48231-02N10 · 48231-02N20 · 48231-02N30 · 48231-02U00 · 48231-02X70 · 48231-02X80 · 48231-02X90 · 48231-02Y00 · 48231-02Y10 |
| 48231B | Left rear coil spring | 48231-02N00 · 48231-02N10 · 48231-02N20 · 48231-02N30 · 48231-02U00 · 48231-02X70 · 48231-02X80 · 48231-02X90 · 48231-02Y00 · 48231-02Y10 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-F4010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-F4010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-F4010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-F4010 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-8Z096 · 48530-8Z098 |
| 48540 | Left rear shock absorber assembly | 48530-8Z096 · 48530-8Z098 |
| 48553D | Right rear shock absorber cover | 48553-F4010 |
| 48553E | CAPUCHON | 48553-52030 |
| 48554A | Left rear shock absorber cover | 48553-F4010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-02090 |
| 48710F | Bolt (for rear trailing arm) | 90105-14195 · 90105-14197 · 90105-W0242 · 90105-W0273 |
| 48717 | Right rear suspension arm bracket | 48717-02060 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-02090 |
| 48727 | Left rear suspension arm bracket | 48727-02040 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-F4010 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-12426 · 90119-W0278 |
| 48737 | Right rear suspension arm cover | 48753-02070 · 48753-47010 |
| 48738 | Left rear suspension arm cover | 48753-02080 · 48753-47020 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-12426 · 90119-W0278 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-F4010 |
| 48750H | Right rear suspension support assembly | 48750-F4010 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94130-61200 |
| 48760B | Left rear suspension support assembly | 48750-F4010 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94130-61200 |
| 48760E | Right rear trailing arm assembly | 48760-F4010 |
| 48770A | Right rear upper control arm assembly | 48770-F4010 |
| 48780E | Left rear trailing arm assembly | 48780-F4010 |
| 48790 | Left rear upper control arm assembly | 48790-F4010 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-02190 |
| 48818 | Rear stabilizer bar bushing | 48818-02550 · 48818-02560 |
| 48830A | Nut (for rear stabilizer link) | 90178-W0051 · 94151-21241 |
| 48830D | Right rear stabilizer bar link assembly | 48830-16020 · 48830-16040 · 48830-47010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-02080 |
| 48840A | Left rear stabilizer bar link assembly | 48830-16020 · 48830-16040 · 48830-47010 |
