Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 12 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

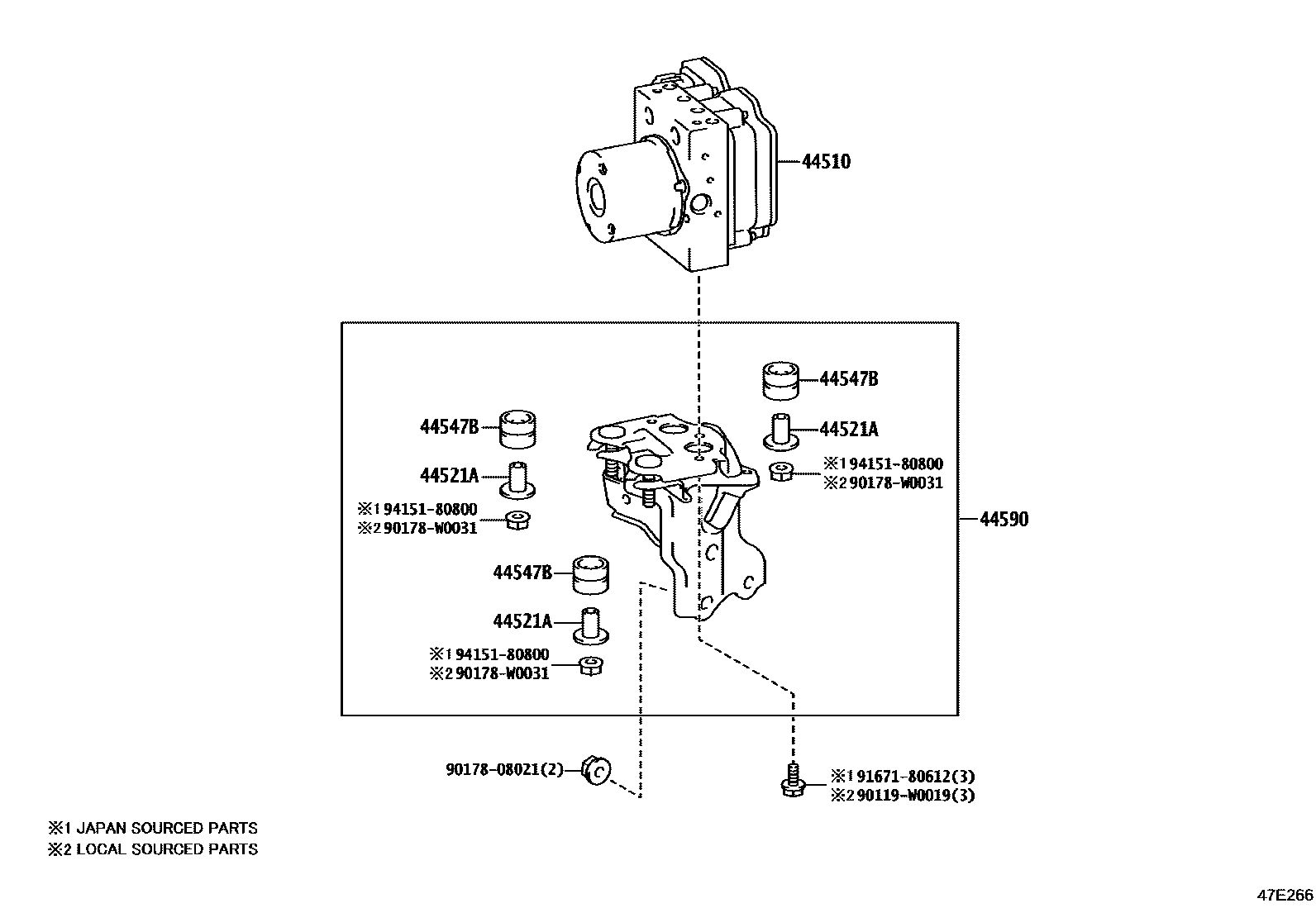

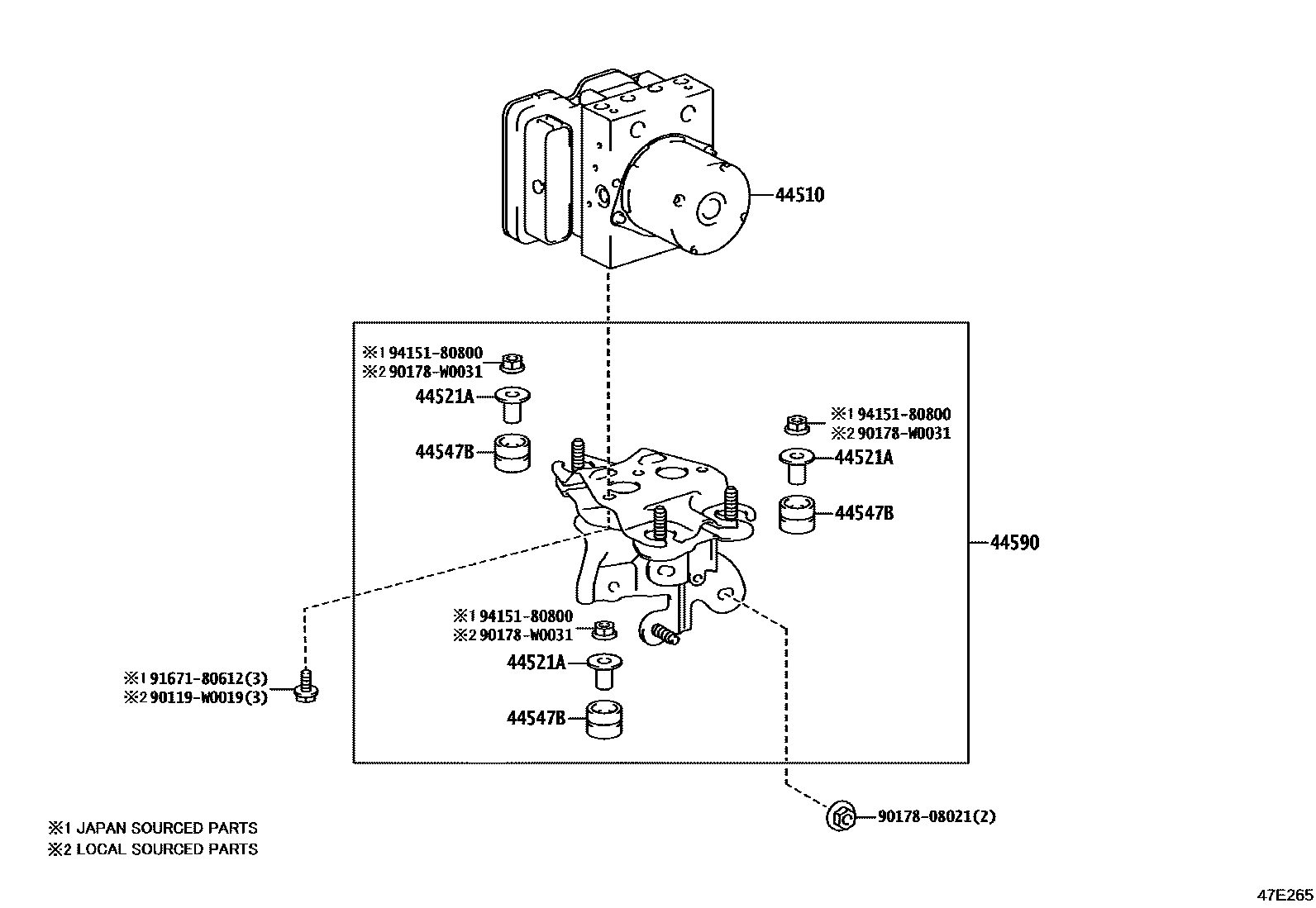

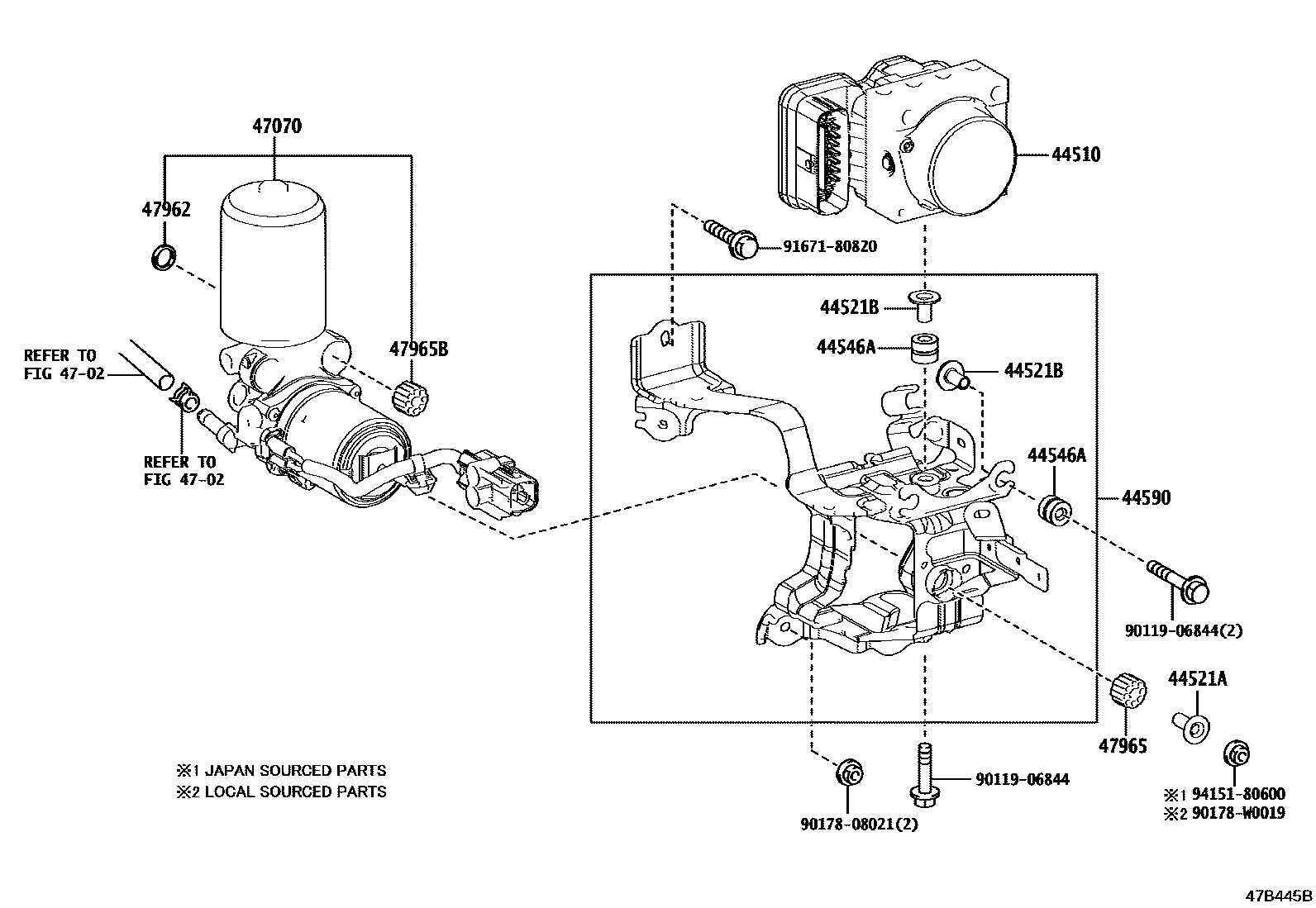

| 44510 | brake actuator assembly | 44050-02D40 · 44050-02D41 · 44050-02D50 · 44050-02D51 · 44050-02D60 · 44050-02D61 · 44050-02D70 · 44050-02D71 · 44050-02D80 · 44050-02D81 · 44050-02E10 · 44050-02G00 · 44050-02K00 · 44050-02K70 · 44050-02K71 · 44050-02K90 · 44050-02K91 · 44050-02N60 · 44050-02N70 · 44050-02N71 · 44050-02N90 · 44050-02N91 · 44050-12E70 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-02040 · 44521-33020 · 44521-47010 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-0D020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |

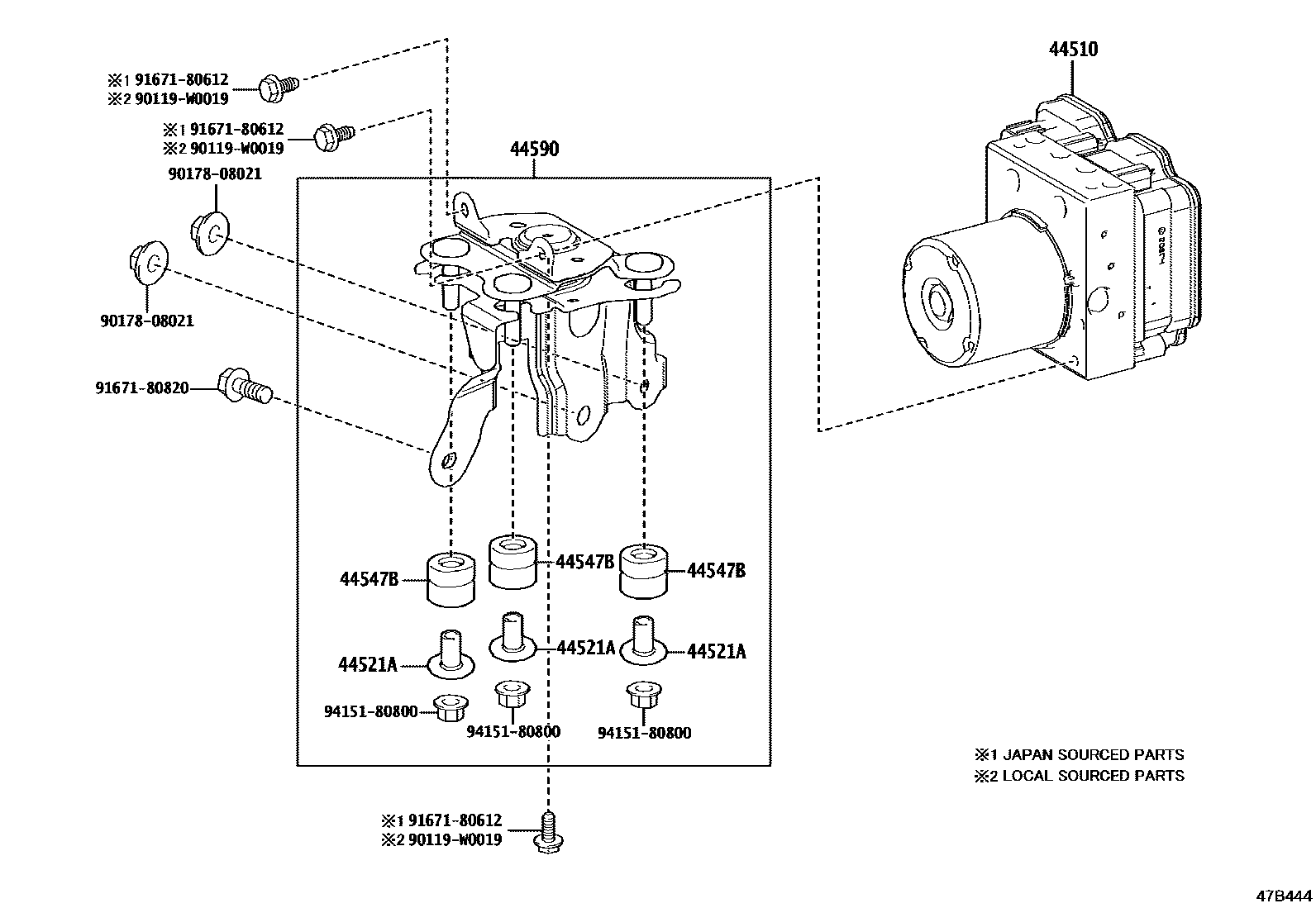

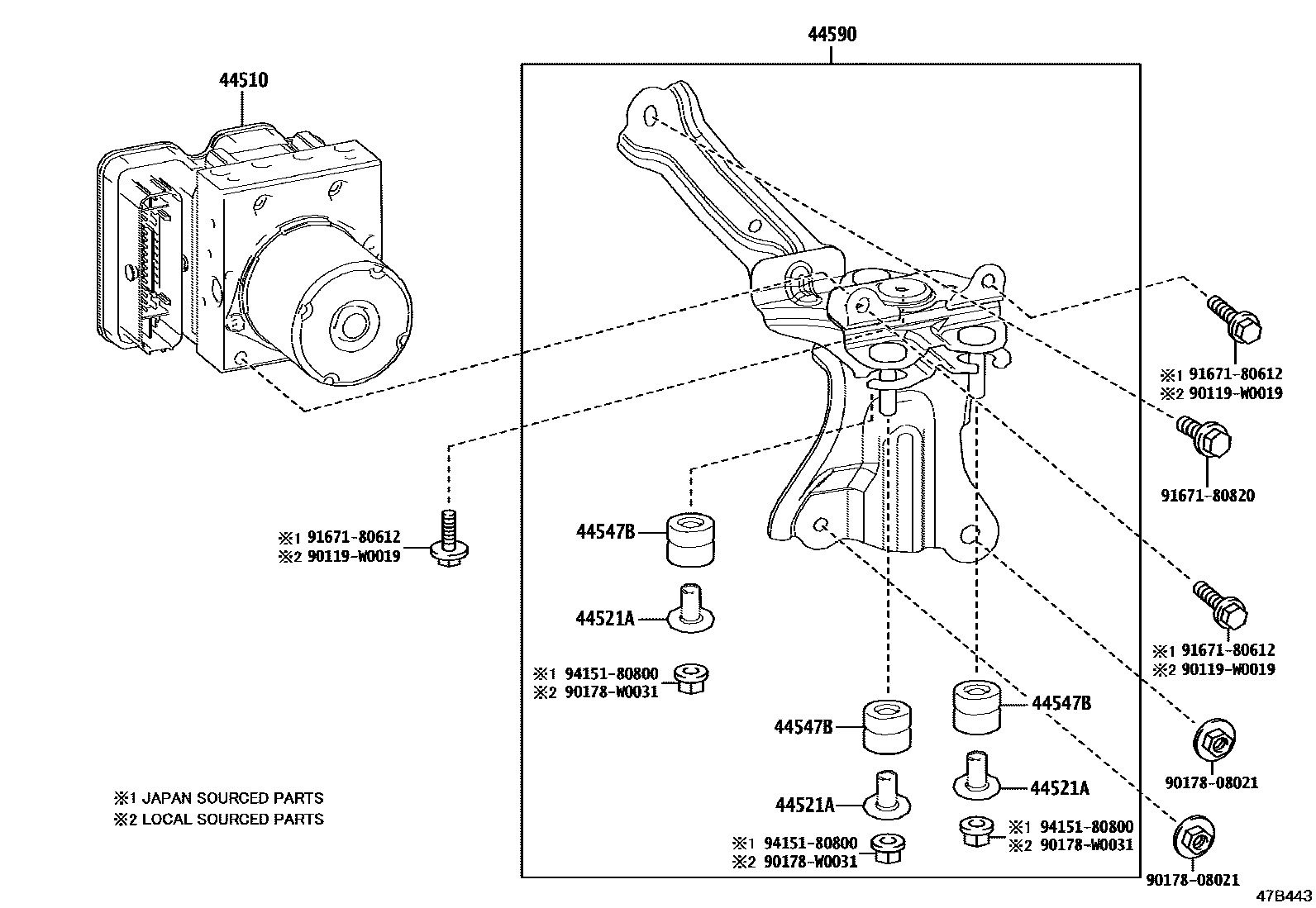

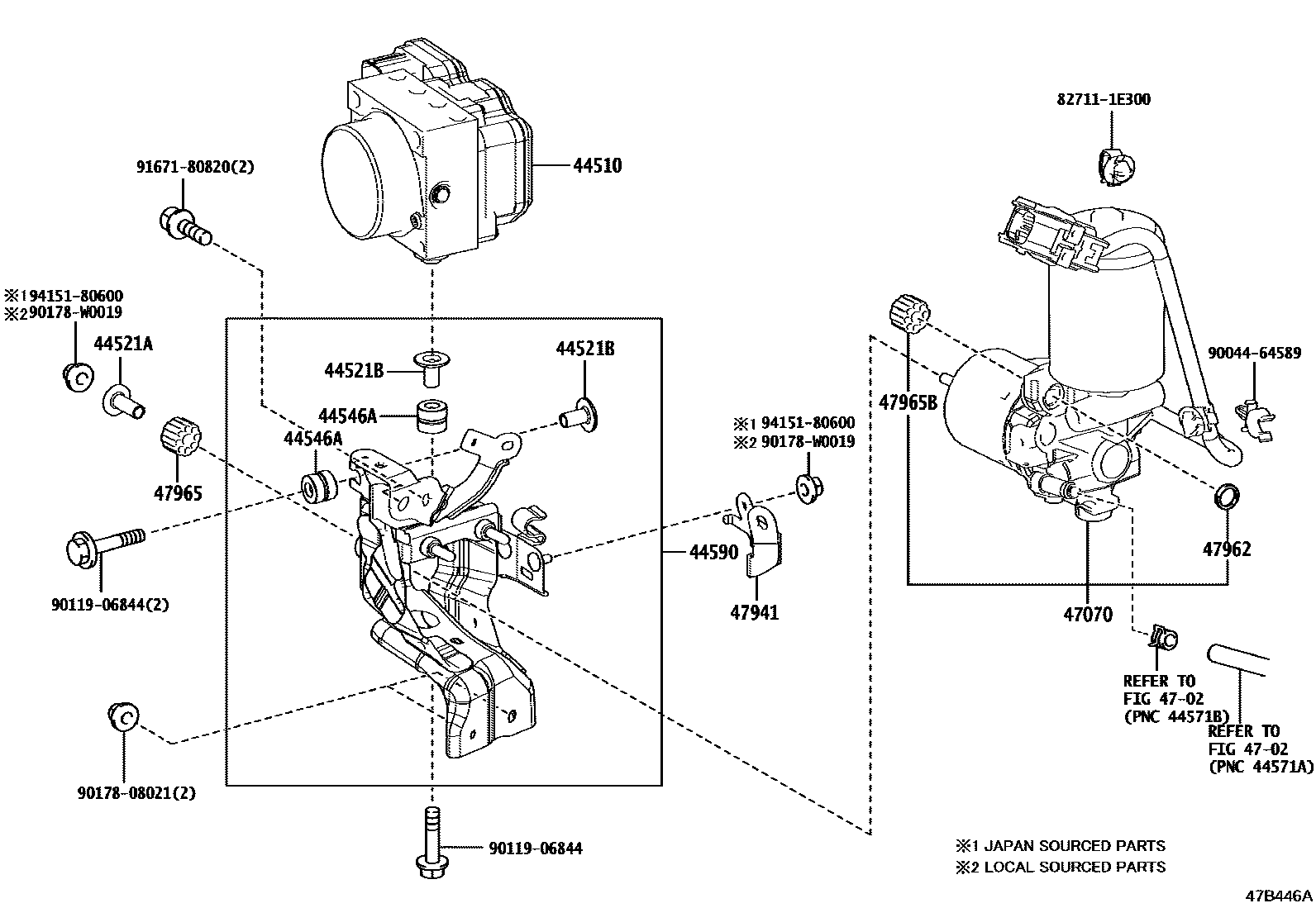

| 44590 | Brake actuator bracket assembly | 44590-02420 · 44590-02620 · 44590-02680 · 44590-02690 · 44590-12240 · 44590-F4030 · 44590-F4080 |
| 47070 | Brake booster pump assembly | 47070-47090 · 47070-47100 |

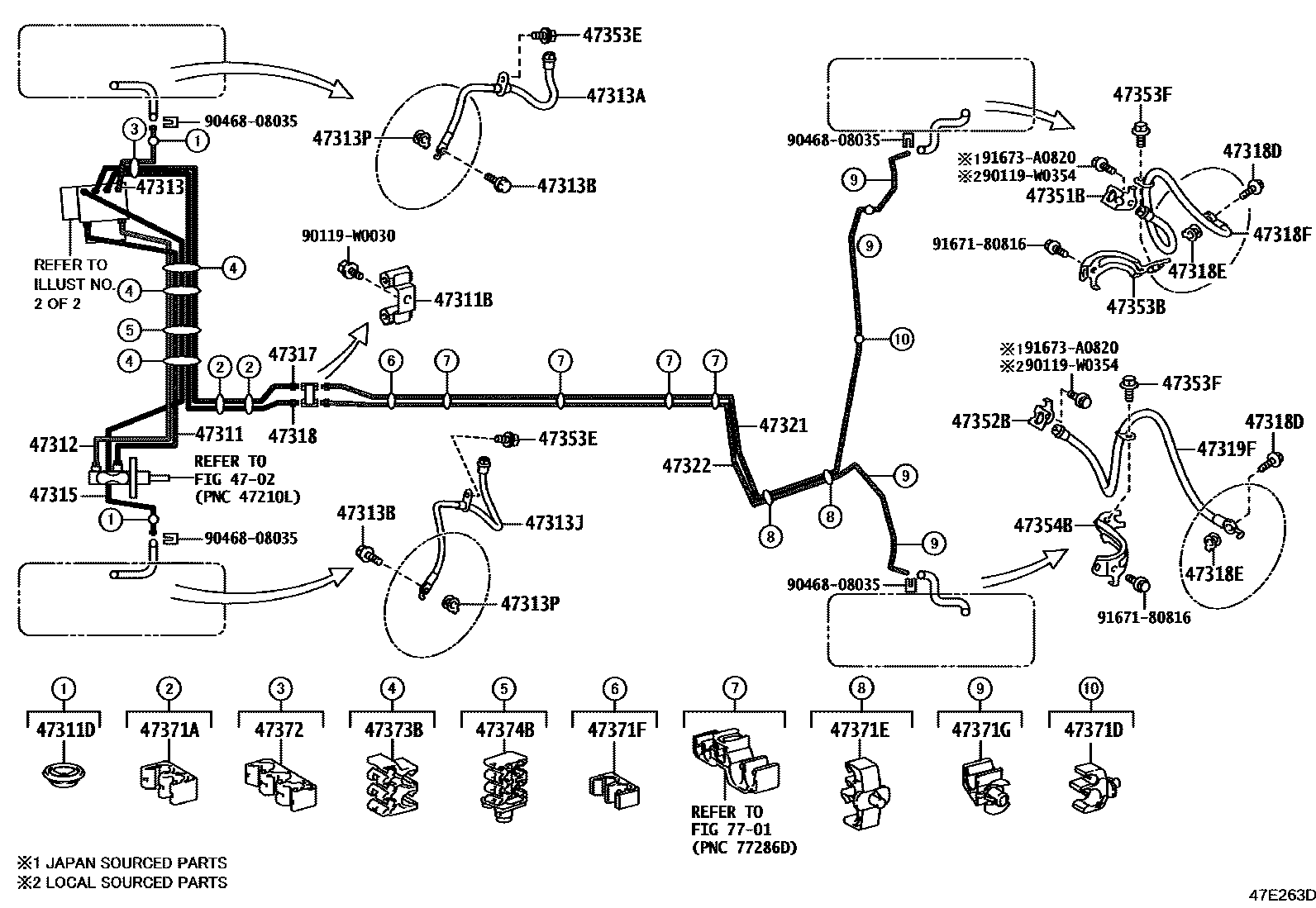

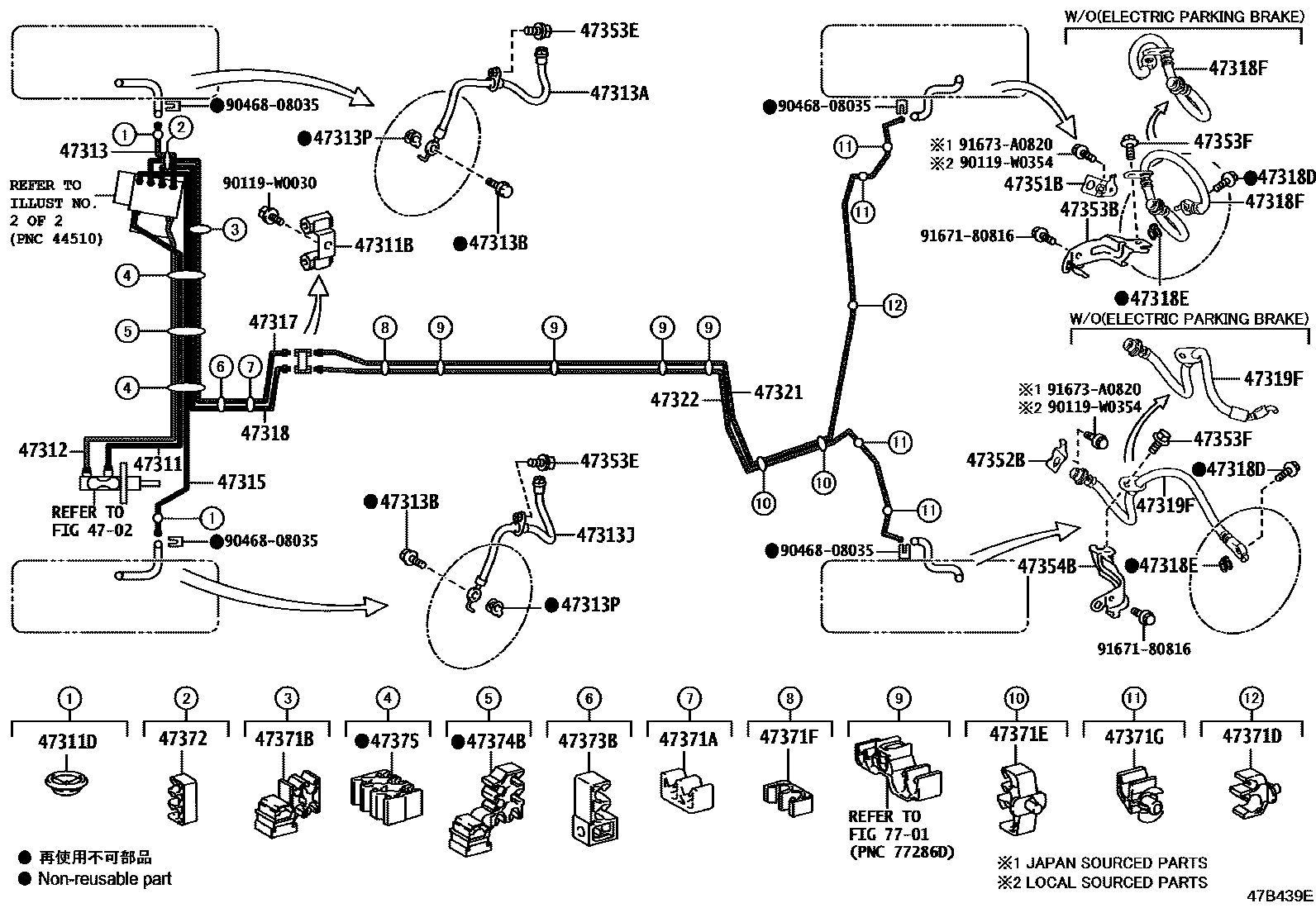

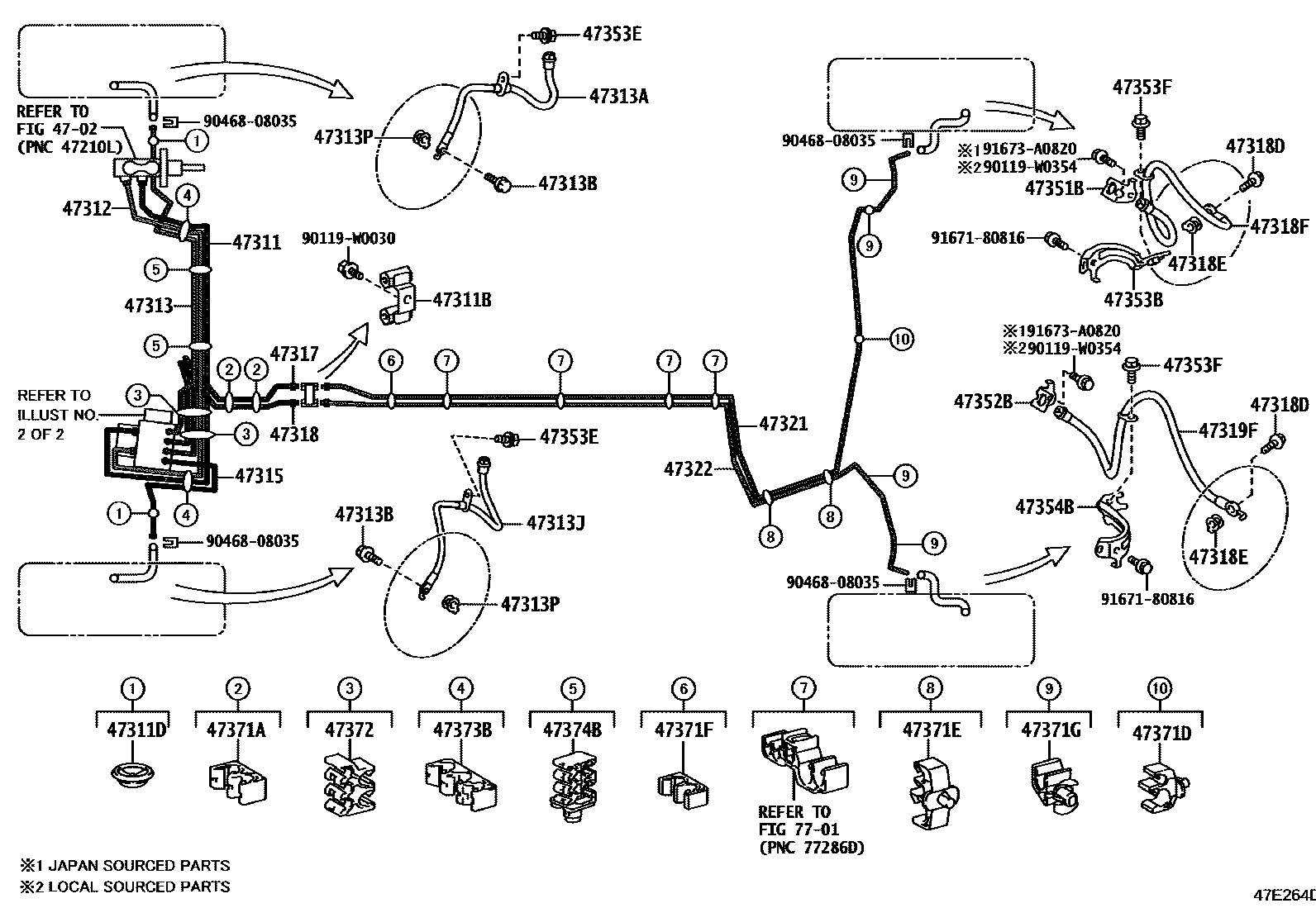

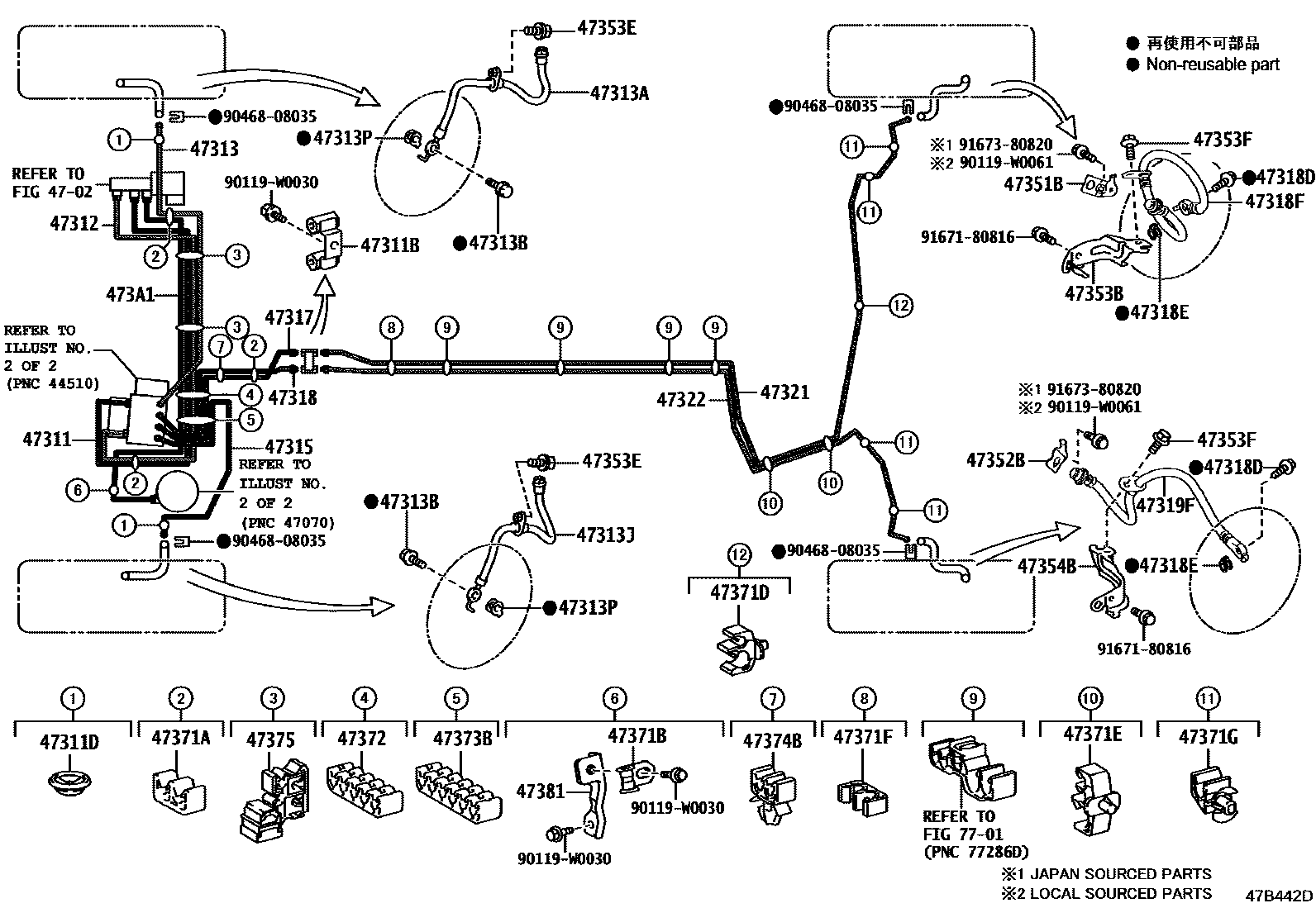

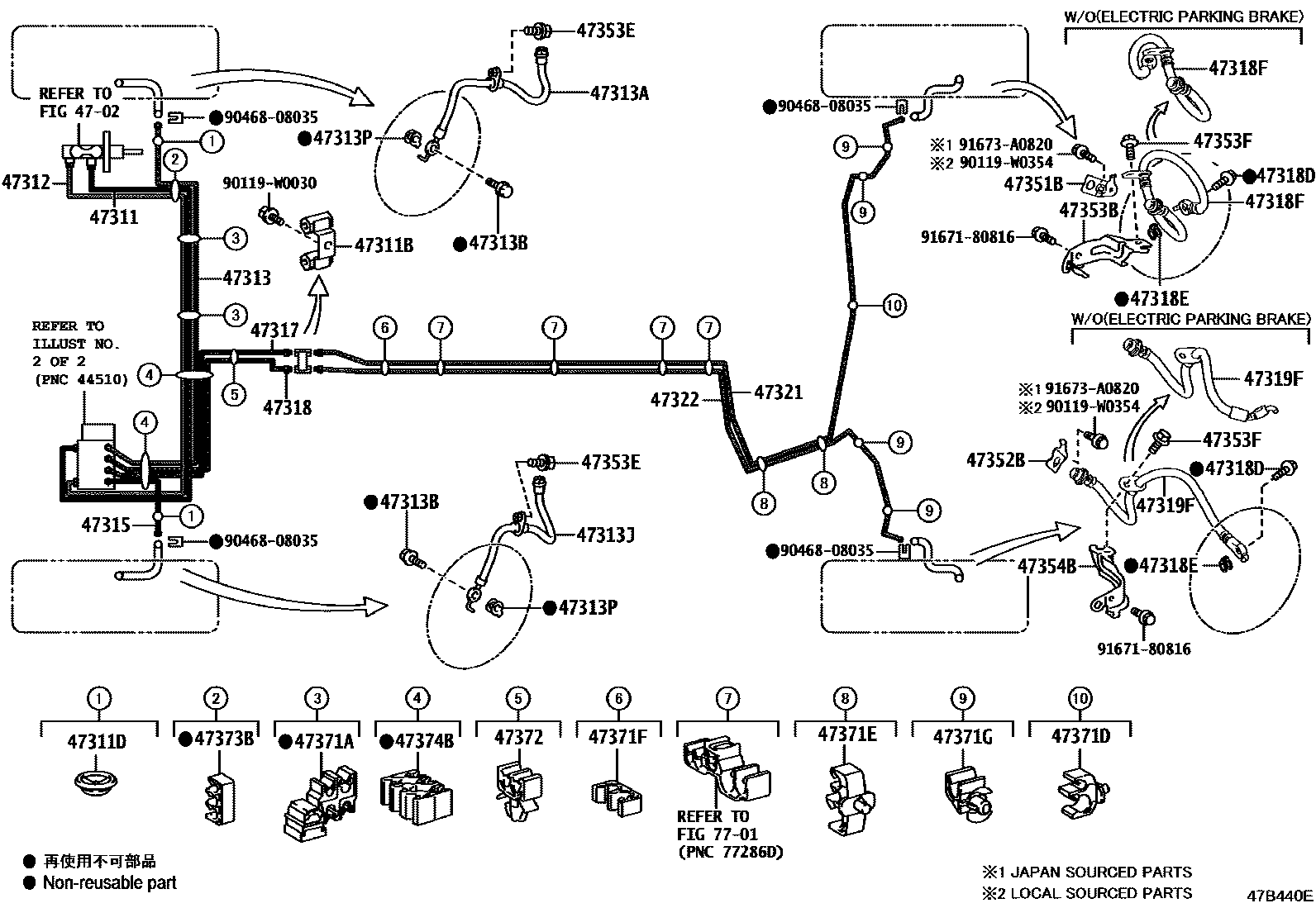

| 47311 | No. 1 front brake pipe | 47311-02G00 · 47311-02G20 · 47311-02G30 · 47311-02G40 · 47311-02G50 · 47311-02J30 · 47311-F4010 · 47311-F4030 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02E60 · 47312-02E80 · 47312-02E90 · 47312-02F00 · 47312-02F10 · 47312-F4010 · 47312-F4030 |
| 47313 | No. 3 front brake pipe | 47313-02D60 · 47313-02D70 · 47313-02G10 · 47313-02G70 · 47313-02G80 · 47313-02G90 |
| 47313A | No. 1 front flexible hose | 90947-W2066 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2067 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02620 · 47315-02630 · 47315-02640 · 47315-02650 · 47315-02680 · 47315-02690 |
| 47317 | No. 7 front brake pipe | 47317-02C50 · 47317-02C60 · 47317-02F50 · 47317-02F60 · 47317-02F80 · 47317-02F90 |
| 47318 | No. 8 front brake pipe | 47318-02C70 · 47318-02C80 · 47318-02F70 · 47318-02F80 · 47318-02G00 · 47318-02G10 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-W2052 · 90947-W2054 |
| 47319F | Left rear flexible hose | 90947-W2053 · 90947-W2054 |
| 47321 | No. 1 rear brake pipe | 47321-02670 |
| 47322 | No. 2 rear brake pipe | 47322-02670 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-F4020 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-F4020 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-02170 |
| 47353E | BOULON(POUR SUPPORT TUYAU FLEXIBLE) | 90119-08868 · 90119-W0011 · 90119-W0171 |
| 47353F | BOULON, NO.2 (POUR SUPPORT TUYAU FLEXIBLE) | 90119-08868 · 90119-W0011 · 90119-W0171 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-02170 |

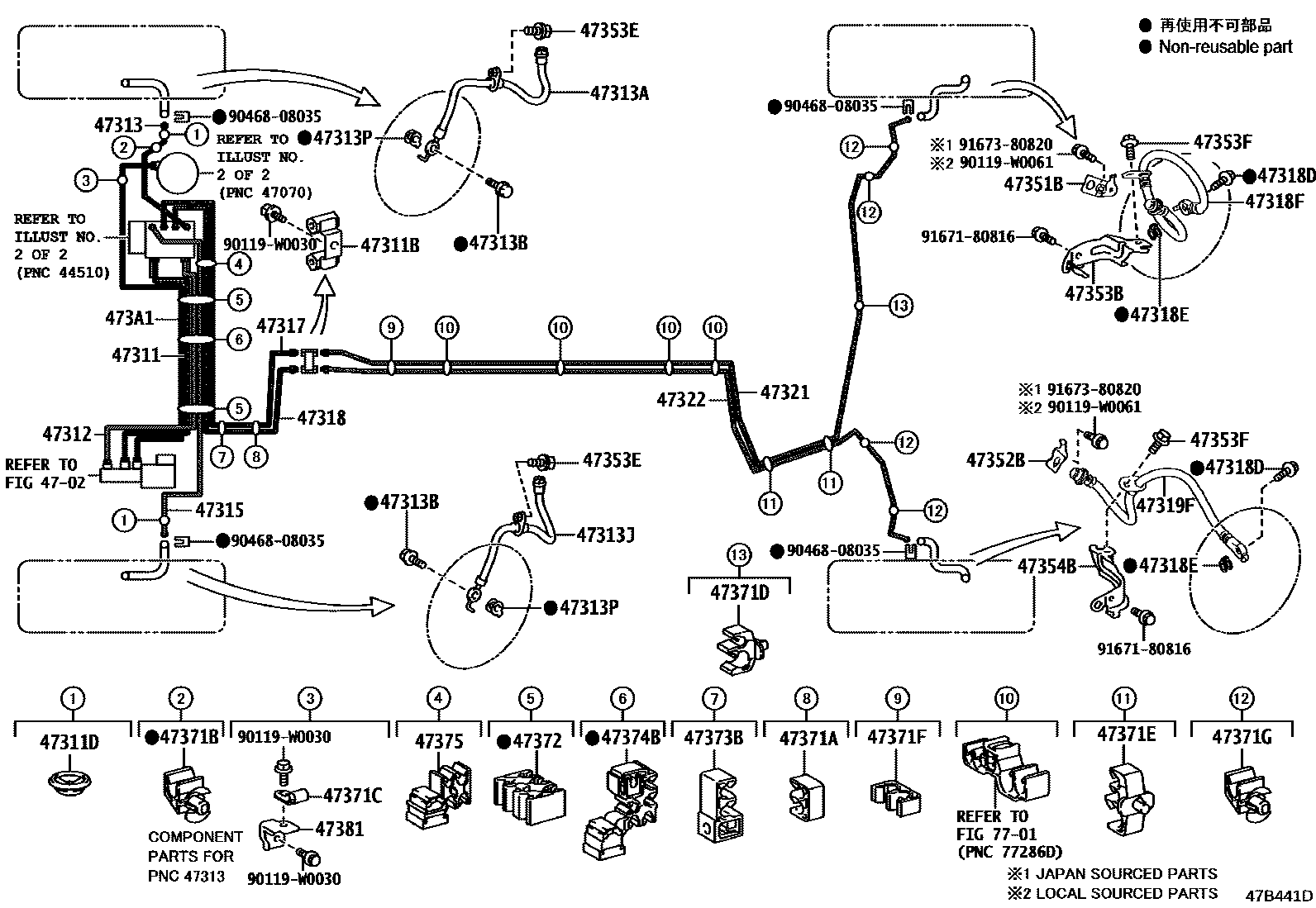

| 47371A | No. 1 brake pipe clamp | 90949-01D91 · 90949-01E30 |
| 47371B | No. 6 brake pipe clamp | 90461-10854 · 90949-01E10 · 90949-01E51 |
| 47371C | No. 7 brake pipe clamp | 90461-10854 |
| 47371D | No. 8 brake pipe clamp | 77285-47110 |
| 47371E | No. 9 brake pipe clamp | 77286-47050 |
| 47371F | No. 10 brake pipe clamp | 90464-00904 |
| 47371G | No. 11 brake pipe clamp | 90949-01E10 |
| 47372 | No. 2 brake pipe clamp | 90949-01D92 · 90949-01D99 · 90949-01E15 · 90949-01E34 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90949-01E17 · 90949-01E33 · 90949-01E40 · 90949-01E43 |
| 47374B | No. 4 brake pipe clamp | 90949-01E34 · 90949-01E42 · 90949-01E44 · 90949-01E50 · 90949-01E79 |
| 47375 | No. 5 brake pipe clamp | 90949-01E44 · 90949-01E49 · 90949-01E51 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-F4010 · 47381-F4020 |
| 473A1 | TUYAU, ACCUMULATEUR AU MAITRE-CYLINDRE DE FREIN | 473A1-02130 · 473A1-02140 |
| 47941 | PLAT. FIX. ASSISTANCE FREIN NO.1 | 47941-F4010 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | BAGUE, POMPE SERVOFREIN, NO.2 | 47965-30010 |
