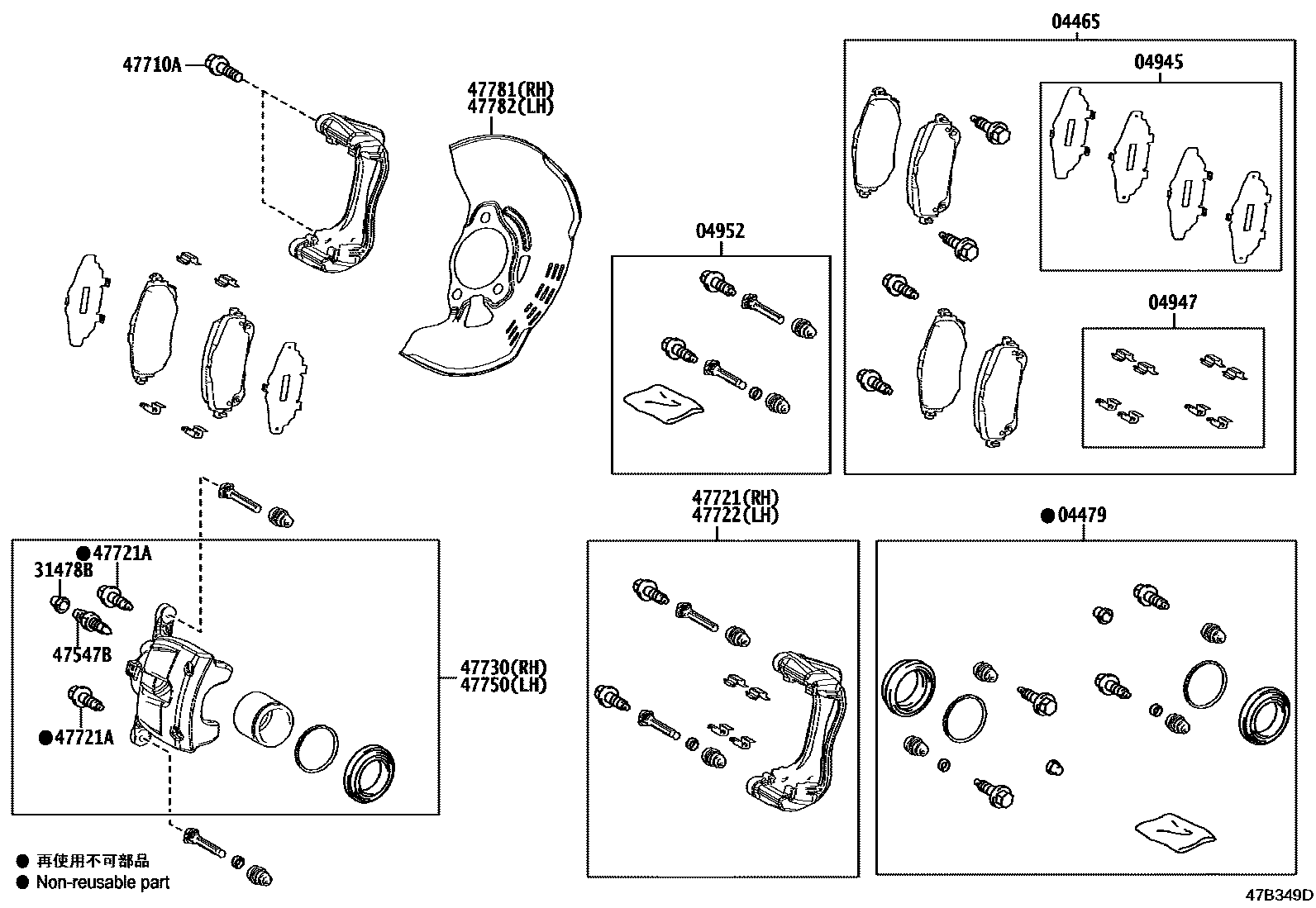

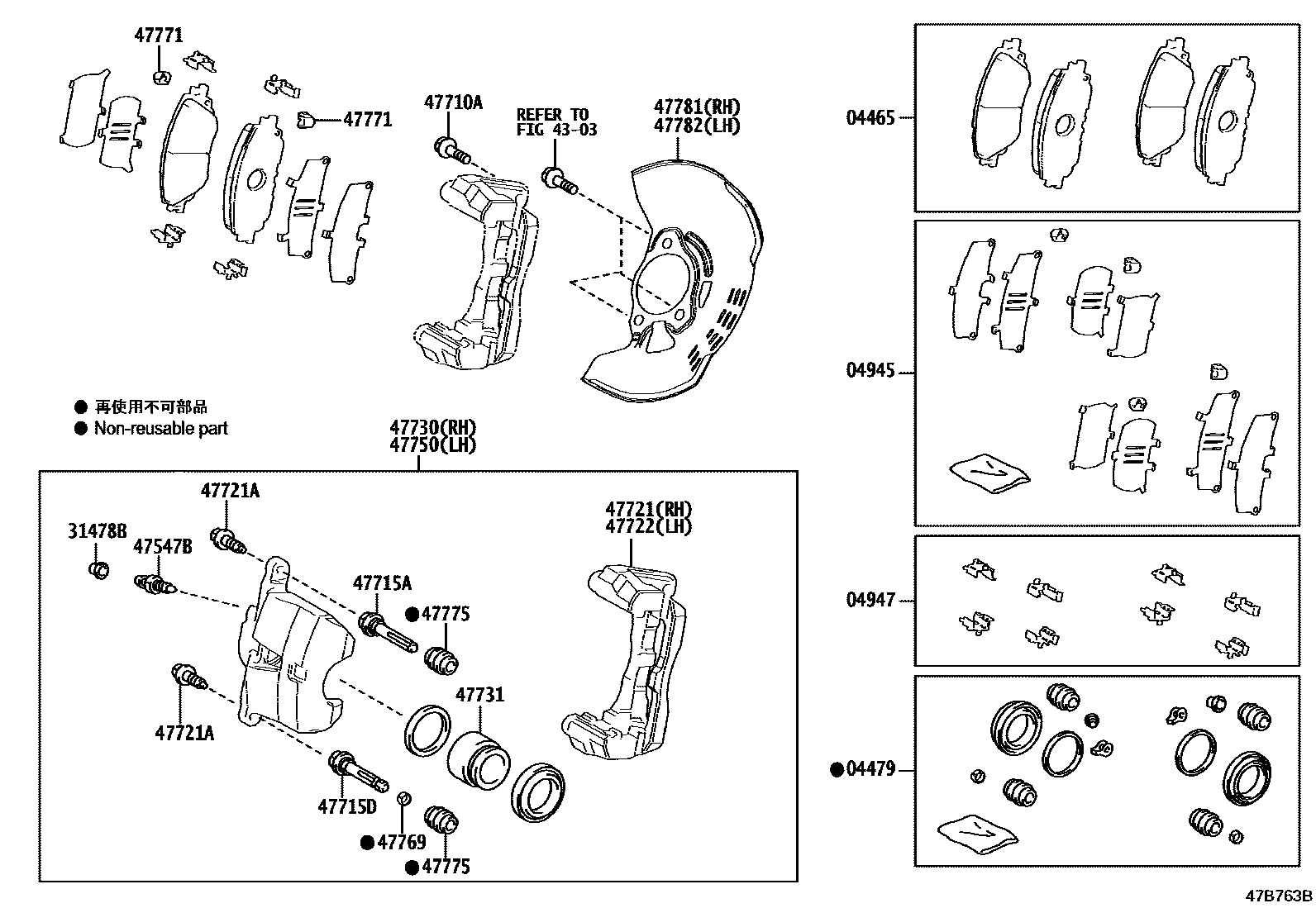

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02470 · 04465-02480 |
| 04479 | Front disc brake cylinder assembly | 04478-02380 · 04478-02420 |
| 04945 | Front silencer gasket assembly | 04945-02240 · 04945-02270 |
| 04947 | Front disc brake mounting kit | 04947-02140 · 04947-02170 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-02311 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0N010 · 90069-39026 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 · 90069-39025 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-W0121 |
| 47715A | Front disc brake cylinder sliding pin | 47714-0R020 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-0D210 |
| 47721 | Right front disc brake cylinder retainer | 47721-02640 · 47721-09570 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 47715-05060 · 90016-AA608 |
| 47722 | Left front disc brake cylinder retainer | 47722-02540 · 47722-09260 |
| 47730 | Right front disc brake cylinder assembly | 47730-02590 · 47730-02640 |
| 47731 | Front disc brake piston | 47731-0D270 |
| 47750 | Left disc brake cylinder assembly | 47750-02490 · 47750-02540 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-0P010 |
| 47771 | No. 1 pad wear indicator plate | 47771-33380 |
| 47775 | Bushing boot (for front disc brake) | 47775-06270 |
| 47781 | Right front disc brake dust cover | 47781-F4010 |
| 47782 | Left front disc brake dust cover | 47782-F4010 |
