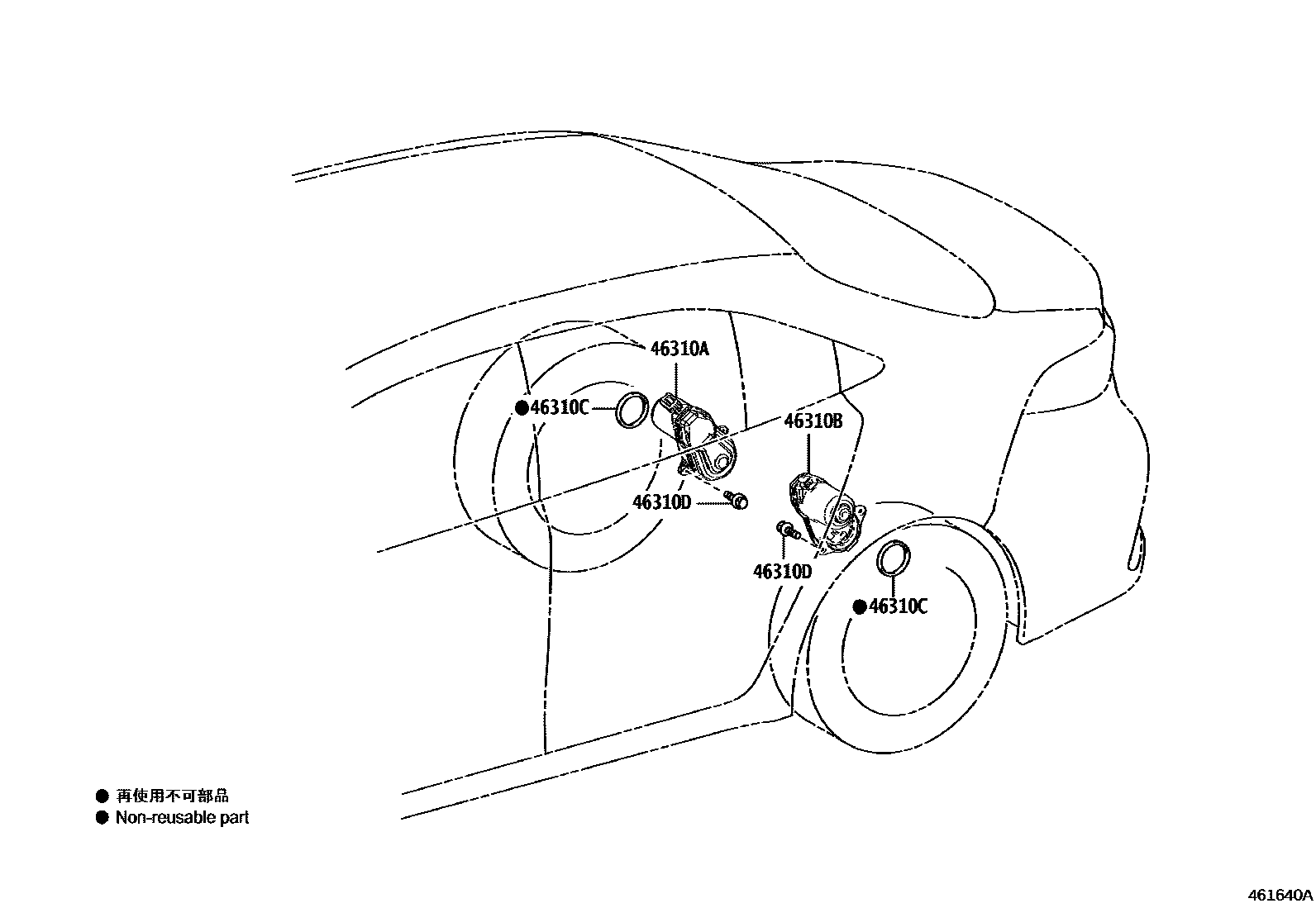

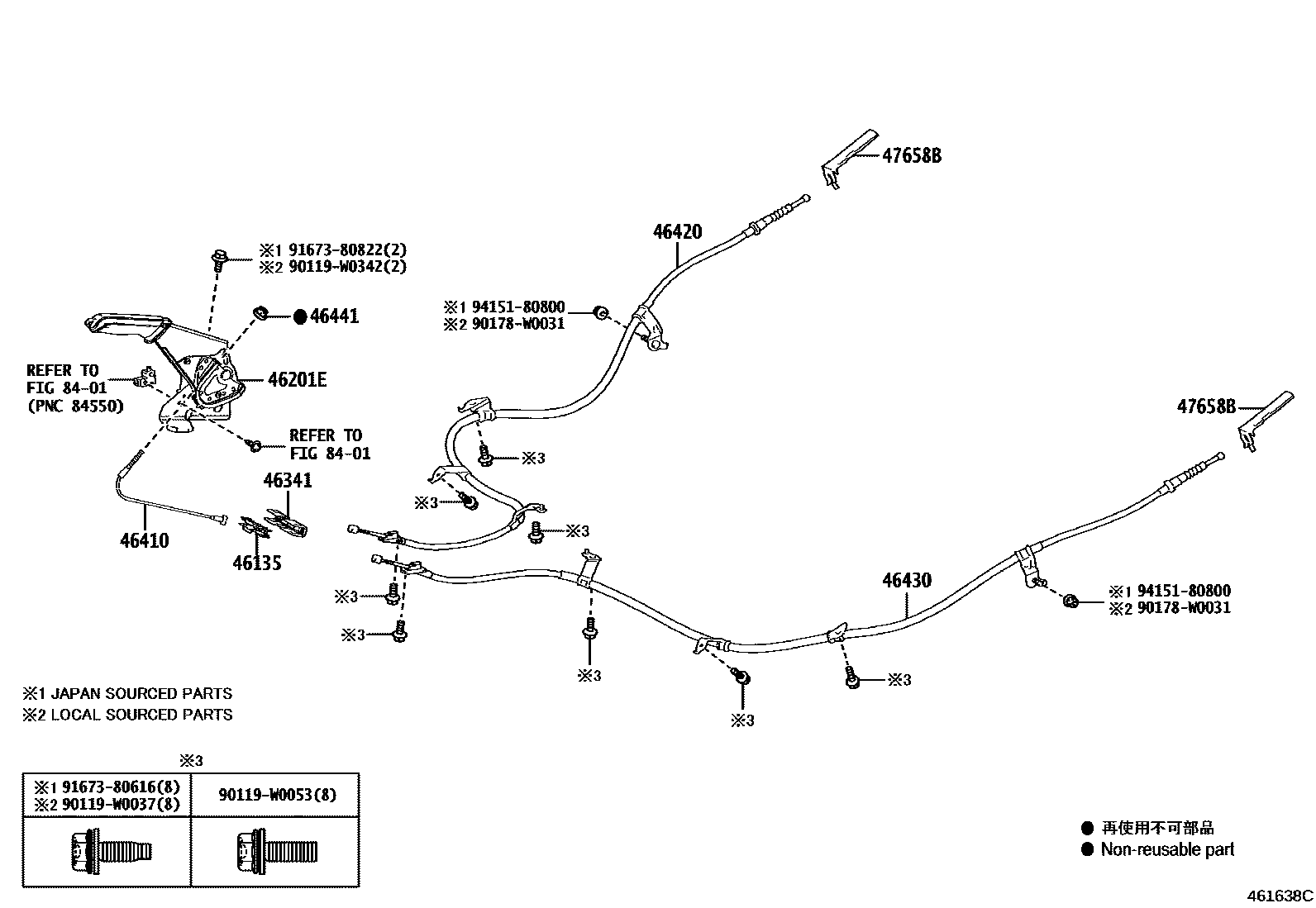

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-02100 · 46135-12010 |
| 46310A | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MD | 46310-F4011 |
| 46310B | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MG | 46310-F4011 |
| 46310C | JOINT D'ETANCHEITE(POUR ACT FREIN STATIONNEMENT) | 90069-38055 |
| 46310D | BOULON(POUR ACTIONNEUR FREIN STATION) | 90069-31414 |
| 46341 | Parking brake balancer | 46341-02120 · 46341-12040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-02250 · 46410-12340 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02400 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02260 |
| 46441 | No. 1 cable adjustment nut | 90177-06003 |
| 47658B | Parking brake lever protection device | 47658-47010 |
