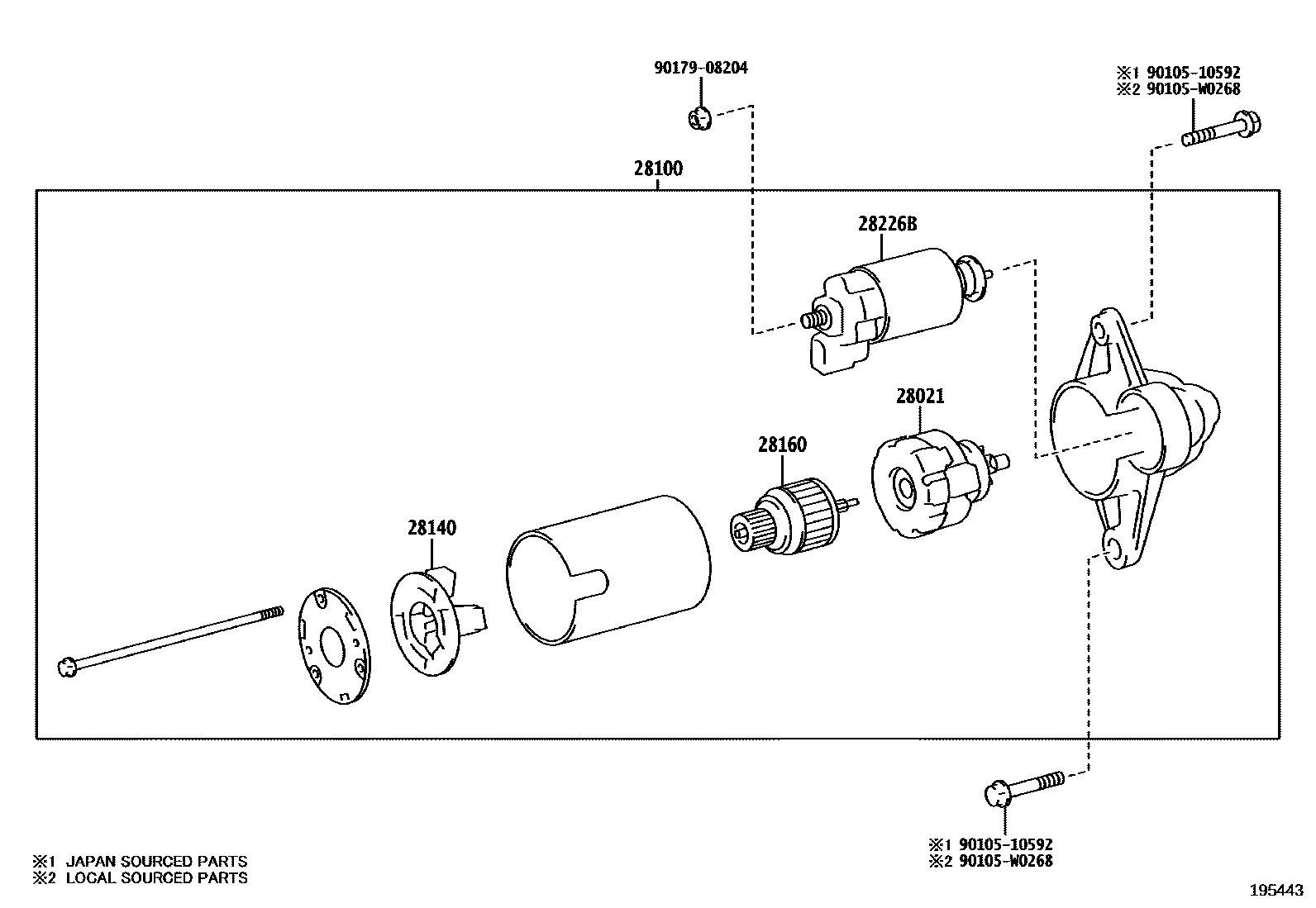

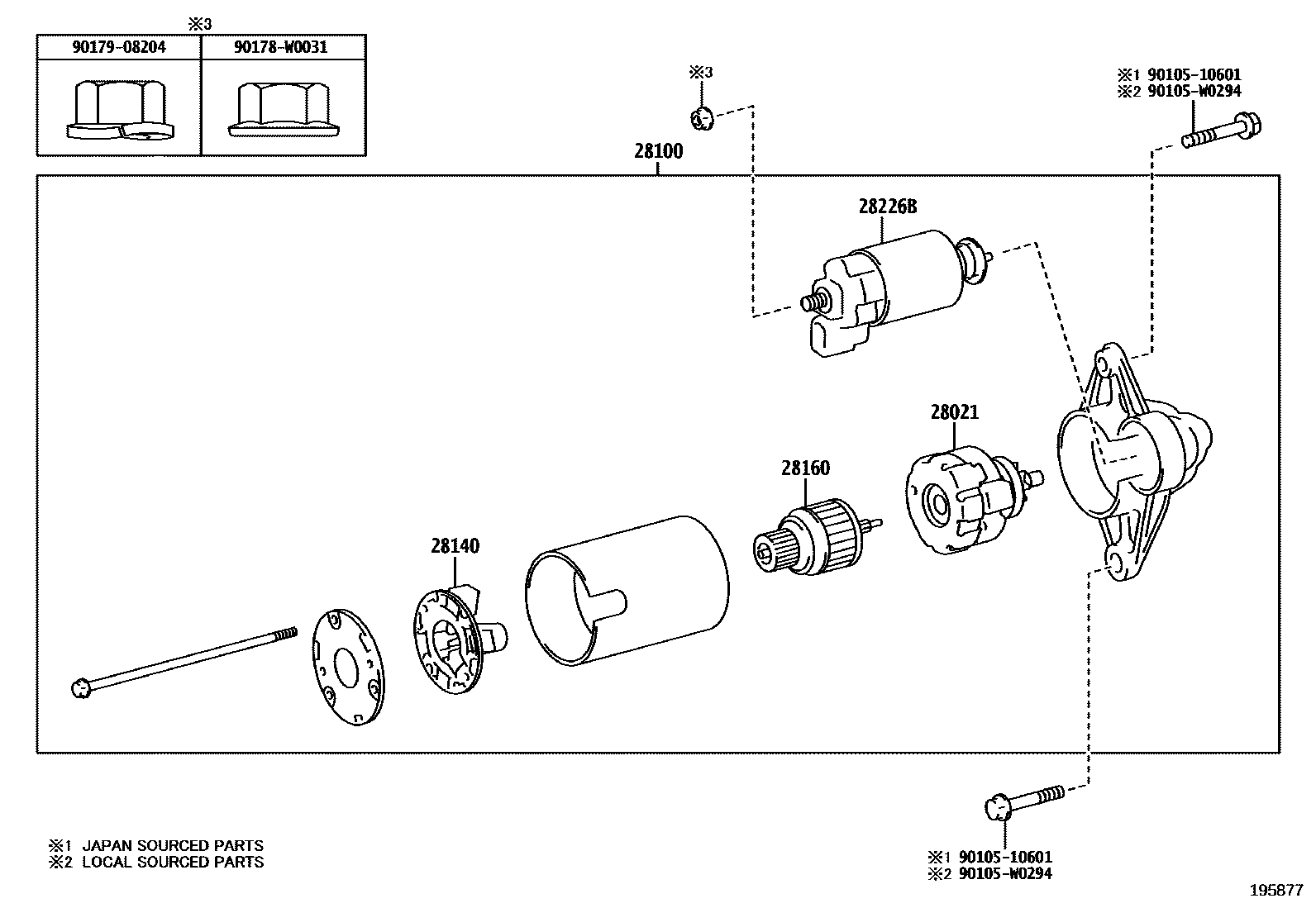

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-47170 · 28021-K0040 |
| 28100 | Starter assembly | 28100-0T400 · 28100-0T420 · 28100-K0010 |
| 28140 | Starter brush holder assembly | 28140-21070 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-21080 |
| 28226B | starter magnetic switch | 28226-37130 · 28226-K0040 |
