Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 2 PNC and OE references.

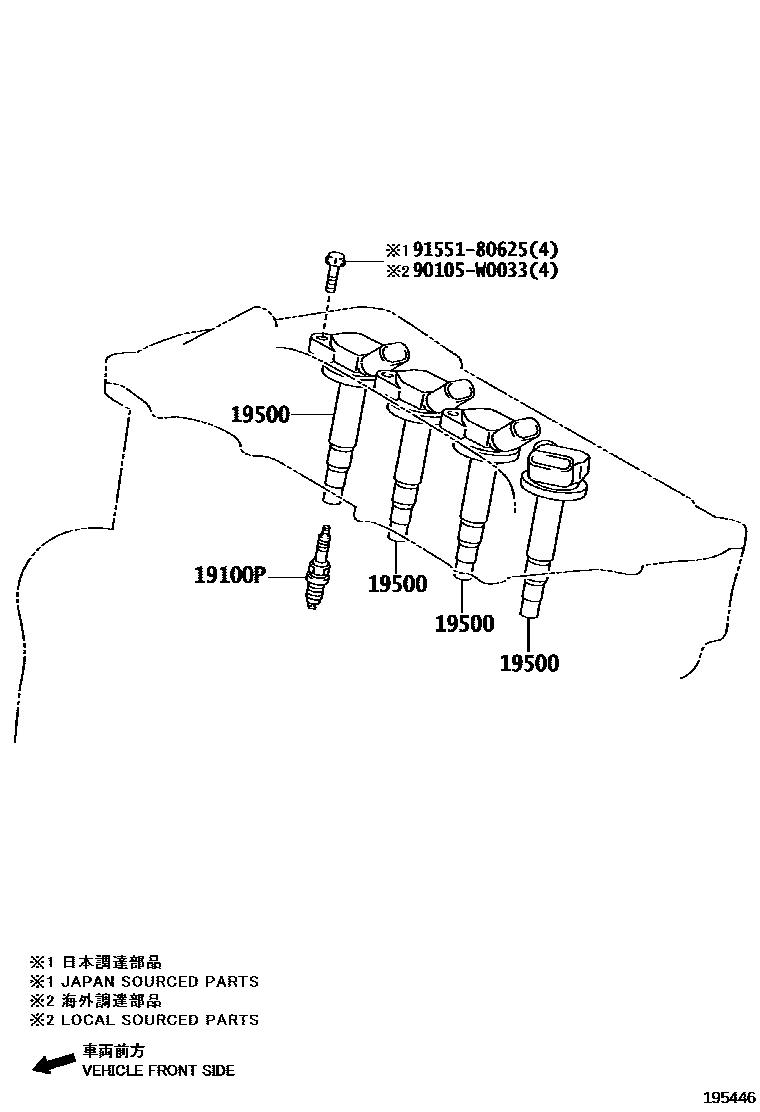

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195446
点火线圈和火花塞 — 195446 (201901 – 999999)

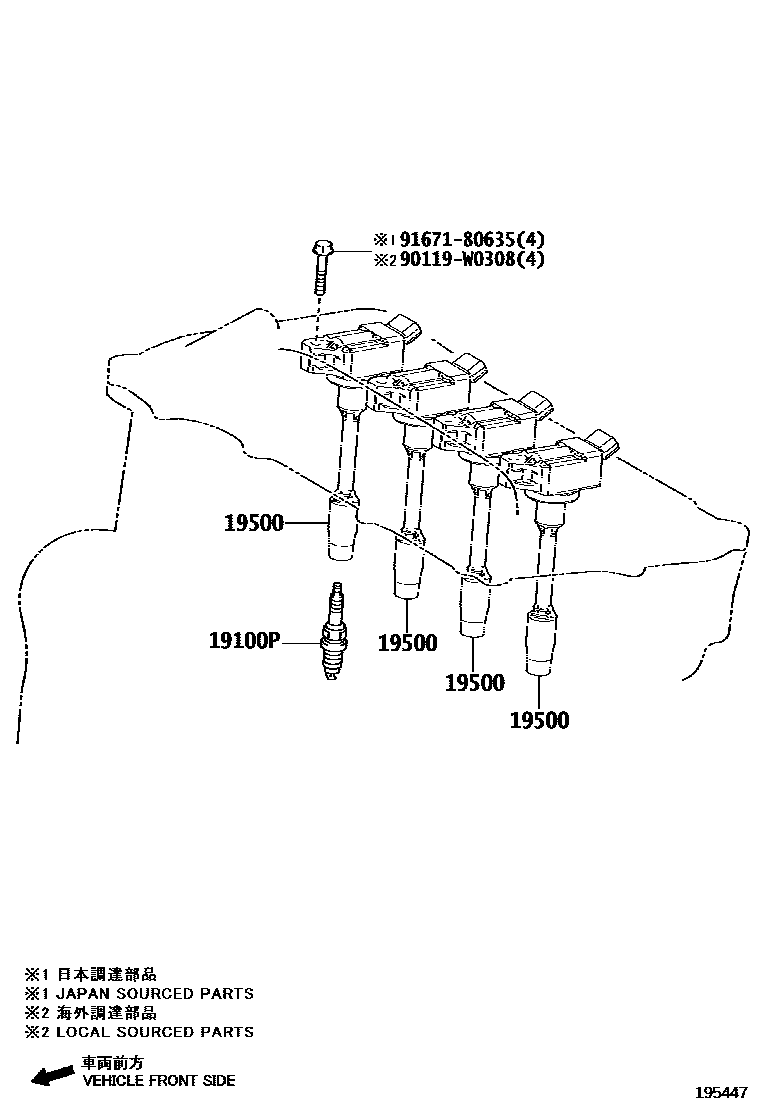

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195447
点火线圈和火花塞 — 195447 (201901 – 999999)

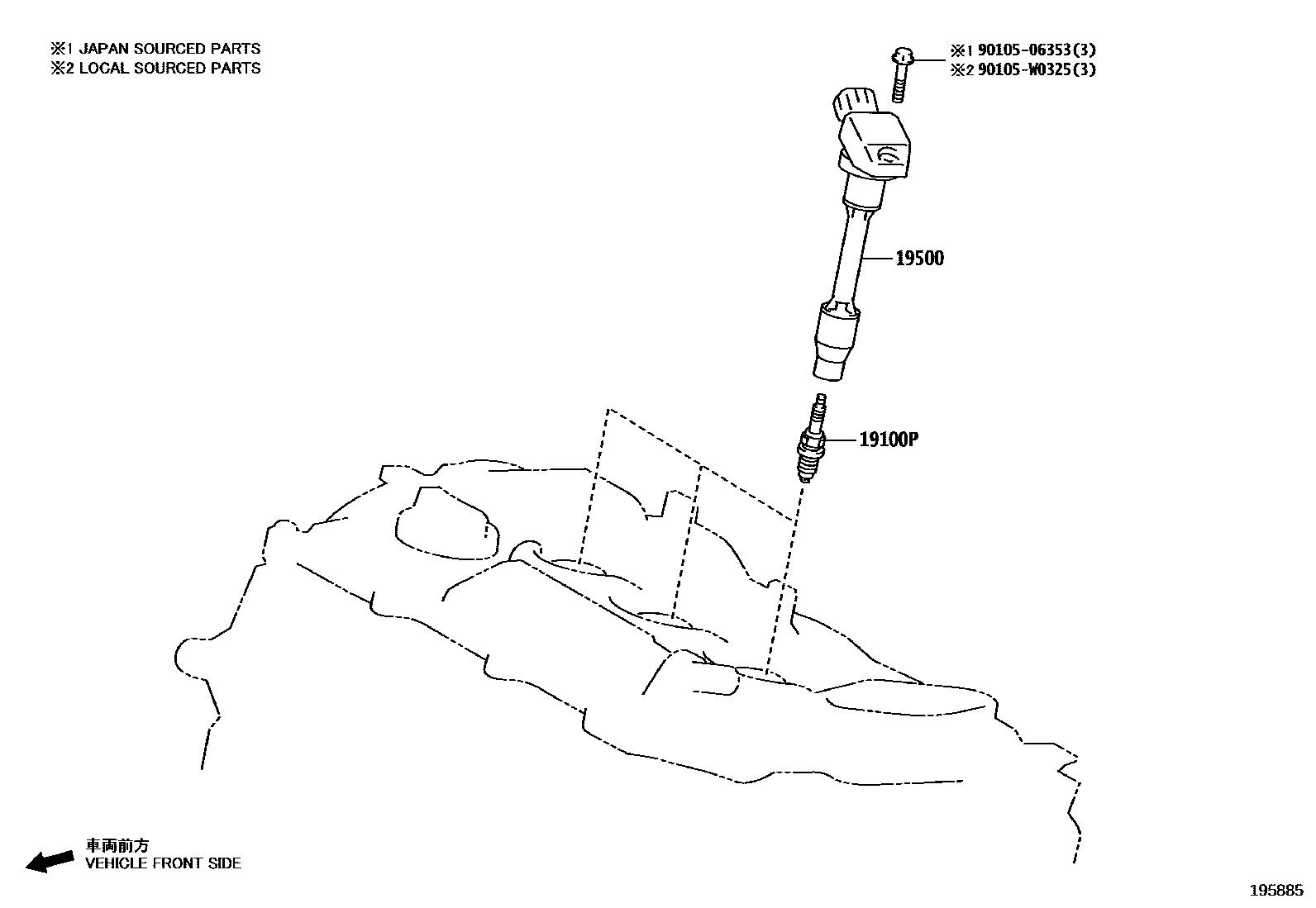

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195885
点火线圈和火花塞 — 195885 (202011 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01275 · 90919-01298 · 90919-01301 · 90919-W1007 · 90919-W1009
19500Ignition coil assembly90919-02258 · 90919-02272 · 90919-02277
