Toyota COROLLA Air Cleaner — Figure 1703

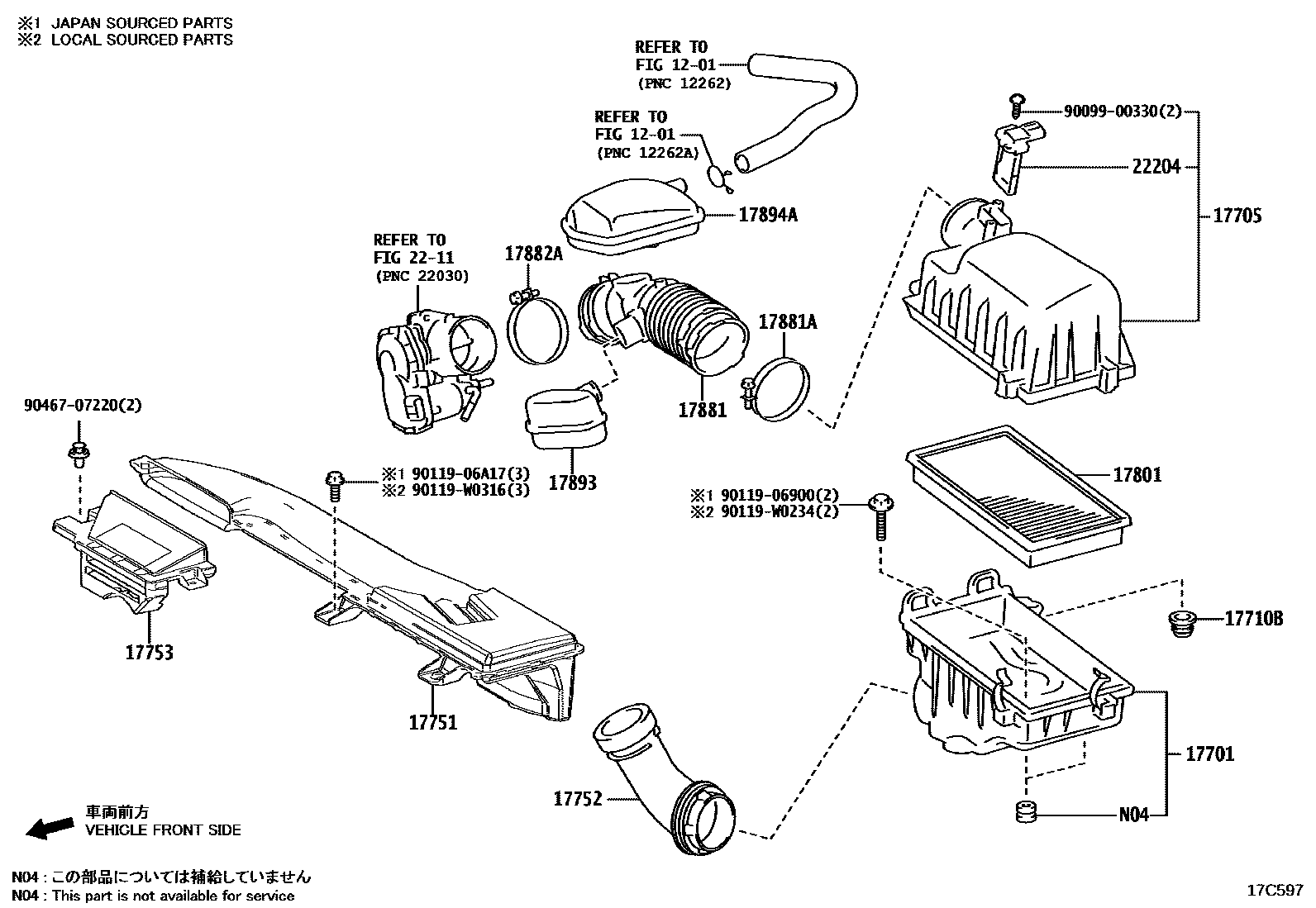

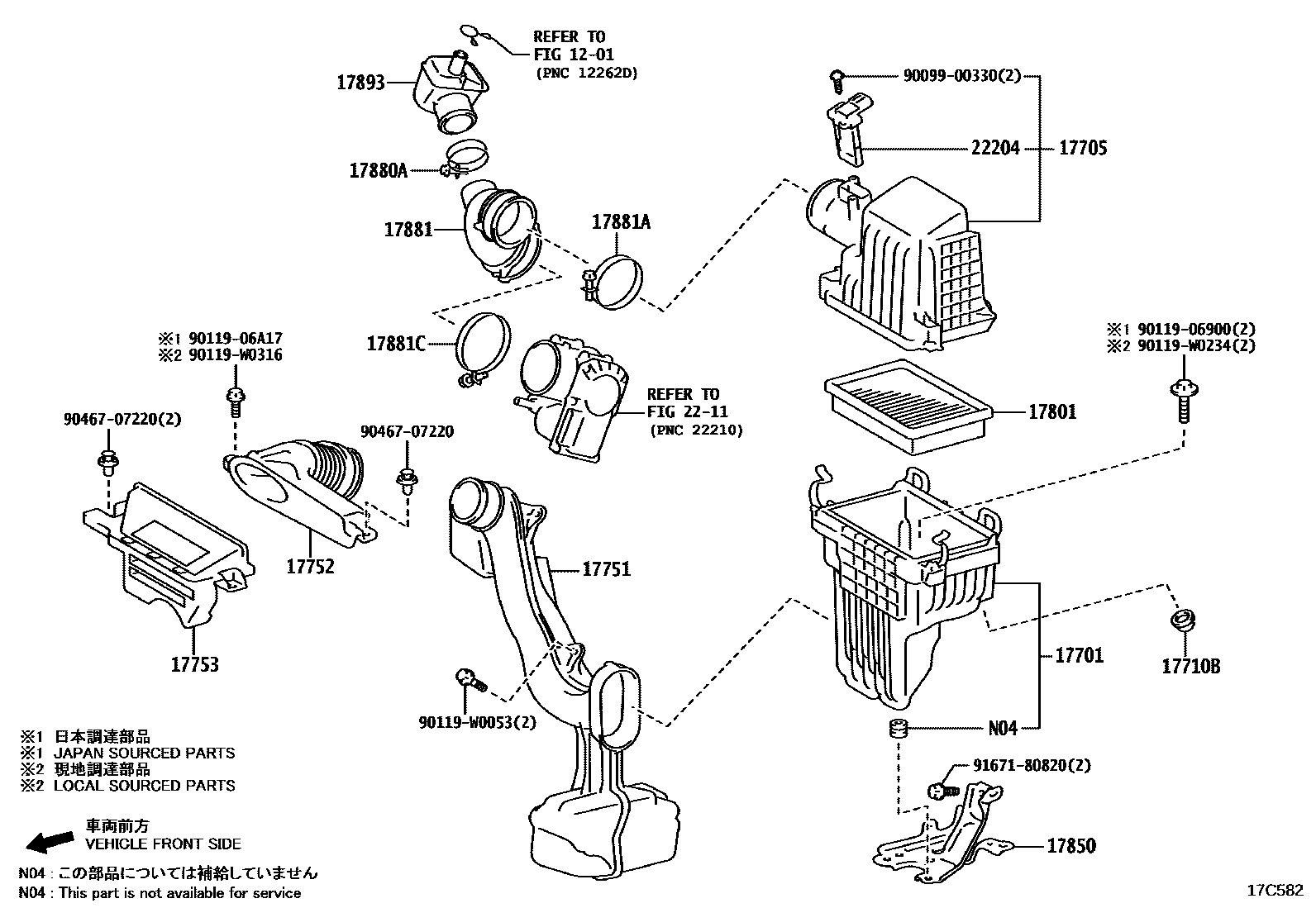

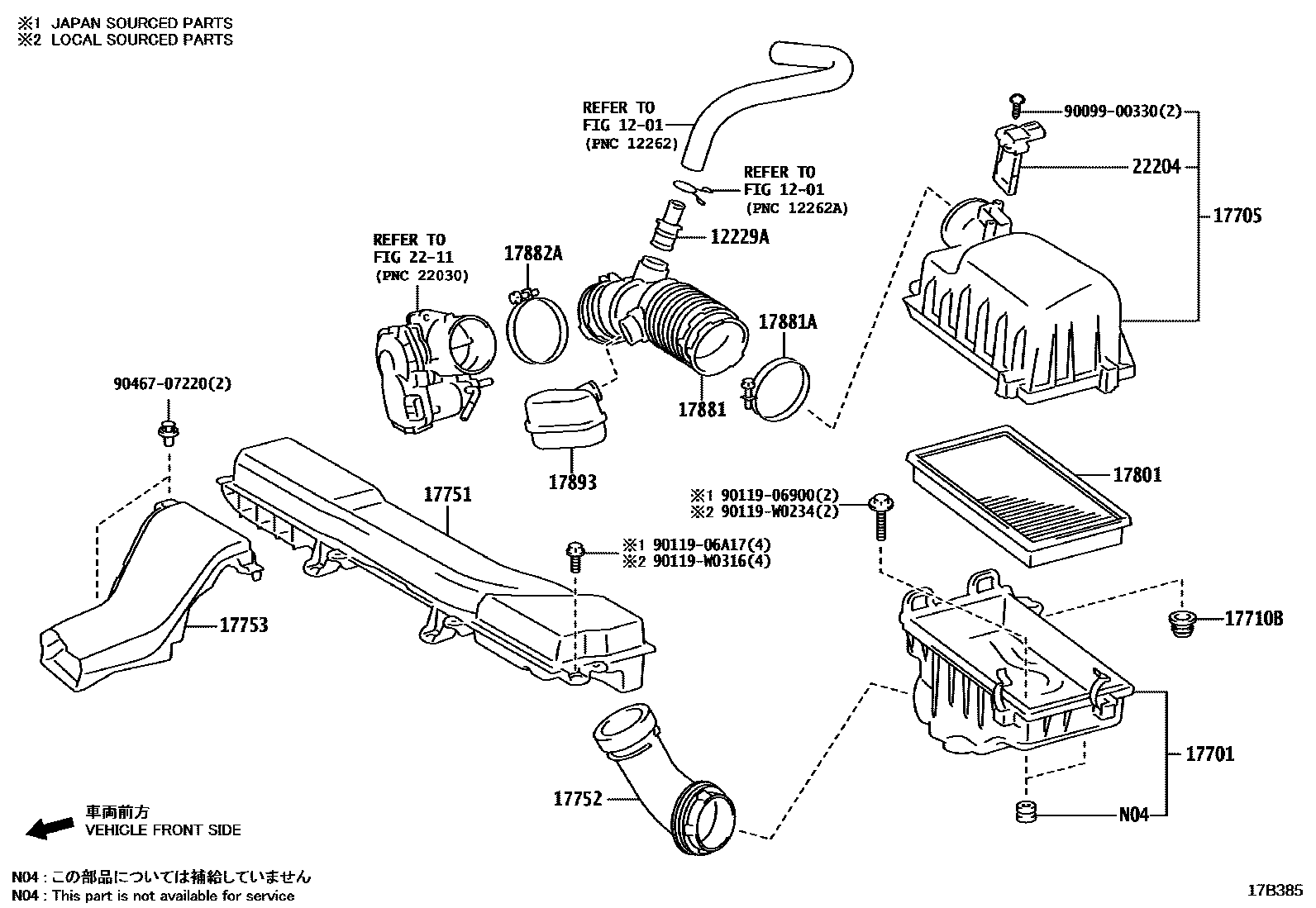

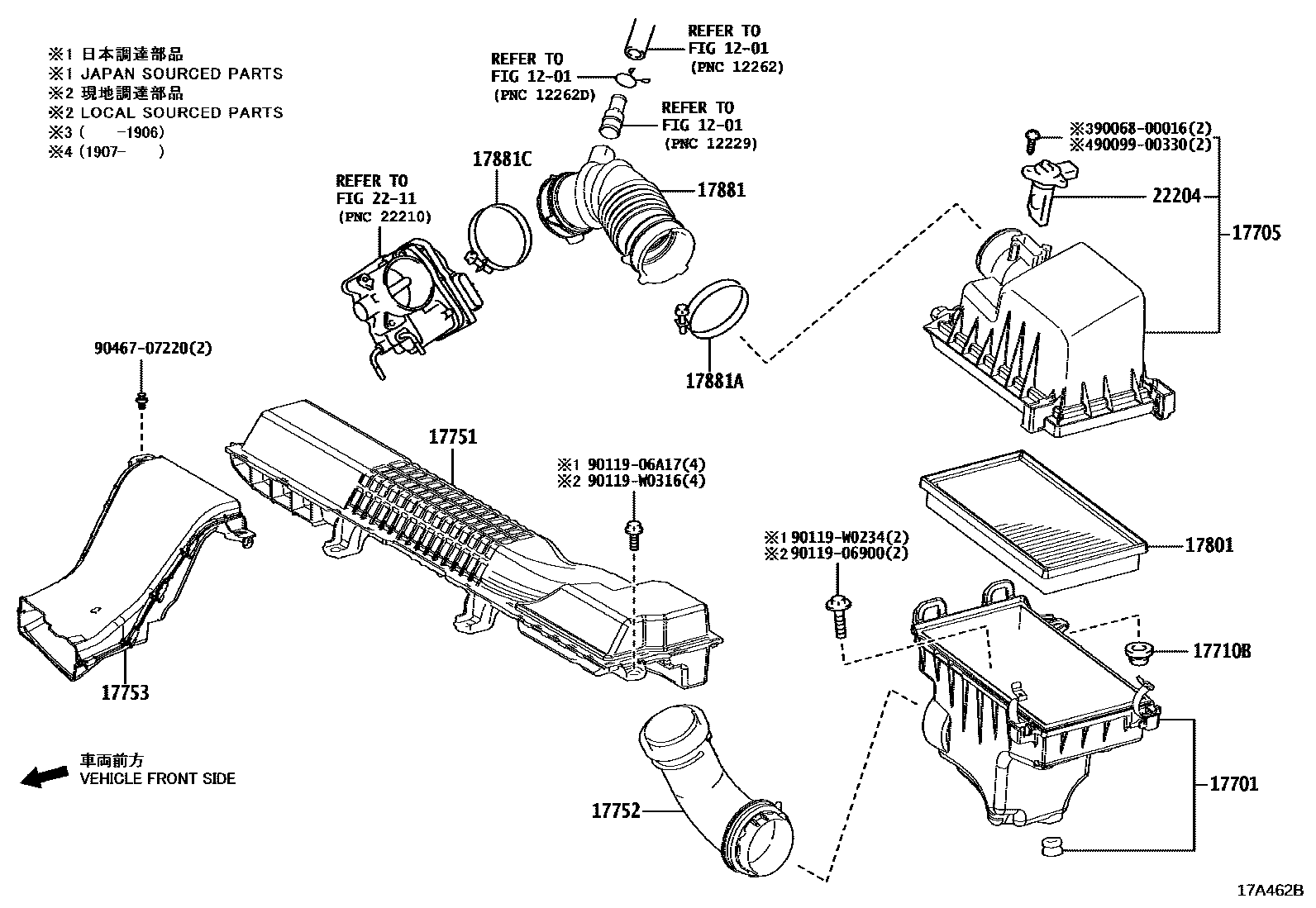

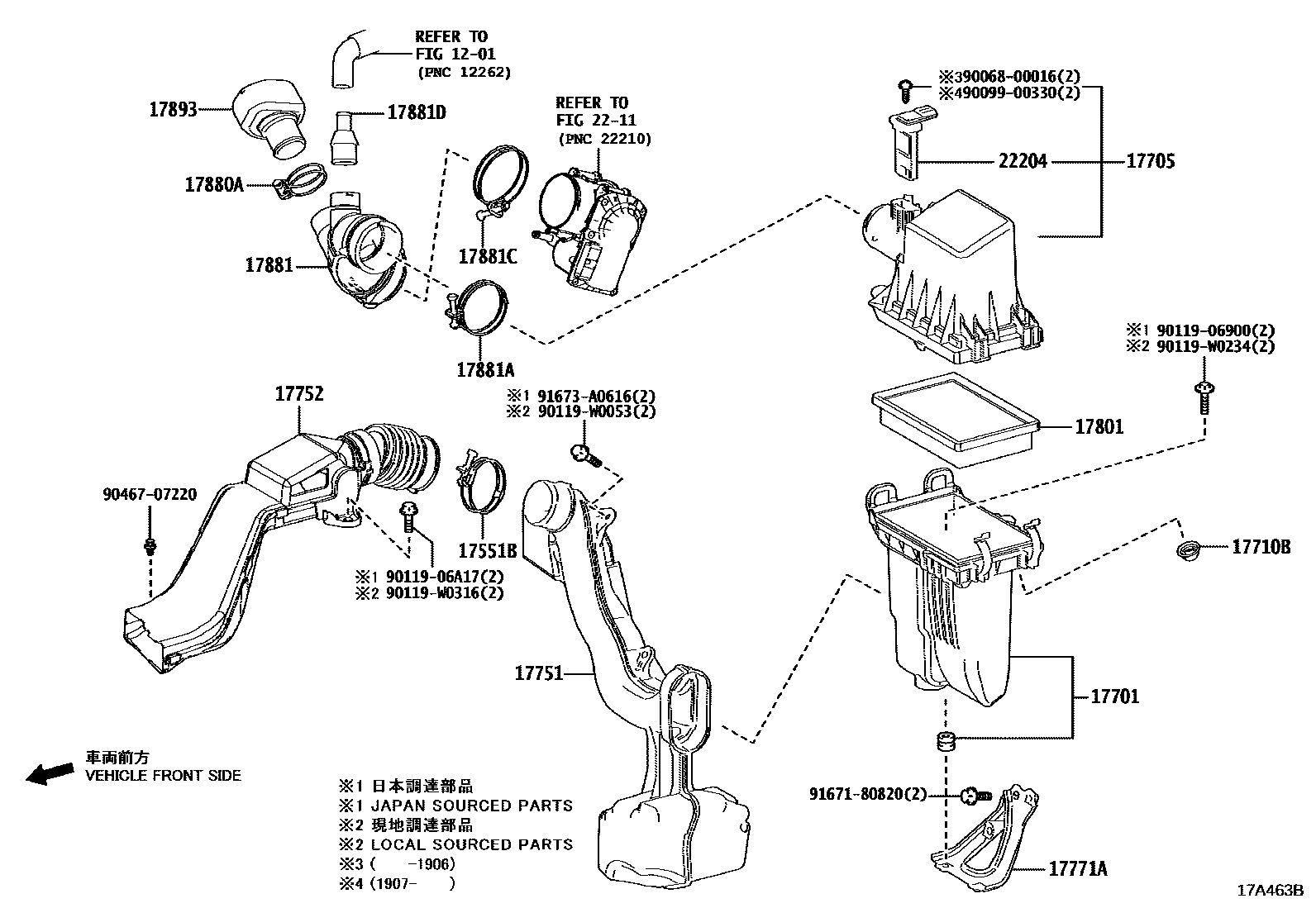

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-0T020 |
| 17551B | Clip (for No. 1 air cleaner air inlet) | 96111-10650 |
| 17701 | Air filter housing sub-assembly | 17701-0T140 · 17701-0T141 · 17701-0T180 · 17701-0T330 · 17701-24440 · 17701-F2021 |
| 17705 | Air filter cover sub-assembly | 17705-0T170 · 17705-0T220 · 17705-0T221 · 17705-0T420 · 17705-15220 · 17705-F3010 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-0T190 · 17751-0T200 · 17751-0T340 · 17751-F3030 · 17751-F3070 |
| 17752 | No. 2 air filter air inlet | 17752-0T070 · 17752-0T120 · 17752-0T210 · 17752-37170 · 17752-F3030 |
| 17753 | No. 3 air filter air inlet | 17753-0T080 · 17753-0T140 |
| 17771A | air filter bracket | 17771-0T010 |
| 17801 | Air filter element sub-assembly | 17801-0M040 · 17801-0T060 · 17801-21060 · 17801-77050 |
| 17850 | ENS. SUPPORT, SUPPORT FILTRE A AIR | 17850-0T010 |
| 17880A | hose clamp | 96111-10430 · 96111-10460 |
| 17881 | No. 1 air cleaner hose | 17881-0T440 · 17881-0T520 · 17881-0T530 · 17881-0T660 · 17881-F3010 · 17881-F3011 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10730 · 96111-10780 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10710 |
| 17893 | Intake resonator | 17893-0T050 · 17893-0T170 · 17893-F3010 |
| 17894A | No. 2 intake resonator | 17894-F3010 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-75030 · 22204-75040 · 22204-F2010 |
