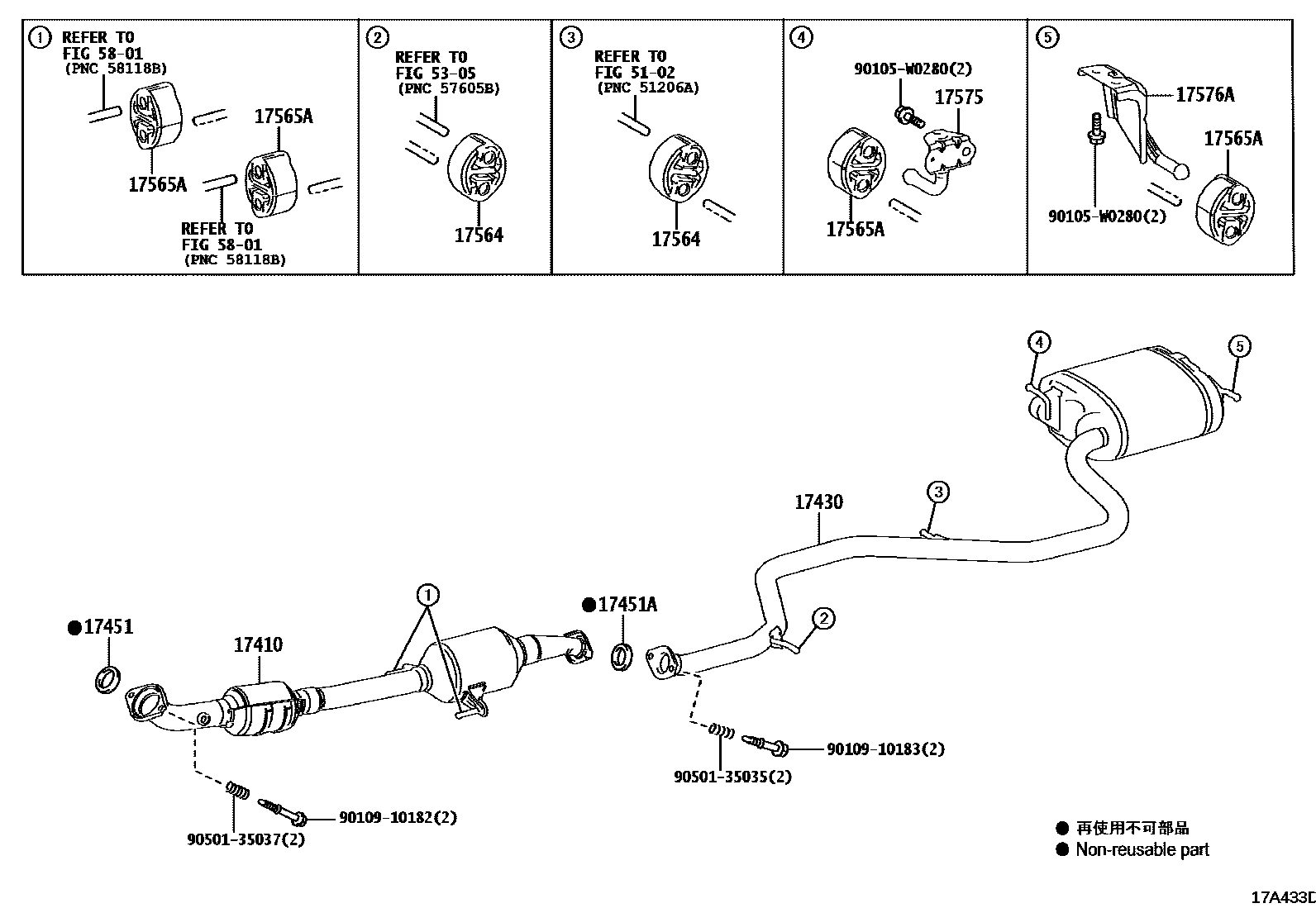

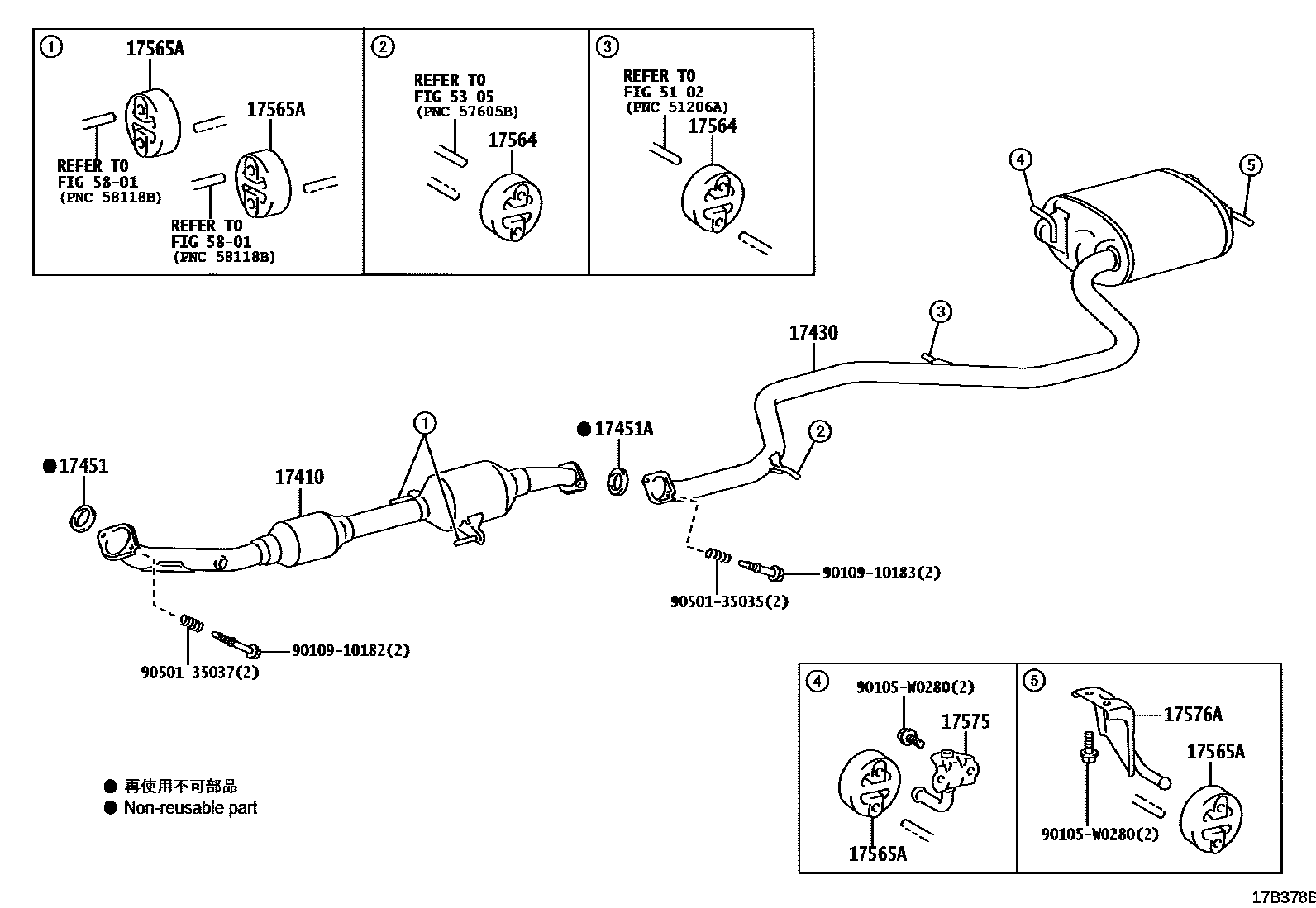

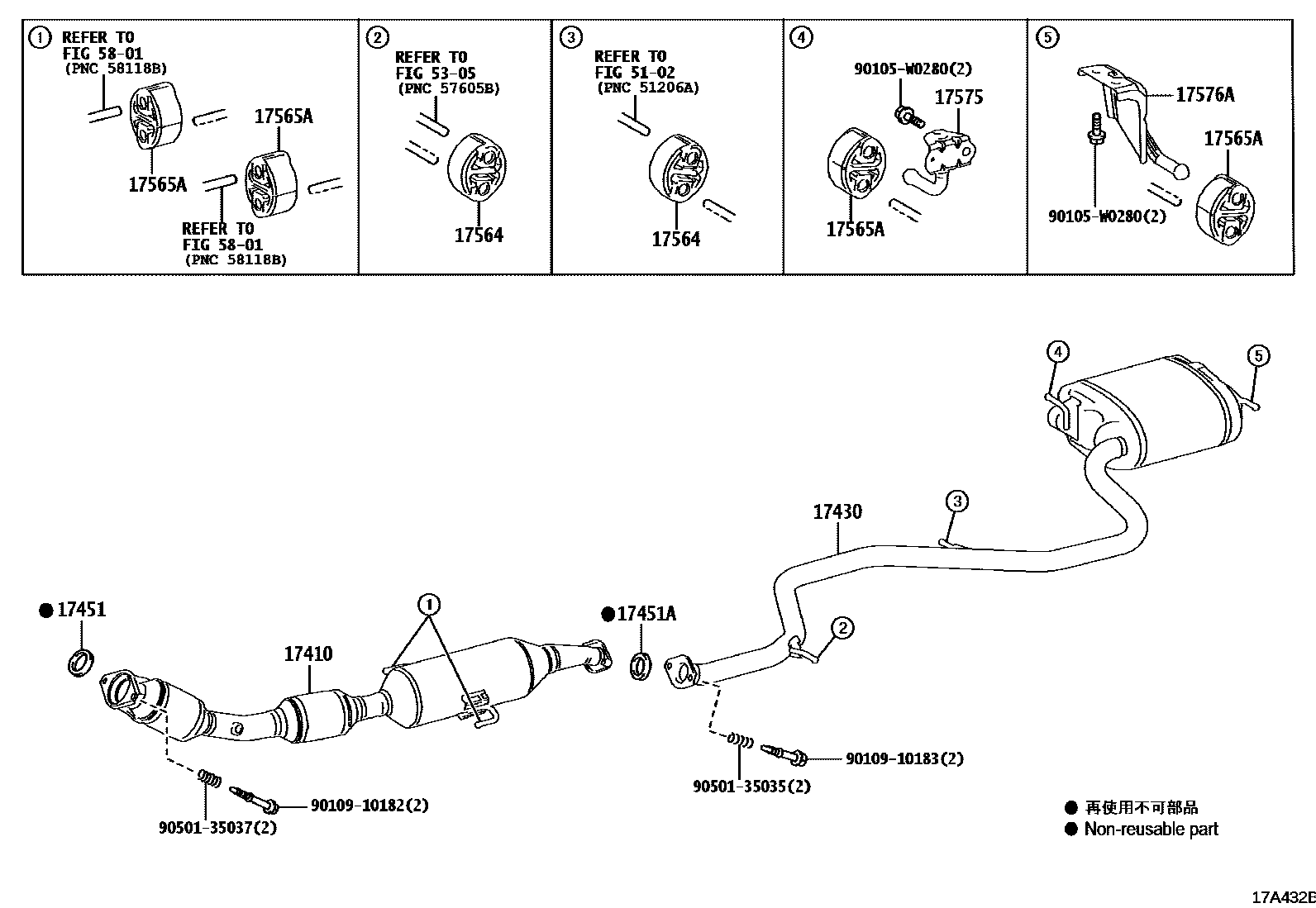

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0TD70 · 17410-0TD80 · 17410-0TD90 · 17410-0TF30 · 17410-0TF40 · 17410-0TF50 · 17410-0TF60 · 17410-0TG60 · 17410-0TG61 · 17410-0TJ10 · 17410-0TJ30 · 17410-0TJ80 · 17410-0TJ90 · 17410-0TK10 · 17410-0TN30 · 17410-0TN40 · 17410-0TN50 · 17410-F3050 |
| 17430 | Exhaust tailpipe assembly | 17430-0T530 · 17430-0T540 · 17430-F3050 |
| 17451 | Exhaust pipe gasket | 17451-0R010 · 17451-0T090 · 17451-F3020 |
| 17451A | No. 2 exhaust pipe gasket | 17451-0J022 · 17451-0T100 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0T040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0J031 |
| 17575 | No. 5 exhaust pipe bracket | 17575-0T100 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0T050 |
