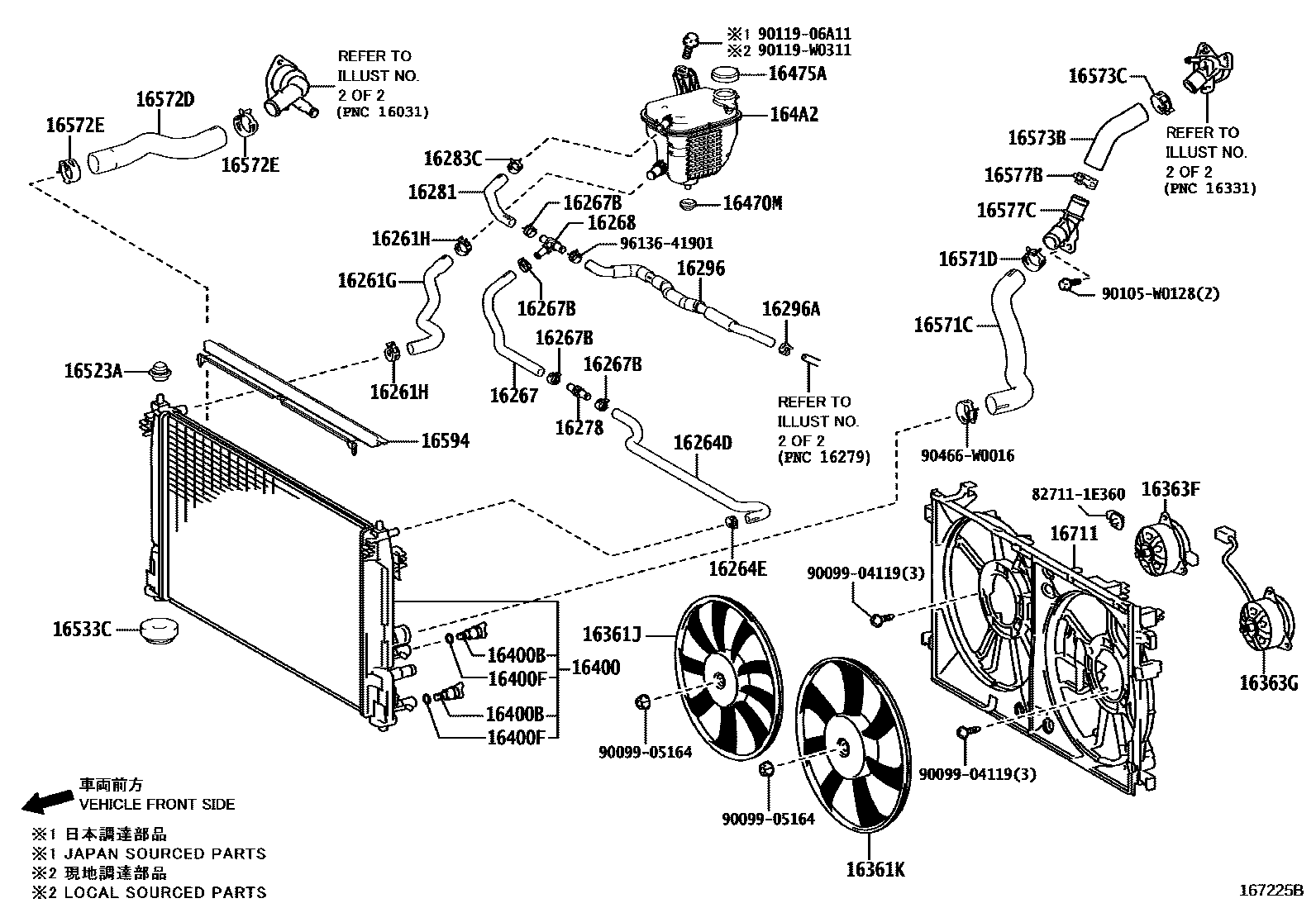

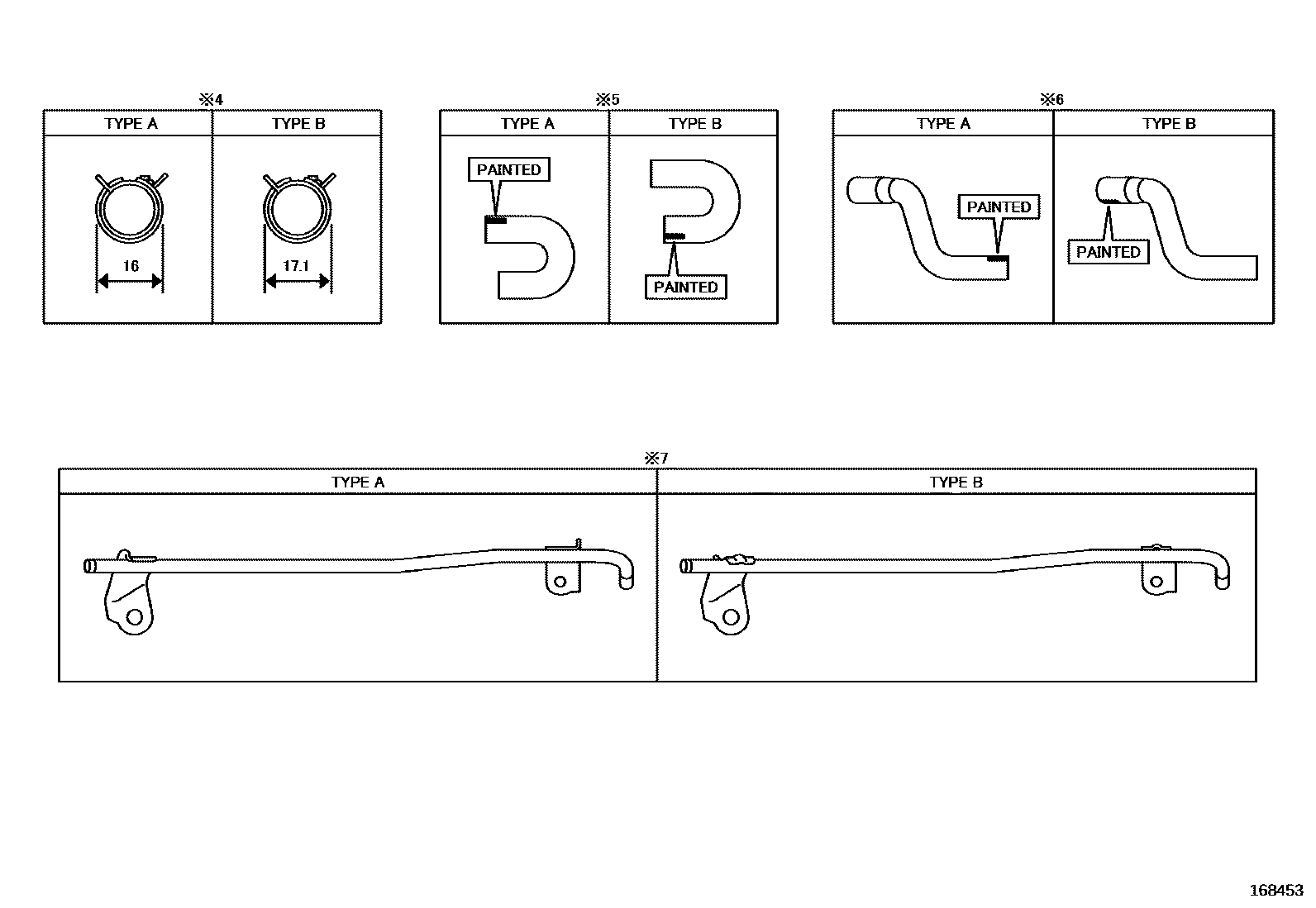

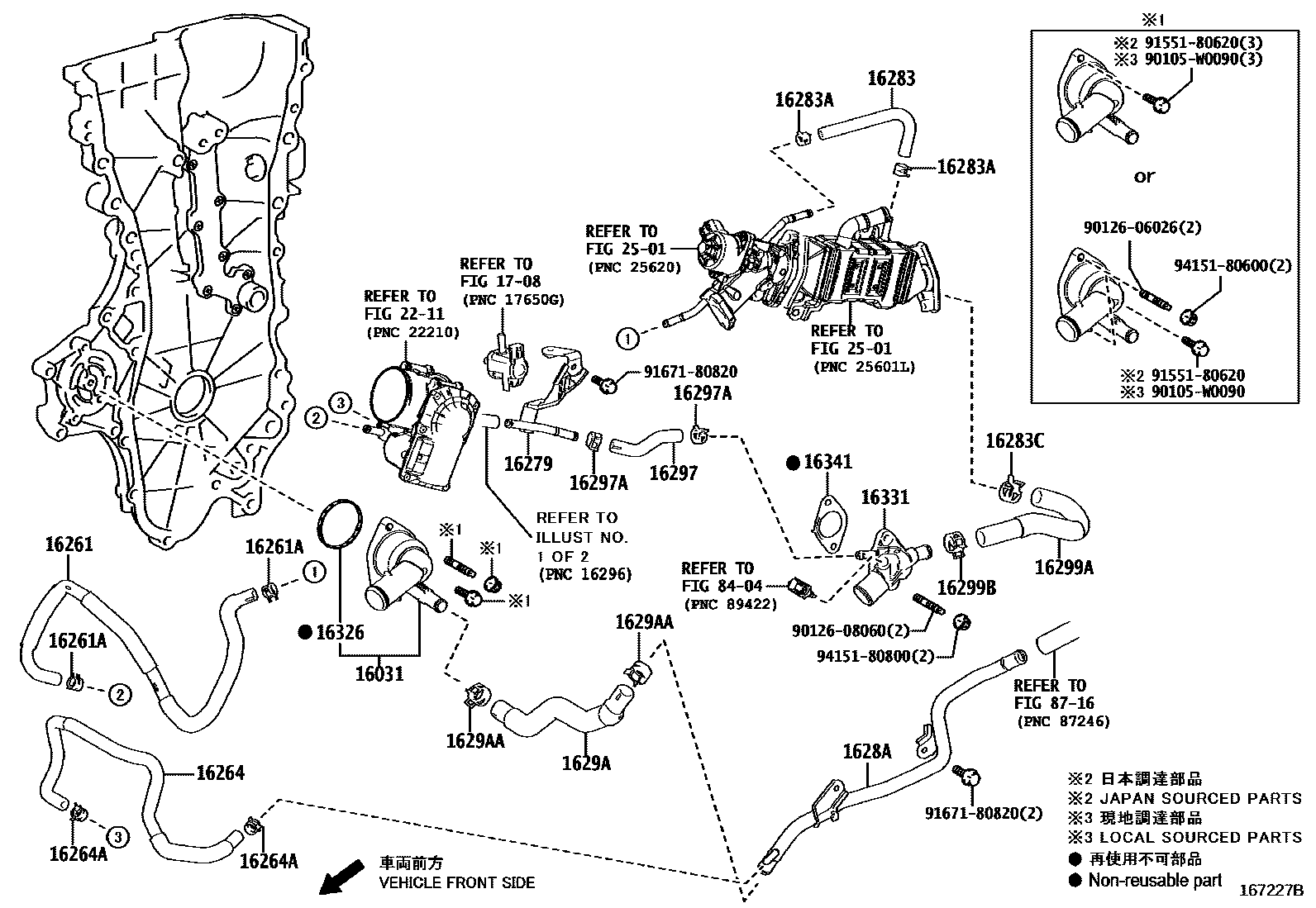

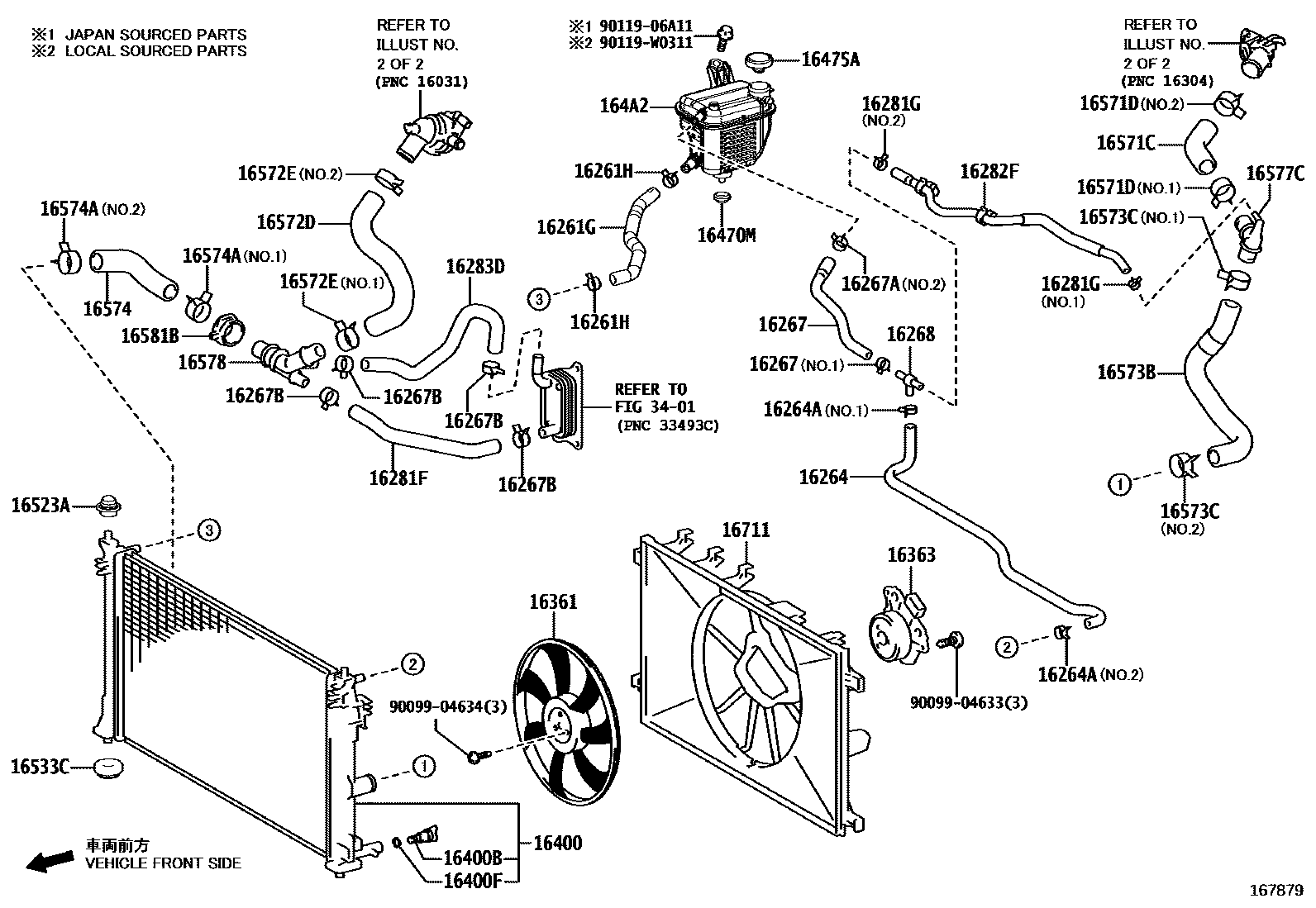

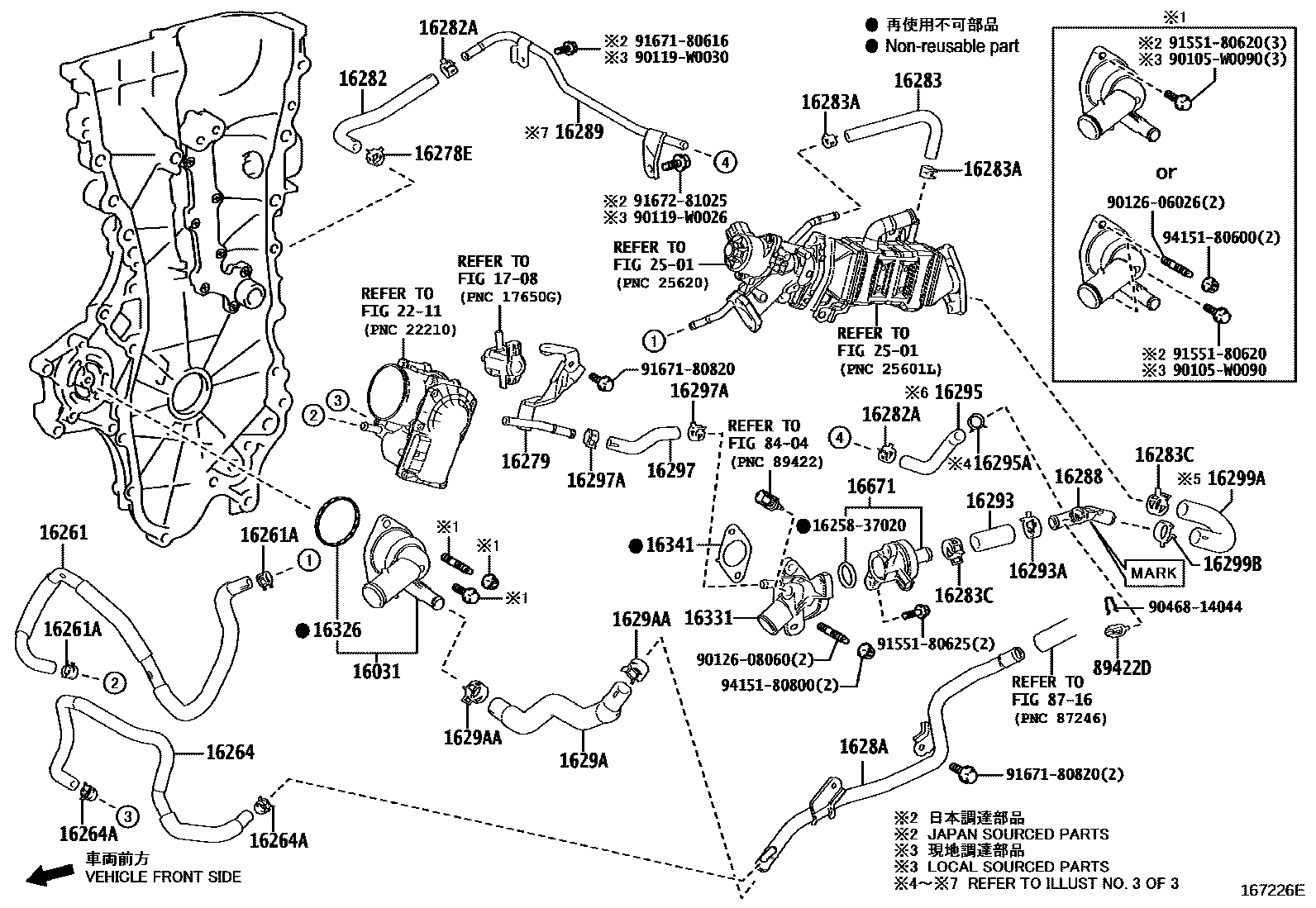

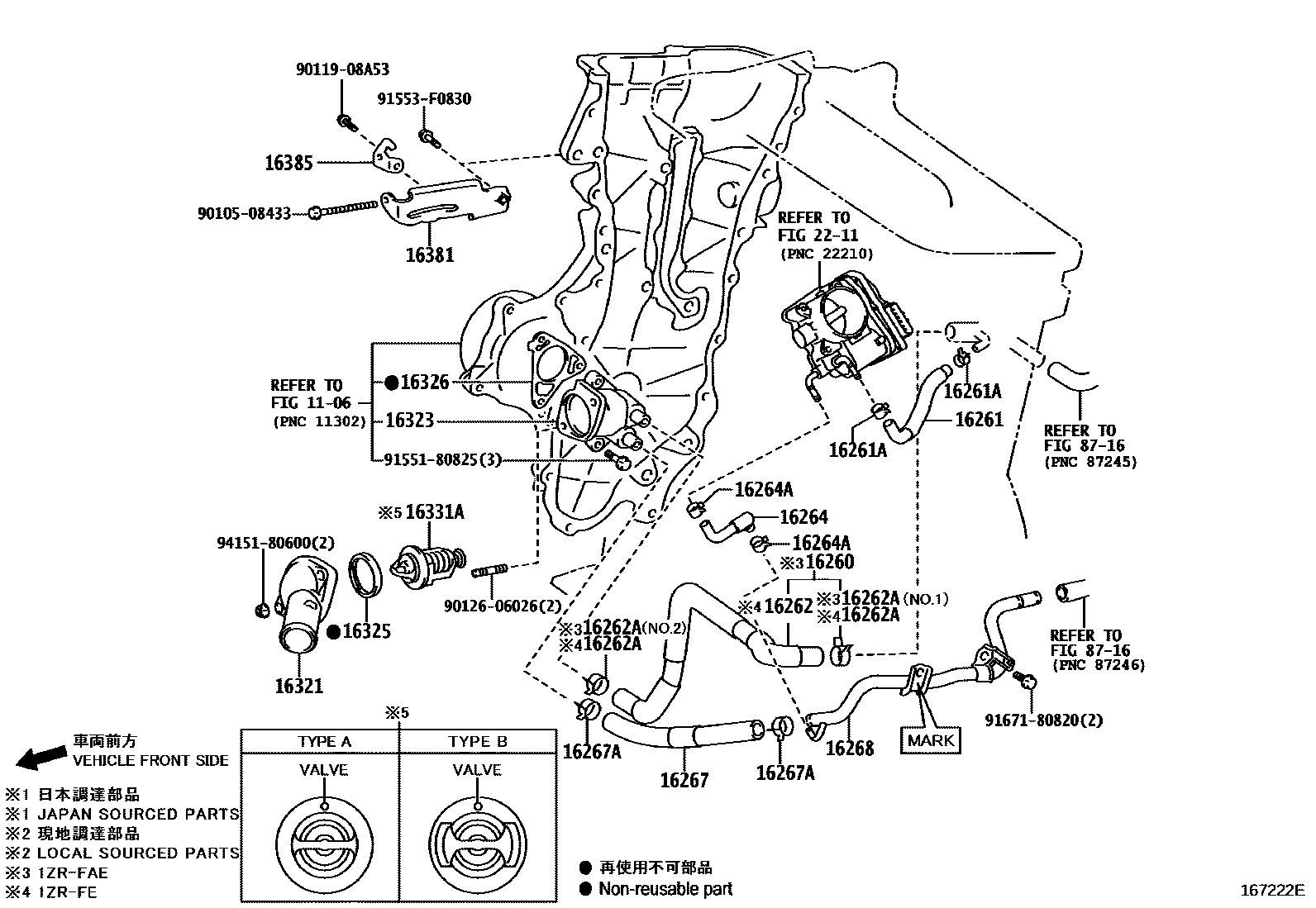

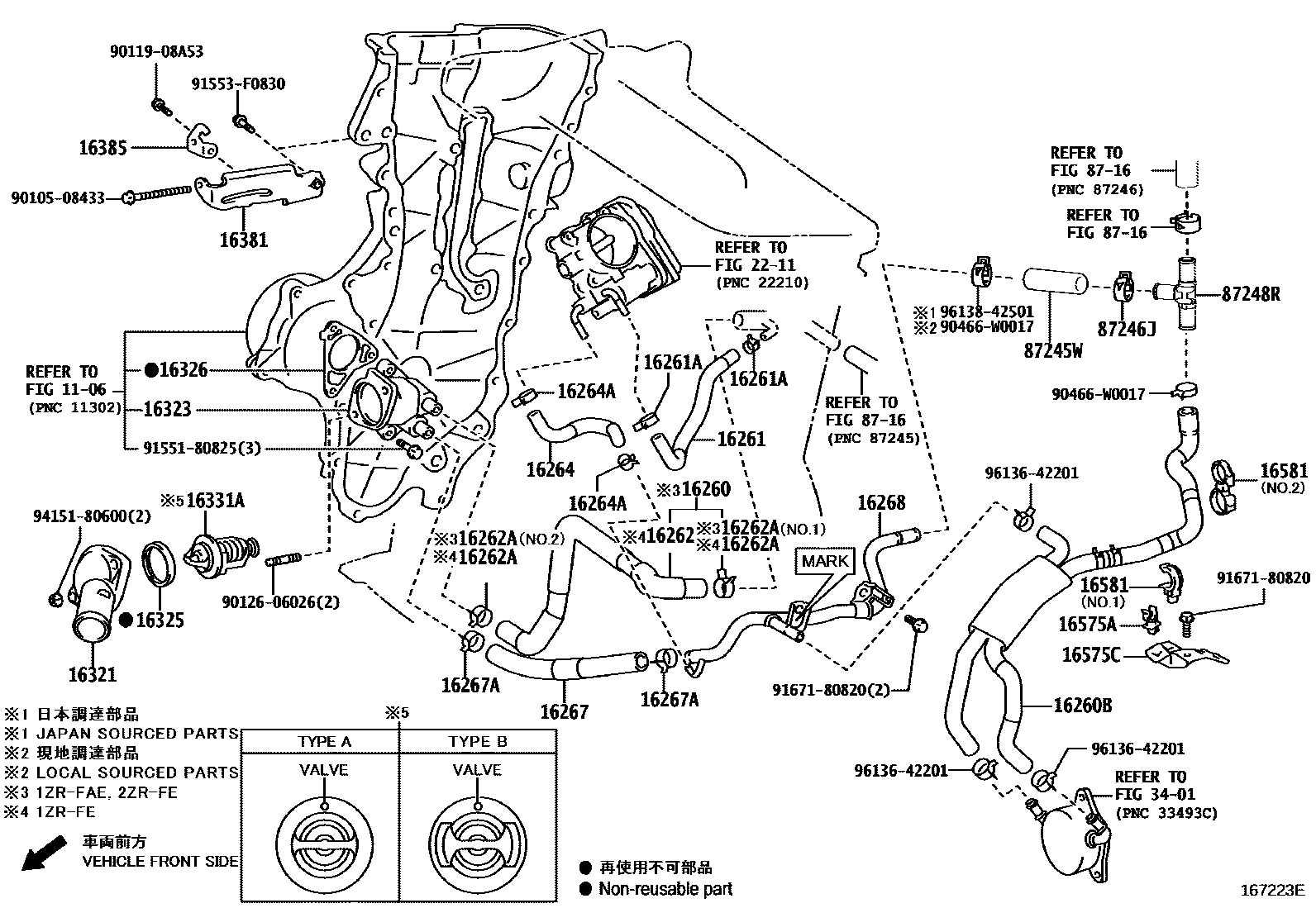

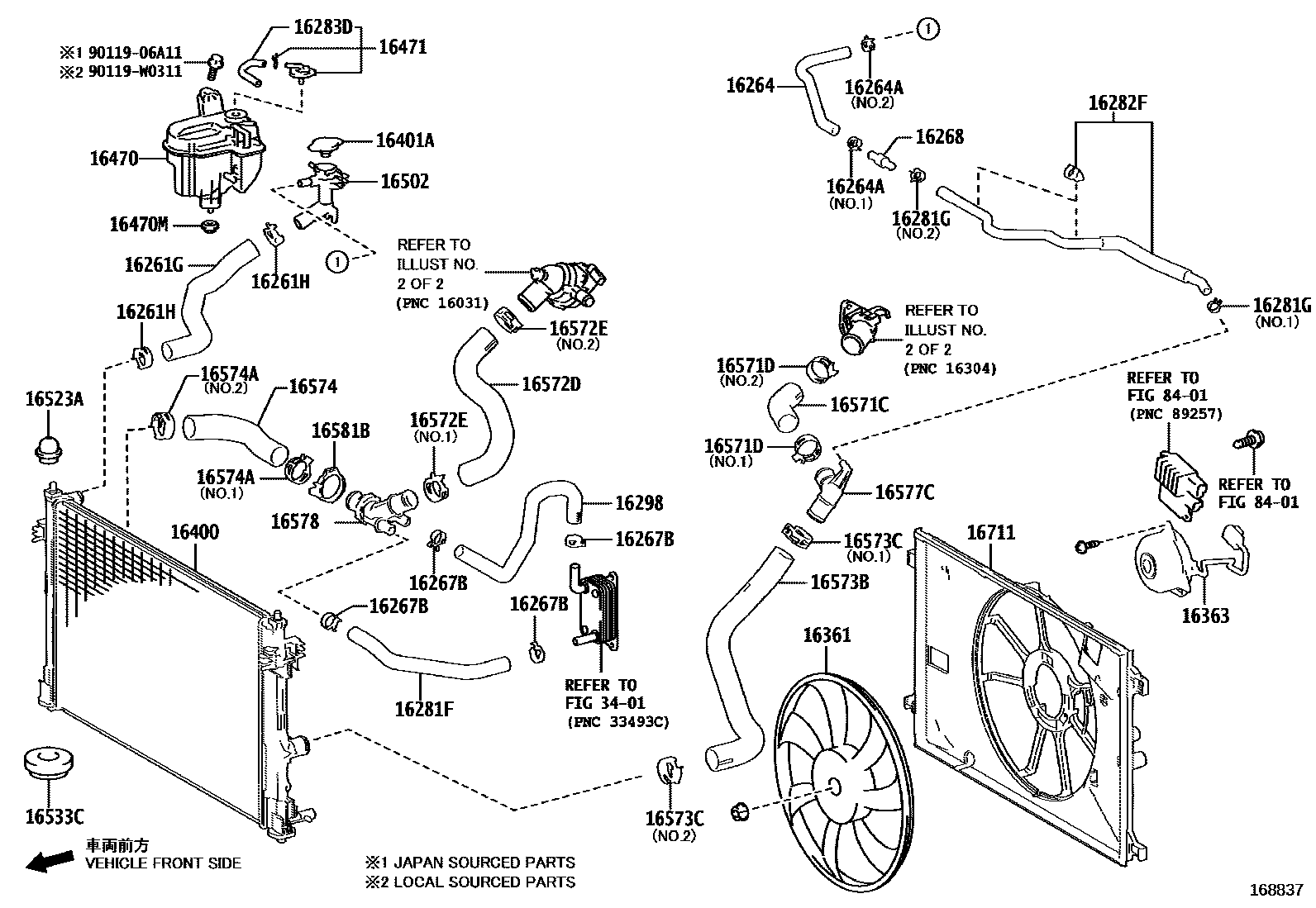

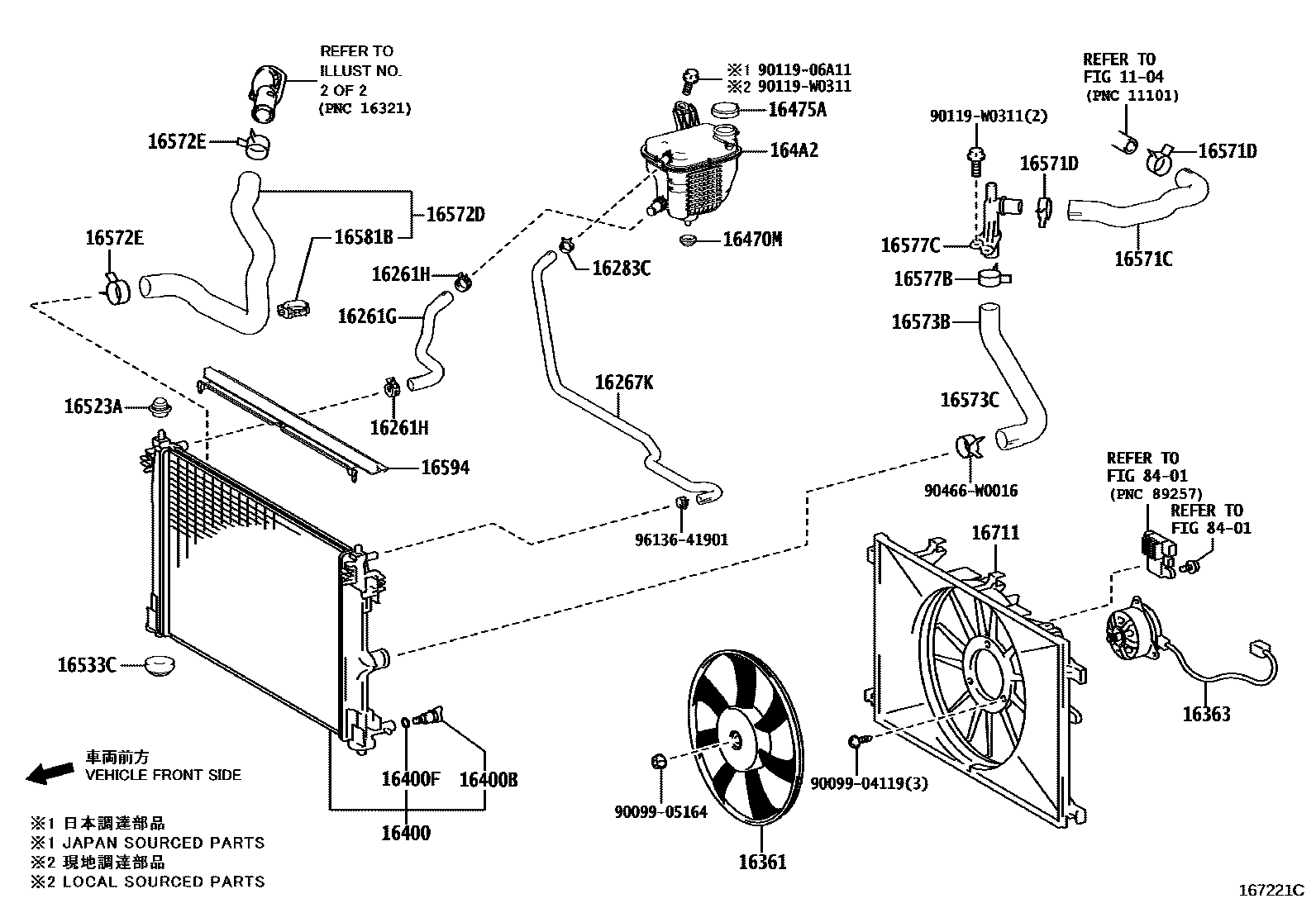

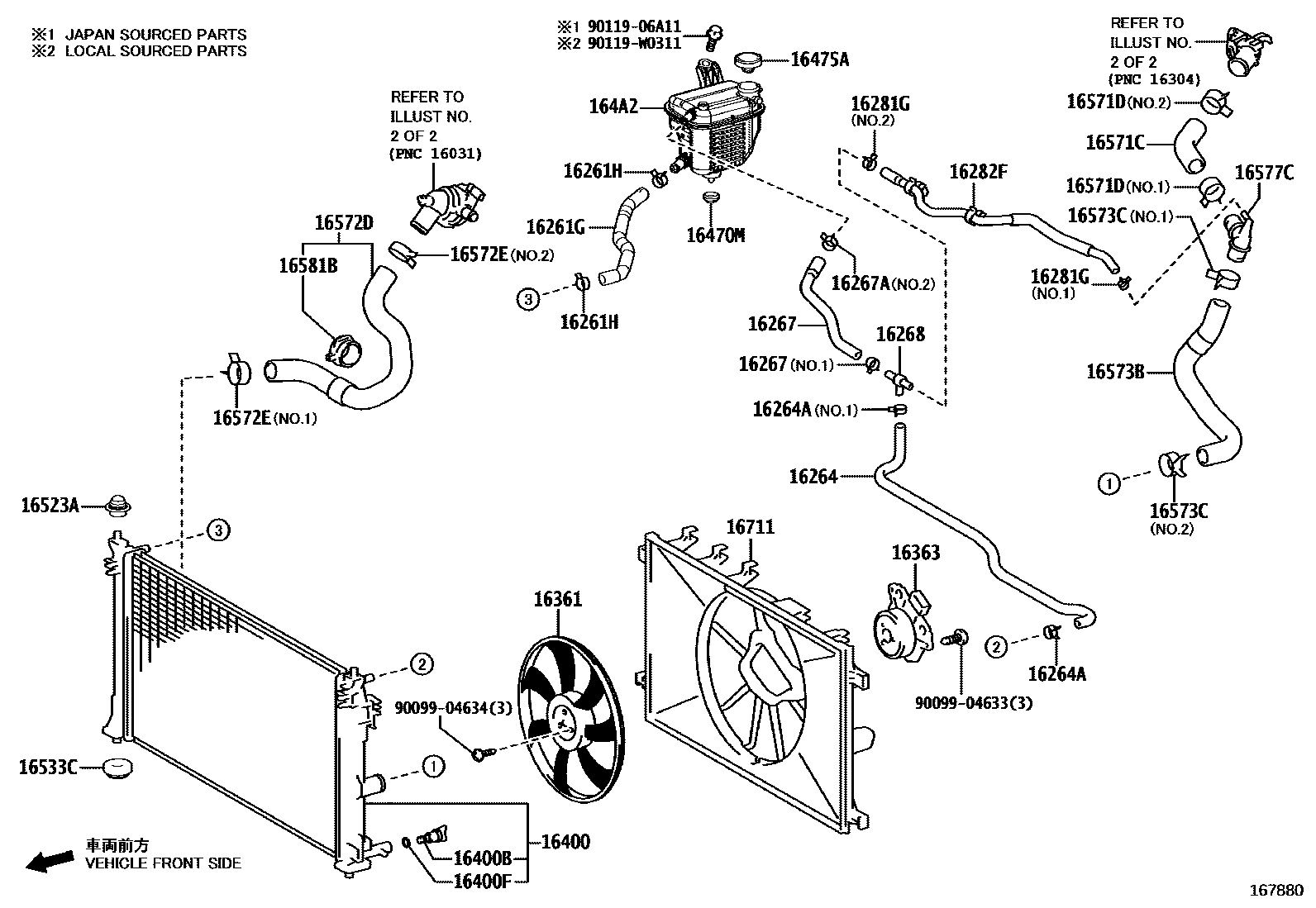

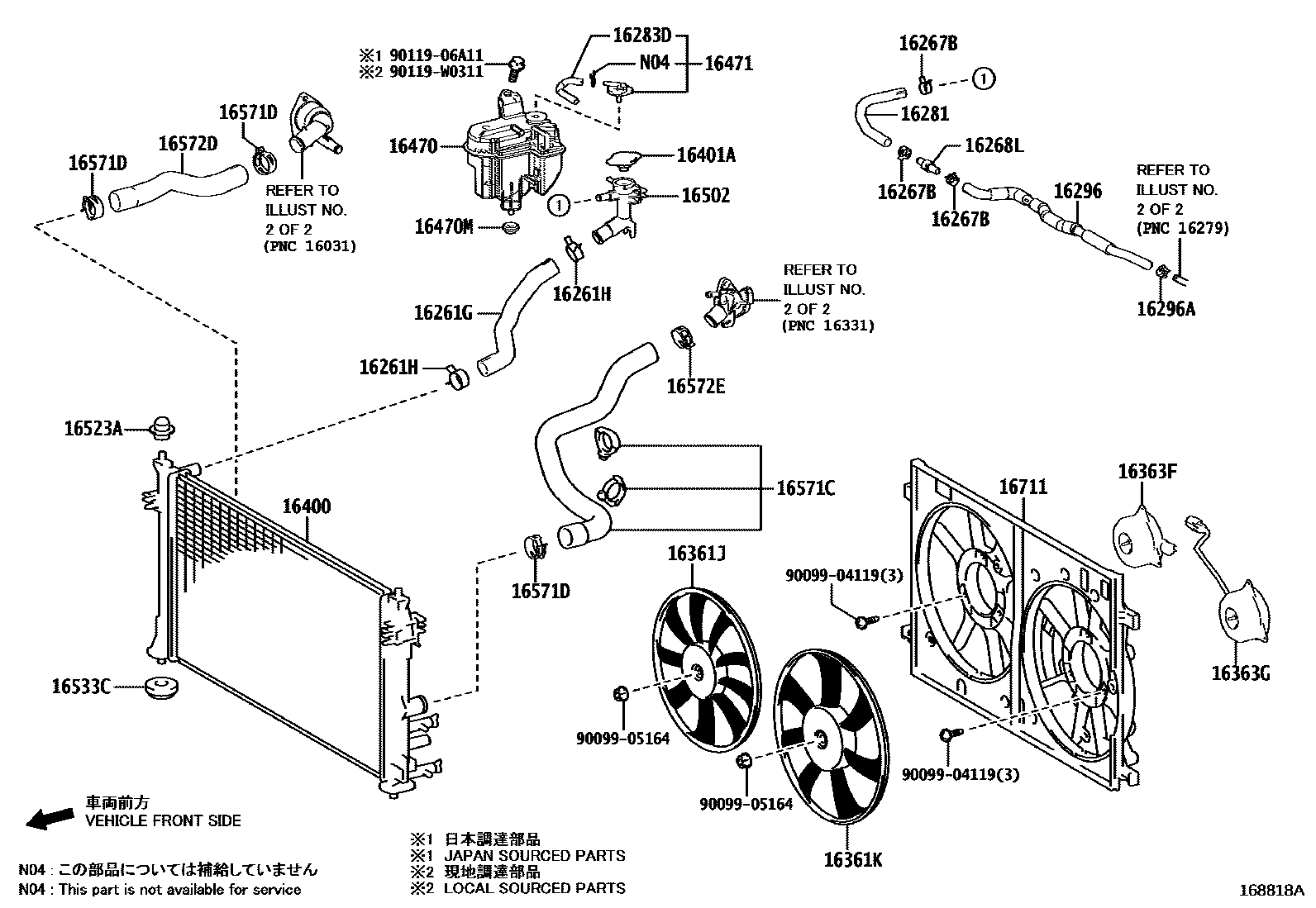

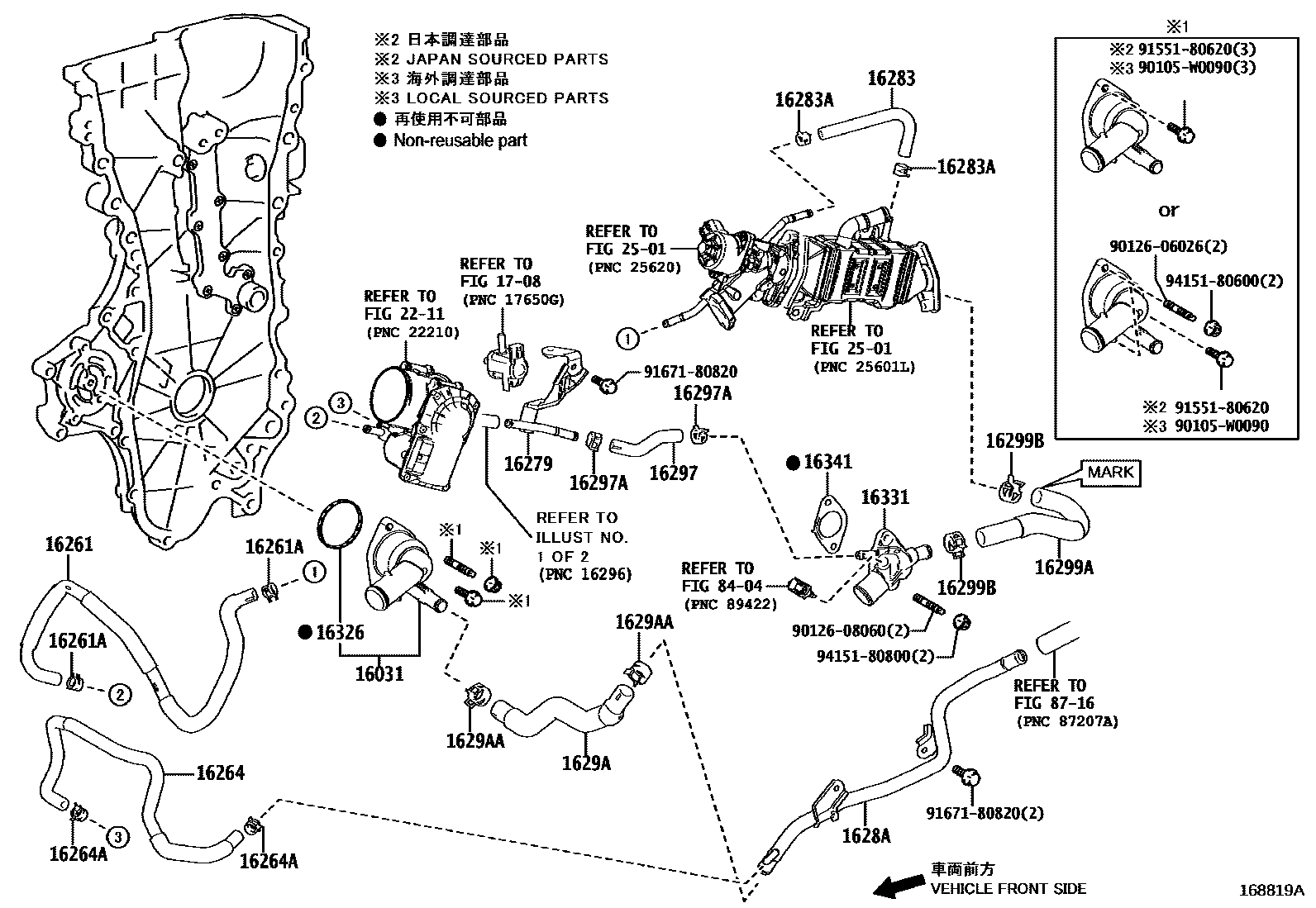

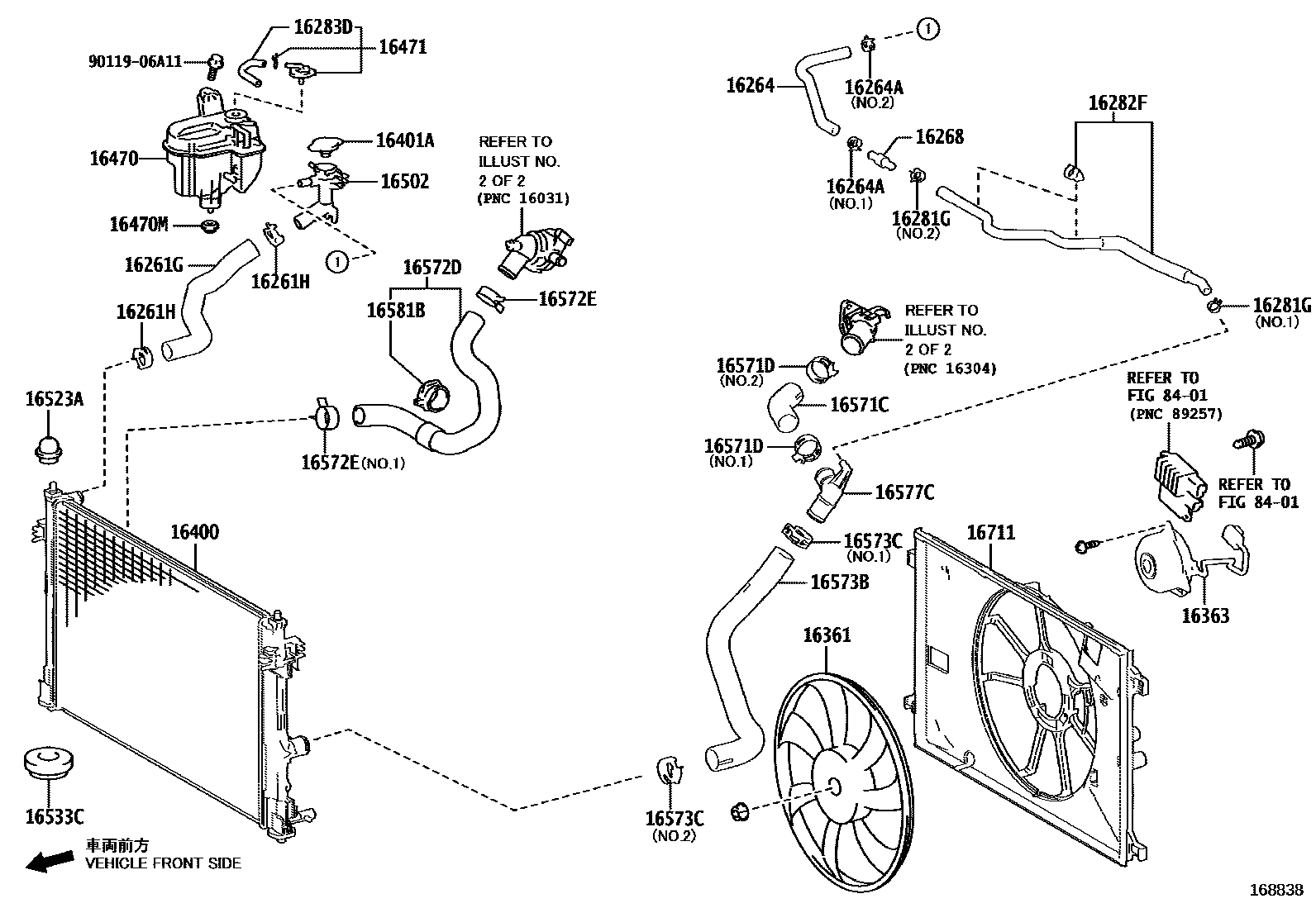

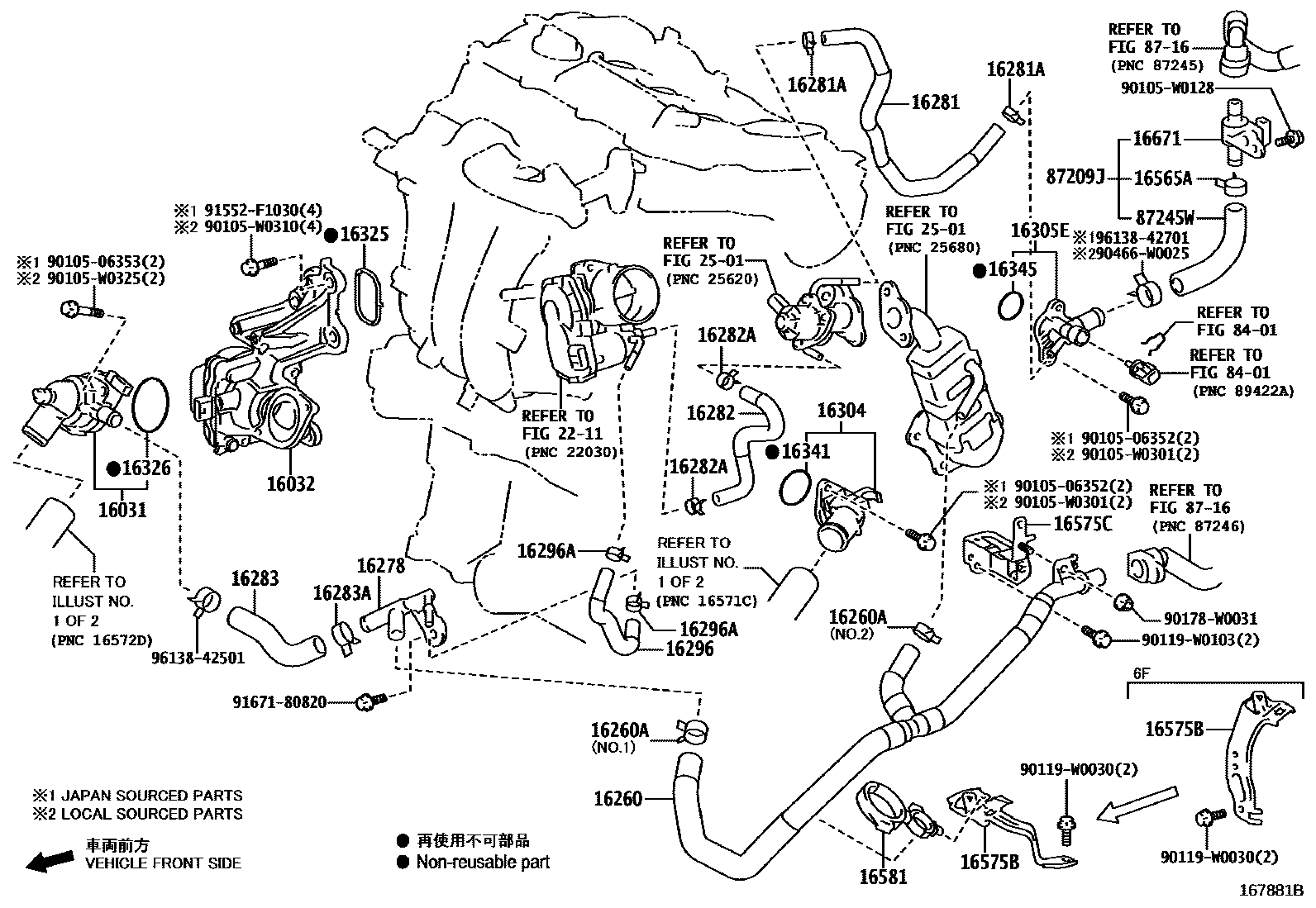

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 14 images and 106 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-15010 · 16031-37010 |
| 16032 | SOUS-ENS. LOGEMENT, ENTREE EAU AV POMPE EAU | 16032-15190 |
| 16260 | Water bypass hose assembly | 16260-15020 · 16260-37180 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-W0017 · 96138-42101 · 96138-42501 |
| 16260B | ENSEMBLE TUYAU, DERIVATION D'EAU | 16260-0T140 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T290 · 16261-37031 · 16261-37160 · 16261-37200 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T250 · 16261-0T320 · 16261-0T460 · 16261-F2140 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-28001 · 90466-W0017 |
| 16262 | water inlet hose | 16262-0T050 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-W0007 · 96136-42501 · 96138-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T230 · 16264-37031 · 16264-37130 · 16264-37210 · 16264-F3040 · 16264-F3060 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96136-41901 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0T190 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96136-41901 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T160 · 16267-37010 · 16267-F3050 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-W0007 · 96136-41901 · 96136-42101 · 96136-42501 |
| 16267B | Clip (for water bypass hose) | 90466-W0017 · 96136-41901 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-0T250 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T020 · 16268-0T140 · 16268-0T160 · 16268-37021 · 16268-37031 · 16268-37060 · 16268-37070 · 16268-F2090 · 16268-F3090 |
| 16268L | PIPE, WATER BY-PASS | 16268-F3090 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16268-0T170 · 16278-F3010 |
| 16278E | Clip (for water bypass hose) | 90466-16005 · 96137-51701 |
| 16279 | No. 3 water bypass pipe | 16279-37020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0T150 · 16281-0T320 · 16281-F3030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-F3140 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 96136-41901 · 96138-41701 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0T100 · 16282-37090 · 16282-F3050 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-16005 · 96137-51701 · 96138-41501 |
| 16282F | FLEX, DERIVATION EAU, NO.5 | 16282-F3030 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0T060 · 16283-37021 · 16283-F3050 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96137-41501 · 96138-42501 |
| 16283C | Clip or clip (for water bypass hose) | 90466-W0007 · 96136-42101 · 96136-42501 · 96138-42101 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-0T080 · 16283-F3090 |
| 16288 | No. 4 water bypass pipe | 16288-0T010 · 16288-37010 |
| 16289 | No. 5 water bypass pipe | 16278-0T020 · 16278-0T021 · 16278-37020 · 16278-37021 |
| 1628A | CONDUIT DERIVATION EAU NO.6 | 16268-0T180 · 16268-0T320 · 16268-37110 · 16268-37150 |
| 16293 | No. 10 water bypass hose | 16293-0T010 · 16293-37010 |
| 16293A | Clamp (for No. 10 water bypass hose) | 96138-42501 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0T081 · 16295-37020 · 16295-37021 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-16004 · 90466-16005 · 96137-41901 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0T010 · 16296-F3050 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-16004 · 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-37010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-16005 · 96137-51701 |
| 16298 | HOSE, WATER BY-PASS, NO.12 | 16283-F3090 |
| 16299A | DURITE, DERIVATION D'EAU, NO.13 | 16281-0T311 · 16281-0T330 · 16281-37070 · 16281-37071 · 16281-37080 · 16281-37190 · 16281-37191 |
| 16299B | ATTACHE(POUR DURITE DE DERIVATION D'EAU NO.13) | 90466-W0007 · 96136-42501 · 96138-42501 |
| 1629A | CONDUITE FLEXIBLE, DERIVATION D'EAU, NO.14 | 16267-0T090 · 16267-37100 |
| 1629AA | CLIP (POUR FLEXIBLE DE DERIVATION D'EAU NO.14) | 90466-W0007 · 96136-42501 |
| 16304 | Water outlet sub-assembly | 16304-15010 · 16304-F3010 |
| 16305E | Water bypass outlet sub-assembly | 16305-15010 · 16305-F3010 |
| 16321 | water inlet | 16321-0T010 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-0T030 · 16323-37021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-F3010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-15010 · 16326-37010 · 16326-37020 |
| 16331 | Water outlet | 16331-37090 · 16331-37100 |
| 16331A | thermostat | 90916-03144 · 90916-03145 · 90916-A3003 |
| 16341 | GASKET, WATER OUTLET | 16341-15020 · 16341-37010 · 16341-F3010 · 16341-F3020 |
| 16345 | Outlet pipe gasket | 16345-15010 · 16345-F3010 · 16345-F3020 |
| 16361 | Fan | 16361-0T170 · 16361-0T300 · 16361-F3010 · 16361-F3020 |
| 16361J | VENTILATEUR, MD | 16361-0T190 |
| 16361K | VENTILATEUR, MG | 16361-0T180 |
| 16363 | cooling fan motor | 16363-0T210 · 16363-24120 · 16363-37130 · 16363-47060 |
| 16363F | MOTEUR, VENTILATEUR REFROIDISSEMENT, MD | 16363-0T200 · 16363-24160 |
| 16363G | MOTEUR, VENTILATEUR REFROIDISSEMENT, MG | 16363-0T190 · 16363-24170 |
| 16381 | Fan belt adjustment lever | 16381-37030 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-0T350 · 16400-0T360 · 16400-0T371 · 16400-0T600 · 16400-F3010 · 16400-F3020 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401A | Radiator reservoir cap sub-assembly | 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-0T090 |
| 16470M | gasket | 90480-18010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0T070 |
| 16475A | Reservoir tank cover | 16475-28140 |
| 164A2 | Closed reservoir water tank without lid | 164A2-0T021 |
| 16502 | Water injection port sub-assembly | 16502-0T030 |
| 16523A | Radiator bracket cushion | 16523-0T050 |
| 16533C | Gasket (for radiator bracket) | 90480-40021 |
| 16565A | clip | 96138-42501 |
| 16571C | Radiator hose No. 1 | 16571-0T280 · 16571-0T350 · 16571-0T470 · 16571-F3020 |
| 16571D | No. 1 radiator hose clip | 90466-C0008 · 90466-W0016 · 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-0T050 · 16572-0T290 · 16572-0T400 · 16572-F3030 · 16572-F3070 |
| 16572E | No. 2 radiator hose clip | 90466-C0008 · 90466-W0016 · 96136-43901 |
| 16573B | Radiator hose No. 3 | 16573-0T110 · 16573-0T190 · 16573-F3020 · 16573-F3021 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-C0008 · 90466-W0016 · 96136-43901 |
| 16574 | Radiator hose No. 4 | 16574-F3010 |
| 16574A | No. 4 radiator hose clip | 90466-C0008 · 90466-W0016 |
| 16575A | No. 5 radiator hose clip | 90949-01C99 |
| 16575B | No. 2 water hose clamp bracket | 16575-F3170 · 16575-F3190 |
| 16575C | No. 1 water hose clamp bracket | 16575-37030 · 16575-F3180 |
| 16577B | Hose clamps or clips (for radiator pipes) | 96136-43901 |
| 16577C | radiator pipe | 16577-0T120 · 16577-0T180 · 16577-F3020 |
| 16578 | Radiator pipe No. 2 | 16578-F3010 |
| 16581 | Hose clamp (for water hose) | 16581-15090 · 16581-21060 · 16581-37130 · 16581-F3070 |
| 16581B | Hose clamp (for radiator hose) | 16581-31040 · 16581-36030 |
| 16594 | Radiator deflector No. 2 | 16594-0T030 · 16594-0T040 |
| 16671 | water valve | 16671-25070 · 16671-37010 |
| 16711 | fan cover | 16711-0T160 · 16711-0T170 · 16711-0T330 · 16711-F3010 · 16711-F3020 |
| 87209J | SOUS-ENS DE FLEXIBLE, EAU | 87209-12760 |
| 87245W | CONDUITE FLEXIBLE EAU | 87245-02R90 · 87245-12J50 |
| 87246J | COLLIER DE FIXATION (DE CONDUITE FLEXIBLE EAU) | 96138-42501 |
| 87248R | TUYAU, EAU | 87248-12330 |
| 89422D | water temperature sensor | 89422-47010 |
