Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 9 PNC and OE references.

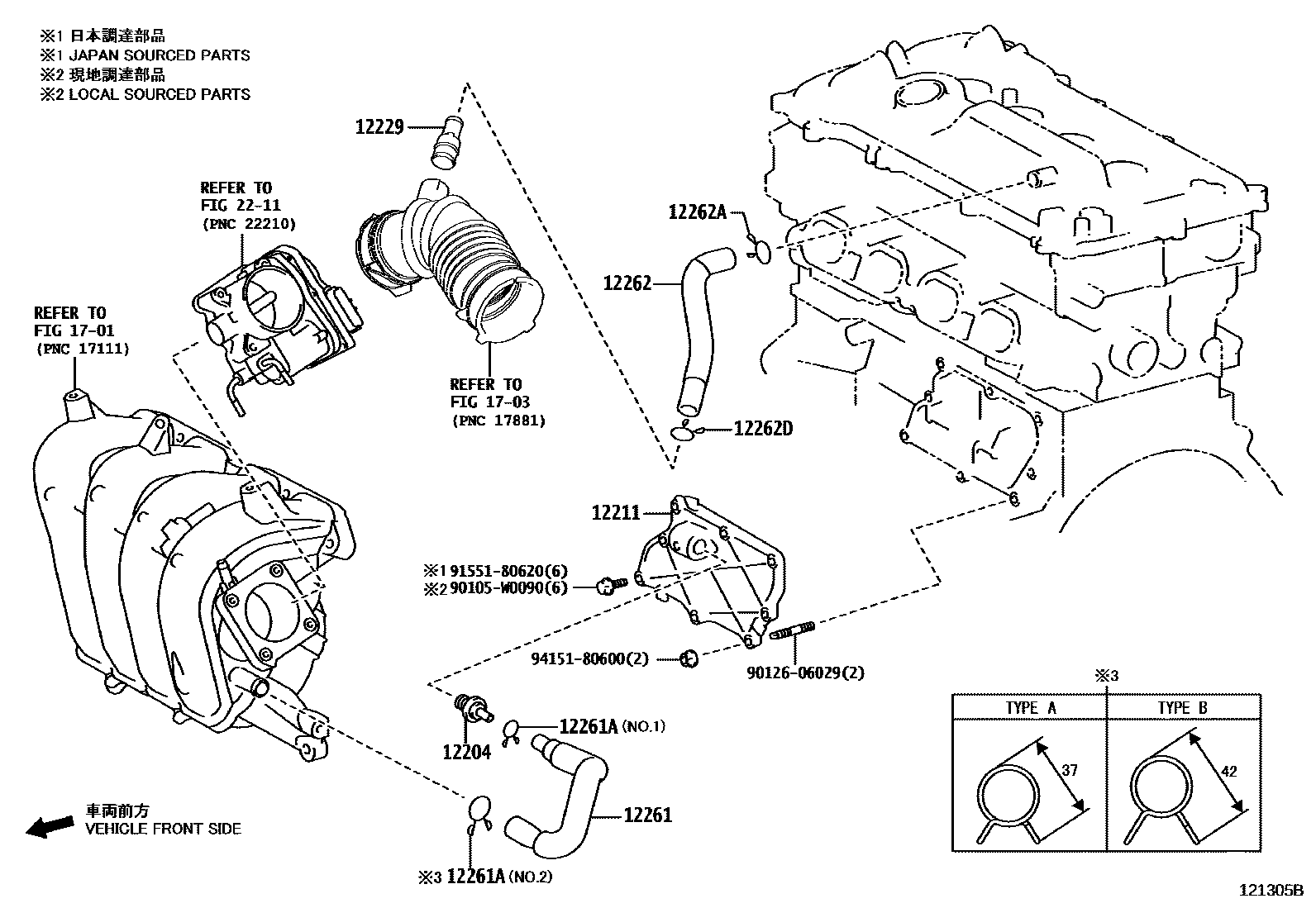

Toyota COROLLA Ventilation Hose EPC diagram — 121305B
Ventilation Hose — 121305B (201901 – 999999)

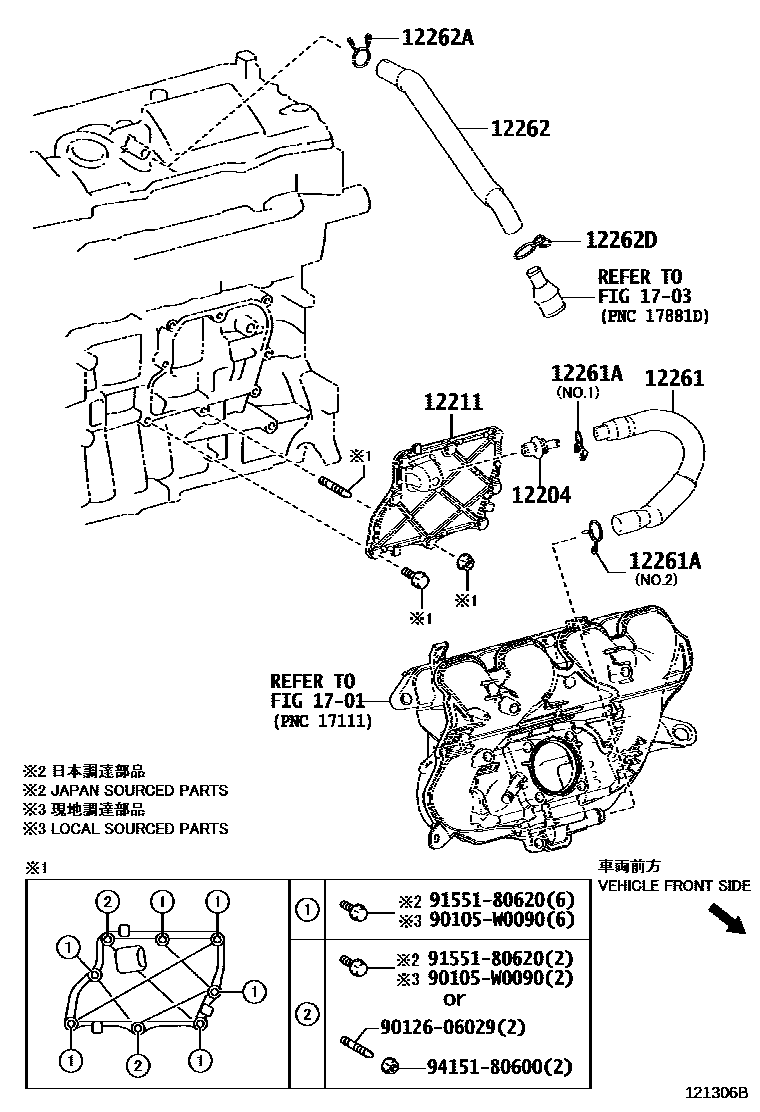

Toyota COROLLA Ventilation Hose EPC diagram — 121306B
Ventilation Hose — 121306B (201901 – 999999)

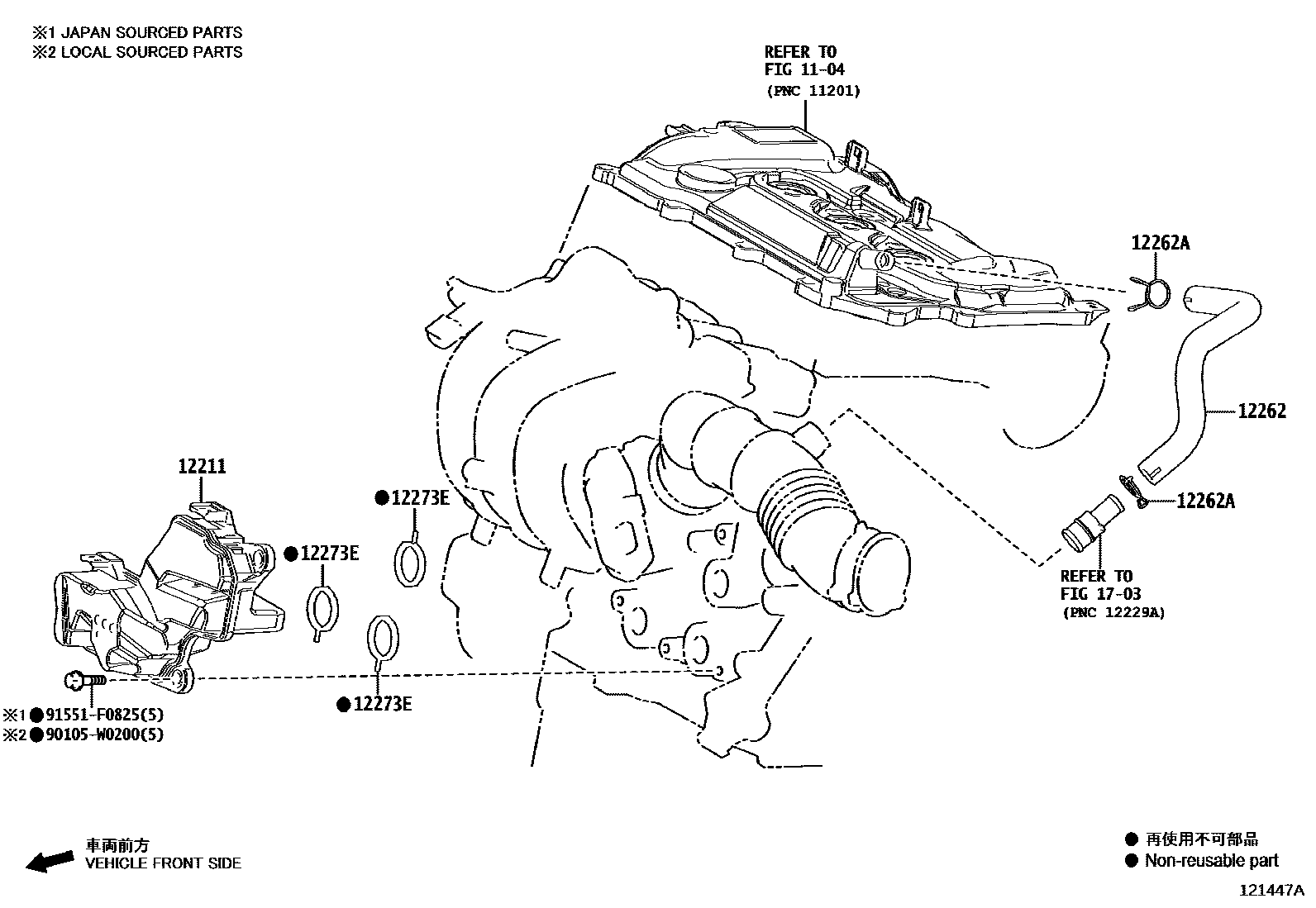

Toyota COROLLA Ventilation Hose EPC diagram — 121447A
Ventilation Hose — 121447A (202011 – 999999)

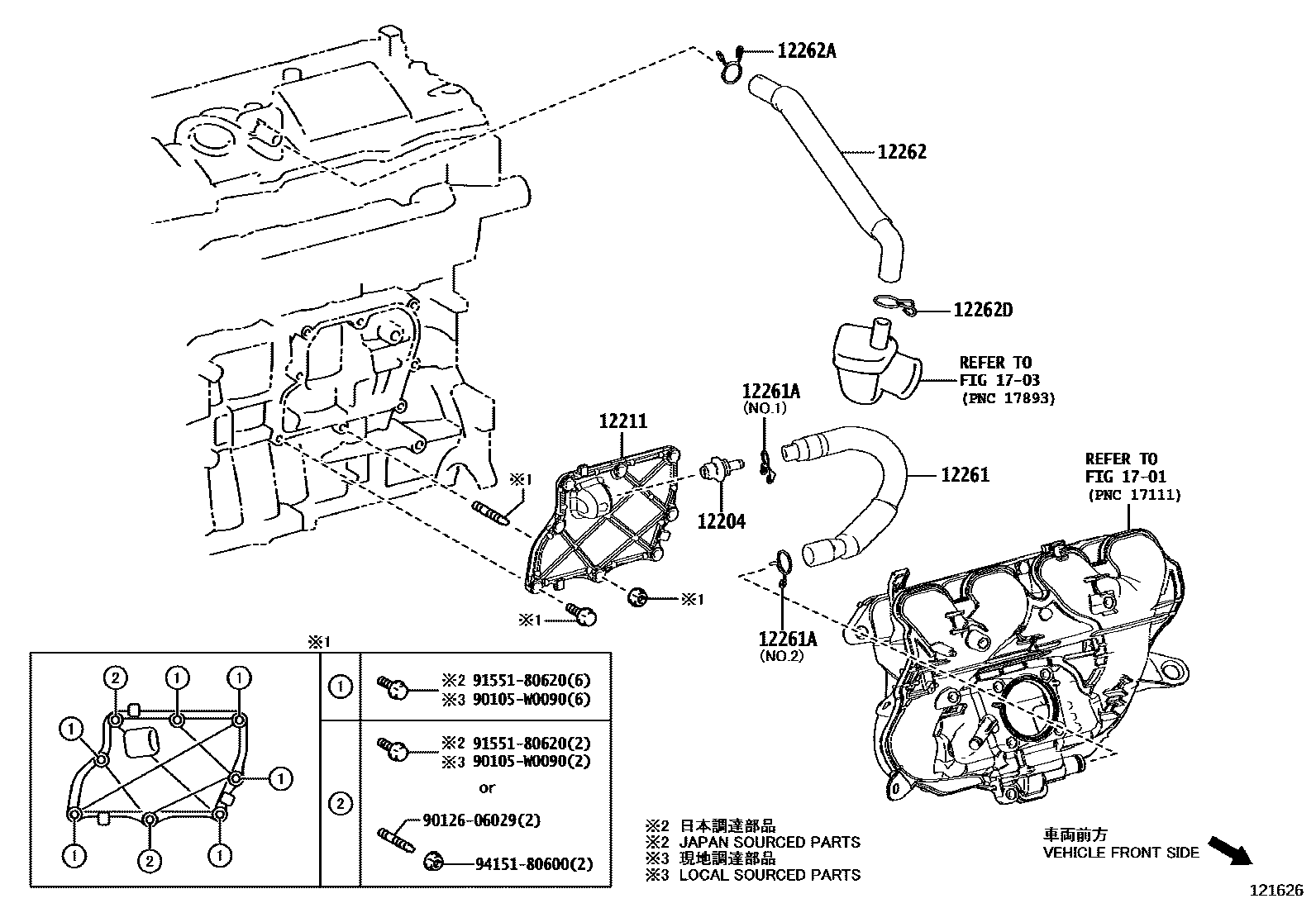

Toyota COROLLA Ventilation Hose EPC diagram — 121626
Ventilation Hose — 121626 (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010 · 12204-37040 · 12204-37050 · 12204-37060
12211Ventilation box No. 112211-0T010 · 12211-37010 · 12211-F3010 · 12211-F3011
12229ventilation duct12229-21010
12261Ventilation Hose12261-37040 · 12261-37070 · 12261-37090
12261AClip or clip (for vent hose)90466-22005 · 90467-15120 · 90467-23002
12262Ventilation hose No. 212262-0T080 · 12262-15120 · 12262-37020 · 12262-37030 · 12262-37110
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12273EJOINT(POUR CARTER VENTILATION)12273-15010
