Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

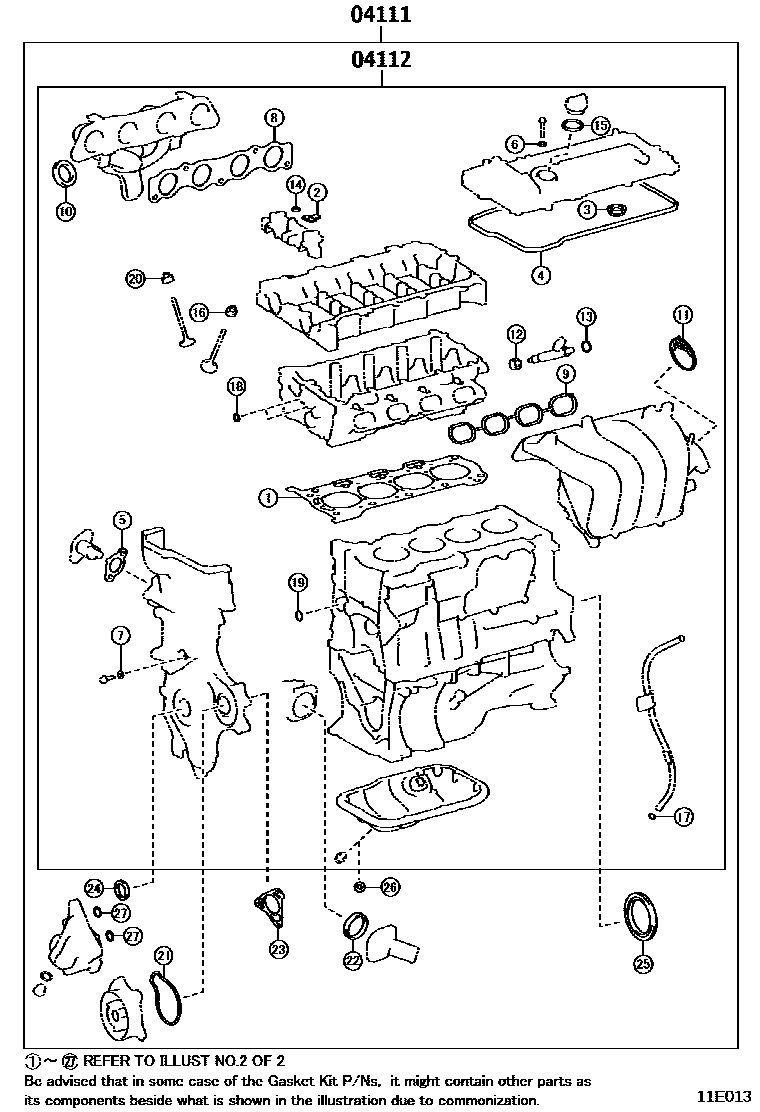

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E013
Engine Overhaul Gasket Kit — 11E013 (201901 – 999999)

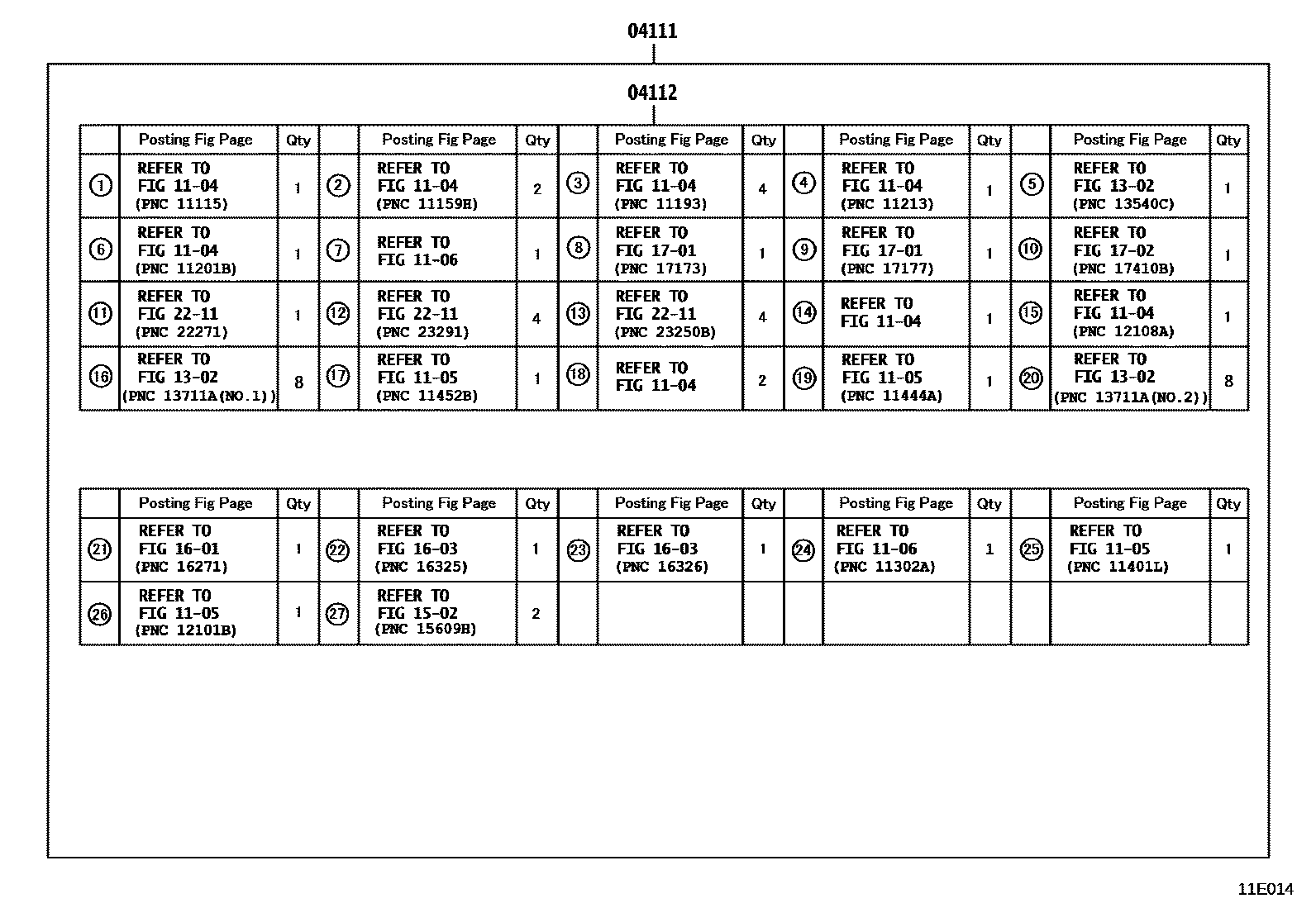

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E014
Engine Overhaul Gasket Kit — 11E014 (201901 – 999999)

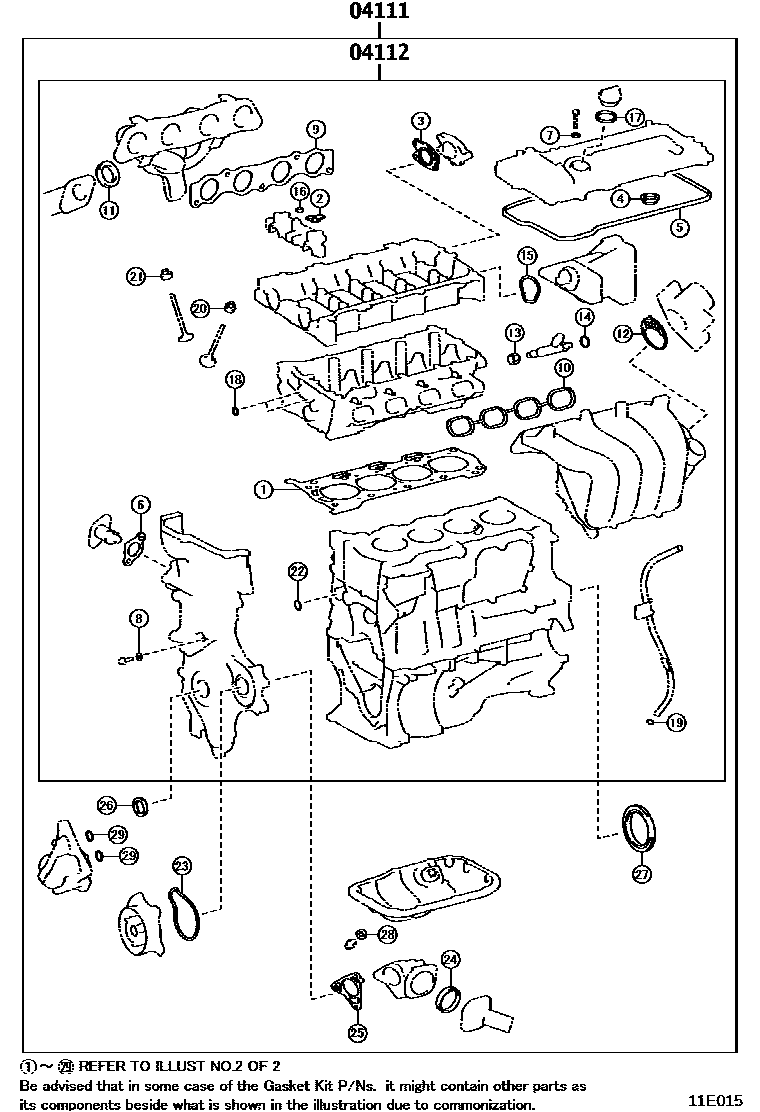

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E015
Engine Overhaul Gasket Kit — 11E015 (201901 – 999999)

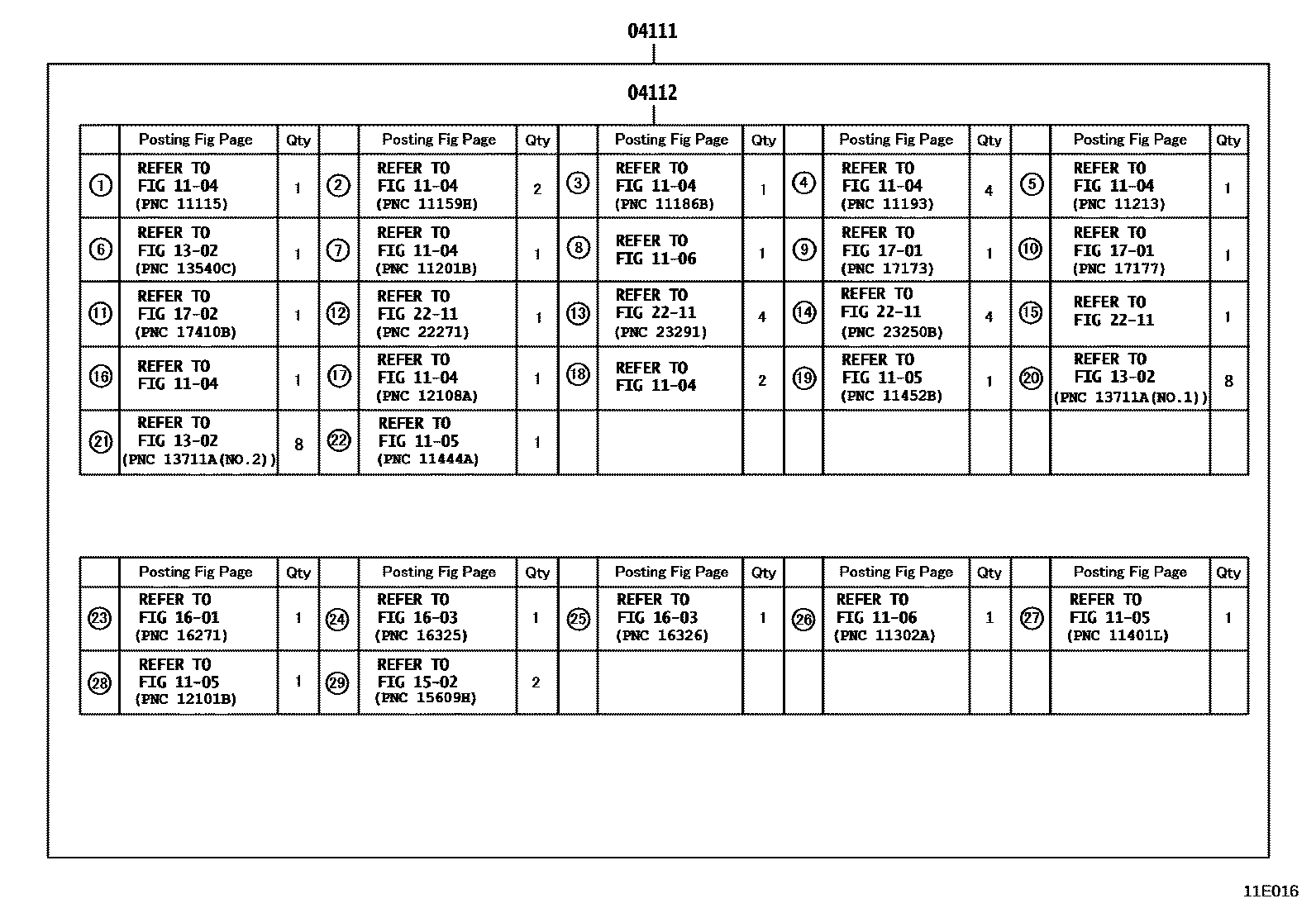

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E016
Engine Overhaul Gasket Kit — 11E016 (201901 – 999999)

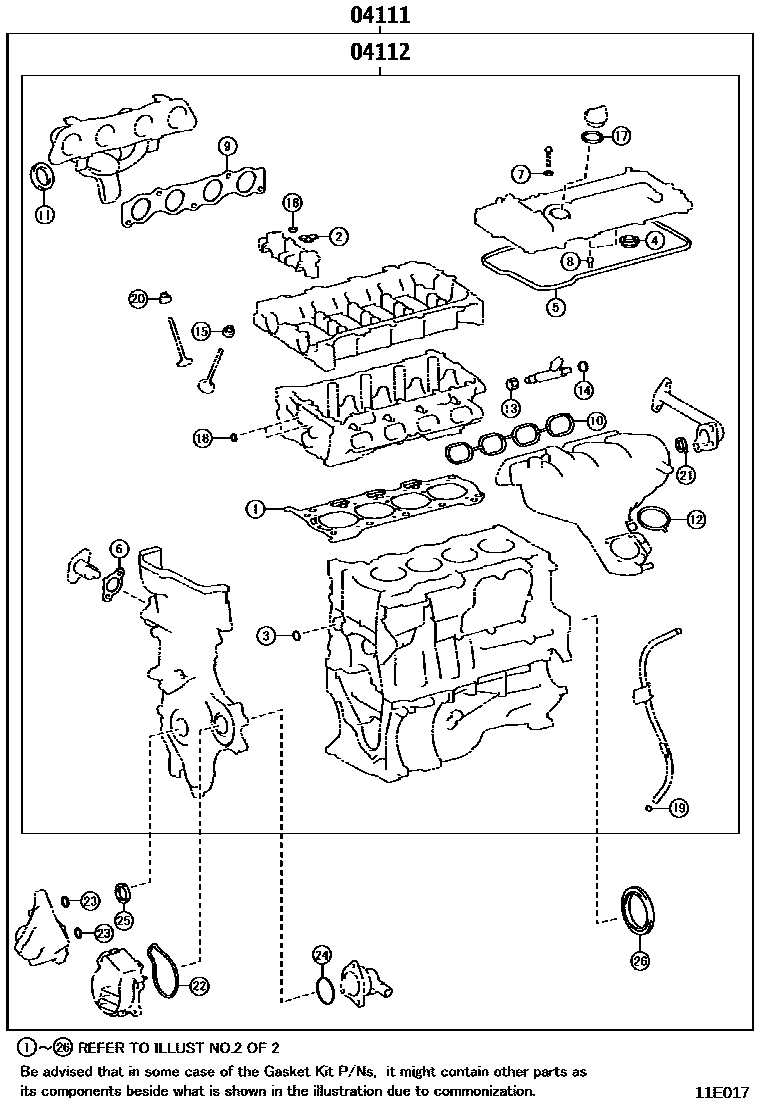

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E017
Engine Overhaul Gasket Kit — 11E017 (201901 – 999999)

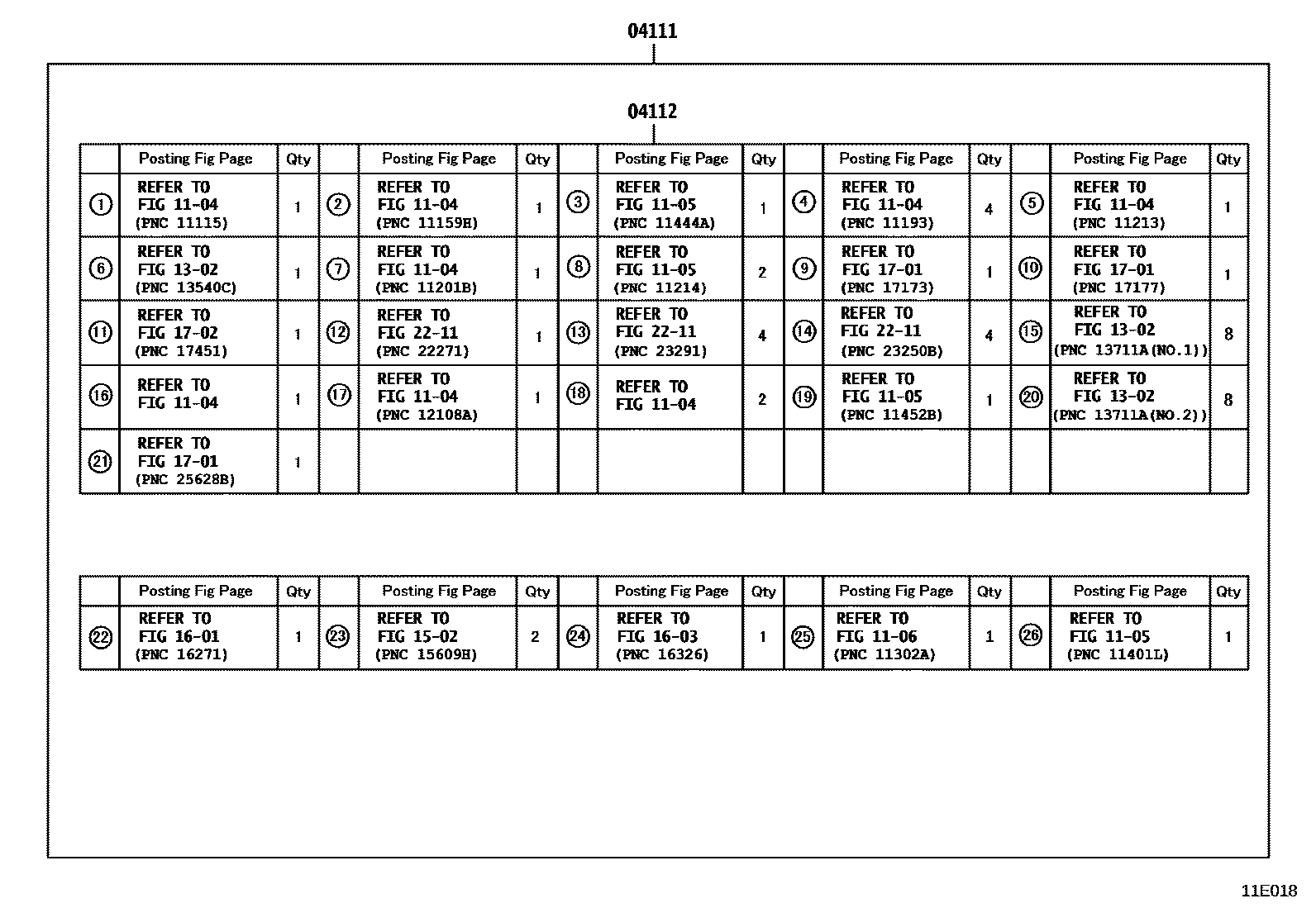

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E018
Engine Overhaul Gasket Kit — 11E018 (201901 – 999999)

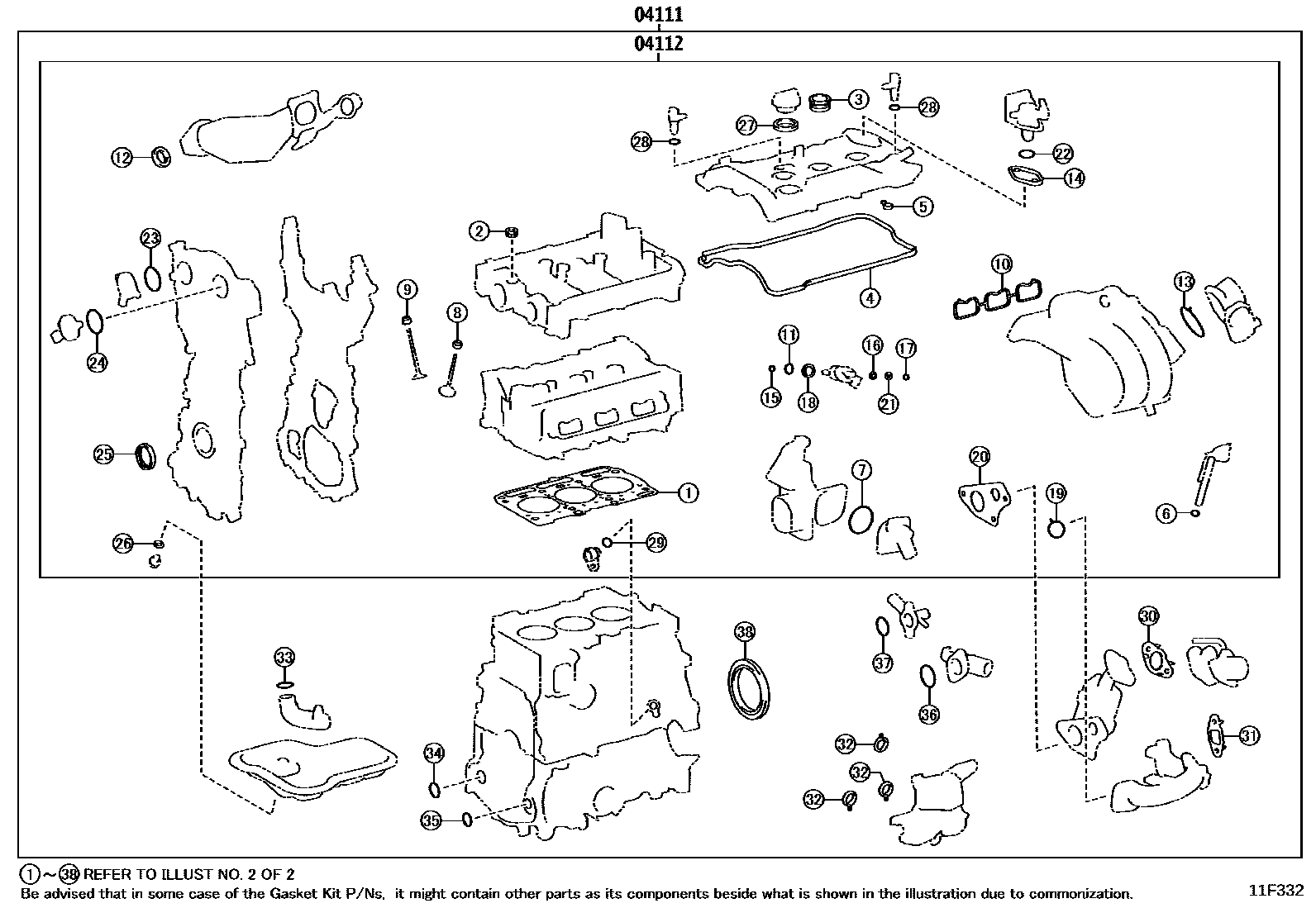

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F332
Engine Overhaul Gasket Kit — 11F332 (202011 – 999999)

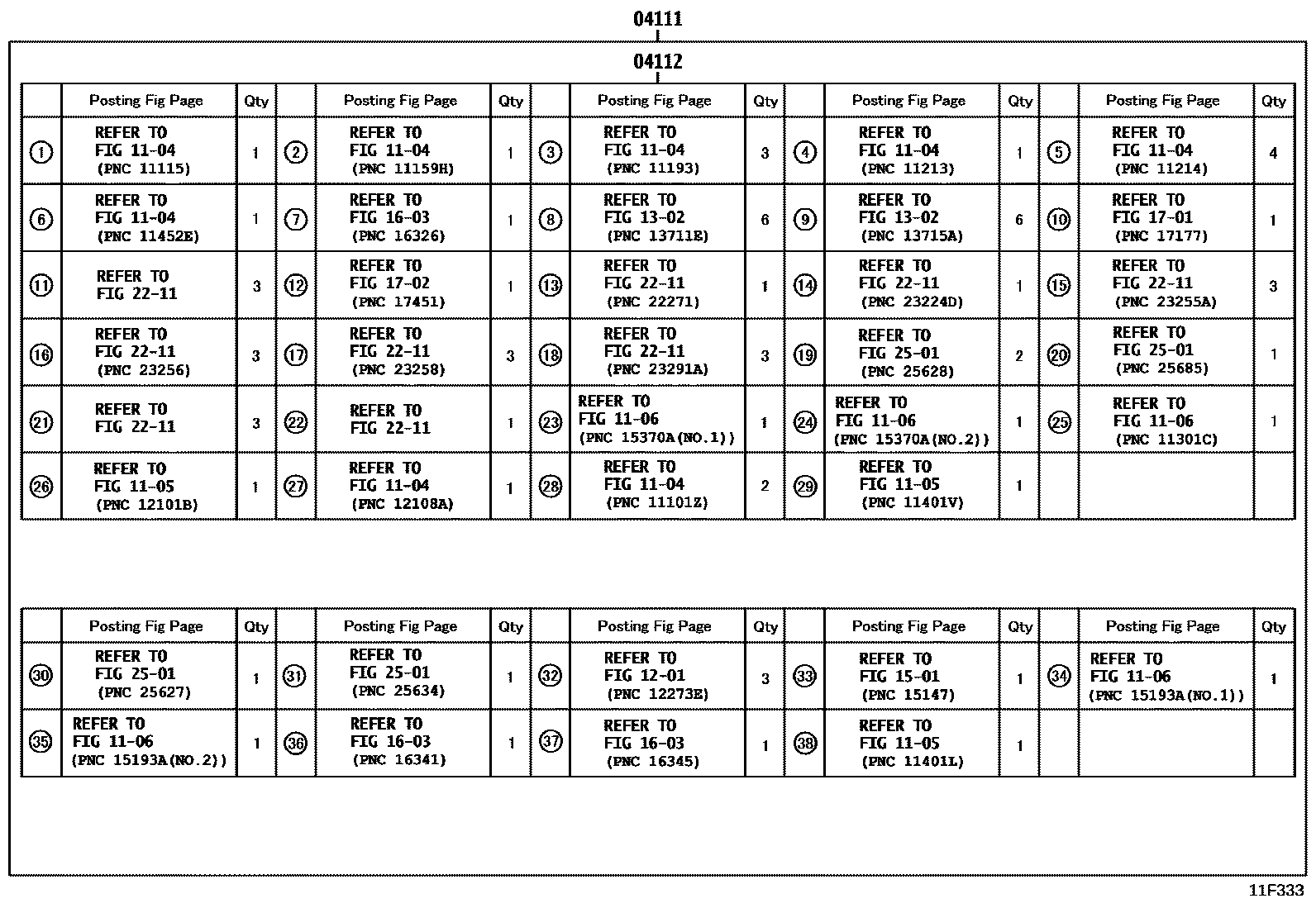

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F333
Engine Overhaul Gasket Kit — 11F333 (202011 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T067 · 04111-0T069 · 04111-0T085 · 04111-0T087 · 04111-0T281 · 04111-0T282 · 04111-0T283 · 04111-F3020 · 04111-F3021 · 04111-F3060
04112Engine valve grinding pad assembly04112-0T015 · 04112-0T017 · 04112-0T066 · 04112-0T068 · 04112-0T231 · 04112-0T232 · 04112-0T233 · 04112-F3020 · 04112-F3021 · 04112-F3060
