Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

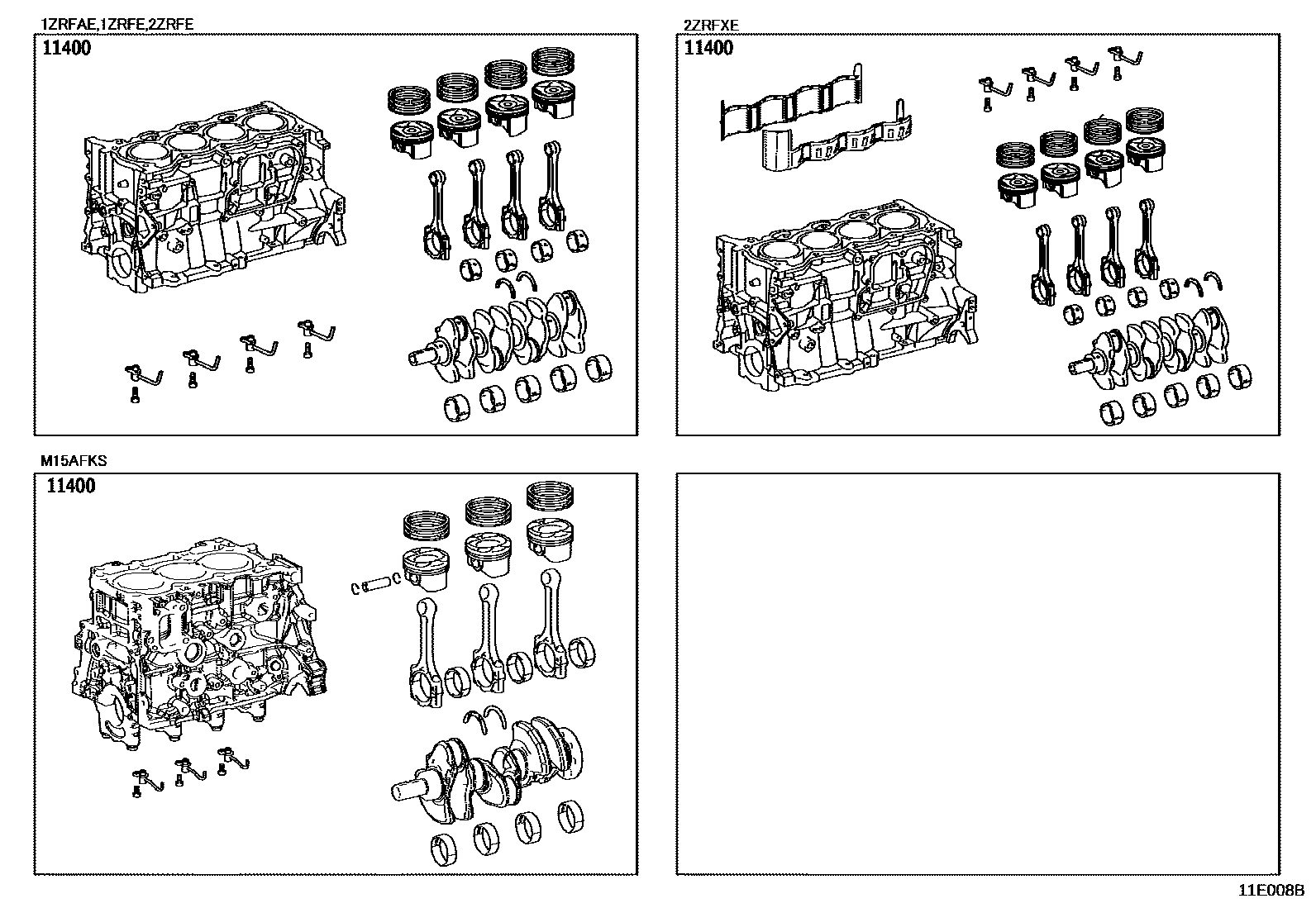

Toyota COROLLA Short Block Assembly EPC diagram — 11E008B
Short Block Assembly — 11E008B (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0T011 · 11400-0T021 · 11400-0T061 · 11400-0T440 · 11400-0T480 · 11400-0T540 · 11400-0T550 · 11400-0T560 · 11400-0T570 · 11400-F3010
