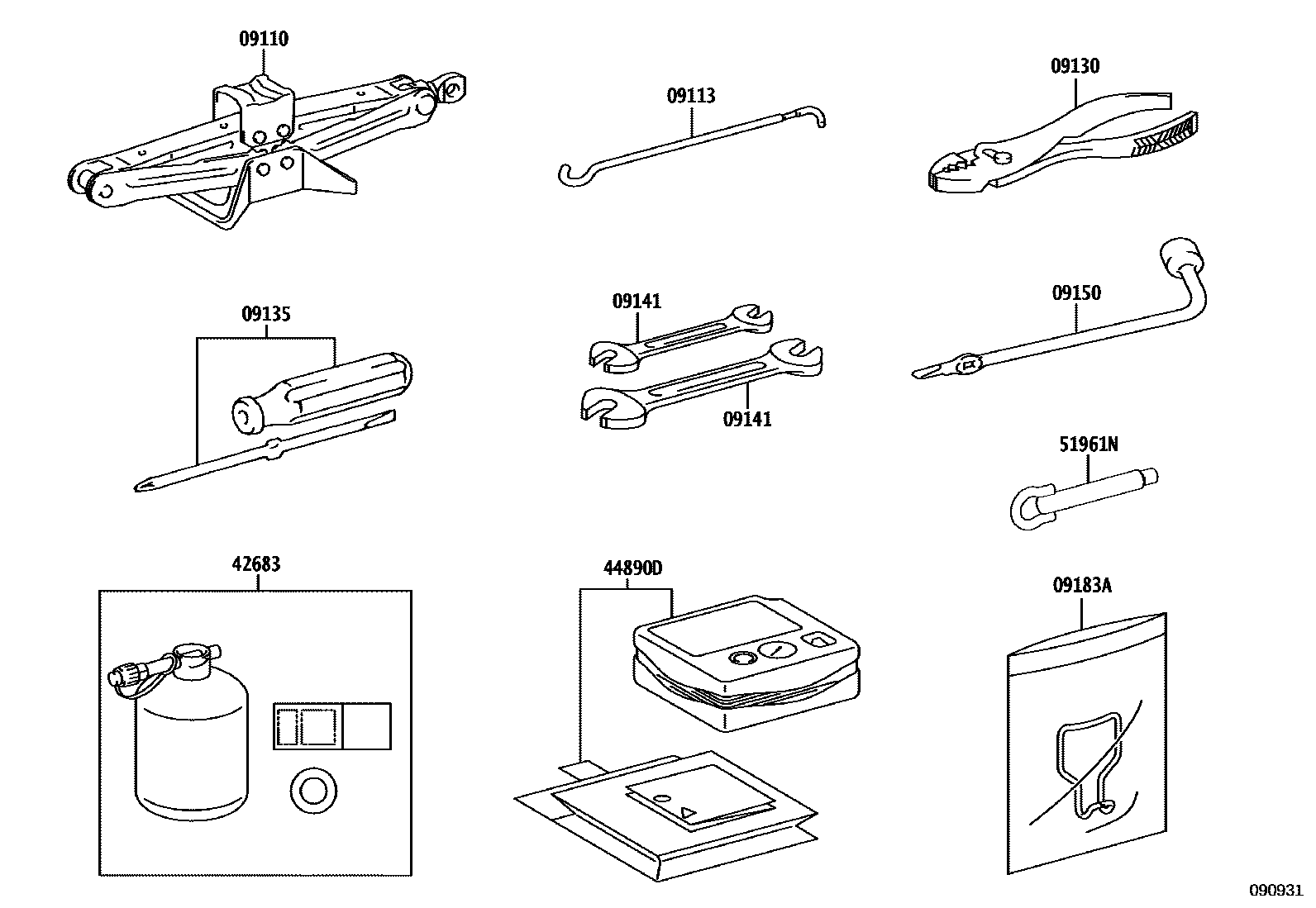

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-F4010 · 09111-F4011 |
| 09113 | Jack Handle | 09113-F4010 |
| 09130 | Pliers | 90080-99009 |
| 09135 | Screwdriver | 90080-99008 |
| 09141 | Wrench | 90080-99010 · 90080-99011 |
| 09150 | Wheel Nut Wrench | 09150-F4010 |
| 09183A | Wheel cover removal and assembly tools | 09183-0D010 |
| 42683 | Tire Repair Sealant | 42606-F4040 · 42606-F4041 |
| 44890D | Air Compressor Assembly | 42680-F4011 · 42680-F4012 · 42680-F4013 |
| 51961N | CROCHET, TRANSPORT | 51960-02150 |
