Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

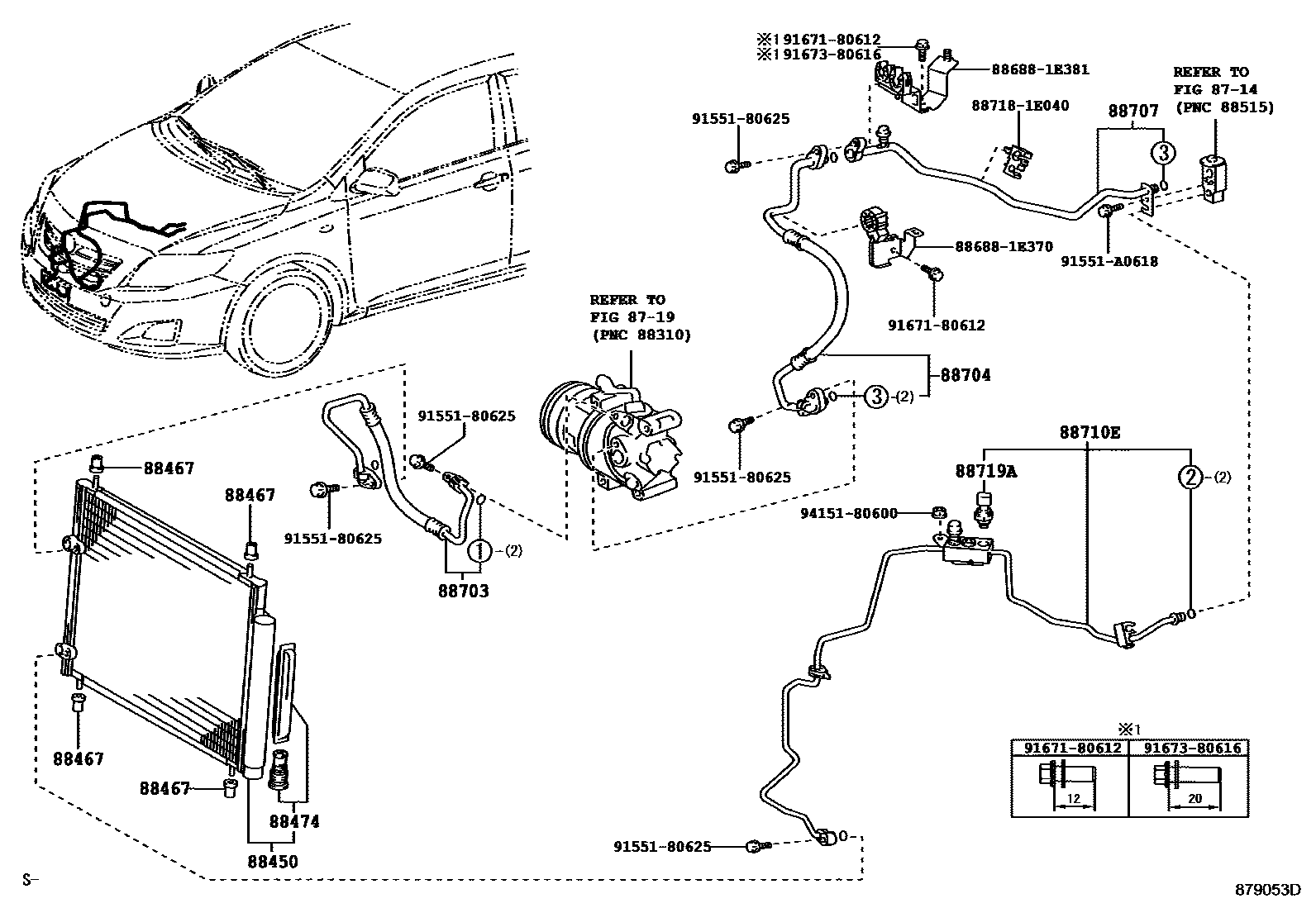

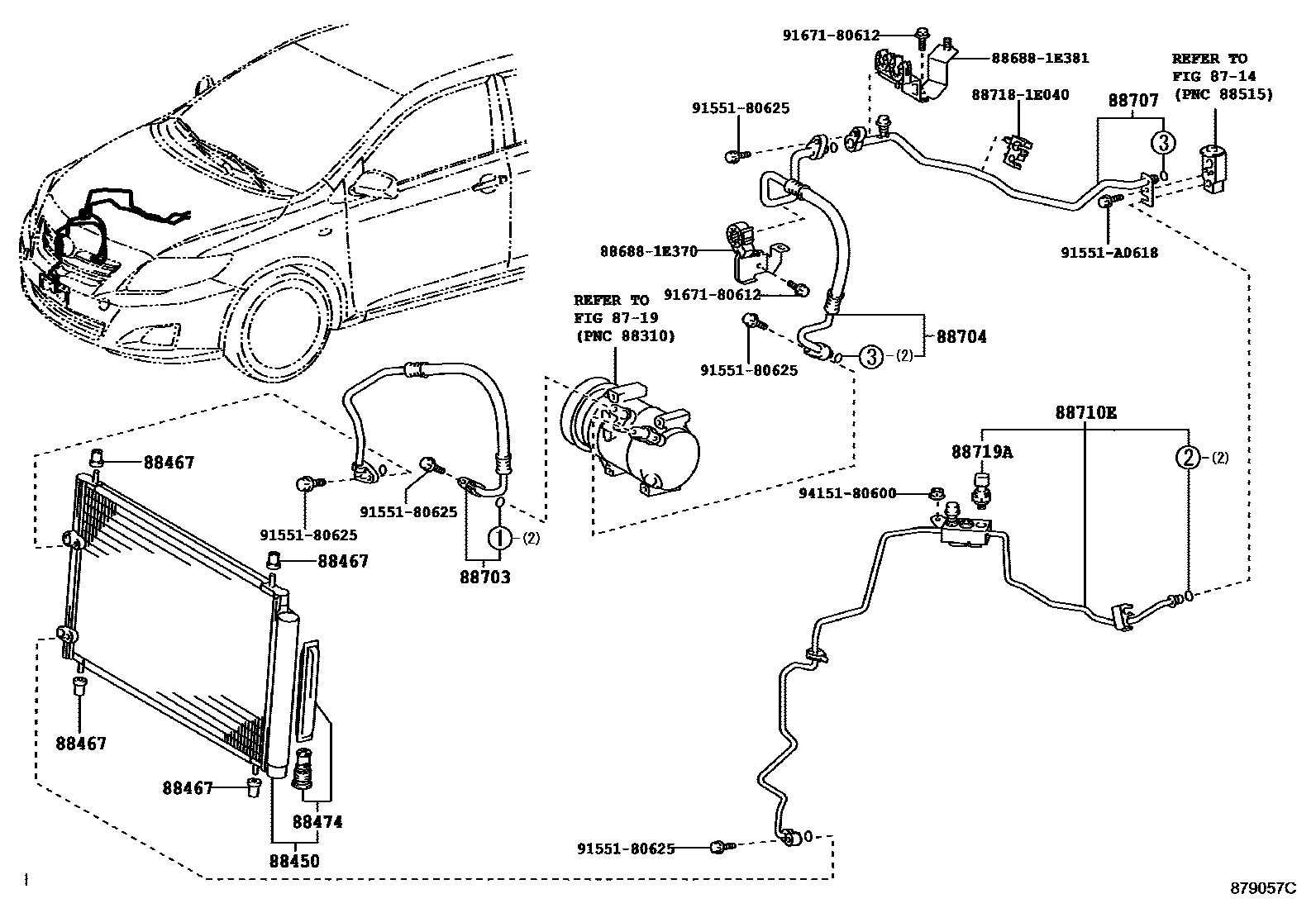

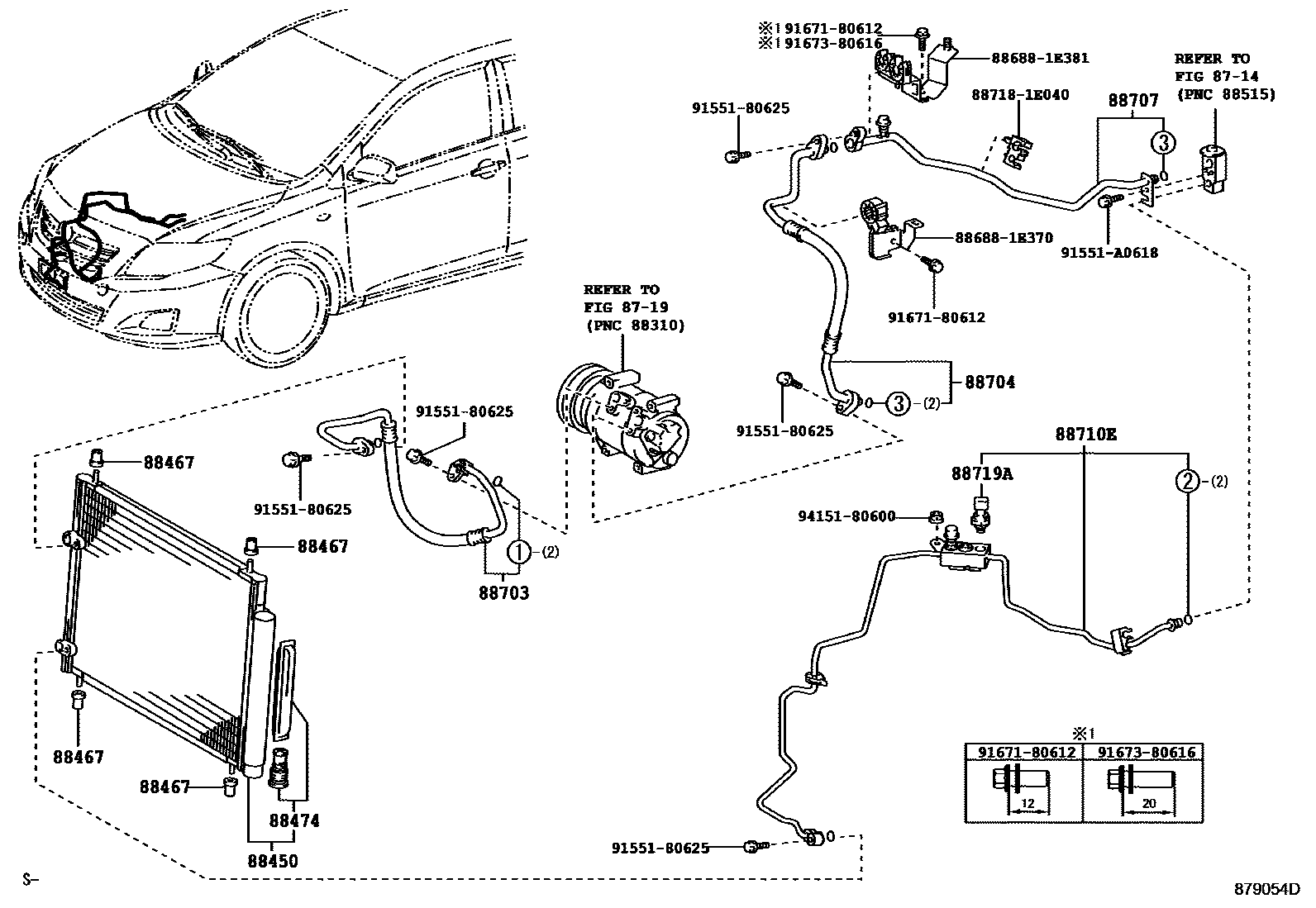

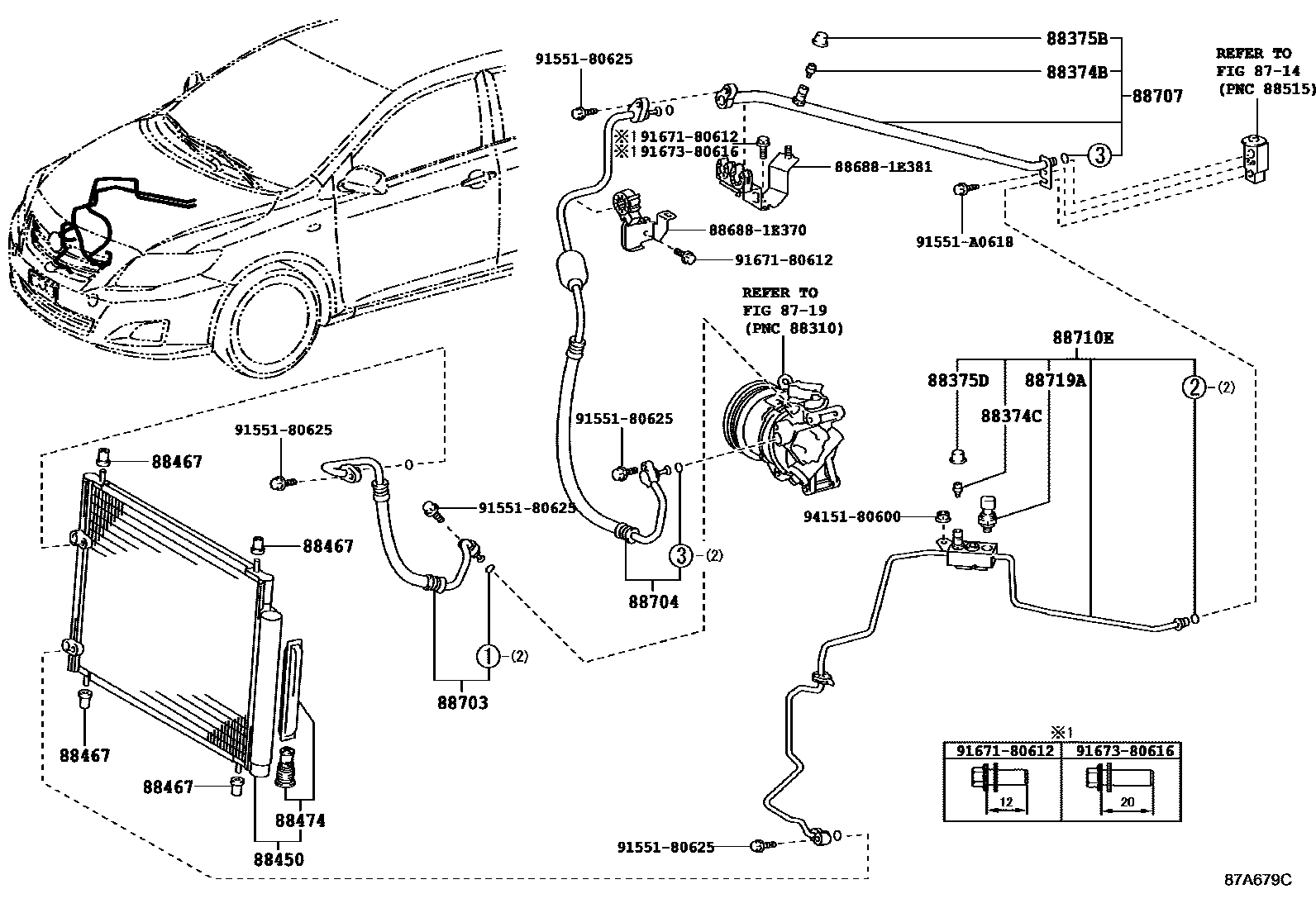

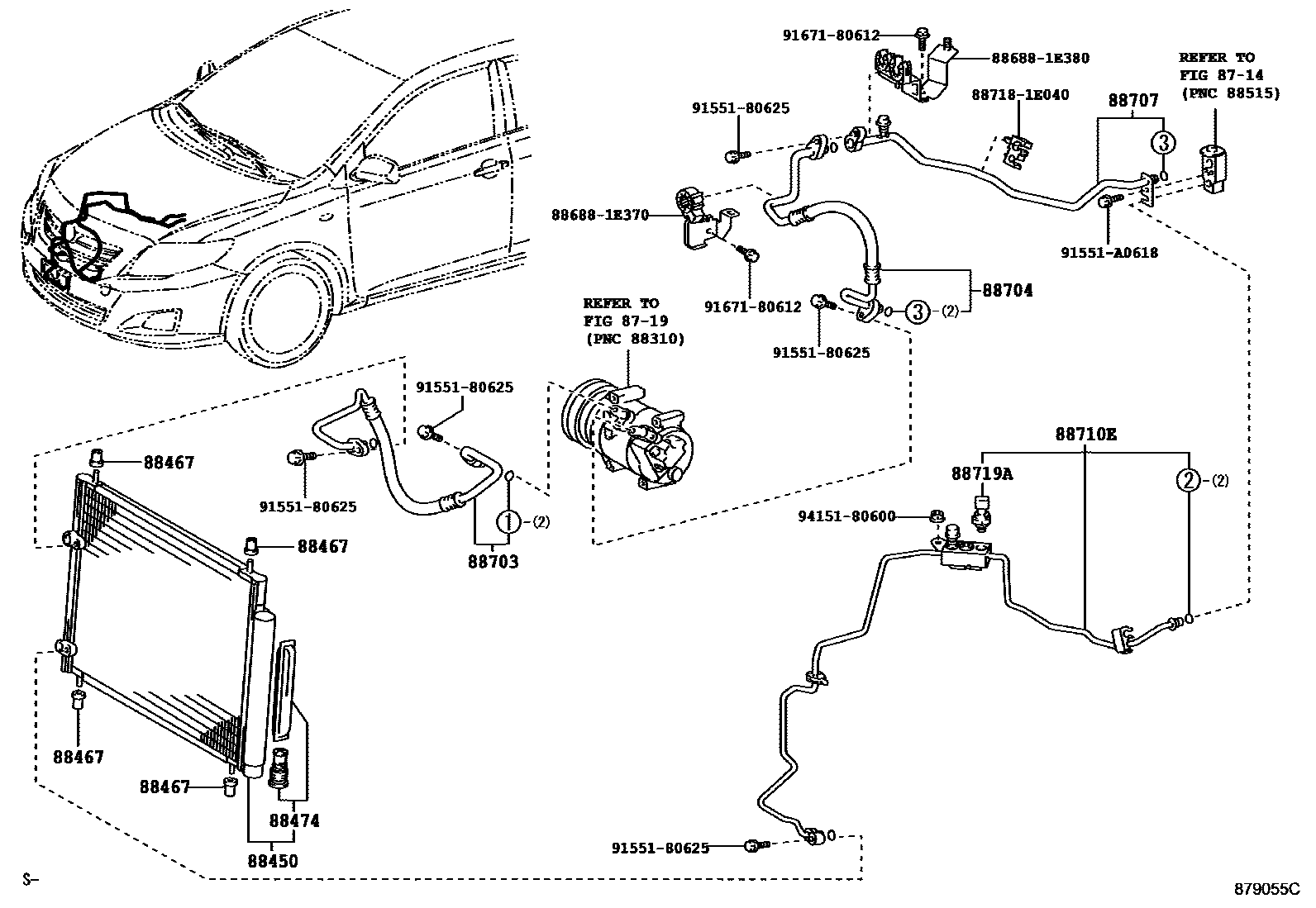

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02280 · 88450-02410 · 88450-12280 · 88450-12290 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12030 · 88474-17010 |
| 88703 | Discharge hose sub-assembly | 88703-12830 · 88703-12840 · 88703-12850 · 88703-12860 · 88703-12A00 · 88703-1A100 · 88703-1A110 · 88703-1A120 · 88703-1A130 |
| 88704 | Oil suction hose sub-assembly | 88704-12A00 · 88704-1A180 · 88704-1A181 · 88704-1A190 · 88704-1A200 · 88704-1A210 · 88704-1A330 · 88704-1A340 · 88704-1A350 |
| 88707 | Suction pipe sub-assembly | 88707-12250 · 88707-12300 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-12760 · 88710-12770 · 88710-12780 · 88710-1A030 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
