Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.

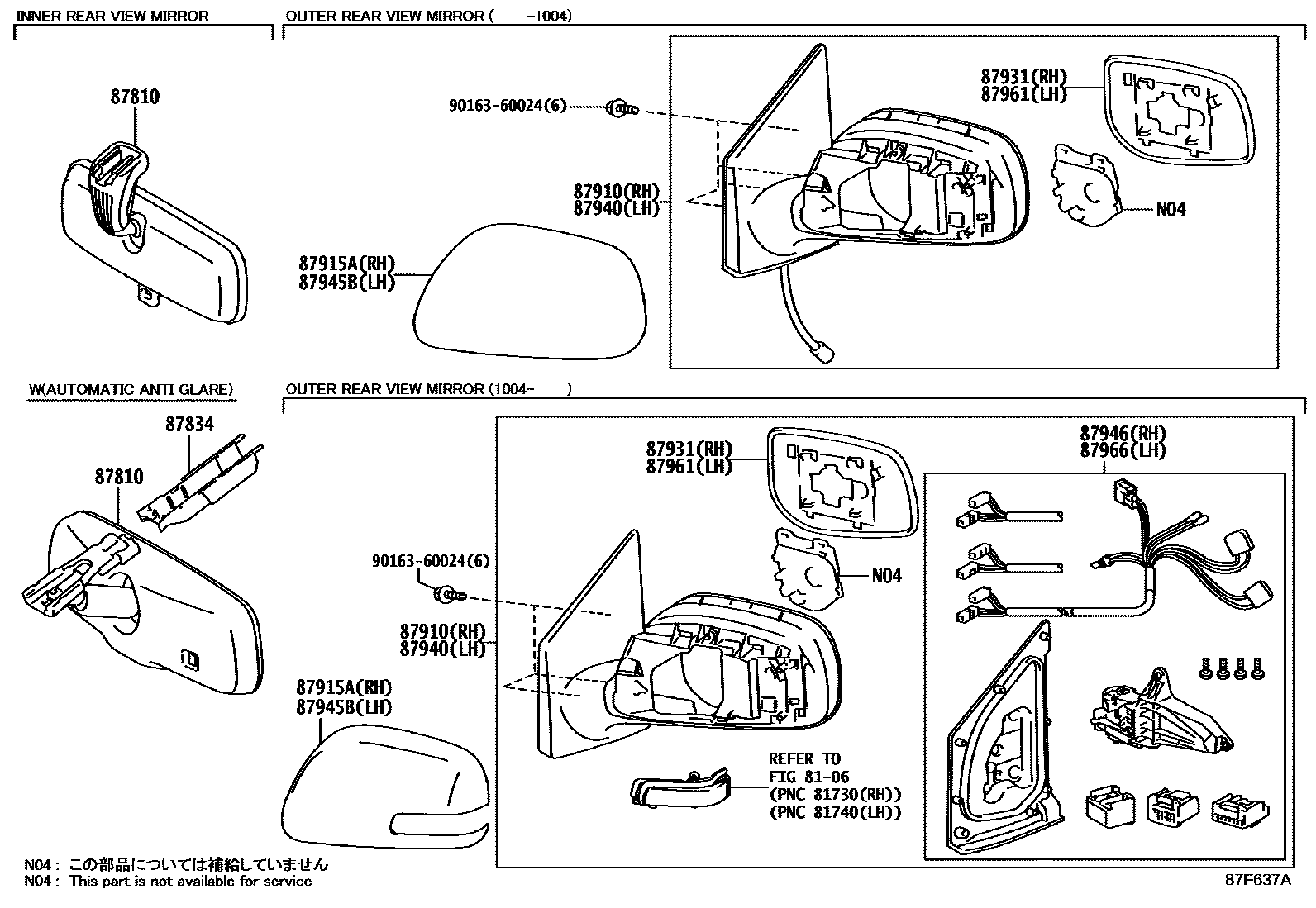

Toyota COROLLA 后视镜 EPC diagram — 87F637A
后视镜 — 87F637A (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02090 · 87810-02160 · 87810-0D011 · 87810-0F050 · 87810-0WK40
87834Interior rearview mirror stay fixing cover87818-0W060 · 87818-33010
87910Right exterior rearview mirror assembly87910-12B40 · 87910-12B50 · 87910-12B60 · 87910-12B70 · 87910-12E80 · 87910-12F00 · 87910-12G90
87915ARight exterior rearview mirror cover87915-12050 · 87915-44040
87931Right exterior rearview mirror87931-12A80 · 87931-12A90 · 87931-12B00 · 87931-12B10 · 87931-44340 · 87931-44350
87940Left exterior rearview mirror assembly87940-12B50 · 87940-12B60 · 87940-12B70 · 87940-12B80 · 87940-12F10 · 87940-12F30 · 87940-12G90
87945BLeft exterior rearview mirror cap87945-12050 · 87945-44040
87946Right exterior rearview mirror retractor87946-12F00 · 87946-12G90
87961Left exterior rearview mirror87961-12A90 · 87961-12B00 · 87961-12B10 · 87961-12B20 · 87961-12C20 · 87961-12E00
87966Left exterior rearview mirror retractor87966-12F30 · 87966-12G90
