Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 11 PNC and OE references.

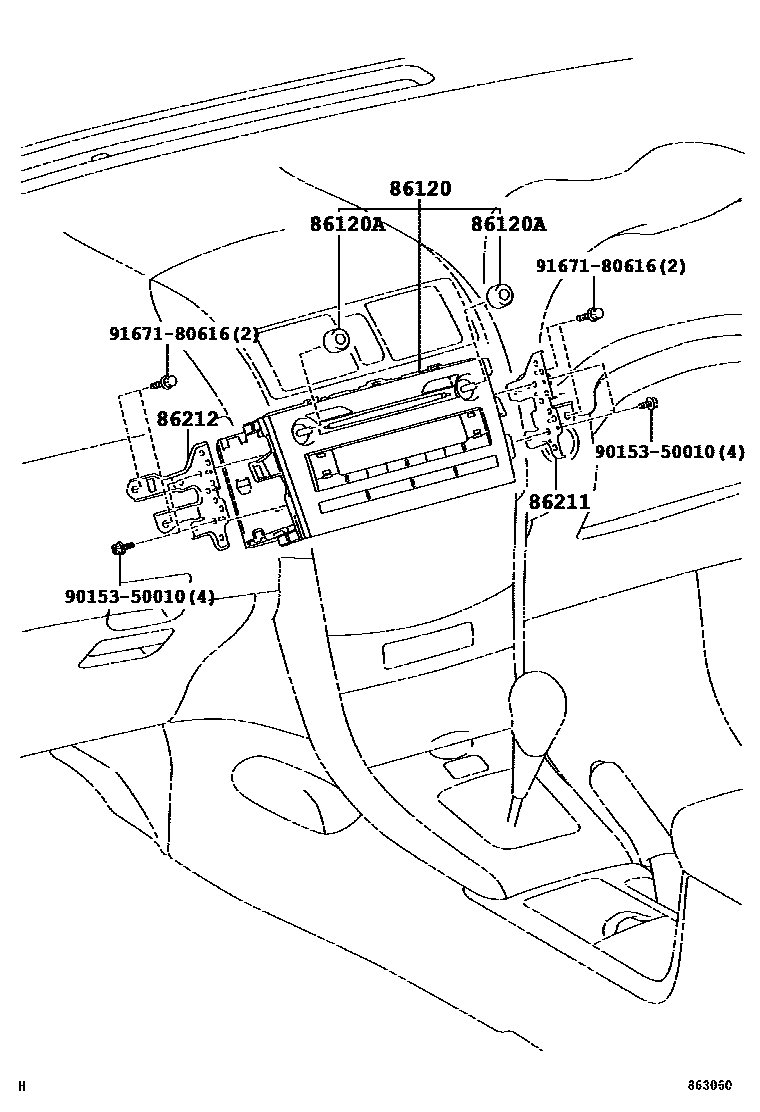

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 863060
收音机、放大器和冷凝器 — 863060 (200611 – 201004)
Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 863061B
收音机、放大器和冷凝器 — 863061B (200611 – 999999)

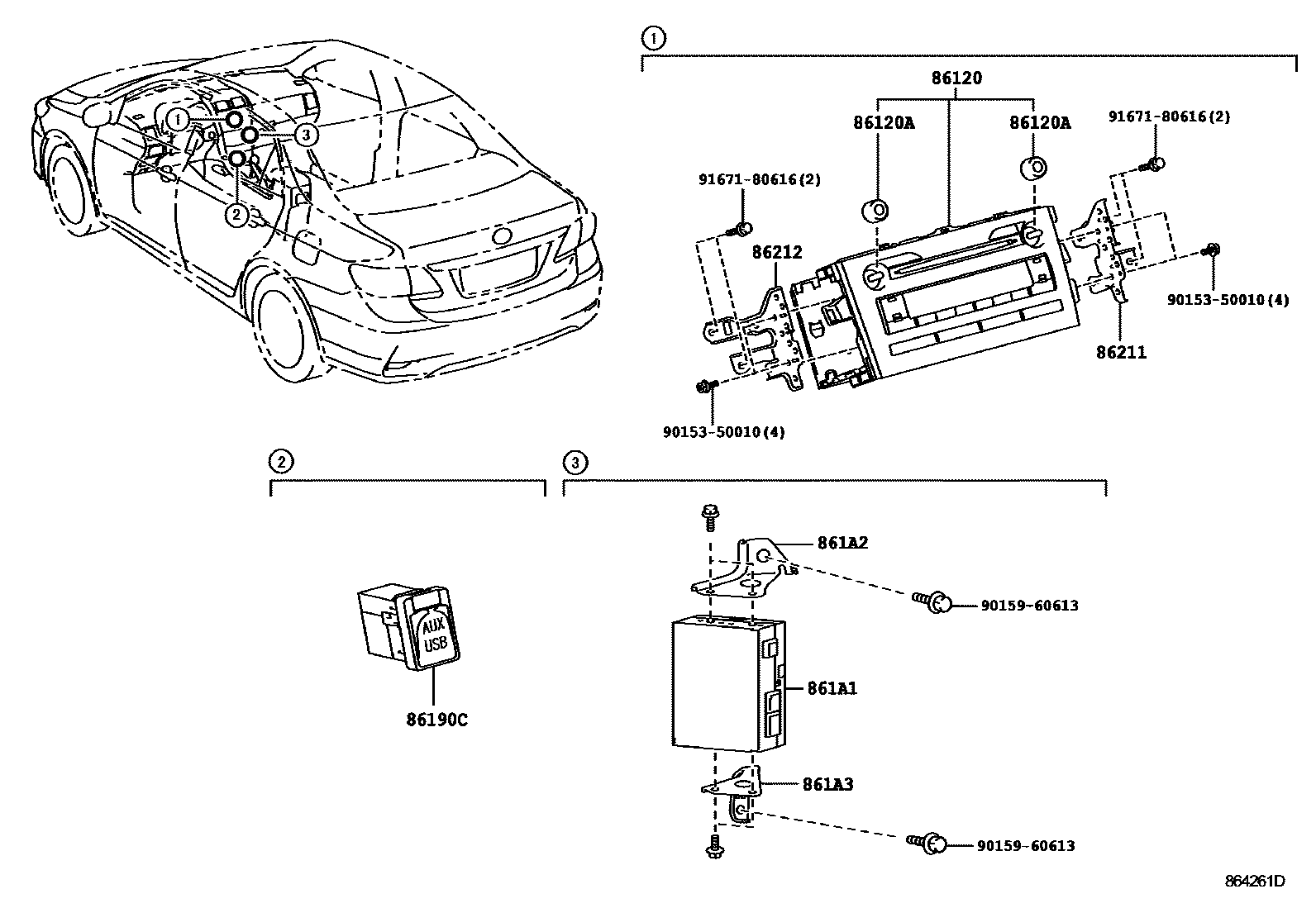

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 864261D
收音机、放大器和冷凝器 — 864261D (201004 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04165 · 90980-04194 · 90980-04196
86011Qradio settings phase modulator90980-04199
86011Vradio settings phase modulator90980-04179
86120Radio assembly86120-12A30 · 86120-12B00 · 86120-12B10 · 86120-12D40 · 86120-12D50 · 86120-12D80
86120ARadio switch knob90010-24123 · 90010-24124
86190CStereo socket connector assembly No. 186190-24020
861A1Multimedia interface ECU861A0-48030
861A2Multimedia interface bracket No. 1861A2-12020
861A3Multimedia interface bracket No. 2861A3-12010
86211No. 1 radio bracket86211-12400 · 86211-12450
86212No. 2 radio bracket86212-12380 · 86212-12440
