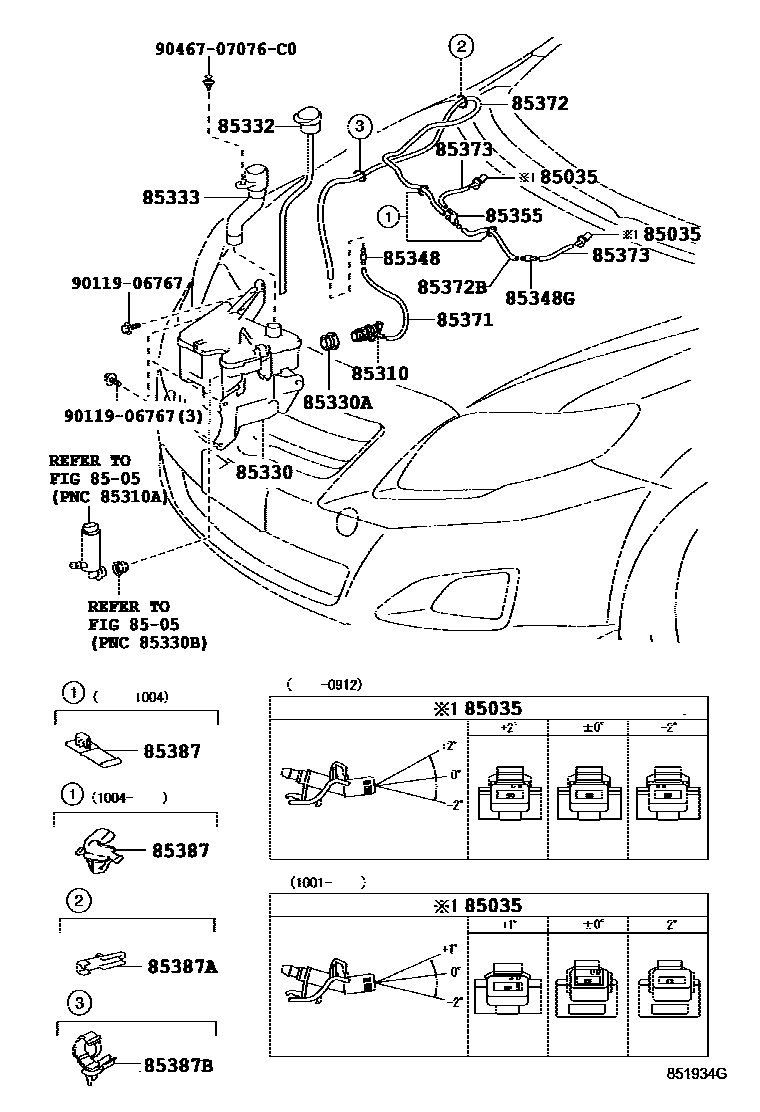

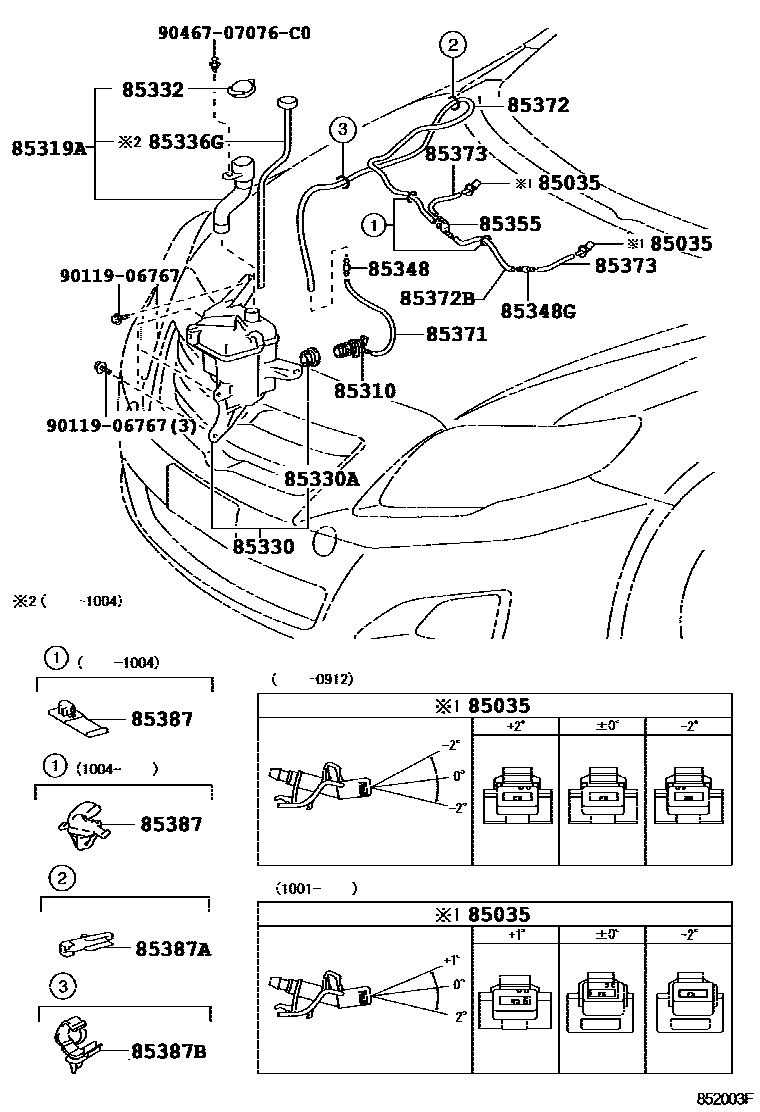

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12300 · 85381-12310 · 85381-12320 · 85381-12350 · 85381-30110 · 85381-30150 |
| 85310 | Windshield washer motor and pump assembly | 85330-02030 · 85330-71010 |
| 85319A | water inlet hose | 85319-12570 |
| 85330 | Windshield washer fluid tank assembly | 85315-12570 · 85396-02070 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 · 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-52190 · 85356-02070 |
| 85333 | Windshield washer fluid tank filter | 85359-02070 |
| 85336G | water level gauge | 85313-20130 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 · 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85355 | Windshield washer hose valve | 85321-12040 · 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-16009 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-3A540 · 85371-12040 |
| 85387A | Cleaner clip No. 2 | 85387-12840 |
| 85387B | No. 3 cleaner clip | 82711-1E350 |
