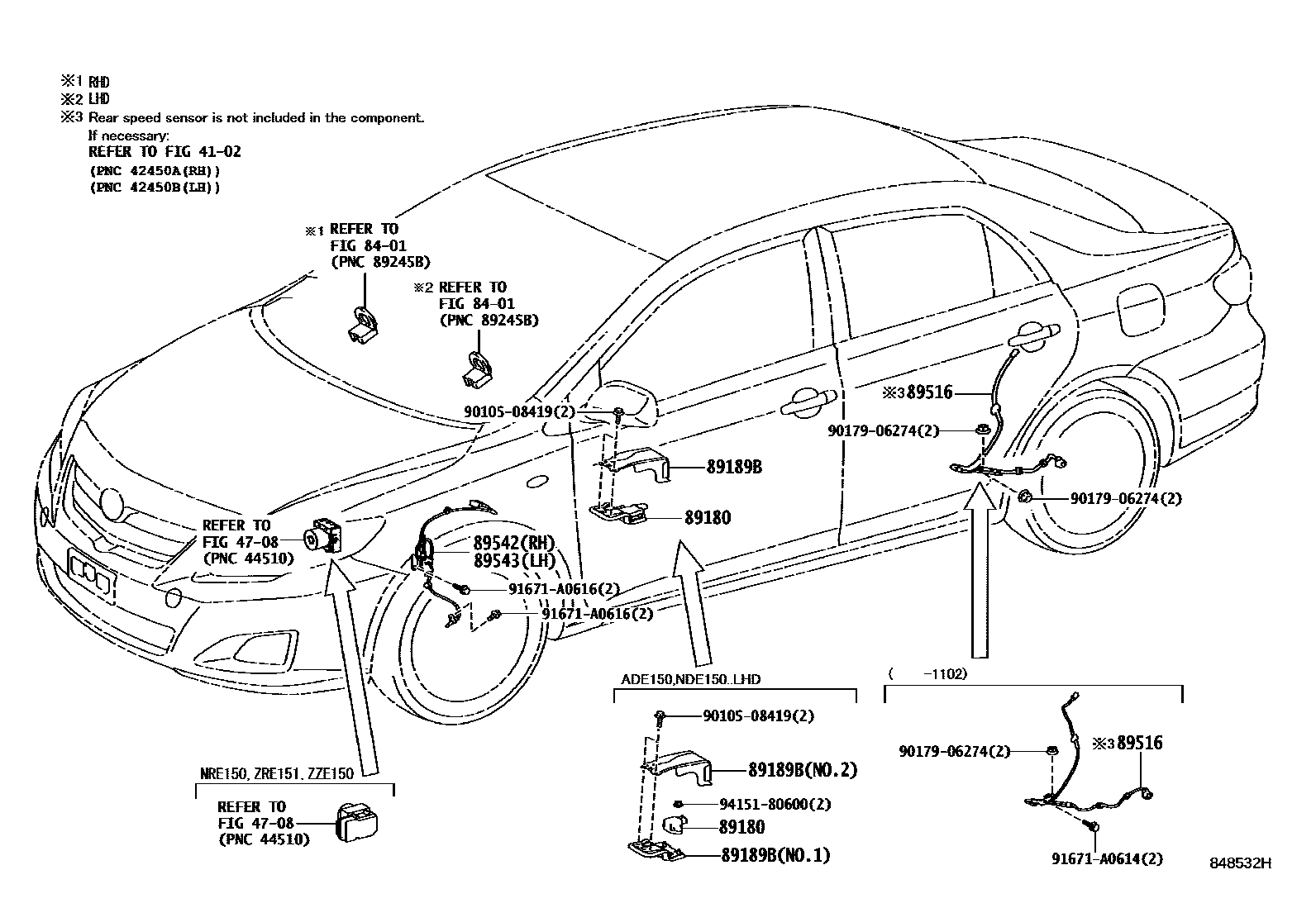

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89180 | Yaw rate sensor assembly | 89180-12061 · 89180-12080 · 89180-12140 · 89183-12030 |
| 89189B | Yaw rate sensor bracket | 89189-12081 · 89189-12091 |
| 89516 | Anti-skid control sensor wiring harness | 89516-12051 · 89516-12061 · 89516-12070 · 89516-12080 · 89516-12180 · 89516-12190 |
| 89542 | Right front wheel speed sensor | 89542-12080 · 89542-12090 |
| 89543 | Left front wheel speed sensor | 89543-12080 · 89543-12090 |
