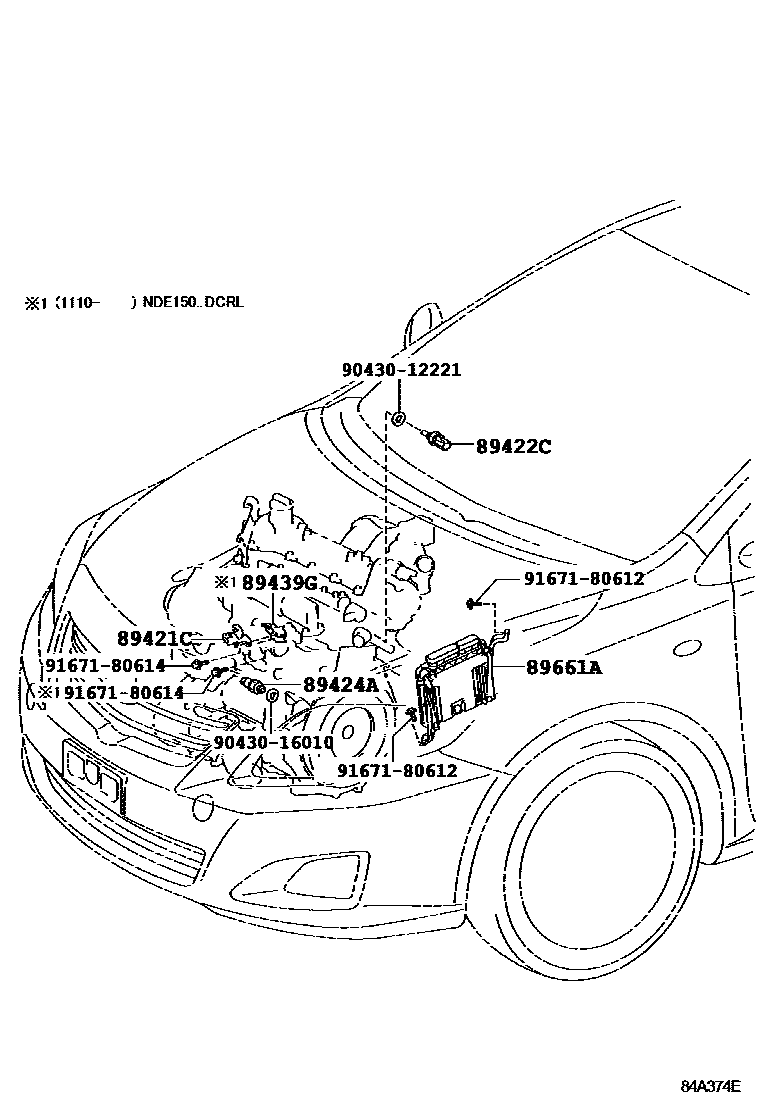

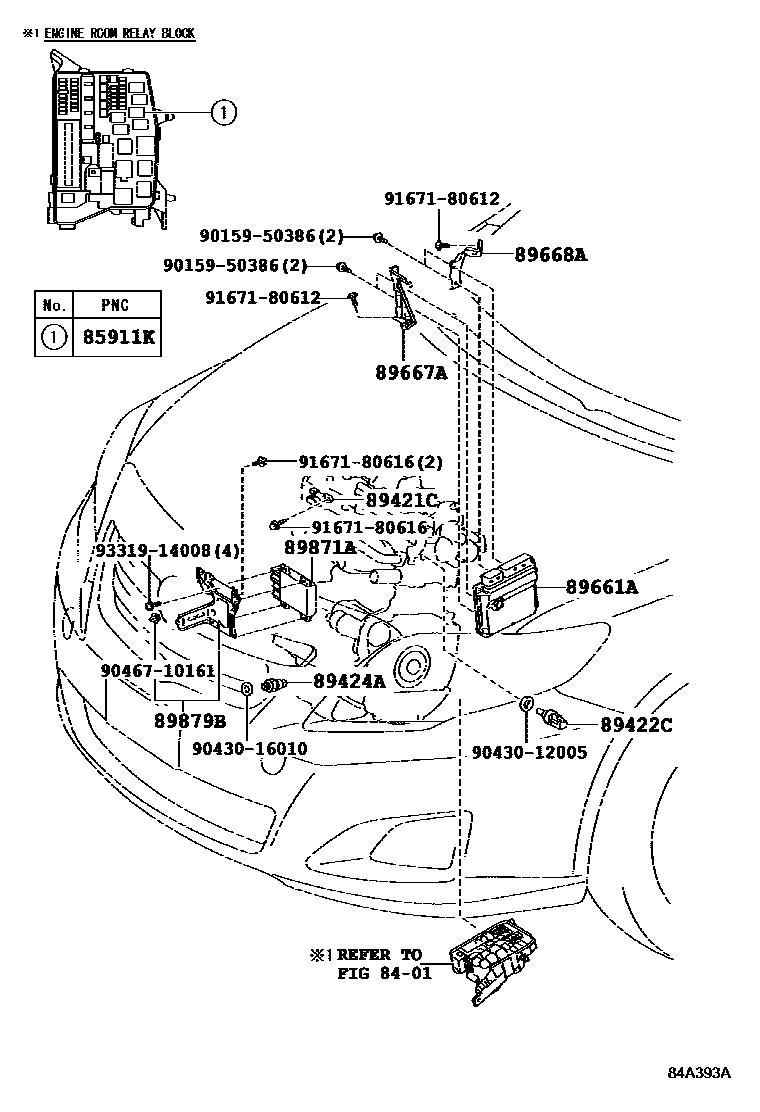

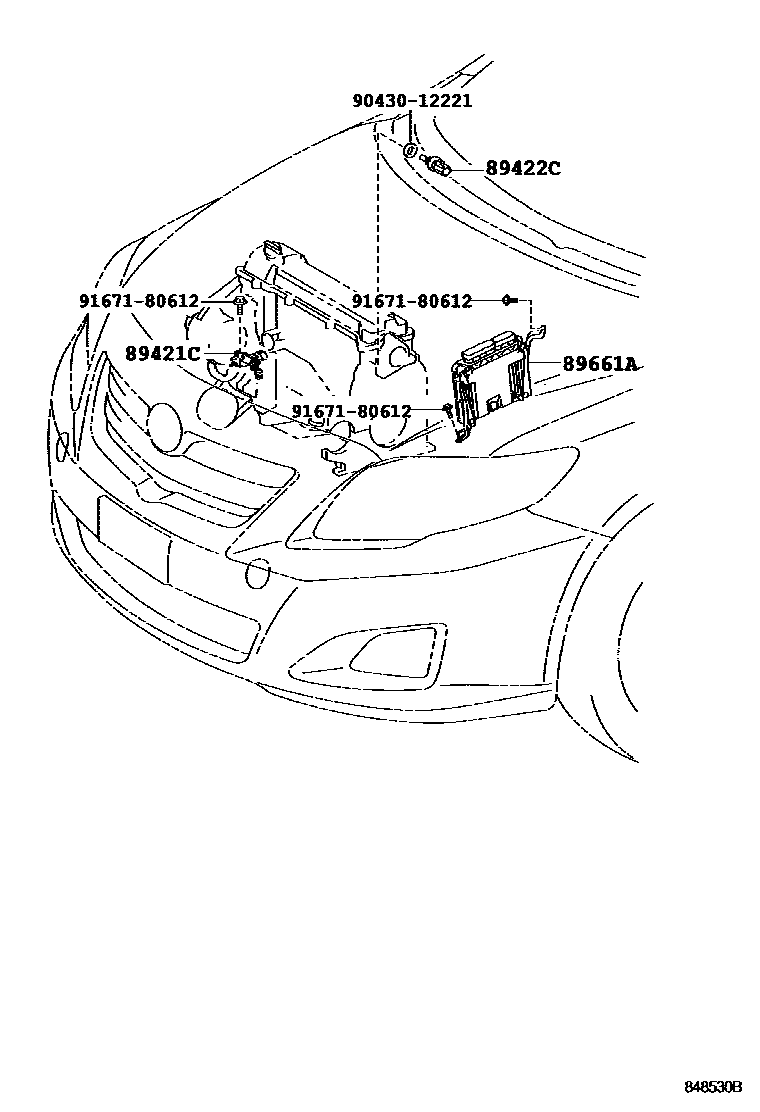

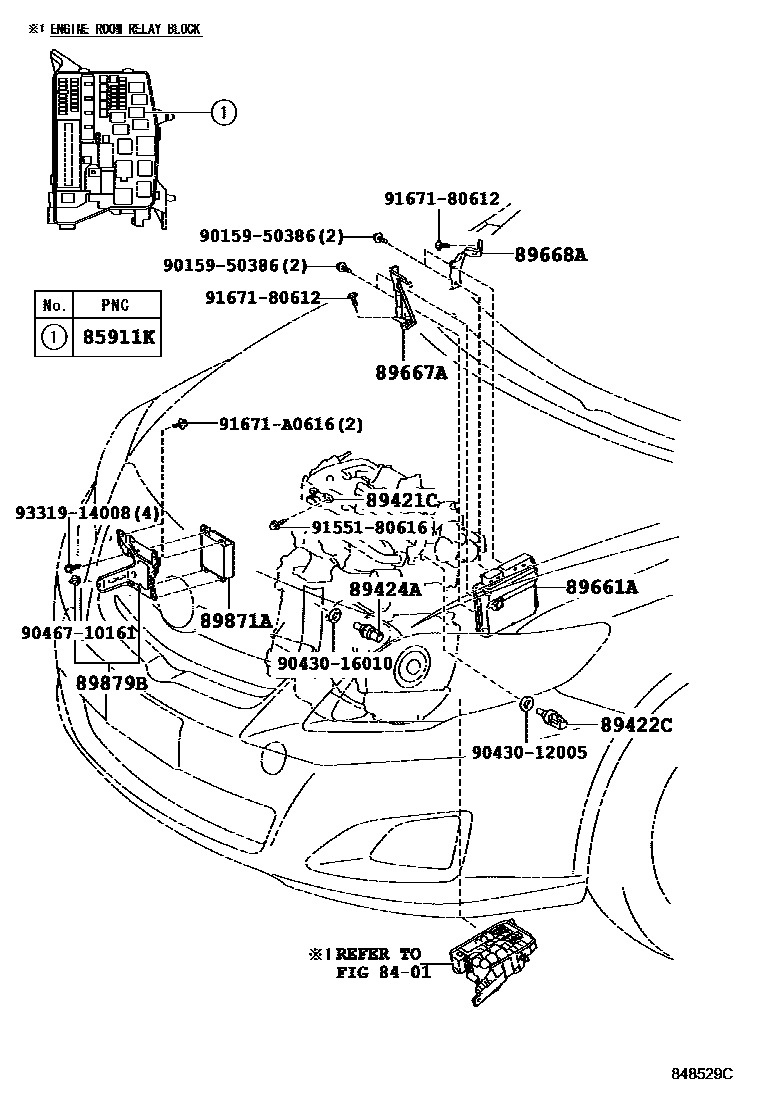

Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405
Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911K | Heater relay (for air-fuel ratio sensor) | 90987-02027 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89420-12220 · 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89439G | Sensor holder | 89431-12010 |
| 89661A | Engine control ECU | 89660-12C40 · 89660-12C50 · 89660-12E90 · 89660-12F00 · 89660-12J20 · 89660-12J21 · 89660-12J30 · 89660-12J31 · 89660-12J40 · 89660-12J41 · 89660-12J50 · 89660-12J51 · 89660-12J60 · 89660-12J61 · 89660-12J70 · 89660-12J71 · 89660-12M10 · 89660-12N60 · 89660-12U70 · 89660-12U80 · 89661-12A90 · 89661-12A91 · 89661-12A92 · 89661-12B00 · 89661-12B01 · 89661-12B02 · 89661-12D90 · 89661-12D91 · 89661-12G70 |
| 89667A | No. 1 engine control ECU bracket | 89667-12210 |
| 89668A | No. 2 engine control ECU bracket | 89668-12160 |
| 89871A | Injector driver | 89871-20080 · 89871-71010 |
| 89879B | Injector driver bracket | 89879-12060 |
