Toyota COROLLA Fog Lamp — Figure 8102

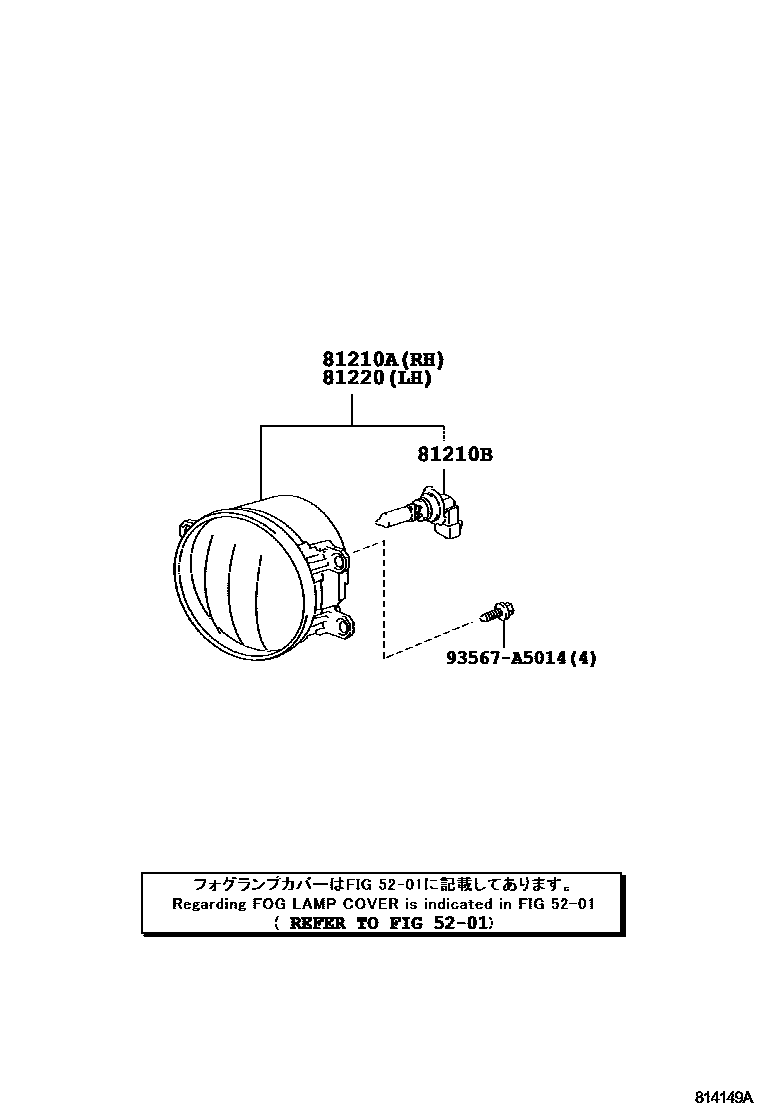

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-0D040 · 81210-0D041 · 81210-0D042 |
| 81210B | fog light bulb | 90981-13075 · 90981-13081 |
| 81220 | Left fog light assembly | 81220-0D040 · 81220-0D041 · 81220-0D042 |
