Toyota COROLLA 燃油箱和燃油管 — Figure 7701

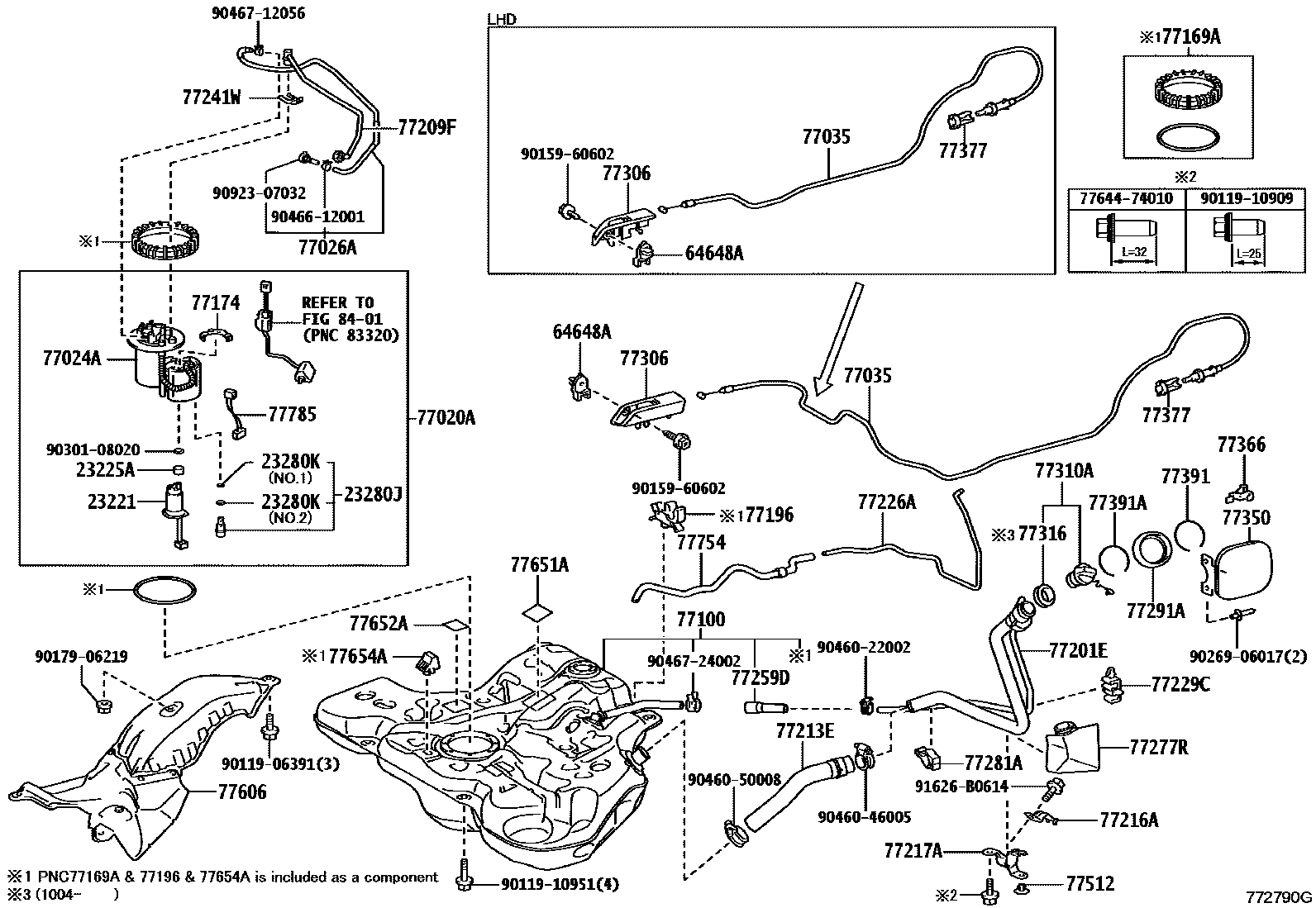

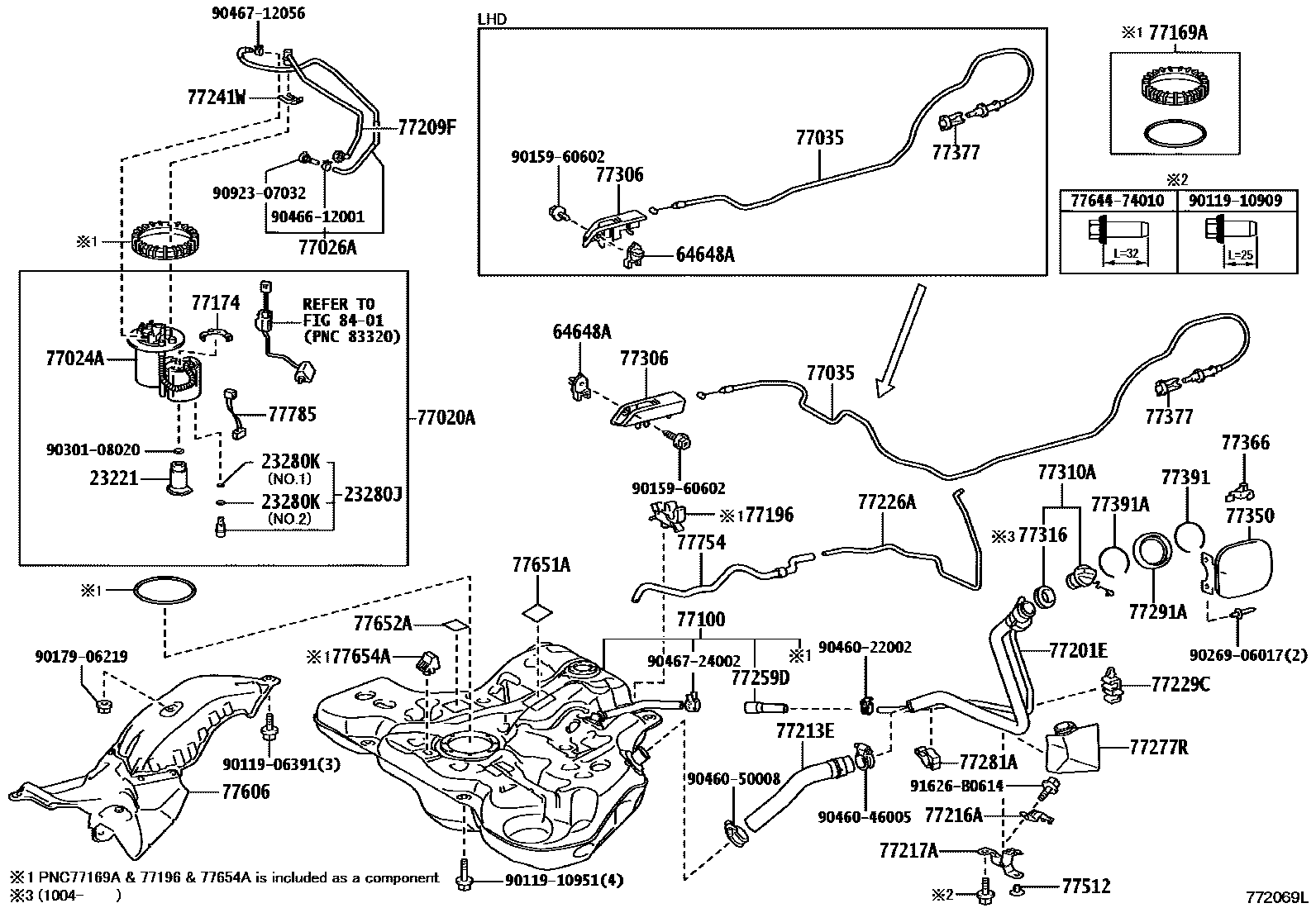

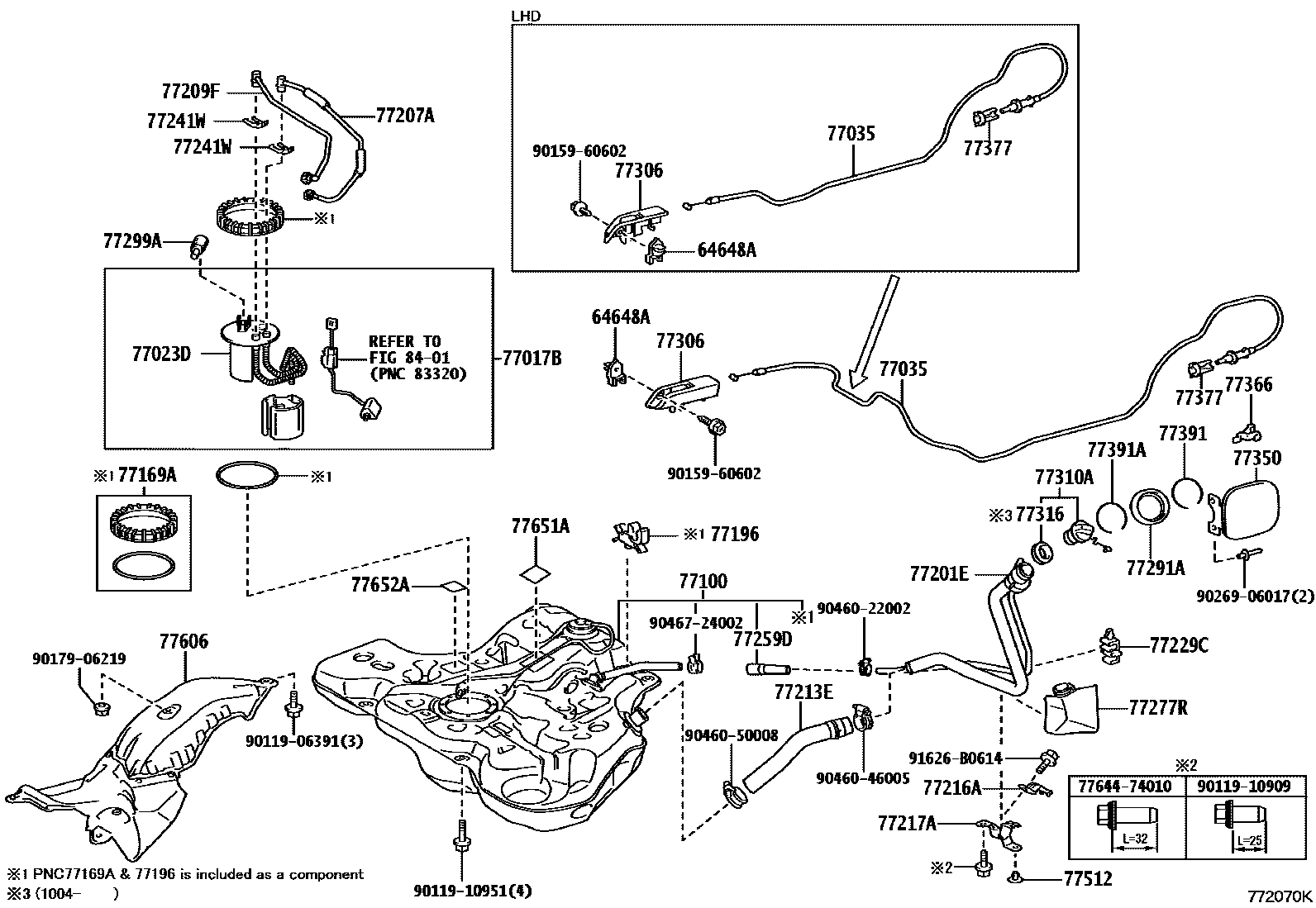

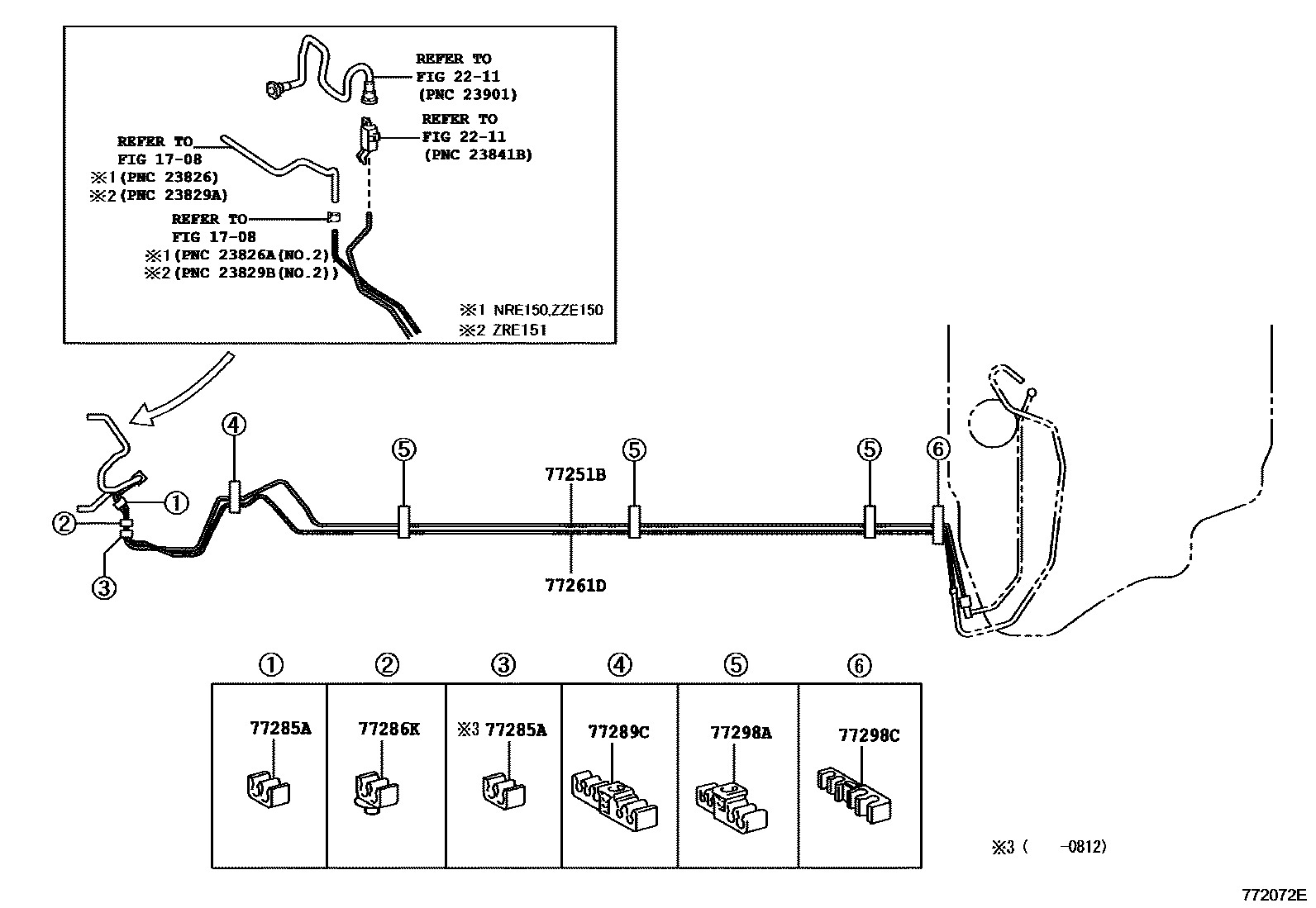

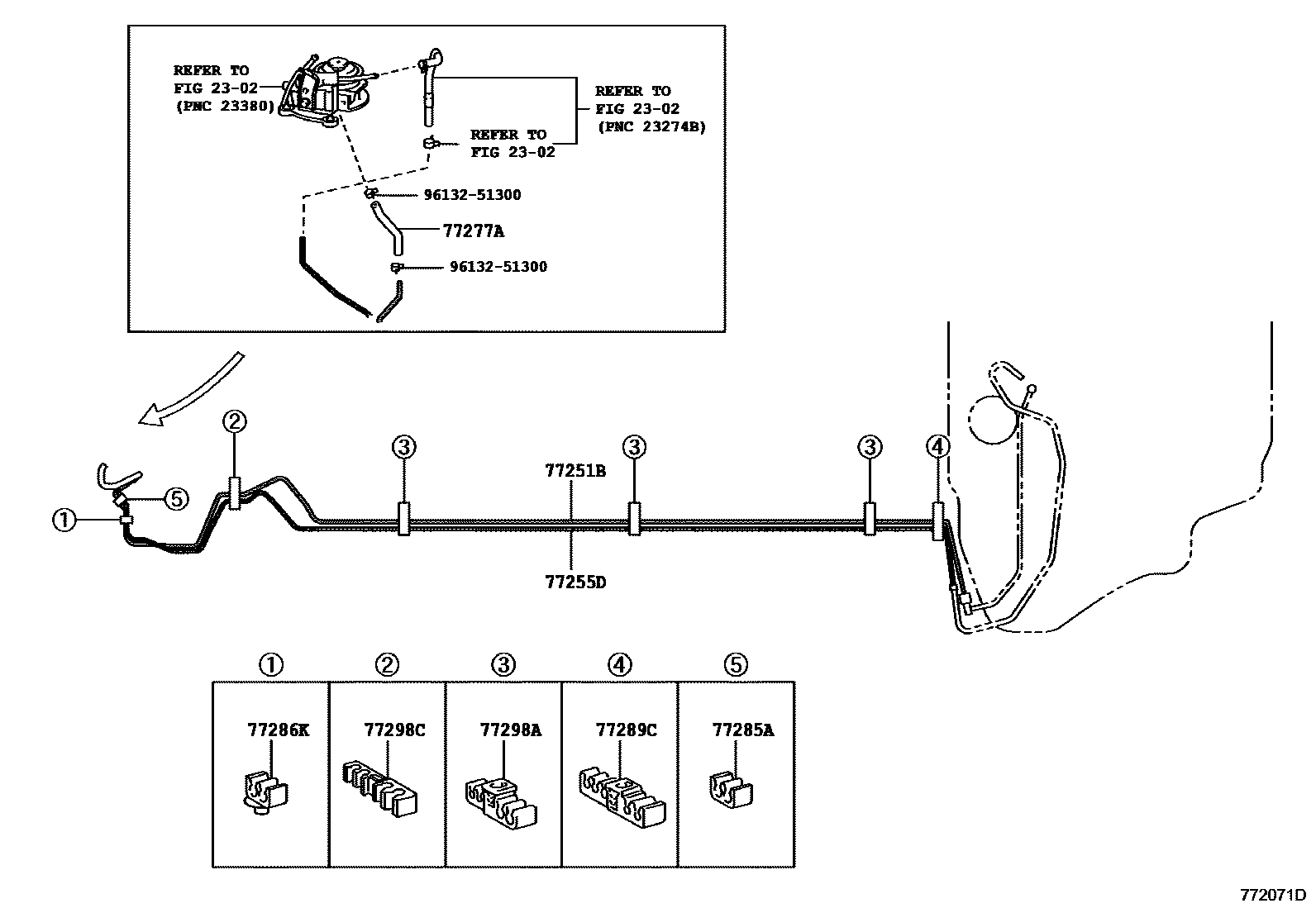

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 5 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-22120 · 23220-37050 · 23220-37170 · 23220-47010 · 23220-47011 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-21020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77017B | Fuel tank vent pipe sub-assembly | 77010-12370 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12560 · 77020-12570 · 77020-12790 |
| 77023D | Fuel suction pipe filter sub-assembly | 77023-12060 |
| 77024A | Fuel absorber sub-assembly | 77024-12050 · 77024-12120 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-12030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12450 · 77035-12460 |
| 77100 | fuel tank assembly | 77001-12B60 · 77001-12B80 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-12020 · 77174-72020 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12080 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-12680 · 77201-12690 · 77201-12790 · 77201-12800 · 77201-12A40 |
| 77207A | Fuel return pipe sub-assembly | 77204-12130 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-12210 |
| 77213E | Fuel tank to filler pipe hose | 77213-12300 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12190 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-47080 |
| 77226A | No. 6 fuel tank breather pipe | 77226-12060 |
| 77229C | Snorkel clamp | 77229-12070 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77251B | main fuel pipe | 77251-12720 · 77251-12730 · 77251-12800 · 77251-12810 |
| 77255D | fuel return pipe | 77255-12600 · 77255-12640 |
| 77259D | No. 1 fuel hose | 77259-76010 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12510 · 77261-12580 |
| 77277R | Fuel tank filler pipe protection device | 77277-12180 |
| 77281A | Fuel filler pipe clamp | 77281-12100 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77286K | No. 2 fuel pipe clamp | 77286-12120 · 77286-20190 |
| 77289C | No. 4 fuel pipe clamp | 77298-68010 |
| 77291A | Fuel tank filler pipe cover | 77291-12170 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-12120 |
| 77299A | No. 5 fuel pipe clamp | 77298-42010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-33020 · 64606-33030 |
| 77310A | Fuel tank cap assembly | 77300-20020 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-12490 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-35010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-53010 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-12130 |
| 77651A | No. 1 fuel tank liner | 77651-12070 |
| 77652A | No. 2 fuel tank liner | 77652-45020 |
| 77654A | No. 4 fuel tank liner | 77654-12090 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12160 · 77754-12161 |
| 77785 | fuel pump wiring harness | 77785-12010 · 77785-12020 |
