Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.

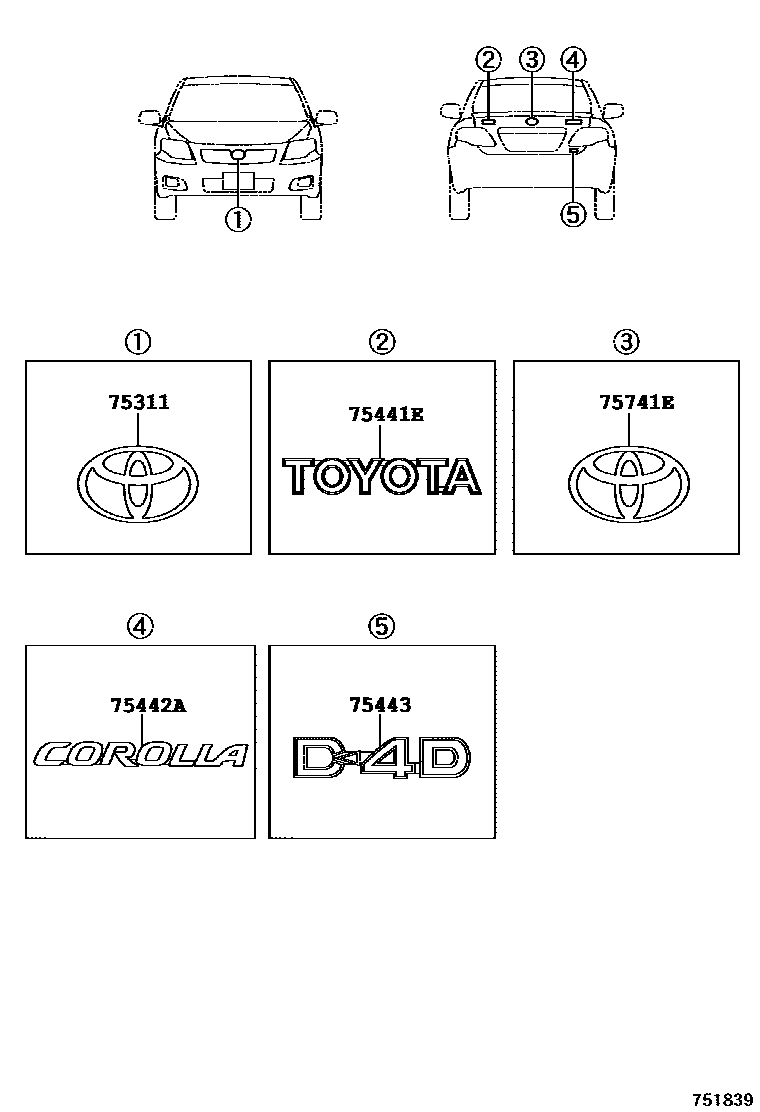

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751839
丰田徽标和铭牌(车外和车内) — 751839 (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-12380 · 75301-12390
75441EBack door No. 1 nameplate75441-12A00 · 75441-12A40
75442ANo. 2 nameplate on back door75442-12A10 · 75442-12A11 · 75442-12A90
75443No. 3 nameplate on back door75447-12050
75741Elogo90975-02071 · 90975-02127
