Toyota COROLLA 烟灰盒 — Figure 7404

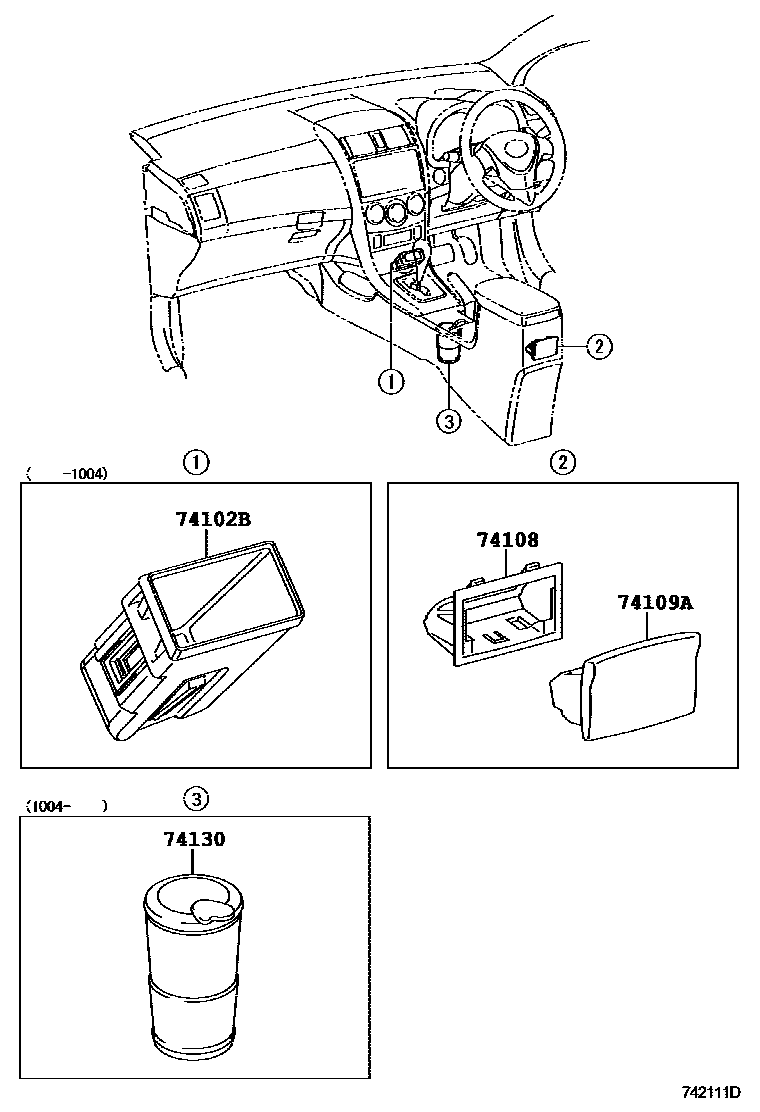

Toyota COROLLA EPC diagram 7404, 烟灰盒, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74102B | Front ashtray sub-assembly | 74102-12410 |
| 74108 | Rear ashtray fixing part sub-assembly | 74135-20090 |
| 74130 | Rear ashtray assembly | 74110-42010 · 74130-12070 · 74130-48060 |
