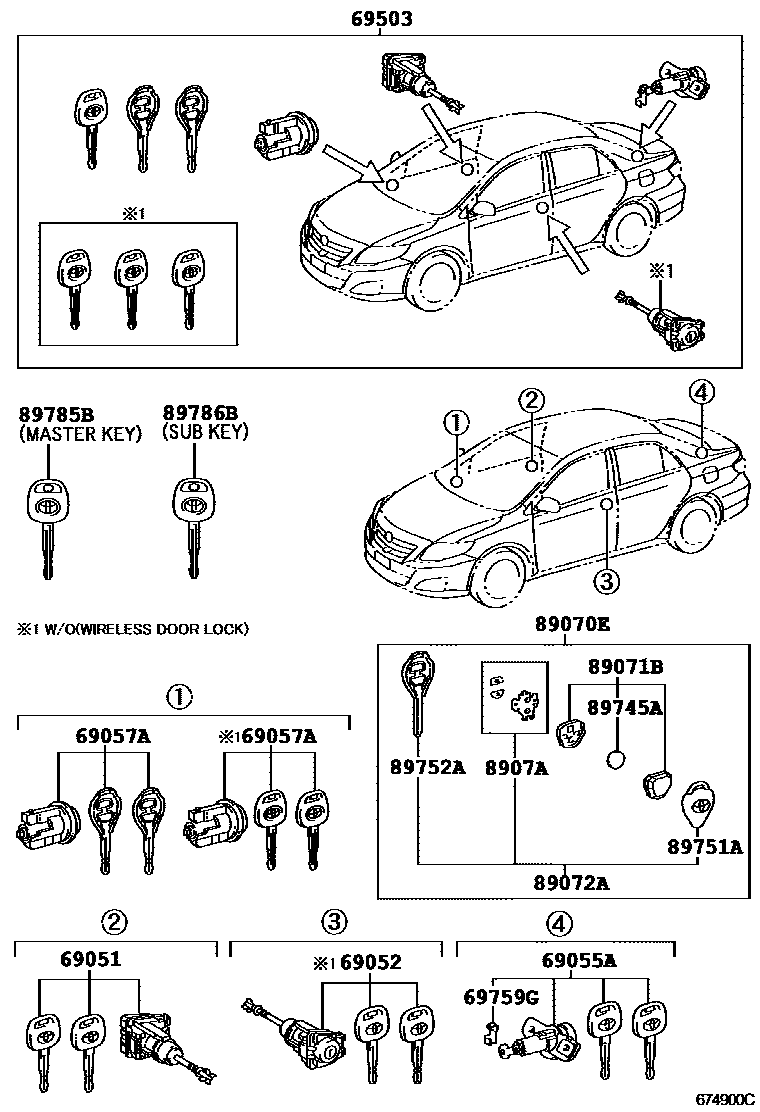

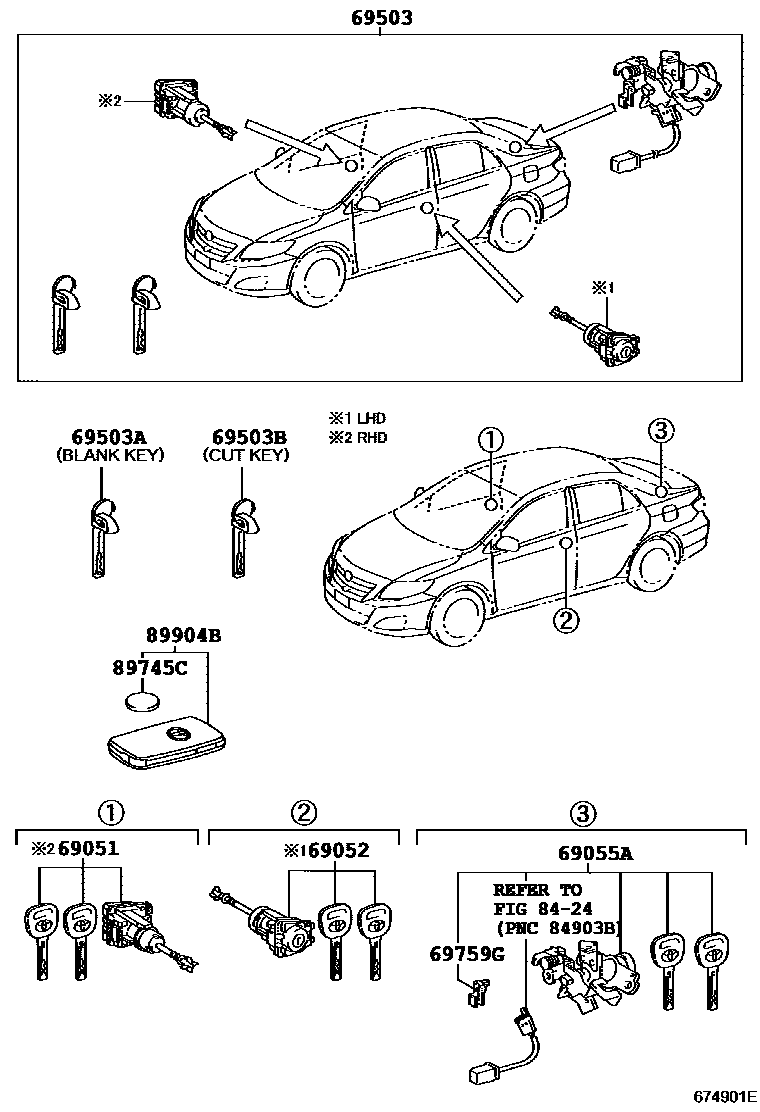

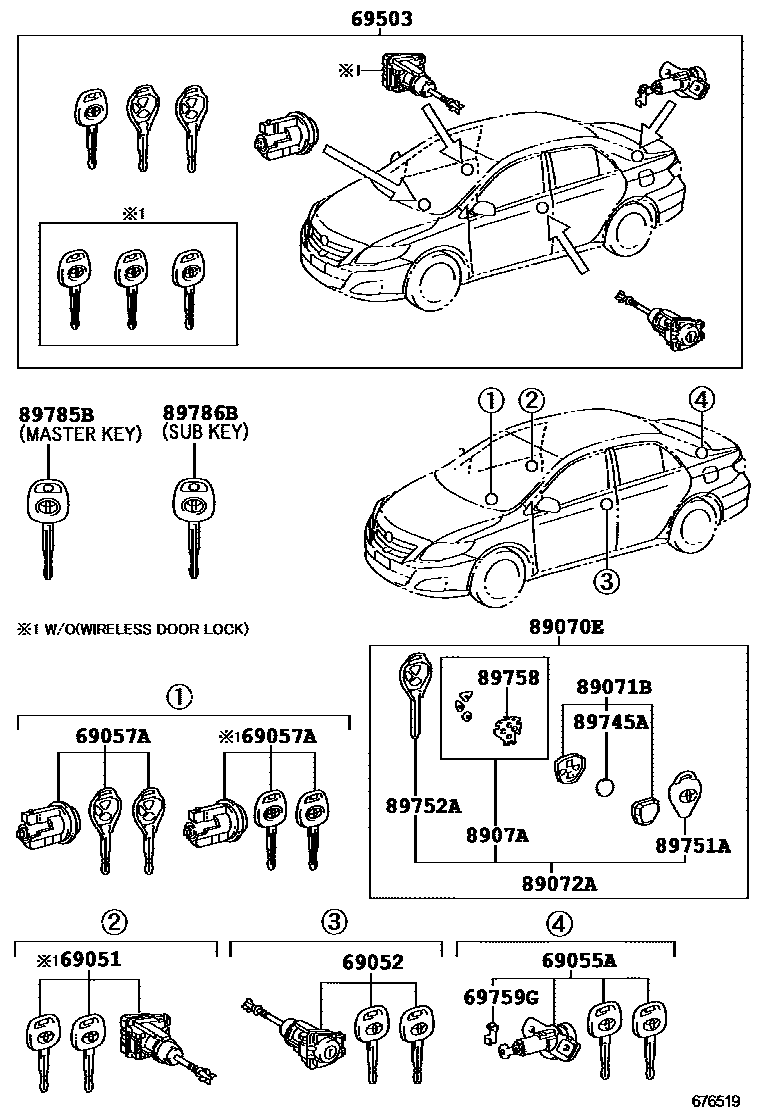

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12650 · 69051-12680 |
| 69052 | Left door lock cylinder and key assembly | 69052-12630 · 69052-21090 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12A20 · 69055-12A30 · 69055-12A40 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-28370 · 69057-52510 · 69057-60610 · 69057-60620 |
| 69503 | Door lock cylinder components | 69005-12B90 · 69005-12C00 · 69005-12C10 · 69005-12C20 · 69005-12C50 · 69005-12E40 · 69005-12F00 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-12730 · 89070-26310 · 89070-28811 · 89070-28812 |
| 89071B | Remote key sub-assembly module assembly | 89071-28201 · 89071-28202 · 89071-30130 |
| 89072A | Remote key shell assembly | 89072-22100 · 89072-26080 · 89072-28300 |
| 8907A | Transmitter switch assembly | 8907A-28010 · 8907A-33020 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52030 |
| 89751A | Transmitter housing cover | 89751-28070 · 89751-52140 |
| 89752A | transmitter housing | 89752-22070 · 89752-28050 |
| 89758 | Remote key seal | 89758-33010 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12040 · 89904-12041 · 89904-12042 · 89904-12230 |
