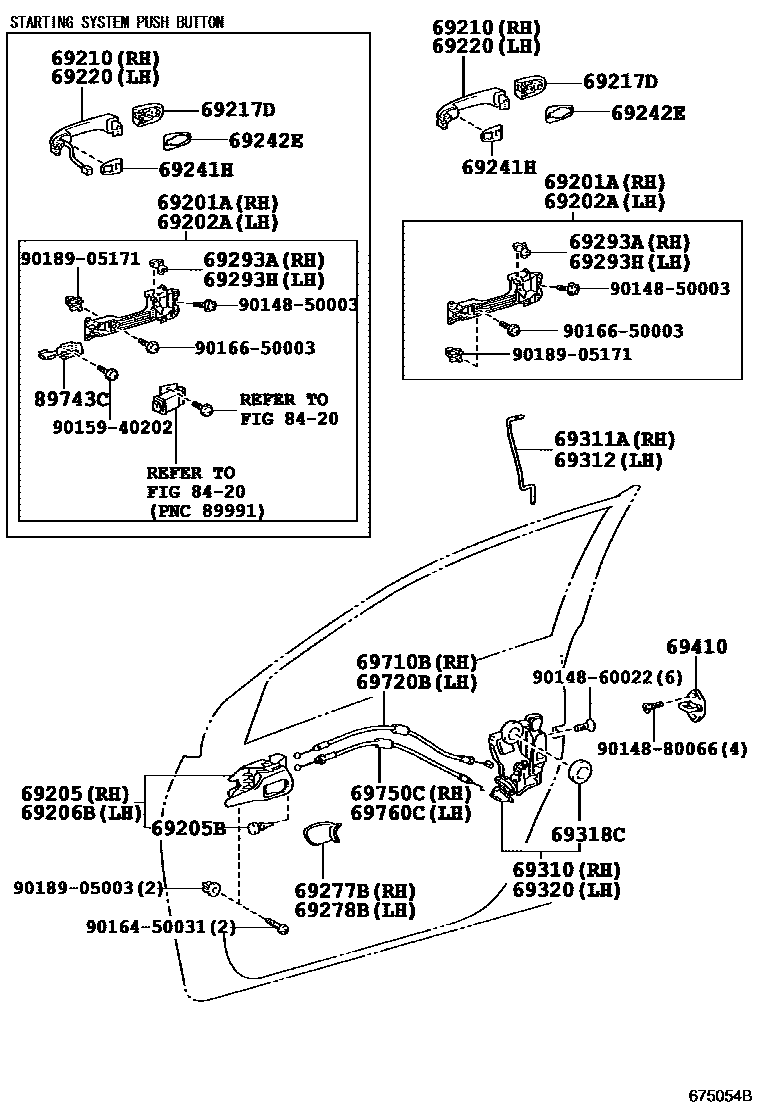

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-52040 · 69201-52060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-52020 · 69202-52040 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69211-42010 |
| 69217D | Front door outer handle cover | 69217-12030 · 69217-42010 |
| 69220 | Left front door outer handle assembly | 69211-42010 |
| 69241H | Front door exterior handle pad | 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-42010 · 69242-52020 |
| 69293A | Front door outer handle buckle | 69293-12030 |
| 69293H | Left front door outer handle buckle | 69293-12040 |
| 69310 | Right front door lock assembly | 69030-12490 · 69030-28171 · 69030-42210 · 69030-42220 · 69030-42221 |
| 69311A | Right front door lock opening lever | 69311-12160 |
| 69312 | Left front door lock opening lever | 69312-12160 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-12490 · 69040-28200 · 69040-42230 · 69040-42240 · 69040-42241 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710B | Right front door lock remote control cable assembly | 69710-12120 |
| 69720B | Left front door lock remote control cable assembly | 69710-12120 |
| 69750C | Right front door inner lock cable assembly | 69750-12150 |
| 69760C | Left front door inner lock cable assembly | 69750-12150 |
| 89743C | Electronic key harness bracket | 89743-47010 · 89743-47020 |
