Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

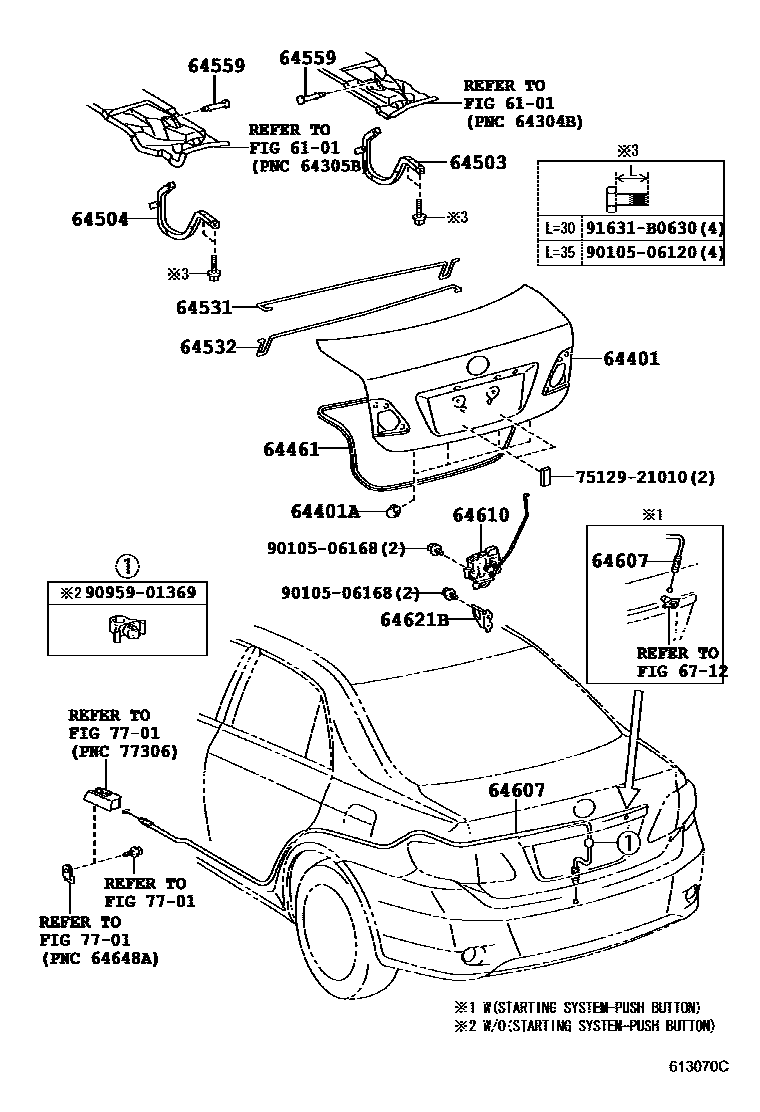

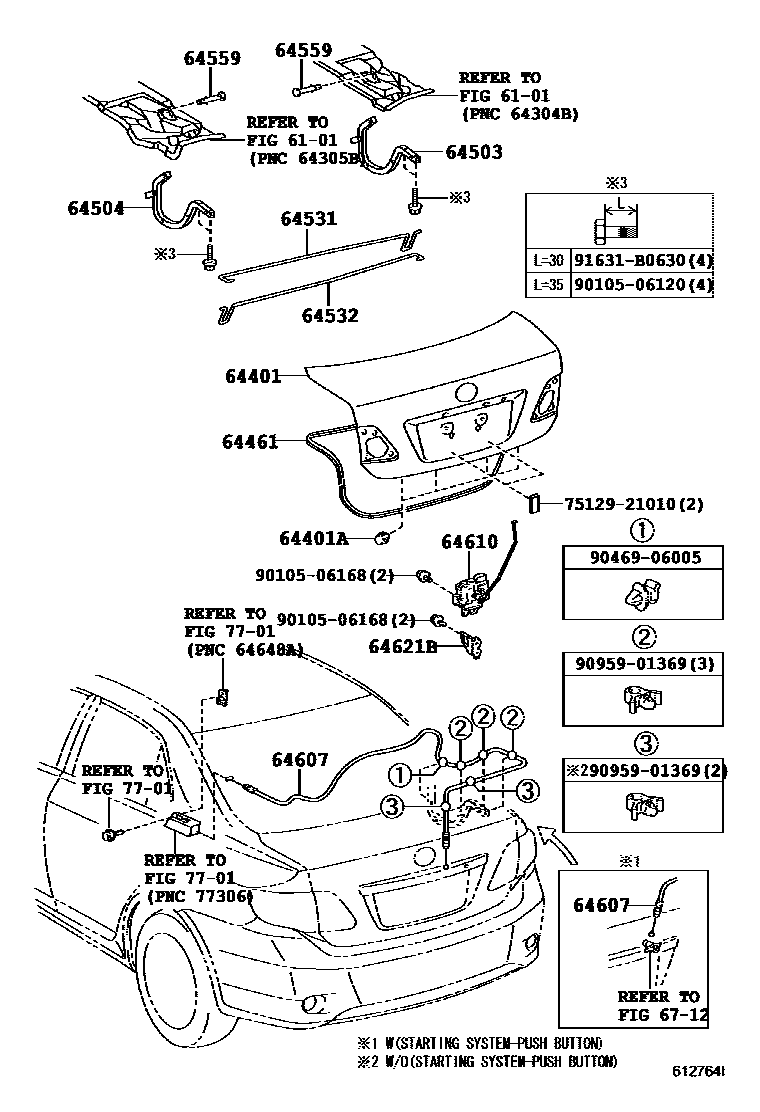

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-12B30 · 64401-12B50 · 64401-12C30 · 64401-12D10 · 64401-12D20 · 64401-12D30 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-12570 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12170 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-12170 |
| 64531 | Trunk door right hinge torsion bar | 64531-12790 · 64531-12830 · 64531-12831 |
| 64532 | Trunk door left hinge torsion bar | 64532-12770 · 64532-12810 · 64532-12811 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12800 · 64607-12801 · 64607-12810 · 64607-12811 · 64607-12890 · 64607-12891 · 64607-12A00 · 64607-12A01 |
| 64610 | Trunk door lock assembly | 64600-12020 · 64600-12021 · 64610-12390 |
| 64621B | Trunk door latch | 64621-33010 |
