Toyota COROLLA 地板垫和地毯 — Figure 5804

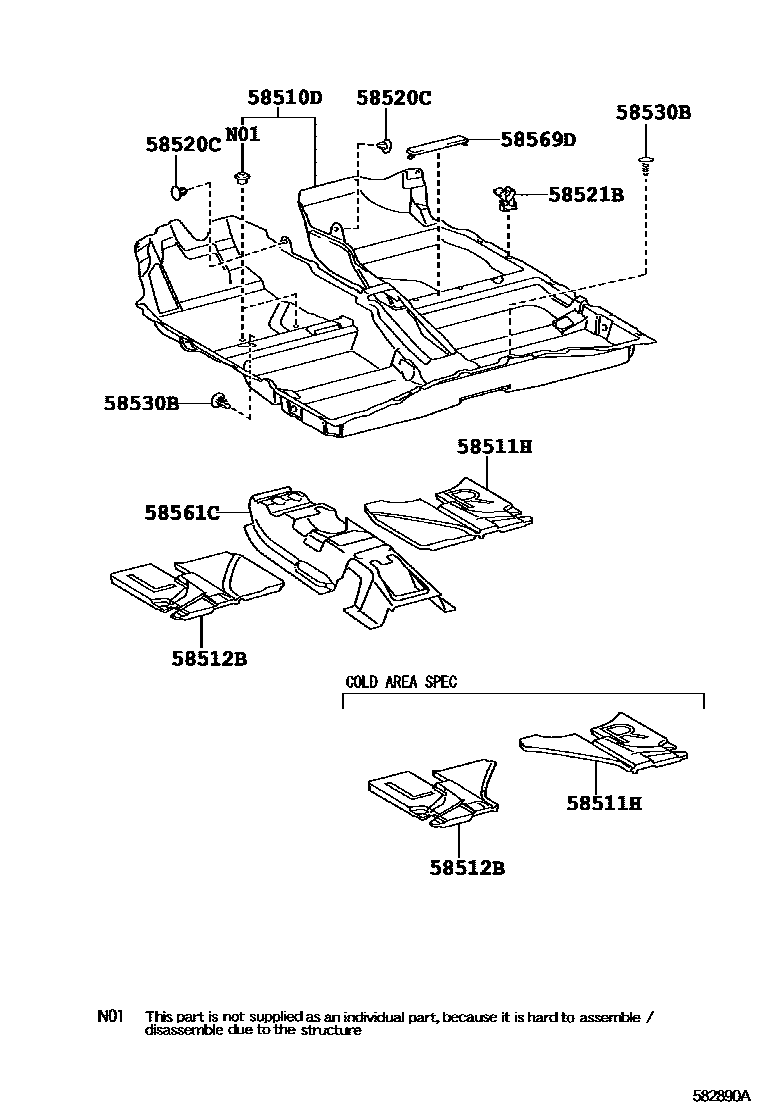

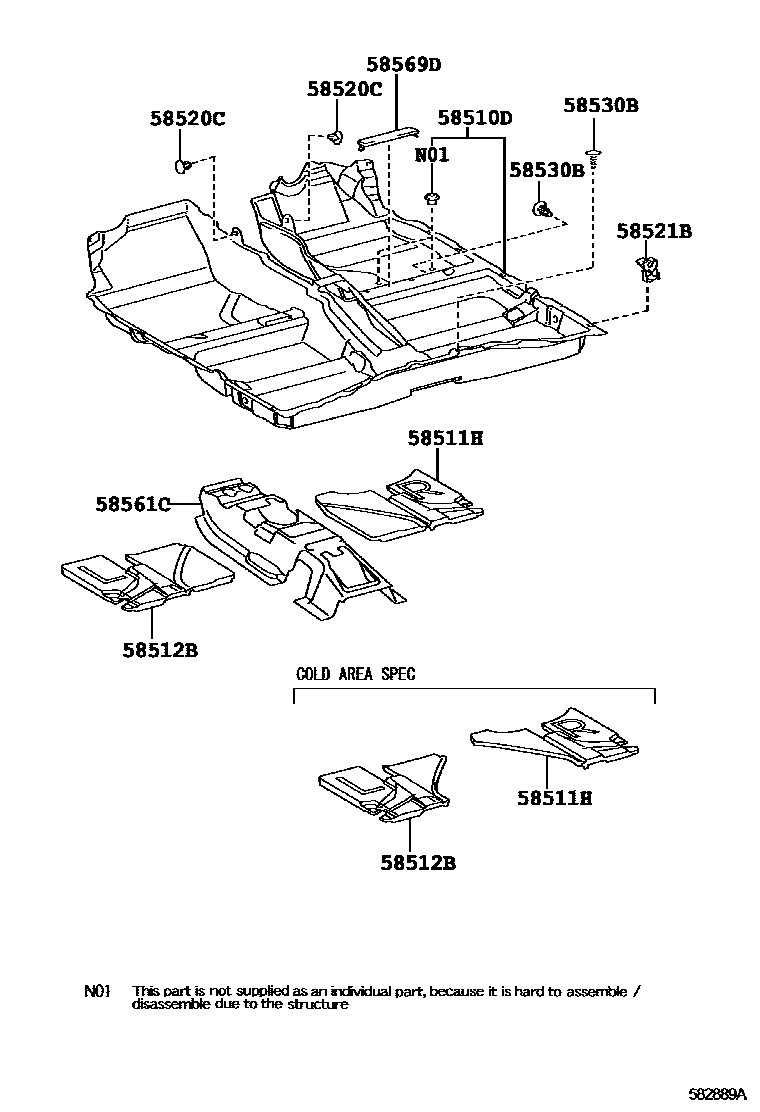

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58511H | Front floor right mat | 58512-12190 · 58512-12200 |
| 58512B | Front floor left mat | 58511-12610 · 58511-12620 |
| 58521B | carpet hook | 58521-12140 |
| 58561C | Front floor silencer No. 1 | 58561-12040 · 58561-12041 |
