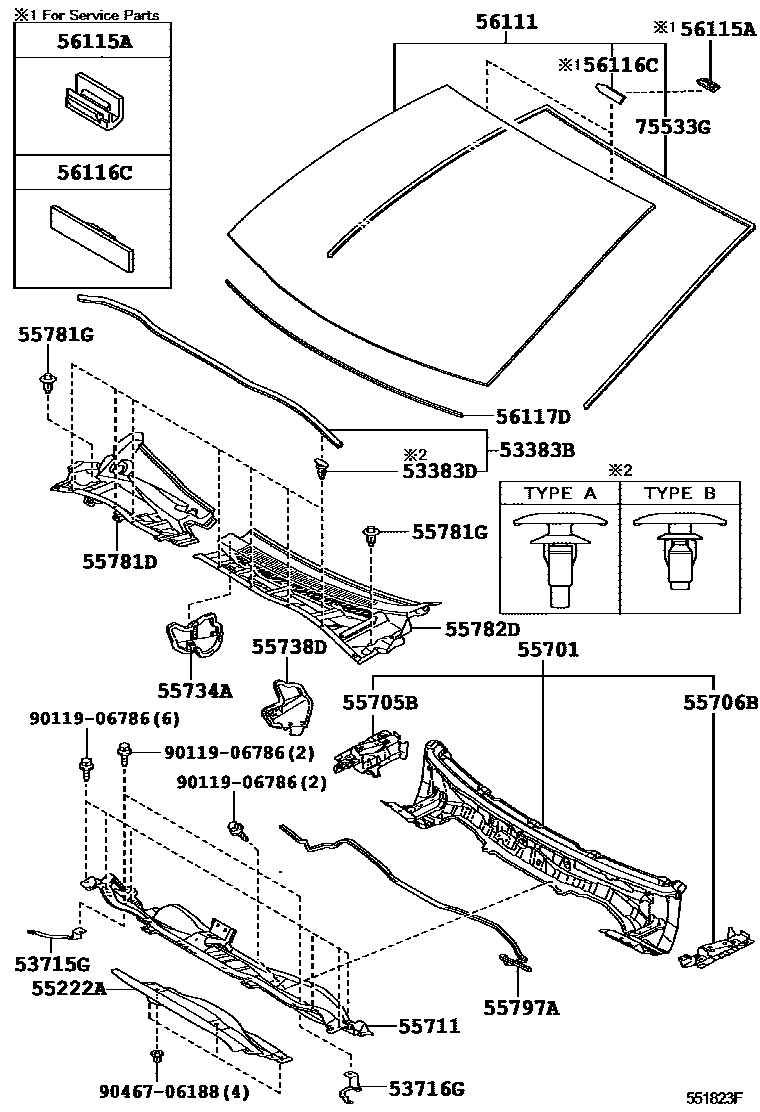

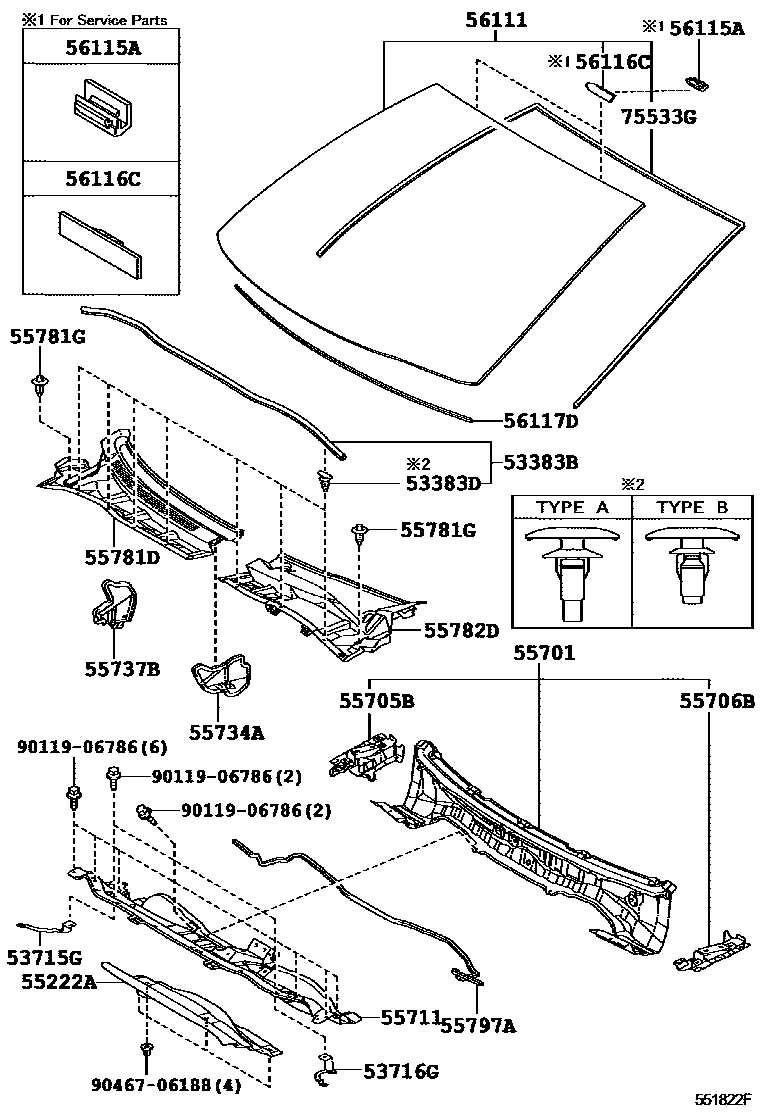

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12160 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 · 67867-52030 |
| 53715G | Right front fender fender rear extension | 53715-12071 |
| 53716G | Left front fender fender rear extension | 53716-12081 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-12020 |
| 55701 | Front apron sub-assembly | 55700-12A80 · 55700-12B00 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12080 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12090 |
| 55711 | Front outer panel | 55701-12A20 · 55701-12A30 |
| 55734A | Right waterproof cover | 55734-12120 · 55734-12130 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-12060 |
| 55738D | No. 2 heater duct splash guard seal | 55737-12070 |
| 55781D | Ventilation grille on right front apron | 55708-12330 · 55708-12340 · 55708-12350 |
| 55782D | Ventilation grille on left front apron | 55709-12110 · 55709-12120 |
| 55797A | Front wall pumping device seal | 55737-74010 · 55797-12040 |
| 56111 | windshield | 56101-12190 · 56101-12191 · 56101-12192 · 56101-12193 · 56101-12194 · 56101-12200 · 56101-12201 · 56101-12202 · 56101-12203 · 56101-12220 · 56101-12221 · 56101-12222 · 56101-12223 · 56101-12280 · 56101-12281 · 56101-12282 · 56101-12283 · 56101-12730 · 56101-12731 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117D | windshield adhesive seal | 56117-12300 |
| 75533G | Windshield outer protective strip | 75531-12690 |
